Identifying the refrigerant in a system is a critical step in HVAC and refrigeration maintenance, as using the wrong refrigerant can lead to system damage, inefficiency, or safety hazards. The process begins with checking the system’s nameplate or label, which often lists the refrigerant type. If the label is missing or illegible, technicians can refer to the system’s documentation or consult the manufacturer. Additionally, refrigerant identifiers, such as electronic leak detectors or chemical spot tests, can be used to determine the type by analyzing the gas. It’s also important to consider the system’s age and design, as older systems may use phased-out refrigerants like R-22, while newer ones typically use environmentally friendly alternatives like R-410A or R-32. Always follow safety protocols and local regulations when handling refrigerants to ensure proper identification and compliance.
| Characteristics | Values |
|---|---|
| Labeling | Check for labels or markings on the system, components, or refrigerant container. Labels often include the refrigerant type (e.g., R-22, R-410A, R-134a). |
| Pressure-Temperature Relationship | Use a PT chart specific to the refrigerant to compare system pressures and temperatures. Each refrigerant has a unique PT relationship. |
| Color-Coded Components | Some systems use color-coded fittings, caps, or labels to indicate refrigerant type (e.g., R-410A is often pink, R-22 is often yellow). |
| Refrigerant Oil Type | Identify the type of oil used in the system (e.g., POE for R-410A, mineral oil for R-22). Oil type is often linked to the refrigerant. |
| System Design | Observe system design features (e.g., R-410A systems typically have larger tubing and components compared to R-22 systems). |
| Refrigerant Cylinders | Check the color and markings on refrigerant cylinders. Each refrigerant has a specific cylinder color (e.g., R-134a is light blue, R-410A is gray). |
| Electronic Leak Detectors | Use refrigerant-specific leak detectors that identify the type of refrigerant present in the system. |
| Chemical Analysis | Perform a chemical analysis of the refrigerant sample using specialized equipment to determine its composition. |
| Manufacturer Documentation | Refer to the system's manual, service guides, or manufacturer documentation for refrigerant type information. |
| System Age and Regulations | Consider the age of the system and applicable regulations (e.g., older systems may use phased-out refrigerants like R-22). |
| Digital Gauges and Tools | Use digital gauges or tools that can identify refrigerant types based on pressure and temperature readings. |
Explore related products
What You'll Learn
- Check Refrigerant Labels: Inspect system components for labels indicating refrigerant type used
- Use Pressure-Temperature Charts: Compare system pressures with refrigerant-specific PT charts
- Analyze Oil Type: Identify oil compatibility with specific refrigerants in the system
- Test with Refrigerant Identifier: Use electronic tools to detect refrigerant type accurately
- Review System Documentation: Check manuals, service records, or manufacturer specs for refrigerant details
Check Refrigerant Labels: Inspect system components for labels indicating refrigerant type used
Refrigerant labels are often the first and most straightforward clue to identifying the type of refrigerant in a system. These labels are typically affixed to key components such as the compressor, condenser, or evaporator, and they provide critical information about the refrigerant used. Manufacturers are required by regulations like the U.S. EPA’s Clean Air Act to clearly mark systems with the refrigerant type, often using standardized codes like R-22, R-410A, or R-32. A quick visual inspection of these labels can save time and prevent errors in servicing or recharging the system.
When inspecting labels, look for color-coding or symbols that may accompany the refrigerant type. For instance, R-410A systems often feature a distinct purple or green label, while R-22 systems may have a yellow or orange marking. These visual cues are designed to help technicians quickly differentiate between refrigerants, especially in systems that may appear similar at first glance. If the label is faded or partially obscured, use a flashlight to enhance visibility or gently clean the area with a damp cloth to reveal the details.
Not all labels are created equal, and some may include additional information beyond the refrigerant type. For example, labels might specify the refrigerant’s global warming potential (GWP), ozone depletion potential (ODP), or recommended operating pressures. This supplementary data can be invaluable for technicians who need to ensure compatibility with new refrigerants or comply with environmental regulations. Always cross-reference the label information with the system’s manual or manufacturer guidelines to avoid mistakes.
In cases where labels are missing or illegible, proceed with caution. Do not assume the refrigerant type based on the system’s age or appearance alone, as retrofits and modifications are common. Instead, use alternative identification methods such as pressure-temperature charts or refrigerant identifiers. However, if a label is present, it remains the most reliable and efficient way to determine the refrigerant in use. Always document the refrigerant type for future reference, especially in commercial or industrial systems where multiple units may be present.
Refrigerator Impact: Do Bananas Brown Faster When Chilled?
You may want to see also
Explore related products
Use Pressure-Temperature Charts: Compare system pressures with refrigerant-specific PT charts
Pressure-temperature (PT) charts are indispensable tools for identifying refrigerants in a system, leveraging the unique thermodynamic properties of each refrigerant. These charts plot saturation pressures against corresponding temperatures, creating a fingerprint that allows technicians to match system readings with specific refrigerants. By measuring the suction and discharge pressures of a running system and cross-referencing them with a PT chart, you can narrow down the refrigerant type with precision. For instance, if a system operates at 68 psi (suction) and 220 psi (discharge) at 80°F ambient temperature, consulting a PT chart reveals R-22 as a likely candidate, while R-410A would show significantly higher pressures under the same conditions.
To effectively use PT charts, follow these steps: first, ensure the system is operating under stable conditions—allow it to run for at least 15 minutes to stabilize pressures. Next, measure the suction and discharge pressures using a reliable gauge set. Record the ambient temperature, as it directly influences the system’s operating pressures. Finally, locate the measured pressures on the PT chart for the suspected refrigerant. If the readings align with the chart’s saturation curve, the refrigerant is likely correct. For example, R-134a typically operates at 20–30 psi (low side) and 120–150 psi (high side) at 80°F, while R-404A shows higher pressures in the same conditions.
Caution must be exercised when interpreting PT charts, as external factors can skew readings. Contamination with air or moisture, incorrect charge levels, or system inefficiencies can cause pressures to deviate from expected values. Additionally, PT charts are refrigerant-specific, so using the wrong chart will lead to inaccurate conclusions. Always verify the system’s design refrigerant before consulting the chart. For blended refrigerants like R-407C or R-410A, slight variations in composition can affect pressures, so precise identification is critical.
The analytical power of PT charts lies in their ability to differentiate between refrigerants with similar properties. For example, R-407C and R-407F both replace R-22 but have distinct PT curves. While R-407C operates at slightly lower pressures, R-407F pressures more closely resemble R-22. By carefully comparing system pressures to these curves, technicians can avoid misidentification, which could lead to costly errors, such as charging the wrong refrigerant or misdiagnosing system issues.
In conclusion, PT charts are a cornerstone of refrigerant identification, offering a scientific approach to diagnosing systems. Their effectiveness hinges on accurate measurements, proper chart selection, and awareness of external influences. By mastering their use, technicians can confidently identify refrigerants, ensuring system compatibility and optimal performance. Always pair PT chart analysis with other methods, such as label verification or refrigerant identifiers, for comprehensive accuracy.
Do Refrigerators Interfere with Wi-Fi Signals? The Truth Revealed
You may want to see also
Explore related products
Analyze Oil Type: Identify oil compatibility with specific refrigerants in the system
The oil in a refrigeration system isn't just a lubricant; it's a critical partner to the refrigerant. Incompatible oil can lead to sludge formation, reduced heat transfer, and even compressor failure. Think of it like using diesel in a gasoline engine – it simply won't work efficiently, and damage is inevitable.
Identifying the correct oil type is therefore a crucial step in refrigerant identification.
Understanding Oil Types and Compatibility
Let's break down the key players. Mineral oils, traditionally used with CFC and HCFC refrigerants, are incompatible with newer HFCs like R-410A. These HFCs require synthetic oils like POE (polyol ester) or PAG (polyalkylene glycol) for proper lubrication and solubility. Imagine trying to mix oil and water – that's the incompatibility you're avoiding. POE oils, for instance, are hygroscopic, meaning they readily absorb moisture, which can lead to acid formation and system corrosion if not handled properly.
Practical Steps for Oil Analysis
- Visual Inspection: Start with the basics. Check the oil's color and clarity. POE oils are typically clear, while mineral oils can have a slight amber hue. Look for any signs of contamination, like metal shavings or debris, which could indicate system issues.
- Oil Sampling and Testing: For a definitive answer, take an oil sample and send it to a laboratory for analysis. They can identify the oil type, check for contaminants, and assess its overall condition. This is especially important if you suspect oil degradation or mixing.
- Consult Manufacturer Guidelines: Always refer to the equipment manufacturer's specifications. They will provide detailed information on the recommended oil type and viscosity for the specific refrigerant used in the system.
Consequences of Incompatible Oil
Using the wrong oil can have severe consequences. Sludge formation can clog valves and restrict refrigerant flow, leading to reduced cooling capacity and increased energy consumption. Acid buildup from moisture contamination can corrode system components, leading to costly repairs. In extreme cases, compressor seizure can occur, requiring a complete system overhaul.
The Takeaway
Analyzing oil type is not just a technicality; it's a vital step in ensuring the longevity and efficiency of your refrigeration system. By understanding oil compatibility, performing thorough inspections, and consulting manufacturer guidelines, you can avoid costly mistakes and keep your system running smoothly. Remember, the right oil is the lifeblood of your refrigerant, ensuring optimal performance and preventing costly breakdowns.
Room Temp Breastmilk and Refrigerated: Safe Mixing Tips for Moms
You may want to see also
Explore related products

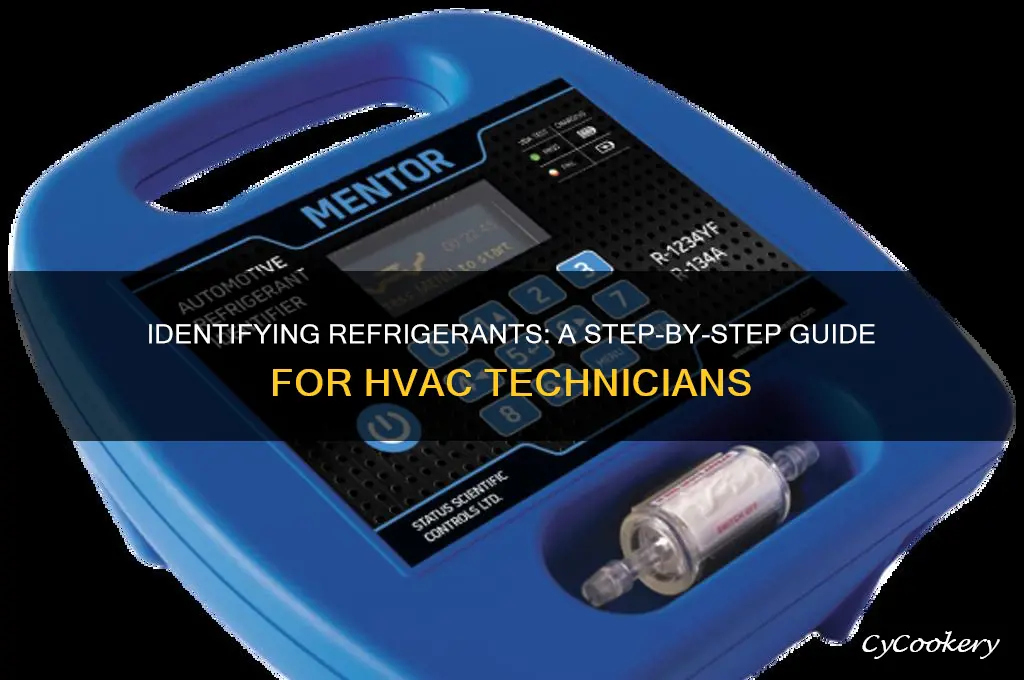

Test with Refrigerant Identifier: Use electronic tools to detect refrigerant type accurately
Electronic refrigerant identifiers have revolutionized the way technicians diagnose cooling systems, offering precision that manual methods can't match. These handheld devices operate by analyzing the thermal conductivity of the refrigerant, a property that varies significantly between types. For instance, R-22 exhibits a thermal conductivity of approximately 0.012 W/mK, while R-410A measures around 0.015 W/mK. By measuring this characteristic, the identifier can distinguish between refrigerants with high accuracy, often within seconds. This method eliminates guesswork and reduces the risk of misidentification, which can lead to costly system damage or inefficiency.
To use a refrigerant identifier effectively, follow these steps: first, ensure the system is depressurized and the refrigerant is in a gaseous state for accurate reading. Attach the identifier’s probe to the service port or access valve, allowing a small sample to enter the device. Activate the tool, which will display the refrigerant type on its screen, often alongside purity levels. For example, the Bacharach True PurTest identifies not only the refrigerant but also its contamination level, ensuring the system’s integrity. Always consult the manufacturer’s instructions, as some devices require calibration before use or specific environmental conditions for optimal performance.
While refrigerant identifiers are highly reliable, they are not infallible. Factors like temperature fluctuations or residual oils in the system can skew results. To mitigate this, clean the service port thoroughly before testing and ensure the ambient temperature is stable. Additionally, cross-reference the identifier’s reading with other diagnostic methods, such as pressure-temperature charts, for confirmation. For instance, if the identifier detects R-134a, verify that the system’s pressure aligns with R-134a’s expected range at the current temperature. This layered approach enhances accuracy and builds confidence in the diagnosis.
Investing in a quality refrigerant identifier is a wise decision for both professionals and DIY enthusiasts. Models like the INFICON Refrigerant Identifier or the Fieldpiece SRF2 offer advanced features such as multi-refrigerant detection and data logging, catering to diverse needs. While initial costs range from $200 to $800, the long-term savings from preventing misdiagnosis and system damage far outweigh the expense. Regularly updating the device’s firmware ensures compatibility with newer refrigerants, such as low-GWP alternatives, keeping your diagnostic capabilities current in an evolving industry.
In conclusion, refrigerant identifiers are indispensable tools for accurately detecting refrigerant types in cooling systems. Their speed, precision, and ease of use make them superior to traditional methods, though careful operation and supplementary verification are essential. By integrating these devices into your diagnostic toolkit, you not only enhance efficiency but also uphold system performance and safety, ensuring compliance with environmental regulations and industry standards.
Should Kewpie Mayo Be Refrigerated Before Opening? A Guide
You may want to see also
Explore related products
Review System Documentation: Check manuals, service records, or manufacturer specs for refrigerant details
System documentation is often the most direct and reliable method to identify the refrigerant in a system. Manufacturers and service technicians typically record this critical information in manuals, service records, or specifications, ensuring compliance with safety and environmental regulations. For instance, a residential air conditioning unit’s manual might explicitly state the use of R-410A, a common hydrofluorocarbon refrigerant, along with its recommended charge amount, usually ranging from 1.5 to 3 pounds per ton of cooling capacity. This detail not only confirms the refrigerant type but also aids in proper maintenance and troubleshooting.
Analyzing service records can reveal historical refrigerant changes or retrofits, which are particularly useful for older systems. For example, a commercial refrigeration unit originally designed for R-22 may have been converted to use R-407C, a drop-in replacement, due to R-22’s phaseout under the Montreal Protocol. Such records often include dates, technician notes, and compliance certifications, providing a clear timeline of refrigerant usage. This historical context is invaluable for understanding the system’s current state and planning future upgrades or repairs.
Manufacturer specifications are another goldmine of information, often detailing not just the refrigerant type but also its compatibility with system components. For instance, a heat pump’s specs might specify the use of R-32, a refrigerant with a lower global warming potential (GWP) than R-410A, while noting its flammability (classified as A2L) and the need for specialized handling. These details are crucial for safety, as using the wrong refrigerant can damage the system or pose risks to operators. Always cross-reference the model and serial numbers to ensure accuracy, as specifications can vary even within the same product line.
Practical tips for accessing this documentation include checking the system’s nameplate or label, which often provides a quick reference to the refrigerant type and charge. If physical documents are missing, many manufacturers offer digital archives on their websites, searchable by model number. For older or discontinued systems, contacting the manufacturer directly or consulting industry databases like the Air-Conditioning, Heating, and Refrigeration Institute (AHRI) can yield the necessary details. Keeping a digital or physical copy of this documentation in a centralized location ensures easy access during routine maintenance or emergencies.
In conclusion, reviewing system documentation is a straightforward yet often overlooked step in identifying refrigerants. It combines historical data, manufacturer insights, and compliance information into a comprehensive resource. By leveraging manuals, service records, and specifications, technicians and operators can ensure they are using the correct refrigerant, maintaining system efficiency, and adhering to regulatory standards. This approach not only saves time but also minimizes the risk of errors that could lead to costly repairs or environmental harm.
Overloading Doors in Frigidaire Refrigerators: Risks and Best Practices
You may want to see also
Frequently asked questions
Use a refrigerant identifier tool, which detects the chemical composition of the refrigerant by testing a small sample. Alternatively, check the system’s service manuals, manufacturer’s documentation, or look for markings on the compressor or components.
Common refrigerants include R-22, R-410A, R-134a, and R-32. Differentiate them by checking the system’s label, using a refrigerant identifier, or noting the system’s age (e.g., R-22 in older systems, R-410A in newer ones).
No, refrigerants are typically colorless and odorless. Identification relies on tools, labels, or documentation rather than physical characteristics.
Always verify the refrigerant type using a refrigerant identifier or by consulting the system’s documentation. Using the wrong refrigerant can damage the system or pose safety risks.
