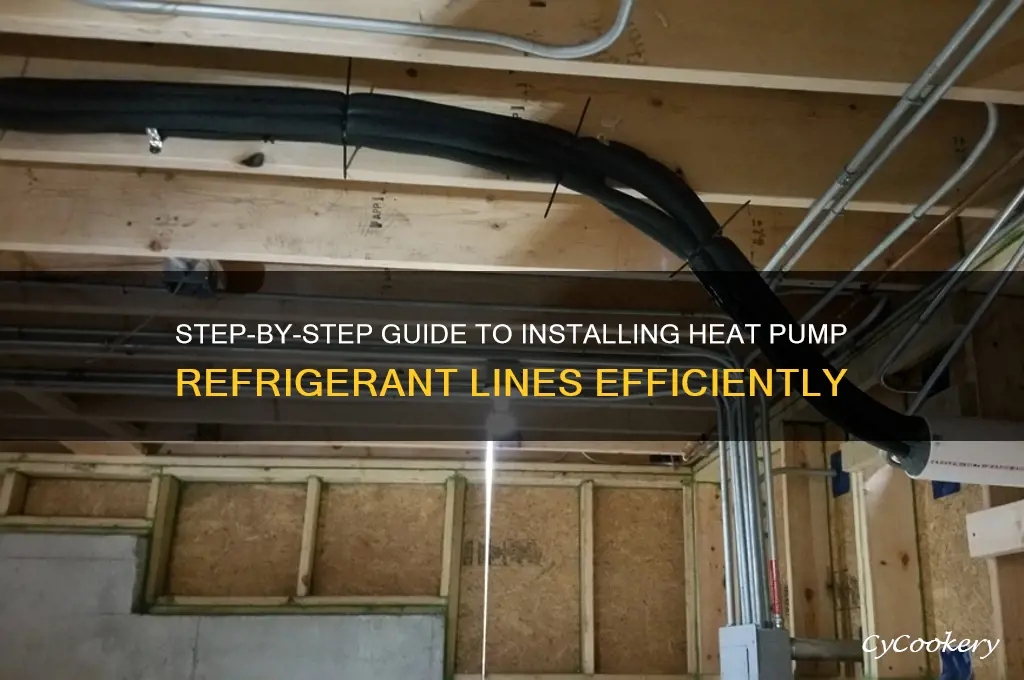

Installing heat pump refrigerant lines is a critical step in ensuring the efficient operation of your heating and cooling system. This process involves carefully connecting the indoor and outdoor units using copper or aluminum tubing, which carries the refrigerant necessary for heat exchange. Proper installation requires precise measurements, accurate flaring or brazing of connections, and adherence to local building codes and manufacturer guidelines. Additionally, it’s essential to evacuate the lines to remove moisture and air, ensuring optimal performance and longevity of the system. While experienced DIYers may tackle this task, hiring a certified HVAC technician is recommended to guarantee safety, compliance, and warranty protection.
Heat Pump Refrigerant Line Installation Characteristics
| Characteristics | Values |
|---|---|
| Line Set Sizing | Correctly size refrigerant lines based on heat pump capacity and manufacturer specifications. Undersized lines restrict refrigerant flow, reducing efficiency. |
| Line Insulation | Use closed-cell foam insulation with a minimum thickness of 1 inch to prevent condensation and energy loss. |
| Line Slope | Maintain a minimum slope of 1/4 inch per foot towards the outdoor unit to ensure proper oil return and prevent refrigerant pooling. |
| Line Support | Secure lines every 6 feet with insulated supports to prevent sagging and damage. |
| Line Connections | Use flare fittings with proper torque specifications and nitrogen purging to prevent leaks. |
| Vacuum Pumping | Evacuate the system to a minimum of 500 microns for at least 30 minutes to remove moisture and air. |
| Refrigerant Charging | Charge the system according to manufacturer specifications using a digital scale and superheat/subcooling measurements. |
| Leak Testing | Perform a thorough leak test using electronic leak detectors or soap bubbles after charging. |
| Electrical Connections | Ensure proper grounding and secure all electrical connections according to local codes. |
| Clearances | Maintain minimum clearances around the outdoor unit for proper airflow and service access. |
Explore related products
What You'll Learn
- Plan Routing & Sizing: Determine optimal line path, size tubing for capacity, ensure proper slope
- Prepare Materials: Gather copper tubing, insulation, fittings, brazing equipment, vacuum pump, gauges
- Brazing Techniques: Clean joints, apply flux, braze with propane torch, inspect for leaks
- Evacuation & Charging: Evacuate system, charge refrigerant per manufacturer specs, monitor pressures
- Insulation & Securing: Insulate lines, secure with straps, protect from damage, ensure proper drainage
Plan Routing & Sizing: Determine optimal line path, size tubing for capacity, ensure proper slope
Proper routing and sizing of refrigerant lines are critical to the efficiency and longevity of a heat pump system. The path of the lines should minimize bends and avoid sharp angles, as each 90-degree turn can increase pressure drop by up to 1 psi. Ideally, the route should be as straight as possible, with gradual bends using large-radius elbows to maintain flow efficiency. For outdoor runs, consider burying lines below the frost line to prevent freezing, or use insulated tubing if surface mounting is unavoidable. Indoor lines should follow the shortest path to the air handler, avoiding areas prone to high temperatures or physical damage.
Tubing size directly impacts system performance, with undersized lines causing high pressure drops and oversized lines leading to inefficient refrigerant flow. For residential heat pumps, common line sizes include 3/8-inch liquid lines and 5/8-inch suction lines for systems up to 3 tons, while larger systems may require 1/2-inch liquid and 7/8-inch suction lines. Use ACCA Manual J calculations or manufacturer guidelines to determine the exact size based on system capacity and length of the run. Oversizing by one diameter is acceptable for runs over 50 feet to compensate for friction loss, but avoid excessive upsizing, as it can lead to oil logging in the evaporator.
Slope is equally vital to ensure proper oil and refrigerant return to the compressor. Suction lines should slope toward the outdoor unit at a minimum of 1/4 inch per foot, while liquid lines should slope toward the indoor unit at the same rate. Use a level to verify slope consistency, especially in long runs or horizontal installations. For vertical runs, install a trap at the base of the suction line to collect oil and ensure it returns to the compressor. Improper slope can lead to oil starvation, compressor damage, or reduced heating/cooling efficiency.
When planning the route, consider future maintenance access and aesthetic impact. Avoid running lines through living spaces or areas with high foot traffic, opting instead for attics, crawl spaces, or exterior walls. Use line sets with pre-insulated tubing to minimize heat gain or loss, and secure lines every 3 to 4 feet with insulated straps to prevent rubbing or vibration. For multi-story installations, stagger lines vertically to maintain proper slope and reduce the risk of liquid refrigerant trapping in the suction line.
Finally, coordinate with electrical and plumbing systems to avoid conflicts. Maintain a minimum clearance of 6 inches from electrical lines and 3 inches from plumbing pipes to prevent interference or damage. If running lines through walls or floors, use protective sleeves to prevent insulation damage and ensure compliance with local building codes. A well-planned routing and sizing strategy not only optimizes system performance but also reduces installation time and long-term maintenance costs.
Publix Sub Refrigeration Guide: Maximizing Freshness and Shelf Life
You may want to see also
Explore related products
Prepare Materials: Gather copper tubing, insulation, fittings, brazing equipment, vacuum pump, gauges
Copper tubing forms the backbone of your heat pump's refrigerant lines, so choose wisely. Soft copper (Type L) is the industry standard for its balance of durability and workability. Opt for tubing sized to match your heat pump's specifications, typically ranging from 3/8" to 7/8" outer diameter. Remember, refrigerant flow is critical, so avoid kinking or flattening the tubing during handling and installation.
Pre-insulated tubing saves time and ensures a professional finish. Select insulation with a thickness appropriate for your climate, generally 1/2" to 1" for most residential applications. Closed-cell foam insulation offers superior moisture resistance and thermal performance compared to open-cell alternatives.
Fittings are the unsung heroes of a leak-free system. Gather a variety of elbows, tees, couplings, and valves in the correct sizes to match your tubing. Brass fittings are durable and corrosion-resistant, making them a reliable choice. Don't forget to include a filter-drier to protect your heat pump from debris and moisture.
Brazing is the preferred method for joining copper tubing, providing strong, leak-proof connections. Assemble your brazing kit with a propane torch, oxy-acetylene torch (for larger diameters), silver solder (56% silver for optimal strength), flux, and a wire brush for cleaning. Practice on scrap tubing to perfect your technique before tackling the actual installation.
A vacuum pump and gauges are essential for removing moisture and air from the system before charging with refrigerant. Choose a vacuum pump with a capacity suitable for your system size, typically 3-5 CFM for residential heat pumps. Accurate gauges are crucial for monitoring the vacuum level, aiming for a deep vacuum of at least 500 microns.
Efficiently Clean Your LG Fridge Coils: A Step-by-Step Guide
You may want to see also
Explore related products
Brazing Techniques: Clean joints, apply flux, braze with propane torch, inspect for leaks
Brazing refrigerant lines for a heat pump requires precision and care to ensure a leak-free system. The first critical step is cleaning the joints thoroughly. Use a stainless steel wire brush or fine-grit sandpaper to remove any oxidation, dirt, or debris from the copper tubing and fittings. Even a small contaminant can compromise the integrity of the braze, leading to refrigerant leaks. Clean a minimum of 1 inch on each side of the joint to create a sufficient surface for the braze to adhere. Proper cleaning is non-negotiable—it’s the foundation of a successful braze.
Once the joints are clean, apply flux to the surfaces to be brazed. Flux serves two purposes: it prevents oxidation during the heating process and promotes capillary action, allowing the brazing alloy to flow evenly into the joint. Use a non-corrosive, water-soluble flux specifically designed for copper-to-copper joints. Apply a thin, even coat with a brush, ensuring full coverage of the cleaned areas. Overapplication can lead to residue buildup, while underapplication may result in poor adhesion. Allow the flux to dry slightly before proceeding—it should feel tacky to the touch but not wet.
With the joints prepared, use a propane torch to heat the fitting evenly. Start by applying heat to the thicker component (e.g., the fitting) to avoid overheating the tubing. Gradually increase the temperature until the flux begins to bubble and turn clear. At this point, introduce the brazing alloy to the joint. Hold the filler metal close to the heated area, allowing it to melt and flow into the joint via capillary action. Avoid touching the alloy directly to the torch flame, as this can contaminate the braze. Maintain consistent heat until the alloy fully fills the joint, then remove the torch and allow the assembly to cool naturally.
After brazing, inspect the joint for leaks using a nitrogen pressure test or a soap bubble solution. Charge the system to 150–200 PSI with nitrogen and apply soapy water to the joint with a brush. Bubbles indicate a leak, requiring the joint to be reheated and additional brazing alloy applied. If no leaks are detected, wipe away excess flux residue with a damp cloth to prevent corrosion. Proper inspection ensures the system’s longevity and efficiency, making it a critical final step in the brazing process.
Refrigerator Light On: Does It Mean Your Fridge Is Working?
You may want to see also
Explore related products
Evacuation & Charging: Evacuate system, charge refrigerant per manufacturer specs, monitor pressures
Proper evacuation and charging of a heat pump system are critical steps that ensure efficiency, longevity, and compliance with manufacturer specifications. Evacuation removes moisture, air, and non-condensable gases from the system, preventing corrosion, blockages, and reduced performance. Charging the refrigerant to exact manufacturer specifications ensures optimal heat transfer and system operation. Monitoring pressures during this process verifies accuracy and identifies potential leaks or issues early.
Begin by connecting a vacuum pump to the system’s service valves using appropriate hoses and manifolds. Open the valves and run the pump until the system reaches a deep vacuum of at least 500 microns or as specified by the manufacturer. Maintain this vacuum for a minimum of 30 minutes to ensure thorough drying and gas removal. Inspect all connections for leaks during evacuation, as even small leaks can compromise system integrity. Once complete, close the service valves and isolate the pump to prevent air infiltration.
Charging the refrigerant requires precision and adherence to manufacturer guidelines. Use a refrigerant scale to measure the exact amount of refrigerant needed, typically specified in pounds or kilograms. Add the refrigerant in liquid form through the liquid line service valve, ensuring the system is in cooling mode for accurate charging. Monitor the superheat or subcooling values using gauges or a digital manifold, adjusting the charge as needed to meet target values. Overcharging or undercharging can lead to inefficiency, compressor damage, or system failure.
Throughout the evacuation and charging process, monitor system pressures closely. High-side and low-side pressures should align with manufacturer specifications for the specific outdoor temperature and operating conditions. Deviations may indicate issues such as restrictions, leaks, or improper charging. Use a temperature-pressure chart or digital tools to cross-reference readings and ensure accuracy. Regularly check for frost or excessive heat on lines, which can signal airflow or refrigerant issues.
Practical tips include using a digital vacuum gauge for precise micron readings and insulating refrigerant lines to prevent ambient heat gain during charging. Always wear protective gear, including gloves and safety goggles, when handling refrigerants. Document all measurements and adjustments for future reference and warranty compliance. By meticulously following these steps, you ensure a properly evacuated and charged heat pump system that operates efficiently and reliably for years to come.
Refrigerating Pie Crust Overnight: Tips for Perfect Results
You may want to see also
Explore related products
Insulation & Securing: Insulate lines, secure with straps, protect from damage, ensure proper drainage
Proper insulation of refrigerant lines is critical for maintaining system efficiency, as uninsulated lines can lead to energy loss through condensation or temperature fluctuations. Use closed-cell foam insulation with a minimum thickness of ½ inch for most residential applications, ensuring it covers the entire length of the lines, including elbows and joints. For high-humidity environments or commercial systems, consider upgrading to ¾ inch insulation to combat moisture buildup. Avoid gaps or overlaps by cutting the insulation sleeves cleanly and sealing them with foil tape or adhesive designed for outdoor use. Insulation not only prevents thermal inefficiency but also protects against corrosion caused by exposure to the elements.
Securing the lines with straps is equally vital to prevent movement, vibration, or stress that could damage the lines over time. Use UV-resistant plastic or stainless steel straps spaced every 18 to 24 inches along the run, ensuring they are tight enough to hold the lines firmly but not so tight as to crush the insulation. For runs longer than 10 feet, add additional supports to prevent sagging. When routing lines around corners, use smooth bends with a radius at least 5 times the diameter of the tubing to avoid kinking. Always secure lines away from sharp edges or abrasive surfaces that could wear through the insulation or outer jacket.
Protection from physical damage is often overlooked but essential for long-term reliability. Install conduit or protective sleeves around lines where they pass through walls, floors, or areas prone to impact, such as near driveways or walkways. For outdoor runs, bury lines at least 12 inches underground if possible, or use a durable cover to shield them from lawn equipment, falling debris, or curious animals. In regions with extreme weather, consider adding a layer of gravel or mulch around buried lines to improve drainage and insulation. Regularly inspect lines for signs of wear, especially after storms or landscaping work.
Ensuring proper drainage is a subtle but crucial aspect of refrigerant line installation. Slope lines downward toward the outdoor unit at a minimum gradient of ¼ inch per foot to allow condensate to drain freely. Install drip legs or traps at low points in the line to collect moisture, particularly in horizontal runs. Failure to address drainage can lead to water accumulation, which may freeze in winter, block refrigerant flow, or corrode the lines. Periodically check drainage points for clogs, especially in areas with high particulate matter or pollen. Proper drainage not only protects the system but also extends the life of the insulation and straps by minimizing moisture-related degradation.
Garage-Ready Refrigerators: Suitable for Indoor Home Use or Not?
You may want to see also
Frequently asked questions
Essential tools include a tubing cutter, flaring tool, wrenches, vacuum pump, manifold gauge set, torque wrench, and a refrigerant recovery unit.
Refer to the manufacturer’s specifications for line size requirements. Generally, use larger lines for longer runs to minimize pressure drop and ensure efficient operation.
Connect a vacuum pump to the system, open the service valves, and run the pump until the system reaches a vacuum of at least 500 microns. Hold the vacuum for 30 minutes to test for leaks.
Use closed-cell foam insulation to cover both the liquid and suction lines. Ensure the insulation is tight and sealed to prevent moisture infiltration and condensation.
Slope the lines toward the outdoor unit at a minimum of 1/4 inch per foot for liquid lines and toward the indoor unit for suction lines to facilitate oil return and prevent trapping moisture.
