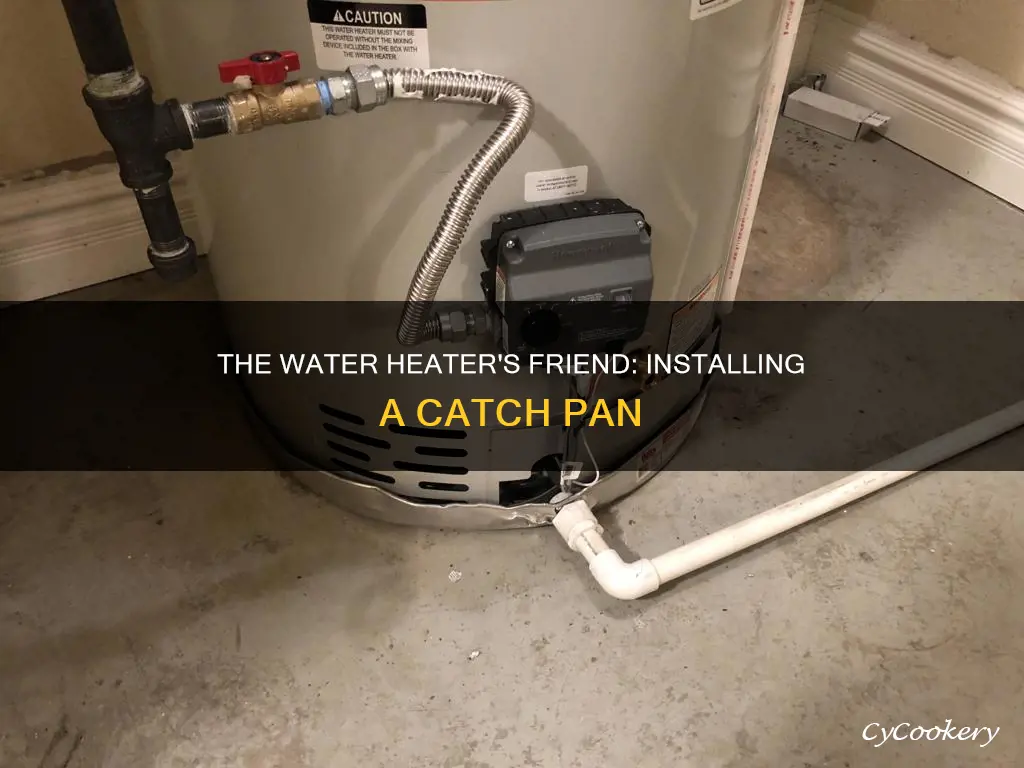

Water heaters are often placed in basements or interior closets, and it is common for homeowners to want to install a catch pan underneath them to protect their property from potential water damage. The process of installing a catch pan under a water heater can be completed within an hour, but it requires multiple steps and several materials. First, the electric and water supply to the water heater must be cut. If the heater works on gas, the gas supply must also be turned off. Next, the pipes attached to the heater must be detached, and the water drained from the heater. Then, the heater must be lifted slightly, and the catch pan slid underneath. Finally, the heater must be lowered back into position on the catch pan, and the pipes reattached.
Explore related products
What You'll Learn
Prepare the water heater
Preparing the water heater for a catch pan installation involves several steps. Firstly, turn off the water heater and close the water and gas supply valves. If your water heater is electric, cut the electric supply. It is important to shut off the water supply to the heater by locating the water pipe and turning it off.
The next step is to drain the water heater of all water. This step can be challenging, as you may need to disconnect the water and gas lines, as well as detach the pipes attached to the heater. The tank should be connected to the water supply pipes with flexible hoses, making it easier to detach. Ensure you drain the water carefully, as it may be hot.
Once the water heater is empty, you can begin the process of lifting the tank. Depending on the size of your tank, you may need assistance. For larger tanks, such as 40 or 50-gallon tanks commonly used in single-family dwellings, enlisting helpers is recommended. You can use blocking materials, such as 2x4 or 4x4 lumber, to support the tank and slowly remove them as the pan is inserted.
If your water heater is located in a closet or enclosed space, you may need to modify the space to accommodate the catch pan. This can be done by cutting and stacking sheets of plywood or particle board to raise the floor slightly higher than the height of the drain pan. Cut a circle slightly larger than the diameter of the drain pan in each sheet and leave space for the drain. Glue or screw these sheets to the floor of the closet, creating a stable platform for the pan and heater.
By following these steps, you will have prepared your water heater for catch pan installation, ensuring a secure and functional setup.
Effective Ways to Get Char Off Your Pan
You may want to see also
Explore related products
Drain the water heater
To install a catch pan under a water heater, you must first drain the water heater of all water. Here is a step-by-step guide to draining your water heater:
First, turn off the water heater and close the water and gas supply valves. This will prevent any more hot water from being produced and will ensure that you are only draining the water that is currently in the tank.
Next, you will need to disconnect the water and gas lines. Depending on your setup, you may also need to disconnect other lines, such as the electric line if your water heater is electric. Consult a professional or a guide specific to your model if you are unsure.
Now, you can begin to drain the water from the tank. Place a bucket or a similar container under the drain valve and open it to allow the water to flow out. If your drain valve is at the bottom of your water heater, gravity will do the work for you. If not, you may need to use a pump to remove the water.
As the water drains, it is important to be aware that it may contain sediment, especially if it is dirty or has not been regularly cleaned. Opening the water heater pressure relief valve (PRV) will let air into the tank and help the water drain faster.
Once the water heater is empty, you can prepare to slide the catch pan into place. If your water heater is on a platform or in a closet, you may need to modify the space to accommodate the pan. This could involve cutting and placing sheets of plywood or particleboard on the floor, with a circle cut out to fit the pan, as described in one source. Alternatively, you can use scrap wood to prop up the water heater and then slide the pan underneath. Ensure that the pan is at least 2 inches wider than the heater on each side to allow for proper airflow.
Finally, with the catch pan in place, you can reconnect the water and gas lines and turn on the water heater. Remember to bleed the lines to release any trapped air before turning on the gas.
Easy Steps to Append Rows to Your DataFrame in Python
You may want to see also
Explore related products
Slide the pan underneath
To slide the pan underneath, you must first drain the water heater of all water. The tank is connected to the water supply pipes with flexible hoses, so it should be easy to drain. Once drained, the tank is ready to be raised so the new pan can be slid underneath. Depending on the size of the tank, you may need some extra hands to help. For example, a 30-gallon tank may only need two people to lift it, but a 40 or 50-gallon tank will likely require a third person to slide the pan underneath. It can be helpful to have some 2x4 or 4x4 blocking on hand to support the tank as the pan is inserted.
If your tank is on bricks or in a closet, you will need to remove the side wall of the water heater closet to allow access for the new pan. You can also use a jack to lift the tank and loop a ratchet strap under the backside of the water heater and over the lift part of the jack. Use cardboard between the jack post and the water heater jacket to protect the heater from damage. Place a short 2x4 below the jack lift to space the water heater away from the jack. Slowly raise the jack, watching the strap to ensure it does not put pressure on the drain valve or any other items that might damage the water heater.
Another option is to use a drain pan with a detachable front. This makes it easy to slide the pan under the water heater without having to lift it completely. You can also slide the pan in from the front by tipping the water heater towards you and "walking" it away so you can get the back legs up onto the wood behind the pan. Straighten the heater and have a helper slide the pan into the circle. Then, tip the heater towards you again, resting the front legs in the pan, and walk it towards you until all four legs are in the pan.
Make sure the pan is larger than the heater by at least an inch all around. The heater pan should be at least 2" wider on each side (total 4" larger diameter than the hot water heater). This will ensure that there is room for combustion air to enter the burner area. You can also build a platform for the heater to sit on to raise it and make it easier to slide the pan underneath.
Spray or No Spray: Roasted Broccoli
You may want to see also
Explore related products
Secure the water heater on the pan
Securing a water heater on a catch pan requires careful planning and execution to ensure the safety of your home and the stability of the water heater. Here is a step-by-step guide to help you secure the water heater on the pan:
Firstly, ensure the water heater is stable and secure on the catch pan. Gently rock the water heater back and forth to check for any wobbling or instability. If the water heater is unsteady, adjust the position of the pan or use shims to level the heater properly. A stable water heater is crucial to reducing the risk of leaks.
Next, you will need to connect the PVC pipe to facilitate water discharge. If your setup includes a floor drain, ensure the PVC pipe fits securely into the drain opening. If you are directing the water outside, it is advisable to use an elbow joint to guide the water away from your house's foundation. This will help prevent water damage to your home's structure.
Now, secure all the connections with PVC cement. This includes fixtures like elbows and couplings. Ensure that the placement of the fittings facilitates the outward flow of water. A PVC strap will be useful to hold the pipe in place, so make sure to attach it securely.
Finally, test your setup by turning on the heater for a trial run. This will allow you to identify any potential issues and make necessary adjustments. Regularly inspect the drain pan and PVC pipe for leaks or blockages. It is recommended to check them every few months or during routine maintenance of your water heater.
By following these steps, you can securely install a water heater on a catch pan, providing an extra layer of protection for your home and your peace of mind.
The Intriguing Taste of Izaya's Hot Pot Preference
You may want to see also
Explore related products
Attach the pipes and fittings
Attaching the pipes and fittings is a crucial step in installing a catch pan under a water heater. Here is a detailed, step-by-step guide to help you through the process:
Before beginning, ensure that you have all the necessary materials, including good-quality PVC cement, pipes, elbows, couplings, and a PVC strap. These materials will facilitate the secure attachment of the pipes and fittings to your catch pan.
First, locate the PVC fittings on the side of the water drain pan. This slot is specifically designed to accommodate the attachment of other fittings and pipes. Using the PVC cement, carefully glue the fixtures like elbows and couplings together, ensuring that they are securely fastened. Make sure to follow the manufacturer's instructions for proper curing and drying times for the PVC cement.
Next, attach the pipes to the fittings. These pipes will be responsible for directing the water collected in the catch pan outdoors or to a suitable drain. Ensure that the pipes are securely connected to the fittings and that all connections are watertight. Use the PVC strap to hold the pipe in place and provide additional support and stability.
When attaching the pipes, it is essential to consider the direction of water flow. At the end of the pipe, add an elbow fitting to guide the water downwards towards the ground. This will ensure that the water is directed away from the water heater and your home's foundation. If you are connecting to a floor drain, make sure the pipe fits securely into the drain opening.
Additionally, you may need to adjust the height or position of the pipes to ensure a proper fit with the water heater and catch pan. This may involve cutting the pipes to the appropriate length or using extensions to reach the desired height. Ensure that all connections are secure and that there are no leaks.
Finally, once the pipes and fittings are securely attached, carefully inspect your work. Check for any signs of leaks or blockages, and ensure that the water flow is directed away from the water heater and your home. Regular maintenance and inspections of the pipes and catch pan are essential to identify any potential issues promptly.
Gordon Ramsay's Hexclad Pans: The Truth Unveiled
You may want to see also
Frequently asked questions
First, turn off the water heater and cut the electric and/or gas supply. Then, drain the water heater of all water. Next, lift the water heater and slide the catch pan underneath. Finally, gently lower the water heater back down onto the catch pan.
If you are unable to lift the water heater, you can use a jack to raise it. Alternatively, you can use a catch pan with a detachable front, which can be slid under the water heater without having to lift it completely.
The catch pan should be at least 1 inch bigger than the heater all around. This allows combustion air to enter the burner area.
