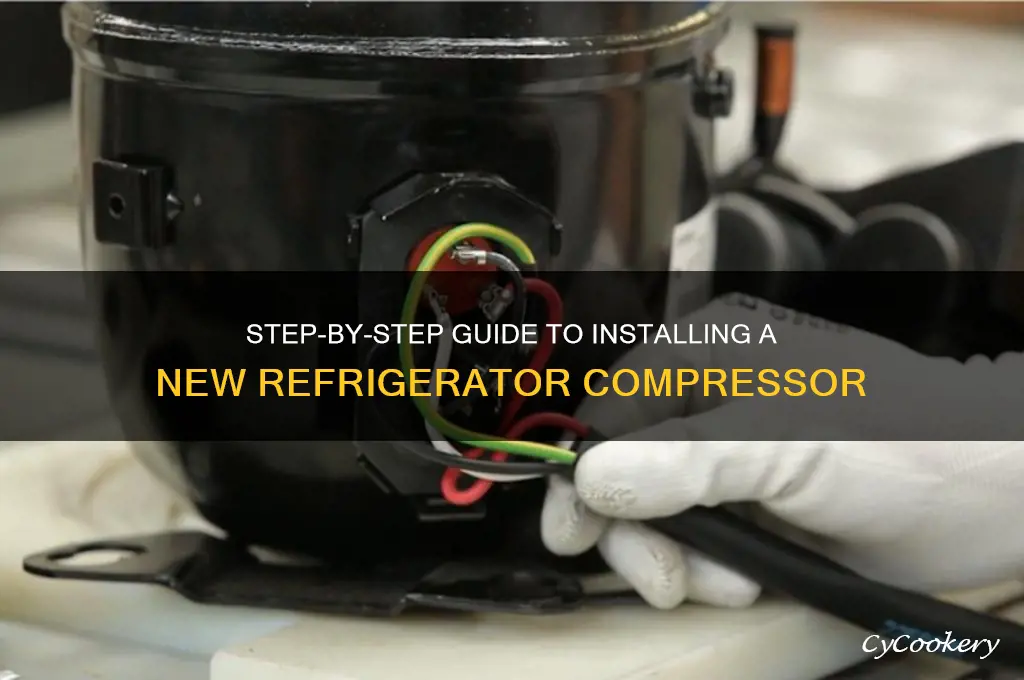

Installing a new refrigerator compressor is a critical task that requires careful preparation and technical precision. Before beginning, ensure you have the correct replacement compressor model and necessary tools, such as wrenches, screwdrivers, and a vacuum pump. Start by disconnecting the refrigerator from the power source and removing the old compressor, taking care to safely handle refrigerant lines and electrical connections. Next, install the new compressor, ensuring it is securely mounted and aligned with the existing system. Reattach the refrigerant lines and electrical components, then evacuate and recharge the system using a vacuum pump and refrigerant according to manufacturer specifications. Finally, reconnect the power, test the compressor for proper operation, and monitor the refrigerator’s performance to ensure it cools efficiently. Always follow safety guidelines and consider consulting a professional if unsure about any step.
| Characteristics | Values |
|---|---|
| Tools Required | Wrench, screwdriver, multimeter, vacuum pump, refrigerant manifold gauge, gloves, safety goggles |
| Safety Precautions | Turn off power, wear protective gear, ensure proper ventilation |
| Steps | 1. Disconnect power 2. Remove old compressor 3. Install new compressor 4. Reconnect electrical connections 5. Evacuate and charge refrigerant system 6. Test operation |
| Refrigerant Handling | Requires EPA certification for handling refrigerants |
| Compatibility Check | Ensure new compressor matches refrigerator model and specifications |
| Wiring Connections | Match wire colors and terminals as per the manufacturer's diagram |
| Vacuum Process | Pull vacuum for at least 30 minutes to remove moisture and air |
| Refrigerant Charging | Use manifold gauge to charge refrigerant to manufacturer's specifications |
| Leak Testing | Perform leak test using soap solution or electronic leak detector |
| Final Testing | Check for proper cooling, compressor noise, and system efficiency |
| Estimated Time | 3-5 hours depending on experience and refrigerator model |
| Difficulty Level | Intermediate to Advanced (requires technical knowledge) |
| Cost | $200-$500 (including compressor and tools, excluding labor) |
| Warranty Considerations | Ensure installation doesn't void refrigerator warranty |
| Disposal of Old Compressor | Dispose of old compressor and refrigerant according to local regulations |
Explore related products
What You'll Learn
- Prepare Tools and Safety Gear: Gather wrenches, screwdrivers, gloves, safety goggles, and ensure power is disconnected
- Remove Old Compressor: Disconnect wires, refrigerant lines, and mounting bolts carefully to avoid damage
- Install New Compressor: Secure the new unit, reconnect refrigerant lines, and tighten mounting bolts firmly
- Reconnect Electrical Wiring: Attach wires to the new compressor, ensuring proper polarity and secure connections
- Test and Verify Operation: Restore power, check for leaks, and confirm the compressor runs smoothly
Prepare Tools and Safety Gear: Gather wrenches, screwdrivers, gloves, safety goggles, and ensure power is disconnected
Before you dive into replacing a refrigerator compressor, a critical first step is to prepare your tools and safety gear. This isn’t just about having the right equipment—it’s about ensuring your safety and the efficiency of the task. Start by gathering adjustable wrenches (sizes 8mm to 14mm are commonly needed), a Phillips and flat-head screwdriver, and a pair of needle-nose pliers for tight spaces. Insulated gloves are non-negotiable to protect against accidental electrical contact, while safety goggles shield your eyes from refrigerant leaks or debris. Pro tip: Lay out all tools on a clean, flat surface to avoid misplacing them mid-task.
Ensuring the power is disconnected is the cornerstone of safety in this process. Unplug the refrigerator or flip the dedicated circuit breaker in your electrical panel. For added caution, use a non-contact voltage tester to confirm no current is running to the unit. This step is often overlooked but can prevent severe electrical shocks or damage to the new compressor. Remember, capacitors in the system can hold a charge even when unplugged, so wait 10–15 minutes before proceeding.
The choice of tools isn’t arbitrary—each serves a specific purpose. Wrenches are essential for loosening and tightening compressor mounting bolts, while screwdrivers handle panel removal and electrical connections. Gloves and goggles aren’t just safety gear; they’re your first line of defense against refrigerant chemicals, which can cause skin irritation or eye damage. A comparative analysis shows that professionals often use vacuum pumps and manifold gauges for refrigerant handling, but for a basic compressor swap, these aren’t always necessary.
A descriptive approach highlights the workspace setup: Clear a well-lit area around the refrigerator, and place a drop cloth to catch spilled oil or debris. Organize tools in a toolbox or tray for easy access. If working in a cramped space, consider using a magnetic wristband to keep screws and small parts from getting lost. This level of preparation transforms a daunting task into a manageable, step-by-step process.
Finally, a persuasive argument for thorough preparation: Skipping this step risks not only personal injury but also costly mistakes. A dropped tool or accidental electrical contact can damage the new compressor or other components, turning a $200 repair into a $500 headache. By investing 15 minutes in gathering and organizing your tools and safety gear, you’re not just preparing for the task—you’re setting the stage for success.
California's Wine Fridge Laws: Why Some Models Are Approved for Sale
You may want to see also
Explore related products
Remove Old Compressor: Disconnect wires, refrigerant lines, and mounting bolts carefully to avoid damage
The first step in replacing a refrigerator compressor is a delicate operation akin to defusing a bomb—one wrong move can lead to costly damage. Begin by cutting the power supply to the refrigerator at the circuit breaker to eliminate any risk of electrical shock. Next, locate the compressor, typically found at the bottom rear of the unit, and identify the wires, refrigerant lines, and mounting bolts that secure it in place. These components are the lifelines of the compressor, and their disconnection requires precision and care.
Analyzing the process reveals that the refrigerant lines pose the most significant risk. These lines contain pressurized refrigerant, which can cause injury or damage if released accidentally. To mitigate this, use a refrigerant recovery machine to safely remove the refrigerant before disconnecting the lines. This step is not only a safety precaution but also an environmental necessity, as releasing refrigerants into the atmosphere contributes to ozone depletion. Once the refrigerant is recovered, carefully loosen the line fittings using the appropriate wrenches, taking care not to damage the threads or o-rings.
The wires connected to the compressor are another critical element. These wires supply power and control signals to the compressor and must be disconnected methodically. Label each wire with its corresponding terminal or take a photograph of the wiring configuration before disconnection to ensure accurate reconnection later. Use a screwdriver to remove any terminal screws, and gently pull the wires free, avoiding any tugging or twisting that could damage the insulation or internal connections. This attention to detail will save time and frustration during the reinstallation process.
Mounting bolts secure the compressor to the refrigerator frame, and their removal requires both strength and finesse. Use a socket wrench with the correct-sized socket to loosen the bolts, applying steady pressure to avoid stripping the threads. Keep track of the bolts and their respective locations, as they may vary in size or type. Some compressors may also have additional brackets or supports that need to be removed, so inspect the area thoroughly to ensure all fasteners are accounted for. This systematic approach ensures that the old compressor can be removed without causing collateral damage to the surrounding components.
In conclusion, removing an old refrigerator compressor is a task that demands patience, precision, and preparation. By carefully disconnecting the wires, refrigerant lines, and mounting bolts, you minimize the risk of damage to both the refrigerator and yourself. Each step, from recovering the refrigerant to labeling the wires, contributes to a smoother installation of the new compressor. Taking the time to execute these actions thoughtfully will ultimately save time and effort, ensuring a successful and safe compressor replacement.
Should Unsalted Butter Be Refrigerated? Storage Tips and Best Practices
You may want to see also
Explore related products
Install New Compressor: Secure the new unit, reconnect refrigerant lines, and tighten mounting bolts firmly
Securing the new compressor unit is the linchpin of a successful installation. Begin by positioning the compressor on the refrigerator’s mounting plate, ensuring it aligns perfectly with the existing bolt holes. Use a level to confirm the unit sits evenly, as even minor tilting can lead to vibration or operational inefficiency. If the compressor comes with rubber grommets or vibration pads, install them between the unit and the mounting plate to dampen noise and movement. These small details can significantly extend the compressor’s lifespan by reducing mechanical stress.
Reconnecting the refrigerant lines is a delicate task that demands precision. Start by identifying the suction and discharge lines, typically labeled on the compressor or in the manufacturer’s manual. Clean the flare nuts and tube ends with fine-grit sandpaper to remove any debris, then apply a thin layer of refrigeration oil to the threads for a secure seal. Tighten the flare nuts by hand before using a wrench, ensuring not to overtighten, as this can damage the lines or cause leaks. Use a torque wrench if available, aiming for 15 to 20 foot-pounds of torque, though specifications may vary by model.
Tightening the mounting bolts firmly is the final step in securing the compressor, but it’s one that requires careful attention. Use a socket wrench to tighten the bolts in a crisscross pattern, similar to changing a car tire, to ensure even pressure distribution. Overtightening can strip the threads or warp the mounting plate, while undertightening can lead to instability. Refer to the manufacturer’s torque specifications if available; otherwise, tighten until the bolts are snug but not forced. A rule of thumb is to apply enough force to prevent movement but stop before excessive resistance is felt.
Throughout this process, safety and accuracy are paramount. Always wear safety goggles and gloves to protect against refrigerant leaks or sharp edges. If you’re unsure about any step, consult a professional or refer to detailed guides specific to your refrigerator model. While the steps outlined here are general, each compressor and refrigerator system has unique characteristics that may require adjustments. Taking your time and double-checking each connection ensures a reliable installation that keeps your refrigerator running efficiently for years to come.
Can Air Pressure Sensors Accurately Measure Refrigerant Pressure?
You may want to see also
Explore related products
Reconnect Electrical Wiring: Attach wires to the new compressor, ensuring proper polarity and secure connections
Electrical wiring is the nervous system of your refrigerator’s compressor, and reconnecting it correctly is non-negotiable. Improper polarity or loose connections can lead to short circuits, overheating, or even permanent damage to the new component. Before you begin, ensure the power supply to the refrigerator is completely disconnected to avoid electrical shock. Gather your tools—a multimeter, wire strippers, and electrical tape—and verify the wiring diagram for your specific compressor model. This step is not about guesswork; it’s about precision.
Start by identifying the wires on both the new compressor and the refrigerator’s harness. Most compressors have three terminals: start, run, and common. Match these to the corresponding wires in the harness, typically color-coded or labeled. If the wires are not labeled, use the multimeter to test continuity and confirm their functions. Strip the ends of the wires carefully, exposing just enough copper to ensure a secure connection. Over-stripping can lead to exposed wires, while under-stripping results in poor conductivity.
Polarity is critical. The start wire is usually connected to the start relay, the run wire to the run capacitor, and the common wire to the main power supply. Double-check the wiring diagram to confirm the correct orientation. If the compressor has a grounding wire, attach it to the refrigerator’s chassis or a designated grounding point. Secure each connection with electrical tape or heat shrink tubing to prevent accidental dislodging. A loose wire can cause intermittent operation or complete failure.
Once all wires are connected, perform a visual inspection to ensure no bare wires are exposed and no connections are touching each other. Use the multimeter to test for continuity and verify that the circuit is complete. If you’re unsure about any step, consult a professional—electrical mistakes are costly and dangerous. Remember, the goal is not just to get the compressor running but to ensure it operates safely and efficiently for years to come.
Finally, reattach the compressor to its mounting bracket and restore power to the refrigerator. Listen for any unusual noises, such as buzzing or humming, which could indicate a wiring issue. If the compressor starts smoothly and the refrigerator begins cooling, you’ve successfully reconnected the electrical wiring. This step may seem minor in the grand scheme of compressor replacement, but it’s the difference between a job well done and a potential disaster. Precision here pays off in longevity and performance.
Efficiently Pumping Down a Refrigeration Compressor: A Step-by-Step Guide
You may want to see also
Explore related products
Test and Verify Operation: Restore power, check for leaks, and confirm the compressor runs smoothly
Once the new compressor is installed, the real test begins. Restoring power is the first step, but it’s not as simple as flipping a switch. Before energizing the system, ensure all wiring connections are secure and insulated to prevent shorts. Use a multimeter to verify voltage at the compressor terminals matches the refrigerator’s specifications, typically 115V for residential units. If the voltage is off, trace the issue to the power supply or wiring harness before proceeding. Once confirmed, restore power and listen for the compressor’s startup hum—a clear, steady sound indicates proper engagement.
Checking for leaks is critical to prevent refrigerant loss and system failure. Use a soap solution or electronic leak detector to inspect all connections, including the compressor’s service valves, suction line, and discharge line. Apply the solution with a brush or spray bottle, watching for bubbles that indicate escaping refrigerant. Even a small leak can compromise efficiency, so address any issues immediately. Tighten fittings as needed, but avoid over-tightening, which can damage seals. If leaks persist, re-evaluate the installation or consult a professional.
Confirming smooth operation requires observation and measurement. After running for 10–15 minutes, place a hand on the compressor’s exterior—it should feel warm but not excessively hot, indicating proper heat dissipation. Use a thermometer to check the suction and discharge line temperatures; the suction line should be cool (around 50–60°F), while the discharge line should be hot (120–150°F). Abnormal temperatures suggest issues like insufficient refrigerant or airflow restrictions. Additionally, monitor the refrigerator’s internal temperature—it should drop steadily, reaching the target range (35–38°F) within 2–4 hours.
Finally, listen for unusual noises—rattling, grinding, or high-pitched squeals—which may signal mechanical issues or improper installation. A well-installed compressor operates quietly, with only the faint hum of the motor and occasional clicks from the start relay. If anomalies arise, power down the unit and reinspect the installation. Testing and verifying operation isn’t just a formality; it’s the safeguard that ensures your refrigerator runs efficiently and reliably for years to come.
Maximize Your Fridge: Creative Ways to Use Extra Refrigerator Space
You may want to see also
Frequently asked questions
You will need a screwdriver (flat and Phillips), wrench or socket set, wire strippers, multimeter, vacuum pump, manifold gauge set, and refrigerant recovery equipment.
Turn off the refrigerator, unplug it, and recover the refrigerant using a recovery machine. Disconnect the electrical wires and refrigerant lines, then remove the mounting screws to take out the old compressor.
Yes, after installation, you must evacuate the system using a vacuum pump to remove moisture and air, then recharge it with the correct amount of refrigerant using a manifold gauge set.
Installing a refrigerator compressor involves handling refrigerants, which requires EPA certification. Unless you are certified, it’s best to hire a professional technician to ensure safety and compliance with regulations.
