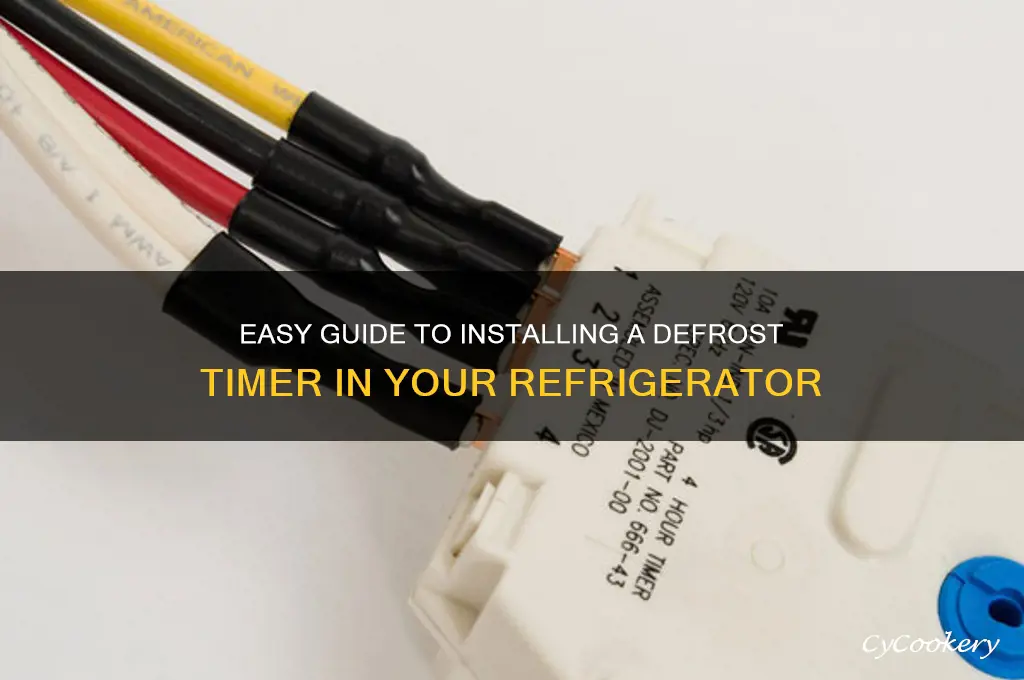

Installing a defrost timer in a refrigerator is a crucial maintenance task that ensures the appliance operates efficiently by preventing excessive frost buildup. The defrost timer controls the automatic defrost cycle, which melts ice on the evaporator coils, maintaining optimal cooling performance. To begin the installation, locate the existing timer, typically found near the compressor or inside the control panel, and disconnect the power to the refrigerator for safety. Carefully remove the old timer by unscrewing it and detaching the wiring harness. Match the new timer’s terminals to the wiring configuration of the old one, ensuring proper connections. Secure the new timer in place, reattach the wiring harness, and restore power to the refrigerator. Test the timer by manually advancing it to the defrost cycle to confirm it functions correctly. This process not only extends the life of the refrigerator but also improves energy efficiency and food preservation.
| Characteristics | Values |
|---|---|
| Location of Defrost Timer | Typically found near the compressor, behind the refrigerator, or inside the control panel. |
| Tools Required | Screwdriver, needle-nose pliers, multimeter (optional). |
| Power Safety | Unplug the refrigerator or turn off power at the circuit breaker before installation. |
| Timer Removal | Disconnect wires and unscrew the old timer (if replacing). |
| Wiring Connection | Match wire colors or labels from the old timer to the new one. Use a wiring diagram if available. |
| Timer Setting | Set the timer to the correct defrost cycle (usually 8-12 hours). |
| Mounting | Secure the new timer in the same location as the old one using screws or clips. |
| Testing | Plug in the refrigerator and test the defrost cycle after installation. |
| Compatibility | Ensure the new timer is compatible with your refrigerator model. |
| Safety Precautions | Avoid touching electrical components with bare hands; use insulated tools. |
| Professional Help | Consult a technician if unsure about wiring or installation. |
Explore related products
![[2025 Upgrade] 5304526183 Defrost Timer – Compatible with Frigidaire & White‑Westinghouse Refrigerators – Replaces 4960382, AP7014390, PS16227343, EAP16227343, FIX16227343](https://m.media-amazon.com/images/I/71LkgmK9vJL._AC_UY218_.jpg)
What You'll Learn
- Tools Needed: Gather screwdrivers, wire strippers, and new defrost timer before starting installation
- Locate Timer: Find the old defrost timer, usually near the compressor or control panel
- Disconnect Power: Unplug refrigerator or turn off circuit breaker for safety
- Replace Timer: Remove old timer, connect wires to new one, and secure it in place
- Test Functionality: Plug in refrigerator, check for proper defrost cycle operation
Tools Needed: Gather screwdrivers, wire strippers, and new defrost timer before starting installation
Before diving into the installation of a defrost timer in your refrigerator, it’s crucial to assemble the right tools. A successful repair hinges on preparation, and having everything within arm’s reach prevents mid-task interruptions. Start by gathering a Phillips-head and flat-head screwdriver, as most refrigerator panels and components are secured with these types of screws. Wire strippers are equally essential, as they ensure clean, precise cuts when reconnecting wires to the new defrost timer. Lastly, confirm you have the correct replacement defrost timer model, as compatibility is non-negotiable for functionality. Skipping this step could render your efforts futile.
Consider the analytical approach: each tool serves a distinct purpose in the installation process. Screwdrivers are the backbone of disassembly, allowing access to the timer compartment. Wire strippers, often overlooked, are critical for maintaining the integrity of electrical connections, which directly impact the refrigerator’s performance. The new defrost timer itself is the star of the show, but its effectiveness relies on the precision of the tools used to install it. Without these items, even the most skilled technician would face unnecessary delays or potential damage to the appliance.
From a practical standpoint, here’s a step-by-step guide to tool preparation. First, verify the screwdriver sizes match the screws on your refrigerator model—typically #1 or #2 Phillips and flat-head. Second, ensure your wire strippers are sharp and calibrated to handle the gauge of wires in your refrigerator, usually 16 to 18 AWG. Third, double-check the defrost timer’s part number against your refrigerator’s manual or the old timer itself. Pro tip: lay out all tools and the new part on a clean, well-lit workspace to streamline the installation process.
A comparative perspective highlights why these tools are indispensable. Imagine attempting the installation with a butter knife instead of a screwdriver—frustration and potential damage are guaranteed. Similarly, using scissors instead of wire strippers could lead to frayed wires, causing intermittent defrost cycles or complete failure. Investing in the right tools not only saves time but also ensures the longevity of your repair. It’s a small upfront cost that pays dividends in reliability.
Finally, a persuasive argument underscores the importance of preparedness. A disorganized or incomplete toolkit transforms a straightforward task into a daunting challenge. By gathering screwdrivers, wire strippers, and the new defrost timer beforehand, you’re not just preparing for a repair—you’re setting the stage for success. This proactive approach minimizes stress, reduces the risk of errors, and ensures your refrigerator returns to optimal operation with minimal downtime. After all, a well-prepared repair is a repair half-completed.
