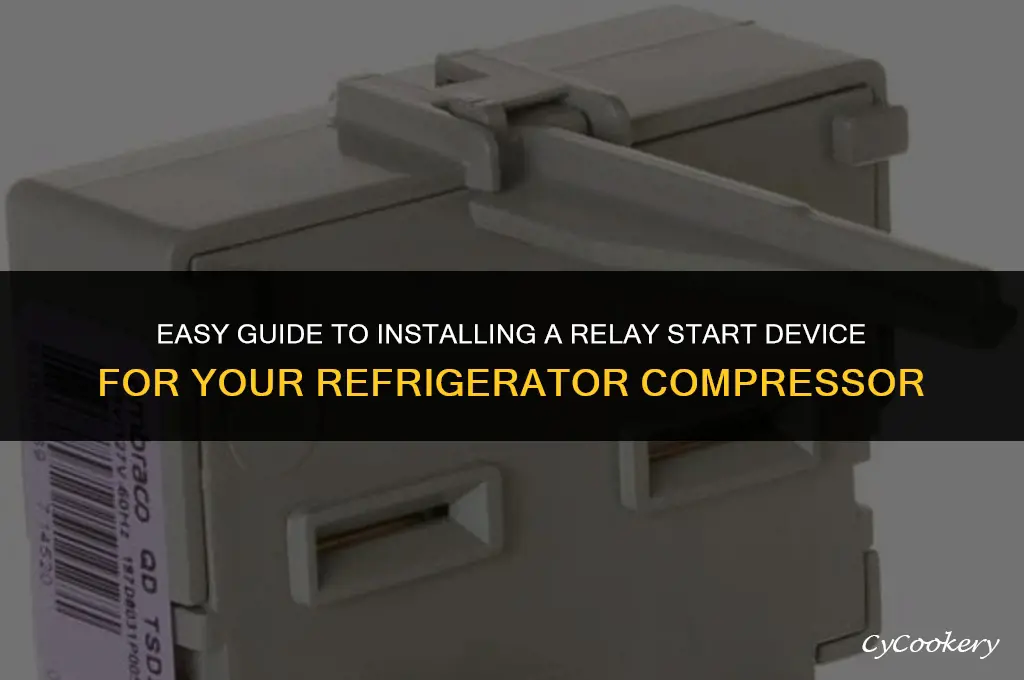

Installing a relay start device for a refrigerator compressor is a crucial step in ensuring the efficient operation of your refrigeration system. A relay start device acts as an intermediary between the power supply and the compressor motor, providing a controlled and timed start to the motor. This helps in reducing the strain on the motor during startup and can significantly extend its lifespan. The process of installation, while seemingly complex, can be broken down into manageable steps. First, ensure that the power supply to the refrigerator is turned off to avoid any electrical hazards. Next, locate the compressor motor and identify the appropriate terminals for the relay start device. Connect the wires from the power supply to the relay, and then from the relay to the compressor motor, following the manufacturer's instructions carefully. Finally, secure the relay start device in place and test the system to ensure smooth operation. Remember, safety should always be a priority when working with electrical components, so consider consulting a professional if you are unsure about any part of the process.
| Characteristics | Values |
|---|---|
| Component Type | Relay Start Device |
| Application | Refrigerator Compressor |
| Function | Initiates compressor operation |
| Power Source | Typically 120V AC |
| Connections | 3-wire (common, normally open, normally closed) |
| Mounting | Usually mounted on compressor or nearby surface |
| Operating Temperature | -40°C to 85°C |
| Electrical Ratings | 10A, 250V AC (varies by model) |
| Compatibility | Designed for specific compressor models |
| Installation Method | Wired directly to compressor and power source |
| Safety Features | Overload protection, thermal cutoff |
| Dimensions | Compact, varies by model (e.g., 2" x 2" x 1") |
| Weight | Lightweight, typically under 1 lb |
| Material | Durable plastic or metal casing |
| Color | Black, white, or gray |
| Certifications | UL, CSA, CE (varies by model) |
| Warranty | 1-5 years (varies by manufacturer) |
Explore related products
What You'll Learn
- Safety Precautions: Ensure power is off, wear gloves, and use proper tools to avoid injury
- Tools and Materials: Gather necessary tools like screwdrivers, pliers, and the relay start device kit
- Compressor Identification: Locate the compressor and identify its model to ensure compatibility with the relay device
- Relay Installation: Follow the manufacturer's instructions to install the relay start device, connecting wires correctly
- Testing and Troubleshooting: After installation, test the relay and troubleshoot any issues to ensure proper function
Safety Precautions: Ensure power is off, wear gloves, and use proper tools to avoid injury
Before beginning the installation of a relay start device for a refrigerator compressor, it is crucial to adhere to strict safety protocols to prevent any potential harm or damage. The first and foremost precaution is to ensure that the power supply to the refrigerator is completely turned off. This involves unplugging the unit from the electrical outlet and, if possible, switching off the circuit breaker that supplies power to the refrigerator. This step is essential to avoid electrical shocks or short circuits during the installation process.
In addition to disconnecting the power, wearing appropriate personal protective equipment (PPE) is vital. This includes putting on a pair of insulated gloves to protect your hands from electrical hazards and any sharp edges or components you may encounter. Safety glasses or goggles can also be beneficial to shield your eyes from debris or any accidental contact with harmful substances.
Using the correct tools for the job is another critical safety measure. Ensure that you have a set of screwdrivers with the appropriate sizes and types for the screws you will be working with. A wire stripper and wire nuts may also be necessary for connecting the relay to the compressor and other electrical components. Avoid using makeshift tools or those that are damaged, as this can lead to accidents or improper installation.
When handling the relay start device itself, be cautious not to touch any of the electrical contacts or terminals with your bare hands, as this can result in electrical shock. Always refer to the manufacturer's instructions for proper handling and installation procedures. If you are unsure about any aspect of the installation, it is advisable to consult with a professional electrician or technician who has experience with refrigerator compressors and relay start devices.
Lastly, ensure that the work area is well-lit and free from any obstructions or hazards that could cause you to trip or lose your balance. Keep the refrigerator and surrounding area clean and organized to minimize the risk of accidents. By following these safety precautions, you can significantly reduce the likelihood of injury or damage during the installation process.
Understanding Common Refrigerator Sizes: Cubic Feet Options Explained
You may want to see also
Explore related products
Tools and Materials: Gather necessary tools like screwdrivers, pliers, and the relay start device kit
To successfully install a relay start device on a refrigerator compressor, it is crucial to first gather all the necessary tools and materials. This ensures that the installation process is smooth and efficient, minimizing the risk of errors or delays. The essential tools for this task include various screwdrivers, pliers, and the relay start device kit itself. Each of these tools plays a specific role in the installation process.
Screwdrivers are indispensable for removing and securing screws, which are commonly used to fasten components in place. The type and size of the screwdrivers needed will depend on the specific screws used in the refrigerator model. It is advisable to have a set of screwdrivers with different head types and sizes to accommodate any variations. Pliers, on the other hand, are useful for gripping, bending, and cutting wires. They can also be used to hold components steady while screws are being tightened or loosened.
The relay start device kit is the most critical component, as it contains the necessary parts to initiate the compressor's operation. This kit typically includes the relay, a capacitor, and wiring harnesses. It is essential to ensure that the kit is compatible with the refrigerator model to avoid any compatibility issues. Additionally, having a multimeter on hand can be beneficial for testing electrical connections and ensuring that the relay and capacitor are functioning correctly.
Before beginning the installation, it is important to familiarize oneself with the refrigerator's electrical system and the specific location of the compressor. This can be done by consulting the refrigerator's user manual or service manual, which will provide detailed diagrams and instructions. It is also advisable to disconnect the refrigerator from the power supply to prevent any electrical hazards during the installation process.
In summary, gathering the necessary tools and materials is a crucial first step in installing a relay start device on a refrigerator compressor. By ensuring that all the required components are on hand and familiarizing oneself with the refrigerator's electrical system, one can significantly reduce the risk of errors and ensure a successful installation.
Refrigerating Flintstone Vitamins: Is It Necessary or Beneficial?
You may want to see also
Explore related products
Compressor Identification: Locate the compressor and identify its model to ensure compatibility with the relay device
To properly install a relay start device for a refrigerator compressor, it is crucial to first identify the compressor model. This ensures compatibility between the compressor and the relay device, which is essential for the system to function correctly. Begin by locating the compressor within the refrigerator unit. Typically, the compressor is situated at the back or bottom of the fridge, often behind a protective grille or panel.
Once the compressor is located, carefully examine it for any visible model numbers or identification tags. These tags are usually attached to the compressor body or its electrical connections. If the model number is not immediately apparent, consult the refrigerator's user manual or contact the manufacturer for assistance. Providing the manufacturer with the refrigerator's serial number or model number can help in identifying the correct compressor model.
After identifying the compressor model, cross-reference this information with the specifications of the relay start device. Ensure that the relay device is designed to work with the specific compressor model in your refrigerator. This information can typically be found in the product documentation for the relay device or on the manufacturer's website. If there is any doubt about compatibility, it is best to consult with a professional technician to avoid potential damage to the compressor or the relay device.
In some cases, the compressor model may be an older or less common type, making it more challenging to find a compatible relay device. In such situations, consider contacting specialty appliance stores or online retailers that cater to vintage or commercial refrigeration equipment. They may have access to a wider range of relay devices or be able to provide guidance on alternative solutions.
Remember, proper identification of the compressor model is a critical step in the installation process. Taking the time to ensure compatibility will help prevent costly mistakes and potential damage to your refrigerator's cooling system. Always follow the manufacturer's instructions and guidelines when installing any new components in your refrigerator.
CVS Refrigerator Supplier: Unveiling the Brand Behind Their Cooling Solutions
You may want to see also
Explore related products
Relay Installation: Follow the manufacturer's instructions to install the relay start device, connecting wires correctly
Begin the installation process by thoroughly reading the manufacturer's instructions for the relay start device. This is crucial as different models may have specific requirements or variations in the installation procedure. Ensure you understand all the steps and have all the necessary tools and components before starting.
Next, identify the correct location for the relay start device. It should be installed in a secure, dry place that is easily accessible for maintenance. The device should be mounted on a solid surface, such as a wall or the side of the refrigerator, using the provided mounting hardware.
When connecting the wires, it is essential to follow the wiring diagram provided in the manufacturer's instructions. Typically, you will need to connect the power supply wires, the control wires, and the compressor wires. Use wire nuts or terminal blocks to make secure connections, and ensure that all wires are properly insulated to prevent short circuits.
After the physical installation is complete, test the relay start device to ensure it is functioning correctly. This may involve using a multimeter to check for continuity and proper voltage levels. If the device is not functioning as expected, double-check all connections and consult the troubleshooting section of the manufacturer's instructions.
Finally, once the relay start device is installed and tested, secure any loose wires and tidy up the installation area. Label all wires and connections for future reference, and dispose of any packaging or installation materials responsibly. Remember to follow all safety precautions throughout the installation process, such as turning off the power supply before starting and wearing appropriate protective gear.
Storing Walnuts: Refrigerator Tips for Freshness and Longevity
You may want to see also
Explore related products
Testing and Troubleshooting: After installation, test the relay and troubleshoot any issues to ensure proper function
After installing the relay start device for your refrigerator compressor, it's crucial to test and troubleshoot the system to ensure it functions correctly. Begin by verifying that all connections are secure and that the power supply is stable. Use a multimeter to check for continuity in the circuit and to ensure that the relay is receiving the correct voltage.
If the relay is not functioning as expected, start by checking the wiring connections. Ensure that the wires are properly stripped and securely attached to the relay terminals. Next, inspect the relay itself for any signs of damage or wear. If the relay appears to be in good condition, use a multimeter to test its resistance and ensure it matches the manufacturer's specifications.
In some cases, the issue may lie with the compressor itself. Check the compressor for any signs of damage or overheating. If the compressor is overheating, it may be necessary to clean the condenser coils or check the refrigerant levels. If the compressor is damaged, it may need to be replaced.
Another common issue is a faulty start capacitor. Use a multimeter to test the capacitor's voltage and ensure it matches the manufacturer's specifications. If the capacitor is faulty, it will need to be replaced.
Finally, if all other components are functioning correctly, the issue may lie with the control board. Check the control board for any signs of damage or wear. If the control board is damaged, it may need to be replaced.
By following these troubleshooting steps, you can identify and resolve any issues with your relay start device and ensure your refrigerator compressor is functioning properly.
