Installing a thermostat in a Whirlpool refrigerator is a straightforward process that can help maintain optimal cooling efficiency and extend the appliance's lifespan. Before beginning, ensure you have the correct replacement thermostat model specific to your Whirlpool refrigerator. Start by unplugging the refrigerator to ensure safety. Locate the existing thermostat, typically found near the evaporator coils or behind the control panel. Carefully remove the cover or panel to access the thermostat, then disconnect the wiring harness and unscrew the old thermostat. Install the new thermostat by securing it in place with the provided screws and reconnecting the wiring harness, ensuring each wire matches the correct terminal. Reattach any panels or covers, then plug the refrigerator back in and set the desired temperature to test the new thermostat's functionality. Always refer to the user manual or manufacturer guidelines for model-specific instructions.
Explore related products
![BlueStars [LIFETIME WARRANTY] 3387134 Cycling Thermostat 3392519 Dryer Thermal Fuse 3977393 Thermal Cut-off Switch 3977767 High-limit Thermostat Kit - Compatible with Whirlpool Kenmore Maytag Dryers](https://m.media-amazon.com/images/I/81FYRO8xJjL._AC_UY218_.jpg)
What You'll Learn
- Gather Tools and Materials: Phillips screwdriver, work gloves, new thermostat, and user manual for your Whirlpool model
- Locate Thermostat Position: Find the thermostat inside the refrigerator, usually near the control panel or evaporator
- Disconnect Power Supply: Unplug the refrigerator or turn off the circuit breaker to ensure safety
- Remove Old Thermostat: Unscrew and detach the old thermostat, noting wire connections for proper reinstallation
- Install New Thermostat: Attach the new thermostat, reconnect wires, and secure it according to the manual
Gather Tools and Materials: Phillips screwdriver, work gloves, new thermostat, and user manual for your Whirlpool model
Before diving into the installation of a new thermostat in your Whirlpool refrigerator, it’s crucial to assemble the right tools and materials. A Phillips screwdriver is your primary instrument for removing and securing screws, ensuring you don’t strip them or damage the appliance. Work gloves are equally essential, providing both grip and protection against sharp edges or accidental slips. The new thermostat, of course, is the star of the show—ensure it’s compatible with your specific Whirlpool model to avoid functionality issues. Lastly, the user manual is your roadmap, offering model-specific instructions and diagrams that can save you time and frustration. Skipping this step could lead to unnecessary complications, so gather everything before you begin.
Consider the Phillips screwdriver as the backbone of this task. Its cross-shaped tip is designed to fit the screws commonly found in Whirlpool refrigerators, making it indispensable. If you’re unsure about the size, a #2 Phillips screwdriver typically works for most household appliances. Pair this with work gloves that offer both dexterity and protection—leather or synthetic gloves with grippy palms are ideal. These gloves not only shield your hands but also improve your grip, reducing the risk of dropping screws or tools into the refrigerator’s interior. Investing in quality gloves can make the difference between a smooth installation and a frustrating one.
The new thermostat is where precision matters most. Whirlpool refrigerators often require specific thermostat models, so double-check the part number against your user manual or the original thermostat. Compatibility ensures accurate temperature control and prevents damage to the refrigerator’s cooling system. If you’re replacing a faulty thermostat, inspect the old one for any signs of corrosion or wear that could indicate underlying issues. While the thermostat itself is straightforward, its installation demands attention to detail—a misaligned connection could render it ineffective.
Speaking of the user manual, it’s not just a formality—it’s your safeguard. Whirlpool models vary in design, and the manual provides insights into accessing the thermostat compartment, which may be hidden behind panels or drawers. It also outlines safety precautions, such as unplugging the refrigerator before starting work. For instance, some models require removing the crisper drawers to access the thermostat, while others may involve unscrewing a control panel. Without the manual, you risk overlooking these steps, potentially causing damage or voiding warranties. Treat it as your co-pilot throughout the installation process.
In summary, gathering the right tools and materials is the foundation of a successful thermostat installation. A Phillips screwdriver, work gloves, the correct thermostat, and the user manual are non-negotiable. Each item plays a unique role, from ensuring precision to safeguarding your hands and appliance. By preparing these in advance, you streamline the process, minimize errors, and set yourself up for a job well done. Remember, the goal isn’t just to replace the thermostat but to do so efficiently and safely, preserving the longevity of your Whirlpool refrigerator.
Refrigerating Uncooked Grands Biscuits: Tips and Best Practices
You may want to see also
Explore related products
Locate Thermostat Position: Find the thermostat inside the refrigerator, usually near the control panel or evaporator
The thermostat in a Whirlpool refrigerator is the brain of its cooling system, regulating temperature to keep your food fresh. Locating it is the first critical step in any installation or troubleshooting process. Typically, Whirlpool designs place the thermostat near the control panel or evaporator, areas that are both accessible yet integrated into the unit’s core functions. Understanding this positioning isn’t just about convenience—it’s about recognizing how the refrigerator’s engineering prioritizes efficiency and user interaction.
To locate the thermostat, start by identifying the control panel, usually found at the top interior of the refrigerator compartment. In many Whirlpool models, the thermostat is either directly behind this panel or adjacent to it, often concealed by a removable cover. If it’s not there, shift your focus to the evaporator area, typically located at the back of the freezer compartment. This dual-location design reflects Whirlpool’s strategy to balance temperature control with ease of access for maintenance.
When searching near the evaporator, be cautious of frost buildup or sharp edges. Use a flashlight to illuminate the area, as the thermostat may be tucked behind coils or insulation. Some models require removing a panel or unscrewing a cover to expose the thermostat. Always refer to your refrigerator’s manual for model-specific guidance, as Whirlpool’s designs can vary slightly across product lines.

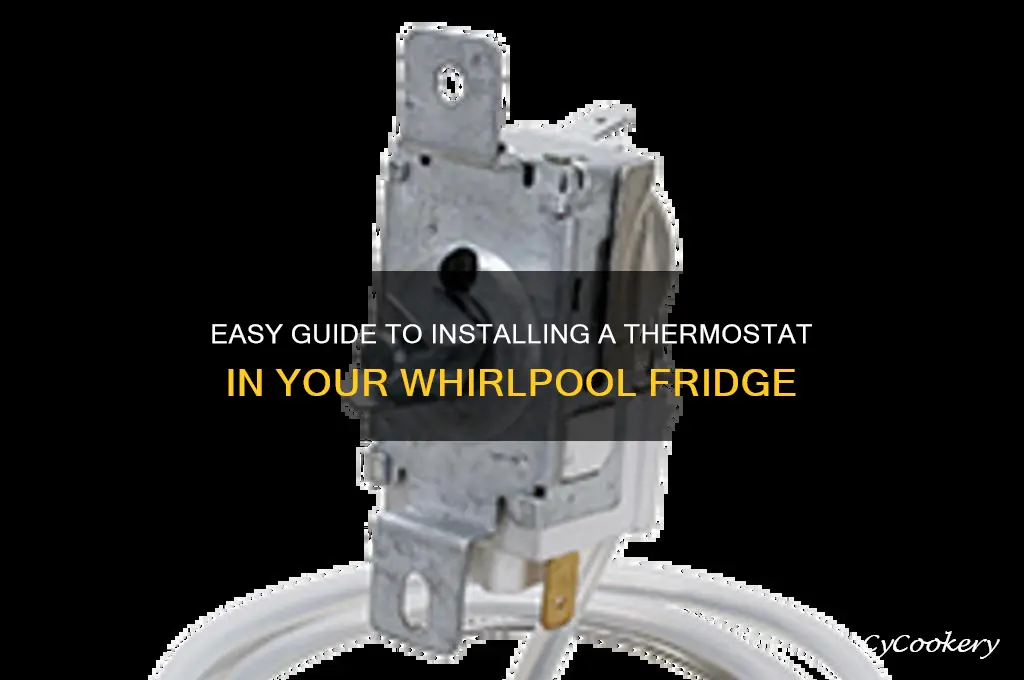

A practical tip: if you’re unsure which component is the thermostat, look for a small, cylindrical device with wires connected to it. It’s often labeled or marked with temperature settings. Once located, take note of its orientation and connections—this will be crucial if you’re replacing or adjusting it. Proper identification ensures you don’t mistake it for other components, such as sensors or relays, which serve different functions.
In summary, locating the thermostat in a Whirlpool refrigerator involves a systematic search near the control panel or evaporator, guided by both design logic and practical observation. This step is foundational for any installation or repair, ensuring you work with precision and confidence. By understanding its placement, you’re not just finding a part—you’re decoding the refrigerator’s internal architecture.
Refrigerating Pizza: Best Practices for Storing Your Leftover Slices
You may want to see also
Explore related products
Disconnect Power Supply: Unplug the refrigerator or turn off the circuit breaker to ensure safety
Before you embark on the task of installing a thermostat in your Whirlpool refrigerator, it's crucial to prioritize safety by disconnecting the power supply. This step is non-negotiable, as it eliminates the risk of electrical shock or short circuits during the installation process. Whether you choose to unplug the refrigerator from the wall outlet or turn off the dedicated circuit breaker, the goal is to ensure that no electricity is flowing to the appliance. This simple yet vital action sets the foundation for a safe and successful thermostat installation.
From an analytical perspective, the power supply disconnection step is a precautionary measure rooted in electrical safety principles. Refrigerators operate on standard household current, typically 120 volts in the United States, which can pose a significant hazard if not handled properly. By interrupting the power flow, you create a controlled environment where internal components are safe to touch and manipulate. This is particularly important when working with thermostats, as they are often located near electrical connections and wiring harnesses.
Instructively speaking, here’s how to execute this step effectively: Locate the refrigerator’s power cord and unplug it from the wall outlet. If the appliance is hardwired or you prefer added safety, head to your home’s electrical panel and flip the corresponding circuit breaker to the "off" position. Label the breaker if necessary to avoid confusion later. For hardwired units, ensure the junction box is accessible and disconnect the wires only if you’re experienced with electrical work; otherwise, consult a professional. Wait at least 5 minutes after disconnecting power to allow any residual charge in capacitors to dissipate before proceeding.
Persuasively, consider this: Skipping the power disconnection step might save you a few minutes, but it could cost you dearly in terms of safety. Electrical accidents during appliance repairs are not uncommon and can result in severe injuries or damage to your refrigerator. By taking this precautionary measure, you’re not just following a guideline—you’re actively protecting yourself, your household, and your investment. It’s a small effort with a disproportionately large payoff in terms of risk mitigation.
Comparatively, disconnecting power for thermostat installation is akin to wearing a seatbelt before driving—it’s a basic safety practice that should never be overlooked. Just as you wouldn’t start a car without buckling up, you shouldn’t begin this task without ensuring the refrigerator is electrically isolated. Both actions are simple, take minimal time, and provide a critical layer of protection. In the context of DIY repairs, this step is your first line of defense against preventable accidents.
Descriptively, imagine the scenario: You’ve gathered your tools, located the thermostat, and are ready to begin. The refrigerator stands silent, its hum absent as the power is safely disconnected. The kitchen feels momentarily still, a stark contrast to the usual background noise. This quiet moment is your assurance that you’ve taken the necessary precautions, allowing you to focus on the task at hand with confidence and peace of mind. It’s a small pause that transforms the installation process from potentially hazardous to entirely manageable.
Refrigerating Urine Samples: Best Practices and Safety Tips
You may want to see also
Explore related products
Remove Old Thermostat: Unscrew and detach the old thermostat, noting wire connections for proper reinstallation
The first step in replacing a thermostat in a Whirlpool refrigerator is to remove the old one, a task that demands precision and attention to detail. Begin by locating the thermostat, typically found behind the control panel or inside the refrigerator compartment. Before proceeding, ensure the refrigerator is unplugged to avoid any electrical hazards. Armed with a screwdriver, carefully unscrew the mounting screws that secure the thermostat in place. These screws are often small and may require a Phillips or flathead screwdriver, depending on the model. As you remove the screws, keep them organized in a container to prevent loss, as they are essential for reinstallation.
Upon removing the screws, gently detach the old thermostat from its housing. Take note of its orientation and any clips or tabs that hold it in place, as these details will be crucial when installing the new thermostat. The thermostat is connected to the refrigerator’s wiring harness via a set of wires, typically color-coded for identification. Before disconnecting these wires, document their positions using a labeling system, such as taking a photo or drawing a diagram. This step is critical, as incorrect reconnection can lead to malfunctions or damage. Most Whirlpool refrigerators use standard wire colors, but variations exist, so cross-referencing with the user manual is advisable.
Once the wires are labeled, carefully disconnect them from the old thermostat. Some models may have plug-in connectors, while others use screw terminals. If dealing with screw terminals, loosen the screws and pull the wires free, ensuring no strands are left behind. Inspect the wires for fraying or damage; if any issues are found, consider replacing the wires or consulting a professional. With the wires disconnected, the old thermostat can be fully removed, clearing the way for the installation of the new unit.
A common mistake during this process is rushing the wire disconnection, leading to confusion during reinstallation. To avoid this, take your time and double-check your documentation. If the wires are not labeled accurately, you may face challenges in restoring proper functionality. Additionally, handle the thermostat and wires with care to prevent bending or breaking delicate components. By methodically unscrewing, detaching, and documenting the old thermostat’s connections, you lay a solid foundation for a successful replacement, ensuring your Whirlpool refrigerator operates efficiently once again.
Determining Your Amana Refrigerator's Age: A Quick Guide
You may want to see also
Explore related products
Install New Thermostat: Attach the new thermostat, reconnect wires, and secure it according to the manual
Attaching a new thermostat in your Whirlpool refrigerator is a pivotal step in restoring its cooling efficiency. Begin by aligning the thermostat with the mounting holes on the refrigerator’s control panel. Use the screws provided in the kit to secure it firmly, ensuring it sits flush against the surface. Double-check the alignment to avoid any gaps that could compromise its functionality. This step is straightforward but requires precision—a misaligned thermostat can lead to inaccurate temperature readings, defeating the purpose of the replacement.
Reconnecting the wires is where attention to detail becomes critical. Most Whirlpool refrigerators use color-coded wires, simplifying the process. Match the wires from the old thermostat to the corresponding terminals on the new one. For instance, the red wire typically connects to the power terminal, while the blue or white wire connects to the sensor terminal. If your model uses a wiring diagram, refer to it carefully. Incorrect wiring can cause the refrigerator to malfunction or even damage the new thermostat. Use needle-nose pliers to gently bend wires if needed, ensuring a snug fit without over-tightening.
Securing the thermostat according to the manual is the final but often overlooked step. Whirlpool manuals often specify torque values for screws or particular orientations for the thermostat body. Over-tightening screws can strip threads, while under-tightening may leave the thermostat loose. If the manual recommends applying a sealant or insulating tape, do so to prevent moisture intrusion or electrical shorts. This step ensures longevity and reliability, turning a functional repair into a durable solution.
Practical tips can streamline this process. Label wires with tape before disconnecting the old thermostat to avoid confusion later. Keep a flashlight handy to illuminate the control panel area, which is often dimly lit. If the new thermostat includes a calibration feature, follow the manual’s instructions to set it to the recommended temperature range for your refrigerator model. Finally, test the thermostat before fully reassembling the panel—turn the dial and listen for the compressor to engage, confirming the connection is active. These small precautions transform a potentially daunting task into a manageable DIY project.
Easy Guide to Adding Canned Refrigerant to Your Car's AC System
You may want to see also
Frequently asked questions
You will typically need a screwdriver (Phillips or flathead, depending on your model), a multimeter to test electrical connections, and possibly pliers or needle-nose pliers for handling wires.
The thermostat is usually located inside the refrigerator compartment, often behind a control panel or cover near the top or bottom. Refer to your refrigerator’s manual for the exact location.
Most thermostat installations can be done as a DIY project if you’re comfortable with basic electrical work. However, if you’re unsure or uncomfortable, it’s best to hire a professional technician.
After installation, turn on the refrigerator and check if it cycles on and off correctly. Use a thermometer to verify that the temperature inside the fridge stabilizes at the desired setting within a few hours.
