Cooking pots are not thermally insulated, which leads to heat loss through the walls and lid. There are various ways to insulate a cooking pot, such as using a pot skirt, a pot cozy, a carbon fiber welding blanket, or a double-walled design. Insulating a cooking pot can improve energy efficiency and reduce cooking time, but it can also increase cost, weight, and size. Some insulated cooking pots are available on the market, but they tend to be expensive.
| Characteristics | Values |
|---|---|
| Commercially available insulated cooking pots | Yes, but they can be expensive |
| Insulating rings for standard pots | Available |
| Downsides of insulation | Adds weight, size, manufacturing complexity, and breakage risk |
| Lid | Necessary to prevent heat loss from the top of the pot |
| Pressure cookers | Often insulated and heavy |
| Insulation materials | Carbon fiber, fiberglass wrapped in tinfoil, double-bubble reflective foil, wool blankets, etc. |
| Insulation techniques | Pot skirts, pot cozies, double-walled pots, insulated boxes, fireless cookers, etc. |
| Benefits of insulation | Improved heat retention, reduced cooking time, energy savings, decreased indoor air pollution |
Explore related products
What You'll Learn
Using a pot skirt
A pot skirt is a vertical sleeve, usually made of metal, that forces the hot gases from the fire to flow closely around the sides of the pot. They work with all but electric stoves. Pot skirts can be insulated on the outside, reducing heat loss from the sides of the pot. They also reduce the effects of fire asymmetry, which can be a problem for both outdoor and indoor cooking.
Tests on three types of stoves – an open fire, a biomass rocket stove, and a gas rocket stove – showed that pot skirts could improve heat transfer efficiency by about 10-20% for a rocket stove and by about 30% for an open fire. The Trangia type of stove also utilizes the pot skirt concept, with the windshield of the stove going some way up the sides of the pot.
To make a DIY pot skirt, you can start with a strip of foil about 3.5-4 times longer than the outside circumference of the pot. You can then create a zig-zag pattern with the foil to form a ring around the outside of the pot. Punching holes near the top of the skirt with a stake or spoon handle will allow exhaust gases to escape. The lower edge of the skirt should be down to the control lever on canister stoves.
Melting Marshmallows: Quick, Easy Pan Method
You may want to see also
Explore related products
$9.89
Insulating rings
While insulating rings can be purchased, they tend to be expensive. As an alternative, you can create your own insulating ring using a variety of materials. One option is to use a Carbon Fiber Welding Blanket, which can take direct flames of up to 1800°F and is commonly used by the grill and smoker crowd as insulation for their coolers. These blankets are relatively inexpensive and can be wrapped around the outside of the pot to retain heat.
Another option for creating an insulating ring is to use double-bubble reflective foil insulation. This material can be purchased online or at hardware stores and used to create a "pot cozy" that fits around your cooking pot. The pot cozy helps to hold in the heat, allowing the meal to continue cooking with retained heat, thus saving fuel. To create a pot cozy, trace the bottom and top circles of your pot onto the reflective foil insulation material, adding a slight allowance for the handle if needed. Cut out the circles and use foil tape to assemble the pot cozy, ensuring a snug fit around your pot.
It is important to note that while insulating rings and pot cozies can help improve thermal efficiency, they may also cause the pot to stay hotter for longer even after the heat source is turned off. This can impact cooking times and may be inconvenient for certain dishes. Therefore, it is essential to consider the recipe and adjust cooking times accordingly when using insulating accessories.
Pan-Grilled Ahi Tuna: A Simple, Quick, and Delicious Recipe
You may want to see also
Explore related products
Double-bubble reflective foil insulation
Materials:
- Double-bubble reflective foil insulation: This can be purchased from hardware stores or online retailers like Amazon. Look for insulation that is specifically designed for high temperatures and has good sealing performance to avoid heat loss.
- Foil tape: This will be used to secure the insulation around the pot.
- Scissors: To cut the insulation to the desired size.
- Measuring tape: To measure the circumference and height of the pot.
Instructions:
- Measure the circumference of the pot: Use the measuring tape to determine the circumference of the pot by wrapping it around the widest part of the pot, just below the rim.
- Measure the height of the pot: Measure the height from the base of the pot to the rim.
- Cut the insulation: Using the measurements taken, cut the double-bubble reflective foil insulation to size. You will need enough insulation to wrap around the pot with a slight overlap, and the height should cover the sides of the pot, leaving the base and top open.
- Secure the insulation: Use foil tape to securely attach the insulation around the pot. Start by taping the overlapping edges of the insulation together, forming a cylindrical shape that fits snugly around the pot. Then, tape the insulation in place along the height of the pot, ensuring it is securely attached.
- Leave the base and top open: Ensure that the base and the top of the pot are not covered with insulation. This will allow heat to enter from the stove-top and allow for ventilation.
- Test and adjust: Place the insulated pot on a heat source and adjust the insulation as needed. Ensure that the insulation is secure and does not come into direct contact with the heat source to avoid damage.
Circulon Pans: Induction-Ready or Not?
You may want to see also
Explore related products

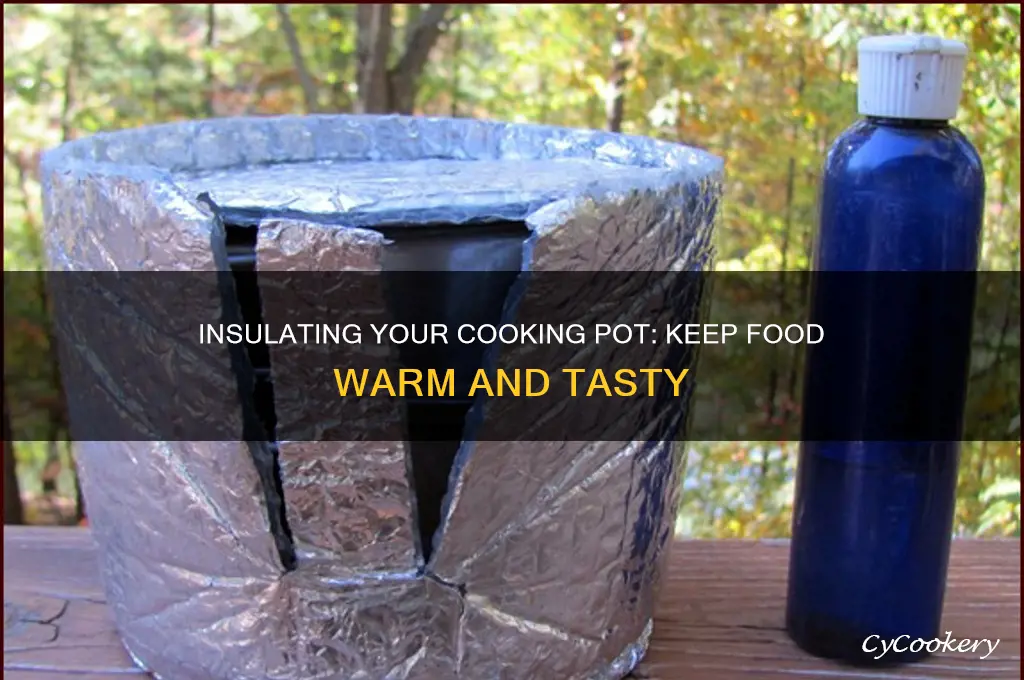

A pot cozy
To make a pot cozy, you will need insulating material, such as double-bubble reflective foil insulation or bubble wrap with foil around it, and some duct tape or foil tape, and scissors. You can find these materials at hardware stores or online.
Firstly, measure the height of your pot, just below the lip. Wrap the insulating material around the circumference to determine the length required. Cut out a piece of the material, ensuring it is slightly longer than the circumference. This will be the sidewall of your pot cozy. Check that the ends meet without overlapping, and that the cozy fits snugly but is not too tight.
Next, place your pot on a piece of insulating material and trace around the outside to mark the bottom circle. Cut this circle out, ensuring there is some extra material, about ⅛" allowance, around the drawn line.
Finally, cut a strip of tape that is the length of the sidewall piece plus an extra inch. Attach the bottom circle to the sidewall piece with the tape. You can also use tape to attach any additional pieces of insulating material together.
Your pot cozy will help retain heat, thereby reducing cooking time and fuel usage. It will also make it safer and more comfortable to handle the pot with your hands or place it on your lap when eating.
Crock Pot Magic: Frozen Pork Chops, Delicious Dinner
You may want to see also
Explore related products
Fireless cookers
The basic design of a fireless cooker consists of an outer wooden box with a lid that, when opened, reveals a thickly padded interior, often made of black felt. At the centre of the padded interior is a round tin box where food is placed for cooking. The insulation helps retain heat, allowing the food to continue cooking even after the heat source is removed. This slow cooking method ensures that food never burns or dries up and is always ready on time.
To use a fireless cooker, one simply needs to heat the inner tin box over a heat source until the food reaches the desired temperature. The heat source is then removed, and the insulated box is closed, trapping the heat inside and slowly cooking the food. This method was particularly useful for dishes that required long simmering times, such as stews and soups.
While fireless cookers may not be as common today as they were a century ago, they still have their advantages, especially in situations where traditional cooking methods may not be feasible or economical. For example, fireless cookers can be useful for outdoor activities like camping or in regions with limited access to fuel or electricity. Additionally, they can help reduce energy consumption and costs by utilising residual heat to complete the cooking process.
Poop Problems: Sticking to the Pan
You may want to see also
Frequently asked questions
There are a few ways to insulate your cooking pot. You can use a pot skirt, which is a vertical sleeve that forces hot gases from the fire to flow closely around the sides of the pot. You can also use a pot cozy, which is made from double-bubble reflective foil insulation and foil tape. Another option is to wrap the pot in a towel or blanket, although this can be less effective and cause moisture issues.
Insulating a cooking pot can increase heat efficiency, reduce cooking time, and save fuel. It can also make it easier to handle the pot after cooking.
Alternative options include using a pressure cooker, a thermal cooker (large thermos flask), or a fireless cooker, which is a well-insulated box that you place the pot in after bringing its contents to a boil.
