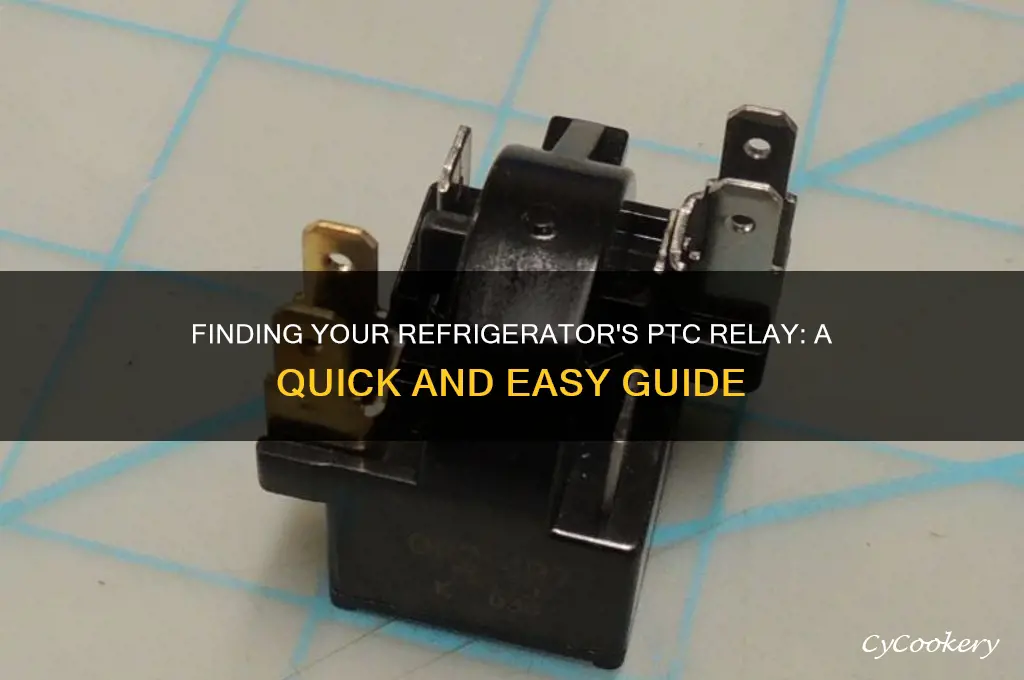

Locating the PTC (Positive Temperature Coefficient) relay in a refrigerator is a crucial step for troubleshooting or replacing this component, which plays a key role in controlling the compressor's operation. The PTC relay is typically found near the compressor, often mounted on the side or top of it, and is connected to the start capacitor and power supply. To access it, you’ll need to unplug the refrigerator, remove the lower back panel or the panel covering the compressor, and carefully inspect the area for a small, cylindrical or rectangular component with wires attached. Identifying the PTC relay correctly ensures you can address issues like a non-starting compressor or erratic cooling efficiently.
| Characteristics | Values |
|---|---|
| Location | Typically found near the compressor, often attached to the side or top |
| Appearance | Small, rectangular or cube-shaped component with wires connected |
| Function | Controls the start and run capacitors for the compressor |
| Identification | Look for a component with a heat sink or fins |
| Wiring | Connected to the compressor, start capacitor, and run capacitor |
| Testing | Can be tested for continuity using a multimeter |
| Common Brands | Found in refrigerators from brands like Whirlpool, GE, LG, Samsung |
| Replacement | Requires unplugging the refrigerator and carefully disconnecting wires |
| Safety Precaution | Always disconnect power before attempting to locate or replace |
| Additional Components Nearby | Often located near the overload protector and start capacitor |
| Diagnostic Signs | Refrigerator not cooling, compressor not starting, or clicking noises |
| Tools Needed for Access | Screwdriver, possibly a socket set for panel removal |
| Consult Manual | Refer to the refrigerator’s manual for specific location details |
Explore related products
What You'll Learn
Identify PTC Relay Functionality
The PTC relay, a critical component in modern refrigerators, regulates the compressor's start-up and run cycles by managing current flow. Unlike traditional relays, it incorporates a Positive Temperature Coefficient (PTC) thermistor, which increases resistance as temperature rises. This unique property prevents overheating during compressor startup, ensuring energy efficiency and prolonging the appliance's lifespan. Understanding its functionality is key to diagnosing issues like inconsistent cooling or compressor failure.
To identify the PTC relay’s role, consider its placement near the compressor or on the refrigerator’s control board. When the thermostat signals a need for cooling, the relay initially allows high current to start the compressor. As the PTC thermistor heats up, its resistance increases, reducing the current to a safer, steady-state level. This dual-phase operation distinguishes it from standard relays, making it indispensable for heavy-duty appliances. Testing its continuity with a multimeter (expect low resistance at room temperature) can confirm its operational status.
A malfunctioning PTC relay often manifests as a compressor that fails to start, runs continuously, or cycles irregularly. For instance, if the relay remains stuck in the start-up phase, the compressor may overheat, triggering a safety shutdown. Conversely, if it fails to reduce current, excessive energy consumption and premature compressor wear can occur. Replacing a faulty PTC relay typically costs between $20 and $50, depending on the model, and requires basic electrical knowledge to avoid short circuits.
Comparing the PTC relay to older mechanical relays highlights its advantages. Mechanical relays rely on physical contacts that wear out over time, leading to arcing and reduced efficiency. In contrast, the PTC relay’s solid-state design minimizes wear and tear, offering greater reliability. However, its sensitivity to temperature fluctuations means it must be properly insulated and positioned to function optimally. Always consult the refrigerator’s manual or a technician if unsure about compatibility or installation.
For DIY enthusiasts, locating and testing the PTC relay involves a systematic approach. Start by unplugging the refrigerator to ensure safety. Trace the wiring from the compressor to the relay, often housed in a small plastic box. Use a multimeter set to the ohms (Ω) scale to check resistance; a reading of 0.5 to 5 ohms at room temperature is typical. If the relay fails the test, order a replacement part with the exact specifications. Reinstall it carefully, ensuring all connections are secure, and monitor the refrigerator’s performance post-repair.
Easy Steps to Remove Your GE Refrigerator Light Cover
You may want to see also
Explore related products
Locate Compressor Area in Fridge
The compressor is the heart of your refrigerator, responsible for circulating refrigerant and maintaining optimal temperatures. Locating it is crucial when troubleshooting issues like a non-functioning fridge or unusual noises. Most modern refrigerators house the compressor in a specific area, typically at the bottom rear, though designs vary across brands and models. Understanding its location not only aids in identifying problems but also ensures safe handling during maintenance or repairs.
To locate the compressor area, start by unplugging the refrigerator to avoid electrical hazards. Next, move the appliance away from the wall, if possible, to access the rear panel. The compressor is usually encased in a black or metallic housing, often accompanied by tubes and wires. In top-freezer models, it’s commonly found near the floor, while side-by-side or bottom-freezer units may place it slightly higher. If your fridge has a removable back panel, inspect it for a large, cylindrical or rectangular component emitting a low hum when operational.
A practical tip is to refer to your refrigerator’s manual, which often includes diagrams pinpointing the compressor’s location. If the manual is unavailable, observe the fridge’s exterior for vents or grilles at the bottom rear, as these typically correspond to the compressor area. For older models, the compressor might be less accessible, requiring you to remove additional panels or components. Always exercise caution to avoid damaging sensitive parts or injuring yourself.
Once you’ve identified the compressor area, assess its condition. Look for signs of overheating, such as discoloration or burnt odors, which could indicate a failing PTC relay or other issues. If the compressor feels excessively hot or emits unusual sounds, it may warrant professional inspection. Regularly cleaning the area around the compressor, including dusting coils and ensuring proper ventilation, can enhance efficiency and prolong the appliance’s lifespan.
In summary, locating the compressor area in your fridge is a straightforward process that begins with safety precautions and a systematic approach. By familiarizing yourself with its position and condition, you can address potential problems early and maintain your refrigerator’s performance. Whether you’re a DIY enthusiast or prefer professional assistance, knowing where the compressor resides is a valuable skill for any fridge owner.
Can Your Refrigerator Explode? Uncovering the Risks and Facts
You may want to see also
Explore related products
Spot PTC Relay Near Compressor
The PTC relay in a refrigerator is often nestled near the compressor, a strategic placement that ensures efficient temperature control. This proximity allows the relay to regulate the compressor’s operation, preventing overheating and extending the appliance’s lifespan. To locate it, start by unplugging the refrigerator for safety. Then, remove the lower back panel or access cover, typically secured with a few screws. The PTC relay is usually a small, rectangular component with wires connected to it, positioned close to the compressor’s body. Its location may vary by model, but this area is the most common starting point.
Analyzing the design rationale behind this placement reveals its importance. The compressor generates significant heat during operation, and the PTC relay’s role is to monitor and control this heat. By being situated nearby, the relay can respond quickly to temperature fluctuations, ensuring the compressor doesn’t run continuously or overheat. This design minimizes energy waste and reduces wear on the system. For example, in Whirlpool and LG models, the PTC relay is often mounted directly on the compressor’s side, encased in a protective housing to shield it from moisture and debris.
When troubleshooting a refrigerator that’s not cooling properly, the PTC relay is a prime suspect. A faulty relay can cause the compressor to run intermittently or not at all. To test it, use a multimeter to check for continuity across its terminals. A reading of zero ohms indicates a functioning relay, while infinite resistance suggests it’s defective. If replacing the relay, ensure the new component matches the original’s specifications, including voltage and resistance ratings. Practical tip: Label the wires before disconnecting them to avoid confusion during reassembly.
Comparing the PTC relay’s location across different brands highlights both consistency and variation. In Samsung refrigerators, the relay is often integrated into a control board near the compressor, while Frigidaire models may have it mounted separately. Despite these differences, the principle remains the same: keep the relay close to the heat source for optimal performance. This consistency makes it easier for technicians and DIY enthusiasts to locate the component across various appliances, streamlining repairs.
In conclusion, spotting the PTC relay near the compressor is a straightforward task once you understand its purpose and typical placement. By focusing on this area, you can efficiently diagnose and address cooling issues. Always prioritize safety by unplugging the refrigerator and handling components with care. With this knowledge, you’re better equipped to maintain your appliance and ensure it runs smoothly for years to come.
Should You Refrigerate Hot Ones Hot Sauce After Opening?
You may want to see also
Explore related products
Check Wiring Connections to Relay
Loose wiring connections are a common culprit behind PTC relay malfunctions in refrigerators. Vibrations from the compressor, temperature fluctuations, and general wear-and-tear can cause wires to become disconnected or corroded over time. Before assuming the relay itself is faulty, a thorough inspection of the wiring connections is crucial.
This seemingly simple step can save you time, money, and the hassle of replacing a perfectly functional component.
Begin by unplugging the refrigerator to ensure safety. Locate the PTC relay, typically found near the compressor. It's a small, rectangular component with several wires attached. Carefully examine each wire connection point. Look for signs of looseness, corrosion (a greenish or white powdery substance), or damage to the wire insulation. Gently tug on each wire to test its security. Even a slightly loose connection can disrupt the flow of electricity, preventing the relay from functioning properly.
If you notice any issues, proceed with caution.
For loose connections, simply reattach the wire firmly. Ensure the connection is secure but avoid over-tightening, as this can damage the terminal. Corroded connections require more attention. Use a fine-grit sandpaper or a wire brush to gently remove the corrosion from both the wire and the terminal. Once clean, reattach the wire securely. In cases of damaged wire insulation, it's best to consult a qualified appliance repair technician. Attempting to repair damaged wires yourself can be dangerous and may void your warranty.
Remember, safety should always be your top priority.
After addressing any wiring issues, plug the refrigerator back in and observe its operation. If the problem persists, further troubleshooting may be necessary, potentially involving testing the relay itself or other components in the circuit. However, by meticulously checking the wiring connections, you've eliminated a common cause of PTC relay problems and taken a significant step towards resolving the issue.
Dead Mouse in Fridge: Contamination Risks and Safe Cleanup Tips
You may want to see also
Explore related products
Verify PTC Relay with Multimeter
A faulty PTC (Positive Temperature Coefficient) relay can cause your refrigerator to stop cooling, leading to spoiled food and frustration. Before replacing the relay, verify its functionality using a multimeter—a handy tool for diagnosing electrical issues. This process ensures you’re addressing the correct problem, saving time and money.
Steps to Verify PTC Relay with Multimeter:
- Safety First: Unplug the refrigerator to avoid electrical shock. Locate the PTC relay, typically found near the compressor, often in a small box or attached to the start capacitor.
- Access the Relay: Remove the relay from its housing by gently prying or unsnapping the cover. Identify the three terminals: one for the compressor, one for the start capacitor, and one for the main power supply.
- Set the Multimeter: Turn the multimeter to the resistance (ohms, Ω) setting. Start with a high range (e.g., 20kΩ) and adjust as needed.
- Test the Relay: Place the multimeter probes on the terminals connected to the start capacitor and the main power supply. A functional PTC relay should show low resistance (typically 10–50 ohms) initially, then increase gradually as it heats up. If the reading remains low or jumps to infinity (open circuit), the relay is faulty.
Cautions: Avoid touching the compressor or other components while testing, as they may be hot. Ensure the multimeter probes are firmly connected to the terminals for accurate readings. If unsure about the process, consult a professional to prevent further damage.
Side-by-Side Refrigerators: Understanding Standard Widths for Your Kitchen Space
You may want to see also
Frequently asked questions
The PTC relay is typically located near the compressor, often attached to the side or top of it. It is a small, rectangular or square component with wires connected to it.
The PTC relay usually has a plastic or metal housing with multiple terminals for wire connections. It may have a label or markings indicating it as a relay or starter device.
Yes, you can test the PTC relay using a multimeter. Check for continuity across the terminals; if there is no continuity or inconsistent readings, the relay may be defective.
If you’re having trouble locating the PTC relay, refer to your refrigerator’s manual or search for a model-specific diagram online. It’s also possible the relay is integrated into another component, like the compressor start device.
