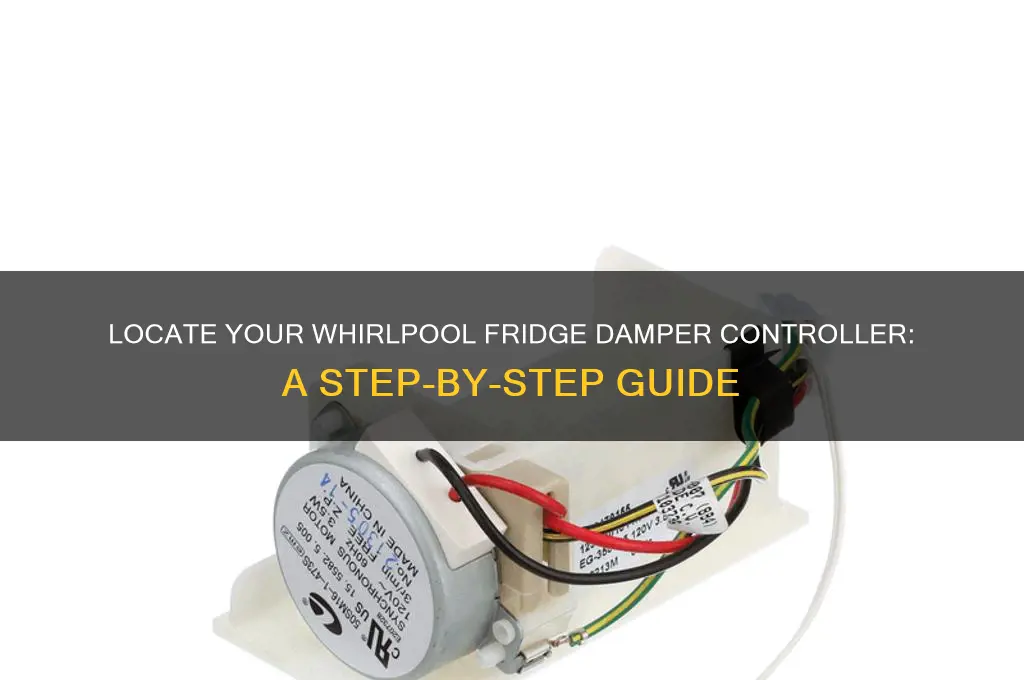

Locating the damper controller in a Whirlpool refrigerator is a crucial step for troubleshooting temperature issues or performing maintenance. The damper controller, also known as the air diffuser control, regulates the flow of cold air between the freezer and refrigerator compartments. Typically, it is found near the back of the refrigerator section, either behind a removable panel or inside the fresh food compartment. To access it, start by removing any shelves or drawers that may obstruct the area. Look for a small, rectangular component with a motor and a flap that opens and closes to control airflow. If you’re having trouble locating it, consult your refrigerator’s user manual or model-specific diagrams for precise instructions. Identifying and understanding the damper controller’s location can help diagnose problems like uneven cooling or excessive frost buildup.
| Characteristics | Values |
|---|---|
| Location | Typically found in the refrigerator section, near the air ducts or evaporator fan. |
| Appearance | A small, rectangular or square plastic component with a motor and flap mechanism. |
| Function | Controls airflow between the refrigerator and freezer compartments to regulate temperature. |
| Compatibility | Specific to Whirlpool refrigerators, but part numbers may vary by model. |
| Part Number Examples | W10420108, WP2198202, 2198202 (varies by model). |
| Tools Required for Access | Screwdriver, possibly a socket set or nut driver. |
| Access Panel | Often located behind the crisper drawers or inside the refrigerator compartment. |
| Testing Method | Check for physical damage, test continuity with a multimeter, or observe if the flap moves when activated. |
| Replacement Cost | Typically $20-$50 USD, depending on the model and retailer. |
| DIY Difficulty | Moderate; requires basic appliance repair skills and tools. |
| Professional Assistance | Recommended if unsure about disassembly or electrical testing. |
| Common Issues | Failure to open/close properly, causing temperature imbalances. |
| Diagnostic Codes | Some models may display error codes related to damper control (e.g., "CF" or "FF"). |
| Manual Reference | Check the refrigerator's user manual for specific location details. |
| Online Resources | Whirlpool support website, appliance repair forums, or YouTube tutorials. |
Explore related products
![[Upgraded] W10861519 Deli Drawer Hanger, Refrigerator Meat Drawer Shelf Holder for Whirlpool WRT148/WRT311/WRT318, Replaces W10628698, 4382323, AP5999492](https://m.media-amazon.com/images/I/418VSTrYGKL._AC_UY218_.jpg)
![[2 PACK]W10321304 Refrigerator Door Shelf Replacement Compatible with Whirlpool Fridge Door Bin WRS325FDAM01, WRS325FDAM02, WRS325FDAM04, ED5FVGXWS07 - Replace WPW10321304,AP6019471, 2179574, 2179575](https://m.media-amazon.com/images/I/61K7A6jGL-L._AC_UY218_.jpg)
What You'll Learn
Identifying the damper controller location in Whirlpool refrigerators
The damper controller in a Whirlpool refrigerator is a critical component that regulates the flow of cold air from the freezer to the fresh food compartment, ensuring optimal temperature balance. Identifying its location is essential for troubleshooting temperature inconsistencies or performing maintenance. Typically, the damper controller is situated between the freezer and refrigerator sections, often concealed behind a removable panel or cover. Understanding its placement can save time and frustration when addressing cooling issues.
To locate the damper controller, start by inspecting the rear wall of the fresh food compartment. In many Whirlpool models, the controller is housed behind a plastic or metal panel, which can be removed by unscrewing or gently prying it off. Once the panel is removed, you’ll likely find the damper assembly, which includes the controller mechanism. This area may also house the damper motor and linkage, which work together to open and close the air vent. If the panel isn’t at the rear, check the top or bottom of the fresh food compartment, as some models place the damper controller in these locations.
A practical tip for identifying the damper controller is to listen for its operation. With the refrigerator running, open the fresh food door and pay attention to faint clicking or humming sounds, which often indicate the damper motor adjusting the airflow. This auditory cue can guide you to the correct area. Additionally, consult your Whirlpool refrigerator’s user manual, as it often includes diagrams or descriptions of the damper controller’s location specific to your model.
When accessing the damper controller, exercise caution to avoid damaging surrounding components. Disconnect the refrigerator from power before removing panels or inspecting the assembly to prevent electrical hazards. If the damper controller appears faulty—such as being stuck open or closed—replacement may be necessary. Replacement parts are typically model-specific, so verify compatibility using the refrigerator’s model and serial numbers before purchasing.
In summary, identifying the damper controller in a Whirlpool refrigerator involves a systematic approach: inspect concealed panels, listen for operational sounds, and reference the user manual. With this knowledge, you can efficiently address temperature issues and maintain your refrigerator’s performance.
