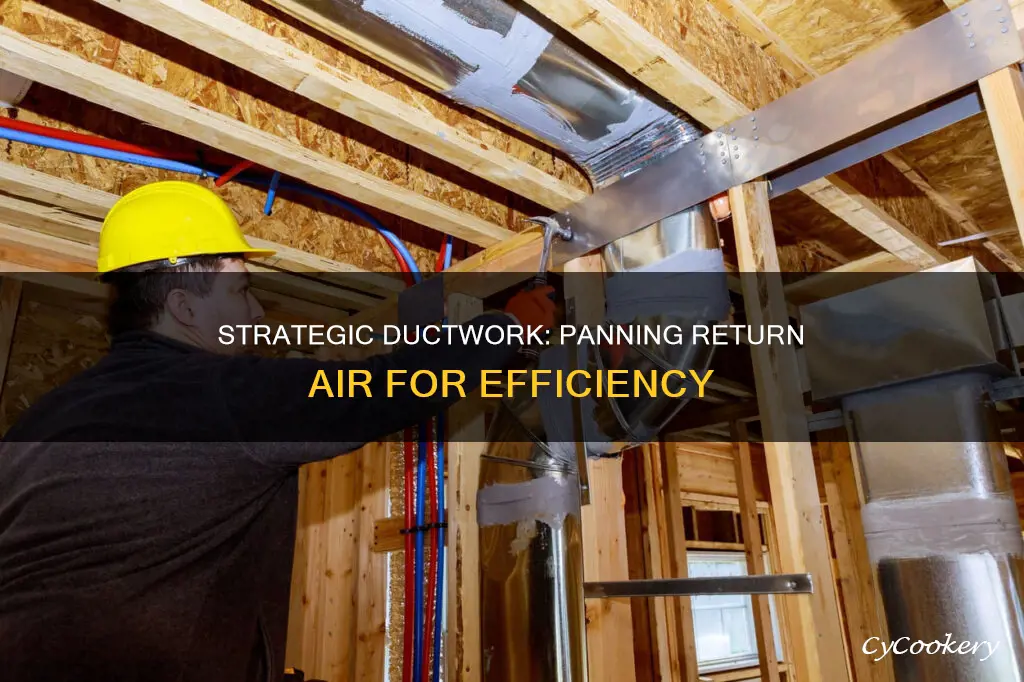

Return air duct panning is a simple and cost-effective method that utilizes the space between floor joists and requires much less material than running metal ducts. There are several methods for duct panning, including sheet metal, foil-faced cardboard, and bubble insulation. Sheet metal is the most expensive and labor-intensive option, while bubble insulation is more flexible and easier to install. Before installing a return air duct, it is important to consider the location and potential issues such as leaks and inadequate air sealing, which can lead to mould and odour problems. Additionally, cleaning the ducts and installing dampers can improve the efficiency and performance of the HVAC system.
Explore related products
What You'll Learn
- Return air duct panning methods: Sheet metal, foil-faced cardboard, or bubble insulation
- Installation: Staple the material of your choice to the bottom of the floor joists and seal the seams
- Leaks and mould: Penetrations for wiring, piping, or inadequate air-sealing can cause leaks, and mould can grow in accumulated dust
- Filtration: Install a filter of at least MERV-8; a MERV-11 is better for allergy sufferers
- Return duct placement: Avoid putting return ducts in bathrooms or kitchens to prevent the circulation of cooking odours and moisture
Return air duct panning methods: Sheet metal, foil-faced cardboard, or bubble insulation
Return air duct panning is a simple process that utilises the space between the floor joists and requires much less material than running metal ducts. There are several methods and materials to choose from when it comes to return air duct panning: sheet metal, foil-faced cardboard, or bubble insulation. Each method has its own advantages and disadvantages, and the best option for your project will depend on your specific needs and budget.
Sheet metal is one option for return air duct panning. This method involves purchasing sections of round metal ducts for standard returns or using sheets of metal for joist panning. While sheet metal is durable and effective, it is also the most expensive and labour-intensive solution. Additionally, inadequate air sealing at connections between the bay and the ducts or between the joists and the sheet metal pan can lead to leaks, allowing ambient air to be drawn into the system.
Foil-faced cardboard products, such as Thermopan, offer a more user-friendly alternative to sheet metal. However, they are not flexible and require effort to create a sealed return. Foil-faced cardboard is also susceptible to damage from excess moisture. To install foil-faced cardboard, it must be securely attached to the joist bay, and sealant or foil tape should be used to make all the joints in the duct airtight.
Bubble insulation, such as EcoFoil, is another option for return air duct panning. This method is less expensive and more flexible than sheet metal or foil-faced cardboard, making it easier to install. Bubble insulation comes in rolls sized to fit between or underneath the floor joists and, when sealed with reflective tape, creates an airtight seal. Additionally, products like EcoFoil are waterproof and resist the growth of mould and fungi. When installing bubble insulation, it is important to take safety precautions, such as wearing eye protection when operating a staple gun and being cautious of electrical wiring locations.
In summary, the choice between sheet metal, foil-faced cardboard, and bubble insulation for return air duct panning depends on factors such as cost, ease of installation, flexibility, and resistance to moisture. Each method has its own advantages and considerations, so it is important to carefully review the options before selecting the best one for your project.
