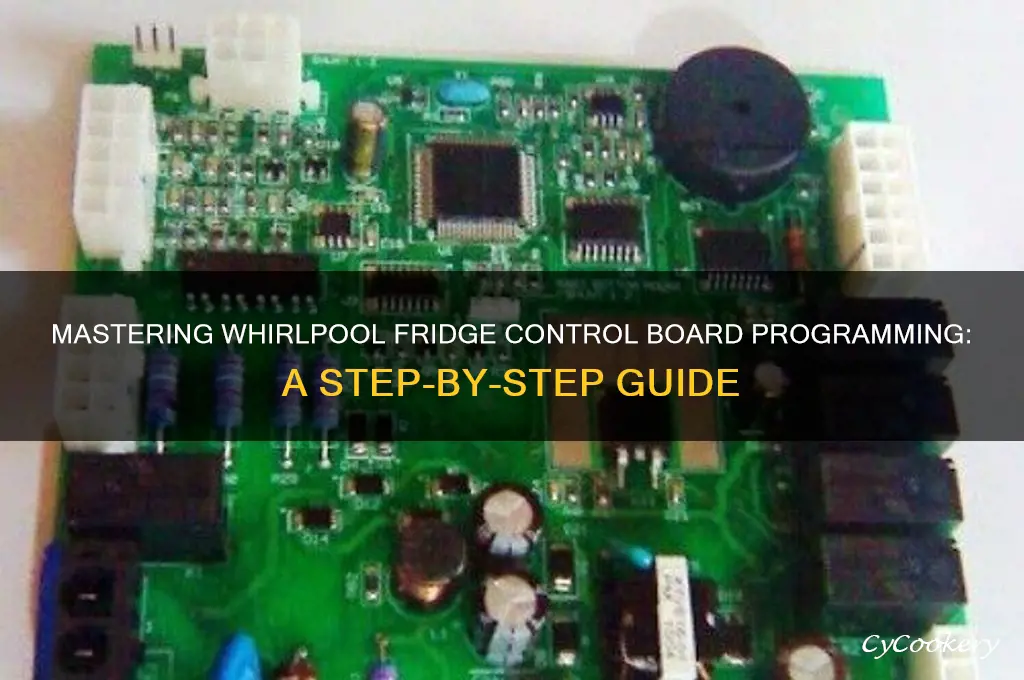

Programming a Whirlpool refrigerator control board requires a systematic approach to ensure proper functionality and safety. The process typically involves accessing the control board, which is usually located behind the refrigerator’s display panel or inside the unit. Before beginning, ensure the refrigerator is unplugged to avoid electrical hazards. Start by identifying the model-specific programming instructions, often found in the user manual or online resources provided by Whirlpool. Common tasks include resetting the control board, calibrating temperature settings, or updating firmware. Use a compatible programming tool or interface, such as a diagnostic device or software, to communicate with the board. Follow the step-by-step instructions carefully, as incorrect programming can lead to malfunctions. If unsure, consult a professional technician to avoid damaging the appliance. Proper programming ensures optimal performance and extends the lifespan of the refrigerator.
| Characteristics | Values |
|---|---|
| Programming Access | Requires specific diagnostic mode activation via temperature controls. |
| Diagnostic Mode Entry | Press and hold refrigerator and freezer buttons for 5–10 seconds. |
| Control Board Type | Typically W10310240 or W10718445 (model-dependent). |
| Required Tools | Multimeter, screwdriver, programming manual/guide. |
| Common Issues Addressed | Temperature inconsistencies, error codes, display malfunctions. |
| Programming Steps | 1. Enter diagnostic mode. 2. Navigate using control buttons. 3. Adjust settings as needed. |
| Error Code Reset | Hold specific button combinations (e.g., freezer + light) for 3–5 seconds. |
| Firmware Updates | Requires Whirlpool-approved firmware and specialized tools. |
| Safety Precautions | Unplug refrigerator before accessing control board. |
| Compatibility | Programming methods vary by model; verify with user manual. |
| Professional Assistance | Recommended for complex issues or firmware updates. |
| Troubleshooting Resources | Whirlpool support, online forums, or repair manuals. |
| Warranty Considerations | DIY programming may void warranty; check terms before proceeding. |
Explore related products
What You'll Learn
- Identify Control Board Model: Locate and verify the specific model number of your Whirlpool refrigerator's control board
- Diagnose Common Issues: Troubleshoot symptoms like display errors, temperature inconsistencies, or unresponsive controls
- Access and Remove Board: Safely disconnect power, locate, and remove the control board for inspection or replacement
- Program or Reset Board: Follow manufacturer instructions to reset or reprogram the control board settings
- Reinstall and Test Board: Securely reinstall the control board, restore power, and test refrigerator functionality
Identify Control Board Model: Locate and verify the specific model number of your Whirlpool refrigerator's control board
The control board is the brain of your Whirlpool refrigerator, managing everything from temperature settings to defrost cycles. Without knowing its exact model number, programming or troubleshooting becomes a shot in the dark. This critical identifier is your gateway to compatible firmware updates, replacement parts, and manufacturer support.
Locate the Model Number: Start by unplugging the refrigerator for safety. The control board is typically housed behind the rear access panel or inside the control panel on the front. Remove the appropriate panel by unscrewing or gently prying it open. The model number is usually printed on a sticker or etched directly onto the board. It’s a combination of letters and numbers, often starting with "W" or "WP." If the board is inaccessible without disassembling the refrigerator, consult your user manual for guidance.
Verify Accuracy: Mistyping or misreading the model number can lead to incorrect programming or part orders. Double-check by cross-referencing it with the refrigerator’s main model and serial number, typically found on a label inside the fresh food compartment or on the door frame. If the numbers don’t align, contact Whirlpool customer service with your refrigerator’s purchase details for assistance.
Practical Tips: Take a photo of the control board and its model number for future reference. If the sticker is faded or damaged, use a magnifying glass or flashlight to read etched numbers. Keep the model number handy when searching online forums, ordering parts, or discussing issues with technicians. This small step saves time and prevents costly mistakes.
Takeaway: Identifying the control board model number is the foundation of any programming or repair task. It ensures you’re working with the right information, tools, and resources. Treat this step as non-negotiable—accuracy here determines success later.
Miso Paste Storage: How Long Does It Last in the Fridge?
You may want to see also
Explore related products
Diagnose Common Issues: Troubleshoot symptoms like display errors, temperature inconsistencies, or unresponsive controls
Display errors on your Whirlpool refrigerator control board can range from blank screens to erratic flashing or incorrect codes. These issues often stem from power surges, loose connections, or software glitches. Start by unplugging the refrigerator for 30 seconds to reset the control board. If the error persists, inspect the wiring harness for damage or disconnections. For persistent issues, consult the error code in your user manual—Whirlpool assigns specific codes to diagnose problems like sensor malfunctions or communication errors. Replacing the control board may be necessary if the issue is hardware-related, but always verify the power supply and connections first.
Temperature inconsistencies are a red flag for sensor or control board malfunctions. If your refrigerator is too warm or too cold, check the temperature sensors located inside the fridge and freezer compartments. Use a multimeter to test their resistance; at room temperature, they should read around 5-10 kOhms. If readings are off, replace the faulty sensor. Additionally, ensure proper airflow by cleaning condenser coils and checking door seals for leaks. If adjustments and cleaning don’t resolve the issue, the control board may be misinterpreting sensor data, requiring calibration or replacement.
Unresponsive controls can leave you unable to adjust settings or monitor your refrigerator’s status. This problem often arises from a faulty control panel or a malfunctioning control board. Begin by testing the control panel’s ribbon cable for damage or loose connections. If the panel is intact, the issue likely lies with the control board. Before replacing it, perform a hard reset by unplugging the refrigerator for 5 minutes. If controls remain unresponsive, consult a technician or order a replacement board compatible with your model. Always disconnect power before handling internal components to avoid electrical hazards.
Comparing symptoms can streamline troubleshooting. For instance, display errors paired with temperature inconsistencies suggest a control board failure, while unresponsive controls alone may indicate a panel issue. Keep a log of symptoms and their frequency to identify patterns. Whirlpool’s diagnostic mode, accessible via button sequences outlined in the manual, can also provide insights. By systematically addressing each symptom, you’ll narrow down the root cause and determine whether a DIY fix or professional intervention is needed. Patience and methodical testing are key to resolving control board issues effectively.
Can Tea Sit Out All Day? Storage Tips for Freshness
You may want to see also
Explore related products
Access and Remove Board: Safely disconnect power, locate, and remove the control board for inspection or replacement
Before attempting any work on your Whirlpool refrigerator's control board, prioritize safety. Unplug the refrigerator from the power outlet or switch off the dedicated circuit breaker. This crucial step prevents electrical shock and potential damage to the sensitive electronics. Failure to disconnect power can lead to serious injury or permanent damage to the control board.
Remember, even when unplugged, capacitors on the board may retain a charge. Exercise caution and avoid touching any components until you're confident the power is completely disconnected.
Locating the control board varies depending on your Whirlpool refrigerator model. Generally, it's housed within the control panel, often found on the exterior dispenser area or inside the fresh food compartment. Consult your refrigerator's manual for specific instructions on accessing the control panel. Look for a removable cover or panel that provides access to the board. Some models may require removing shelves or drawers for easier access.
Once located, carefully inspect the board for any visible signs of damage, such as burnt components, loose connections, or corrosion.
Removing the control board requires careful handling to avoid damaging delicate components. Most boards are secured with screws. Use the appropriate screwdriver to remove these screws, taking note of their positions for reassembly. Gently lift the board out of its housing, being mindful of any connected cables or harnesses. Some models may have clips or tabs holding the board in place. Refer to your manual for specific instructions on releasing these mechanisms.
With the board removed, you can proceed with inspection, cleaning, or replacement. If replacing the board, ensure the new one is compatible with your refrigerator model. Carefully align the new board with the connectors and secure it in place with the screws. Reattach any cables or harnesses, ensuring they are firmly connected. Once reinstalled, restore power and test the refrigerator's functionality.
Refrigerating Pumpkin Puree: Optimal Storage Time and Freshness Tips
You may want to see also
Explore related products
Program or Reset Board: Follow manufacturer instructions to reset or reprogram the control board settings
Programming or resetting the control board of your Whirlpool refrigerator is a task that demands precision and adherence to the manufacturer’s guidelines. Whirlpool designs its appliances with specific protocols to ensure optimal performance and longevity. Ignoring these instructions can lead to malfunctions or void warranties, making it crucial to consult the user manual or official Whirlpool resources before proceeding. This step is not merely procedural; it’s foundational to maintaining the integrity of your appliance.
The process typically begins with identifying the model-specific reset or reprogramming sequence. For instance, some Whirlpool refrigerators require pressing and holding a combination of buttons on the control panel for 5–10 seconds to initiate a reset. Others may involve unplugging the unit for a full power cycle, which clears temporary glitches. These methods are not universal, however, and applying the wrong technique can exacerbate issues. Always cross-reference your model number with Whirlpool’s documentation to ensure accuracy.
Reprogramming, a more advanced step, often involves adjusting settings like temperature thresholds, defrost cycles, or diagnostic modes. This is where the manufacturer’s instructions become indispensable. For example, certain models require entering a service mode by pressing a specific sequence of buttons, followed by inputting codes to modify settings. Mistakes here can disrupt critical functions, such as the compressor or defrost system, leading to food spoilage or energy inefficiency. Precision is paramount.
A practical tip for users is to document the current settings before making changes. This allows for a quick reversion if the reprogramming doesn’t yield the desired results. Additionally, if the refrigerator is under warranty, consider contacting Whirlpool support before attempting any reprogramming. Unauthorized modifications can void coverage, leaving you financially responsible for repairs. Following the manufacturer’s instructions isn’t just a recommendation—it’s a safeguard for both your appliance and your wallet.
In conclusion, resetting or reprogramming a Whirlpool refrigerator control board is a task that balances technicality with caution. By strictly adhering to the manufacturer’s instructions, you ensure the process is both effective and safe. Whether performing a simple reset or adjusting complex settings, the key lies in accuracy and respect for the appliance’s design. This approach not only resolves issues but also preserves the functionality and lifespan of your refrigerator.
Can Landlords Refuse Refrigerator Repairs? Tenant Rights Explained
You may want to see also
Explore related products
$108.99
Reinstall and Test Board: Securely reinstall the control board, restore power, and test refrigerator functionality
After carefully reinstalling the control board, the next critical step is ensuring it’s securely seated. Misalignment or loose connections can cause erratic behavior, from inconsistent cooling to complete system failure. Use a Phillips-head screwdriver to tighten the mounting screws just enough to hold the board firmly—overtightening risks damaging the plastic housing. Double-check that all ribbon cables and wire harnesses are fully inserted and locked into place, as even a slightly dislodged connector can disrupt communication between components.
Restoring power isn’t as simple as flipping a switch. First, reconnect the refrigerator to the power source, but wait 30 seconds before turning it on. This brief pause allows the control board’s capacitors to discharge fully, preventing potential electrical surges that could fry sensitive circuitry. Once powered, listen for the compressor’s hum and observe the LED display for error codes. If the display remains blank or shows erratic symbols, immediately disconnect power and reinspect the board’s connections—a single loose wire can render the entire system non-responsive.
Testing functionality requires patience and systematic observation. Start by setting the temperature to the manufacturer’s recommended range (typically 37°F for the fridge and 0°F for the freezer). Over the next 2–3 hours, monitor both compartments with a thermometer to ensure they reach and stabilize at the desired temperatures. Pay attention to subtle signs of malfunction, such as excessive fan noise, delayed defrost cycles, or uneven cooling. For example, if the freezer cools but the fridge doesn’t, the issue may lie with the damper control, not the board itself.
A practical tip for thorough testing: place a glass of water in the fridge and a bowl of ice in the freezer. After 4 hours, check for condensation on the water glass (indicating proper humidity control) and for fully frozen ice (confirming adequate cooling). If either fails, cycle the power off and on again to reset the board, then retest. Persistent issues may require recalibrating the temperature sensors or consulting a professional, as control board programming isn’t always user-adjustable.
In conclusion, reinstalling and testing the control board demands precision, attention to detail, and methodical troubleshooting. By securing connections, managing power restoration carefully, and conducting comprehensive functionality tests, you can ensure the refrigerator operates reliably. Remember, a properly functioning control board is the backbone of your appliance—treat it with care, and it’ll keep your food fresh for years to come.
Refrigerated Canned Tuna: Optimal Storage Time and Safety Tips
You may want to see also
Frequently asked questions
To access the control board, unplug the refrigerator or turn off power at the circuit breaker. Remove the screws from the back panel or control panel cover, depending on your model. Carefully pull off the cover to expose the control board.
Typically, you’ll need a screwdriver to access the control board, a multimeter to test connections, and possibly a programming tool or software provided by Whirlpool or a third-party technician. Always refer to the model-specific manual for exact requirements.
Programming the control board often requires technical expertise and specialized tools. While some basic troubleshooting can be done by the user, complex programming or firmware updates should be handled by a certified technician to avoid damage.
Common issues include temperature inconsistencies, display malfunctions, or error codes. Reprogramming may resolve software glitches, but hardware failures (e.g., faulty sensors or damaged components) may require replacement instead. Always diagnose the issue thoroughly before proceeding.
