Putting dye into a refrigeration system is a critical process used to detect leaks by making them visible under UV light. Before starting, ensure the system is properly evacuated and recovered to prevent contamination. Select a compatible dye, typically a fluorescent type designed for refrigeration systems, and follow the manufacturer’s instructions for the correct amount. Inject the dye into the system through the low-pressure side while the system is running to ensure proper distribution. After injection, allow the system to operate for a sufficient period to circulate the dye throughout the components. Finally, use a UV lamp to inspect for leaks, as the dye will glow at the leak points, facilitating accurate identification and repair. Always adhere to safety guidelines and refrigerant handling regulations during the process.
| Characteristics | Values |
|---|---|
| Purpose of Dye Injection | To detect leaks in the refrigeration system by tracing dye at leak points. |
| Recommended Dye Type | UV-reactive fluorescent dye (e.g., Solvent Yellow 93 or equivalent). |
| Injection Method | Inject dye into the suction line or low-pressure side of the system. |
| Dye Quantity | Typically 1-2 ounces (30-60 ml) for residential systems; follow manufacturer guidelines. |
| Injection Tool | Use a dye injector kit or vacuum pump with dye cartridge. |
| System Preparation | Ensure system is evacuated and dehydrated before dye injection. |
| Injection Pressure | Inject dye at low pressure (suction side) to avoid system damage. |
| Post-Injection Procedure | Run the system for 24 hours to circulate dye throughout. |
| Leak Detection | Use a UV lamp to identify fluorescent dye at leak points. |
| Safety Precautions | Wear gloves and safety goggles; avoid skin and eye contact with dye. |
| Compatibility | Ensure dye is compatible with system components (e.g., oils, refrigerants). |
| Environmental Impact | Use dyes approved for HVAC/R systems to minimize environmental harm. |
| Regulatory Compliance | Follow local regulations for dye use in refrigeration systems. |
| Cost | Dye kits range from $20 to $100 depending on brand and quantity. |
| Effect on System Performance | Properly injected dye does not affect system efficiency or operation. |
| Longevity of Dye | Dye remains in the system for years, allowing for future leak detection. |
Explore related products
What You'll Learn
- Safety Precautions: Wear protective gear, ensure proper ventilation, and follow manufacturer guidelines for dye handling
- Dye Selection: Choose compatible refrigeration dye, check system type, and verify dye concentration
- Injection Process: Locate injection port, use dye injector tool, and add dye per system capacity
- System Compatibility: Confirm dye works with refrigerant type, avoid oil or component damage
- Post-Injection Steps: Run system, check for leaks, and monitor dye flow under UV light
Safety Precautions: Wear protective gear, ensure proper ventilation, and follow manufacturer guidelines for dye handling
Before introducing dye into a refrigeration system, prioritize safety to protect yourself and the equipment. Wear protective gear, including chemical-resistant gloves, safety goggles, and a respirator with organic vapor cartridges. These items shield against skin irritation, eye damage, and inhalation of harmful fumes, especially when handling dyes containing volatile organic compounds (VOCs). Skip this step, and you risk exposure to substances like naphthalene or anthraquinone, common in fluorescent dyes, which can cause respiratory distress or chemical burns.
Proper ventilation is non-negotiable. Work in an open area or use exhaust fans to maintain airflow, ensuring dye vapors don’t accumulate. If indoors, open windows and doors, or use a fume hood if available. Poor ventilation can lead to dizziness, headaches, or worse—a single breath of concentrated dye vapor in a confined space can render you unconscious. For example, UV dyes like those from manufacturers like Tracerline or Spectroline emit fumes that, in unventilated spaces, reach hazardous levels within minutes.
Manufacturer guidelines are your roadmap. Dyes like those from RefrigeraDye or Coolant Master specify dosage rates (typically 1–2 ounces per 2 tons of system capacity) and compatibility with refrigerants (R-134a, R-410A, etc.). Ignoring these can void warranties or damage components. For instance, oil-soluble dyes must match the system’s lubricant type—polyol ester (POE) for R-410A systems, mineral oil for R-22. Mismatches reduce efficiency or clog filters, turning a diagnostic tool into a costly repair.
Finally, treat dye handling like a precision task. Use a vacuum pump to evacuate the system before injection, preventing air pockets that dilute dye concentration. Inject dye at the low-pressure side, typically via the suction line service valve, to ensure even distribution. After injection, run the system for 15–20 minutes to circulate the dye, then inspect under UV light for leaks. Skipping these steps risks uneven dye distribution, rendering leak detection ineffective. Safety isn’t optional—it’s the foundation of a successful dye injection.
Should Balsamic Glaze Be Refrigerated After Opening? Expert Tips
You may want to see also
Explore related products
Dye Selection: Choose compatible refrigeration dye, check system type, and verify dye concentration
Selecting the right dye for your refrigeration system is a critical step that ensures both effectiveness and safety. Not all dyes are compatible with every system, and using the wrong type can lead to inefficiency or even damage. For instance, ester-based dyes are commonly used in automotive air conditioning systems due to their compatibility with mineral oil and PAG lubricants, while water-soluble dyes are better suited for systems using POE oils. Always consult the manufacturer’s guidelines or a refrigeration specialist to confirm compatibility before proceeding.
The type of refrigeration system you’re working with dictates the dye selection process. Residential systems often use smaller doses of fluorescent dyes, typically around 1–2 ounces, while commercial or industrial systems may require larger quantities. For example, a walk-in cooler might need up to 8 ounces of dye to ensure proper circulation. Additionally, systems with multiple components, such as evaporators and condensers, may require specific dye types to avoid clogging or chemical reactions. Verify the system’s specifications to avoid costly mistakes.
Concentration matters when adding dye to a refrigeration system. Overdosing can lead to residue buildup, clogging filters or valves, while underdosing may render the dye undetectable under UV light. A general rule of thumb is to use 1–2 ounces of dye per 1.5 tons of cooling capacity for residential systems. For commercial systems, follow the manufacturer’s recommendations or use a dye injector kit to measure precise amounts. Always double-check the concentration to ensure optimal performance without compromising the system’s integrity.
Practical tips can streamline the dye selection and application process. For instance, if you’re unsure about the dye type, opt for a universal dye compatible with multiple lubricants and refrigerants. When adding dye, inject it directly into the suction line while the system is running to ensure even distribution. Avoid mixing dyes from different manufacturers, as this can lead to unpredictable reactions. Finally, always wear protective gear, such as gloves and safety goggles, when handling dyes to prevent skin or eye irritation.
In conclusion, dye selection is a nuanced process that requires careful consideration of compatibility, system type, and concentration. By choosing the right dye, following dosage guidelines, and adhering to safety precautions, you can effectively trace leaks and maintain your refrigeration system’s efficiency. Treat this step as an investment in your system’s longevity, ensuring it operates smoothly for years to come.
Post-Warranty Refrigerator Insurance: A Smart Buyer's Guide to Protection
You may want to see also
Explore related products

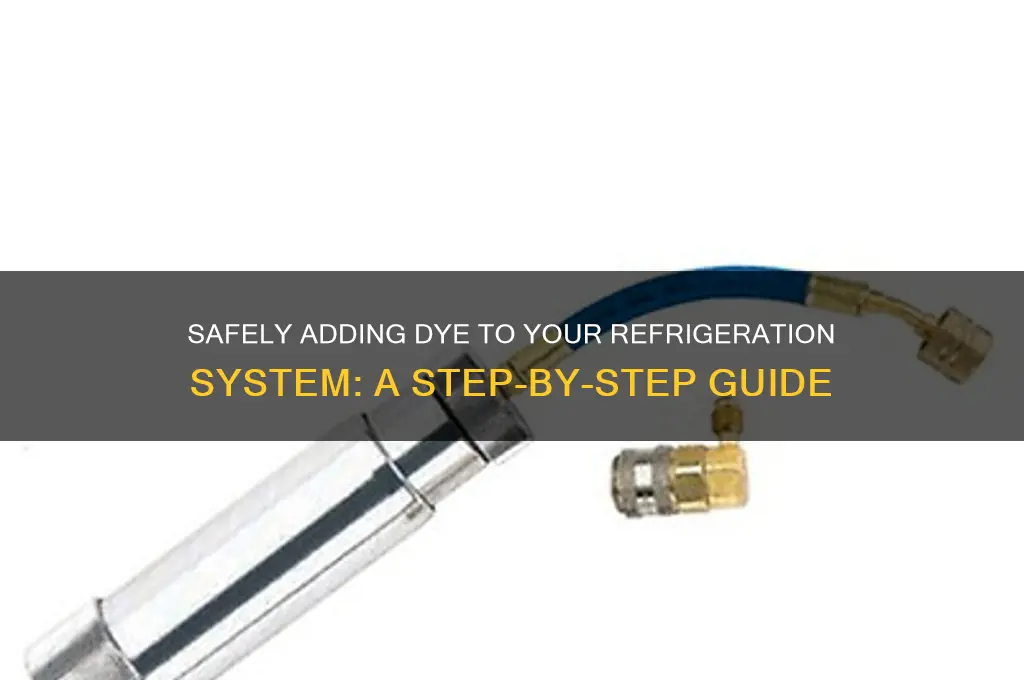

Injection Process: Locate injection port, use dye injector tool, and add dye per system capacity
