Tiffany Haney

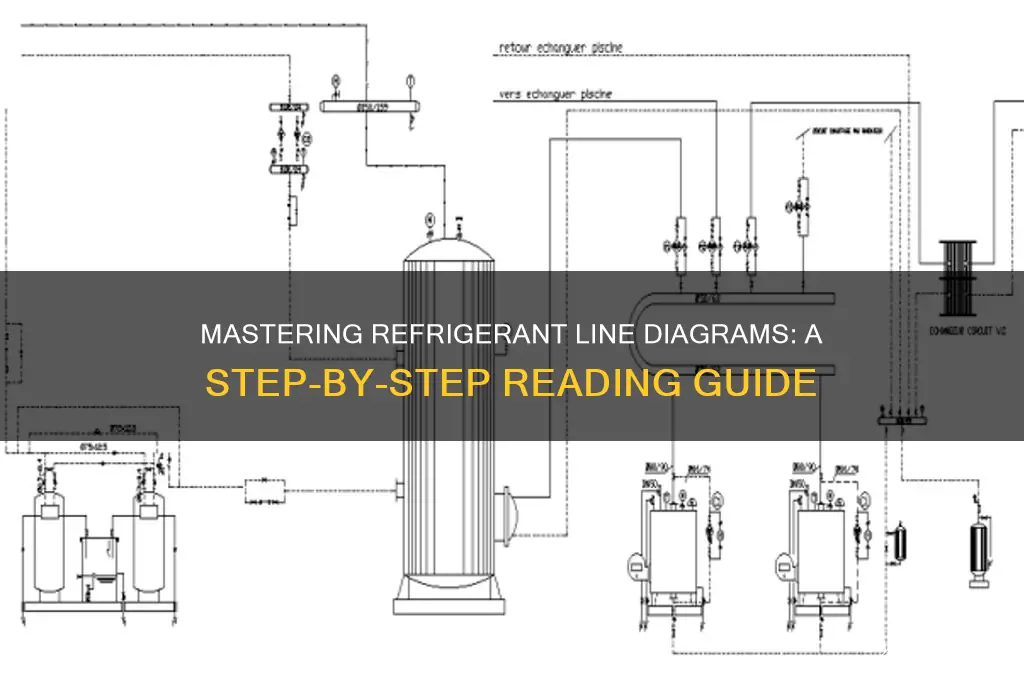

Understanding how to read a diagram of refrigerant lines is essential for anyone working with HVAC or refrigeration systems, as it provides a visual representation of the system's layout, components, and flow of refrigerant. These diagrams typically include symbols for key elements such as compressors, condensers, evaporators, expansion valves, and connecting lines, which indicate the direction and path of refrigerant flow. By interpreting these diagrams, technicians can identify potential issues, troubleshoot problems, and ensure proper installation or maintenance of the system. Familiarity with standard symbols, line types, and flow directions is crucial for accurately reading these diagrams and maintaining the efficiency and safety of the refrigeration or HVAC system.
Explore related products
$35.99 $64.99
What You'll Learn
- Understanding Line Symbols: Identify symbols for suction, liquid, discharge, and service lines in diagrams
- Pressure and Flow Direction: Learn to interpret arrows indicating refrigerant flow and pressure changes
- Component Connections: Recognize how compressors, condensers, evaporators, and expansion valves are linked
- Color Coding Standards: Decode common color codes for refrigerant lines in HVAC systems
- Troubleshooting Diagrams: Use diagrams to locate leaks, blockages, or faulty components efficiently
Understanding Line Symbols: Identify symbols for suction, liquid, discharge, and service lines in diagrams
Refrigeration system diagrams are a visual language, and mastering their line symbols is key to understanding the flow of refrigerant and the system's operation. Each line type—suction, liquid, discharge, and service—is represented by distinct symbols, often accompanied by labels or color coding for clarity. Suction lines, typically depicted as dashed or dotted lines, carry low-pressure refrigerant vapor from the evaporator to the compressor. Liquid lines, usually solid and thicker, transport high-pressure liquid refrigerant from the condenser to the expansion device. Discharge lines, also solid but sometimes distinguished by arrows indicating flow direction, move high-pressure, high-temperature vapor from the compressor to the condenser. Service lines, often thinner and labeled, are used for maintenance tasks like charging refrigerant or evacuating the system.
Analyzing these symbols in context reveals their functional significance. For instance, the suction line’s dashed representation reflects its role in handling vapor, which is less dense and under lower pressure compared to liquid refrigerant. Conversely, the solid, robust appearance of liquid and discharge lines underscores their responsibility for managing high-pressure fluids and gases. Service lines, while less prominent in operational diagrams, are critical during installation, repair, or maintenance, often marked with valves or access points for technicians. Recognizing these symbols allows for quick identification of system components and potential trouble areas, such as leaks or blockages.
To effectively interpret these symbols, start by familiarizing yourself with industry standards, such as those outlined in HVAC/R manuals or ASHRAE guidelines. Many diagrams use color coding: yellow for suction lines, blue for liquid lines, and red for discharge lines, though this can vary by manufacturer. Pay attention to labels and annotations, which often clarify line functions or include pressure and temperature ratings. For example, a liquid line might be labeled with its maximum working pressure (e.g., 350 PSI) or insulation requirements to prevent heat gain. Similarly, suction lines may include notes on proper sizing to minimize pressure drop.
A practical tip for beginners is to cross-reference diagrams with real-world systems. Locate the lines on an actual unit and compare their physical characteristics (diameter, insulation, fittings) to their diagrammatic representation. This hands-on approach reinforces symbol recognition and deepens understanding of system dynamics. For instance, observe how the suction line’s larger diameter accommodates vapor flow, while the liquid line’s smaller size reflects its role in transporting denser liquid refrigerant.
In conclusion, mastering line symbols in refrigerant diagrams is a foundational skill for anyone working with HVAC/R systems. By understanding the unique representations of suction, liquid, discharge, and service lines, technicians can diagnose issues, plan installations, and perform maintenance more efficiently. Combine theoretical knowledge with practical observation to bridge the gap between diagrams and real-world applications, ensuring accurate interpretation and effective troubleshooting.
Do Cookies Expire? Shelf Life Without Refrigeration Explained
You may want to see also
Explore related products
![HVAC Mastery Guide [8 in 1]: The Ultimate in HVAC From Basics to Advanced with Comprehensive Insights on Residential & Commercial Systems | Example ... thousands of dollars on technician calls ?](https://m.media-amazon.com/images/I/71xHY7vYXkL._AC_UY218_.jpg)
Pressure and Flow Direction: Learn to interpret arrows indicating refrigerant flow and pressure changes
Arrows in refrigerant line diagrams are not mere decorative elements; they are critical indicators of flow direction and pressure changes, essential for understanding system operation. These arrows typically point in the direction of refrigerant movement, which is always from high-pressure areas to low-pressure areas. For instance, in a standard refrigeration cycle, the arrow will point from the compressor (high-pressure side) to the condenser, then to the expansion valve, and finally to the evaporator (low-pressure side). Recognizing this pattern is the first step in interpreting these diagrams accurately.
Analyzing the relationship between arrow direction and pressure changes reveals the thermodynamic principles at play. As refrigerant flows from the condenser to the expansion valve, the arrow indicates a sudden drop in pressure, which causes the refrigerant to cool and partially vaporize. This process is crucial for heat absorption in the evaporator. Conversely, arrows pointing toward the compressor signify an increase in pressure, transforming the refrigerant back into a high-pressure liquid. Understanding these pressure transitions allows technicians to diagnose issues like blockages or leaks, which disrupt normal flow and pressure patterns.
A practical tip for interpreting these diagrams is to correlate arrow direction with component function. For example, arrows near the expansion valve should always point toward the evaporator, as this is where the refrigerant expands and cools. If an arrow points in the opposite direction, it may indicate a misconnected line or a malfunctioning valve. Similarly, arrows near the compressor should always point away from it, reflecting the discharge of high-pressure refrigerant. Cross-referencing arrow direction with component roles ensures accurate interpretation and troubleshooting.
Comparing diagrams from different systems highlights the consistency of arrow conventions. Whether it’s a residential air conditioner or an industrial refrigeration unit, arrows universally signify flow direction and pressure changes. However, the complexity of the diagram may vary. Simple systems might use straight arrows, while advanced diagrams may incorporate curved or segmented arrows to represent multiple stages of pressure change. Familiarizing oneself with these variations enhances the ability to read and apply refrigerant line diagrams across diverse applications.
In conclusion, mastering the interpretation of arrows in refrigerant line diagrams is a skill that combines observation, analysis, and practical knowledge. By understanding the correlation between arrow direction, pressure changes, and component functions, technicians can efficiently diagnose and resolve system issues. This proficiency not only ensures optimal system performance but also minimizes downtime and energy inefficiency, making it an indispensable tool in the field of HVAC and refrigeration.
Can Tapioca Cups Be Stored Without Refrigeration? A Guide
You may want to see also
Explore related products
Component Connections: Recognize how compressors, condensers, evaporators, and expansion valves are linked
Refrigerant line diagrams are the blueprints of HVAC systems, mapping the journey of refrigerant as it cycles through critical components. At the heart of this process is the compressor, which acts as the system’s pump, drawing in low-pressure, low-temperature refrigerant vapor from the evaporator and compressing it into a high-pressure, high-temperature gas. This compressed gas then flows to the condenser, where it releases heat to the surrounding environment, transitioning into a high-pressure liquid. Understanding this sequence is essential, as it reveals the compressor’s role as the initiator of the refrigeration cycle and its direct connection to the condenser via the discharge line.
From the condenser, the high-pressure liquid refrigerant moves to the expansion valve, a critical component that regulates refrigerant flow and reduces pressure. This sudden drop in pressure causes the refrigerant to flash into a low-pressure, low-temperature mixture of liquid and vapor, preparing it for the evaporator. The expansion valve’s position between the condenser and evaporator is no coincidence—it ensures the refrigerant enters the evaporator in the ideal state to absorb heat efficiently. Technicians often focus on this connection to diagnose issues like improper superheat or restricted flow.
The evaporator is where the magic happens: the low-pressure refrigerant absorbs heat from the indoor space, cooling the air while evaporating into a vapor. This vapor then returns to the compressor, completing the cycle. Recognizing the evaporator’s connection to both the expansion valve (via the liquid line) and the compressor (via the suction line) is key to troubleshooting. For instance, frost on the evaporator coil may indicate a malfunctioning expansion valve or low refrigerant charge, both of which disrupt the intended flow between components.
A practical tip for reading diagrams: trace the refrigerant’s path in the order of the cycle—compressor to condenser, condenser to expansion valve, expansion valve to evaporator, and back to the compressor. This methodical approach helps identify misconnections or blockages. For example, a missing check valve between the compressor and condenser could allow refrigerant to backflow, reducing efficiency. Similarly, a kinked line between the expansion valve and evaporator could restrict flow, leading to inadequate cooling.
In summary, mastering component connections in refrigerant line diagrams requires understanding the sequential roles of compressors, condensers, expansion valves, and evaporators. Each link in this chain is critical, and disruptions at any point can cascade into system-wide inefficiencies. By visualizing the refrigerant’s journey and recognizing how these components interact, technicians can diagnose problems faster and ensure optimal performance. Always refer to the manufacturer’s diagram for specific configurations, as designs vary across systems.
Should You Refrigerate Sourdough Starter? Best Practices for Care
You may want to see also
Explore related products
Color Coding Standards: Decode common color codes for refrigerant lines in HVAC systems
Refrigerant lines in HVAC systems are often color-coded to simplify identification and maintenance, but the standards can vary by region, manufacturer, and system type. In North America, for example, the most common convention is to use yellow for liquid lines and blue for suction lines. This simple distinction helps technicians quickly differentiate between the high-pressure liquid refrigerant flowing into the evaporator and the low-pressure gas returning to the compressor. However, this is not a universal rule, and deviations are common, especially in older systems or those designed outside the U.S. Understanding these variations is critical to avoid errors during installation, repair, or troubleshooting.
In Europe and other regions, color coding may follow different standards, such as red for high-pressure lines and blue for low-pressure lines. This discrepancy highlights the importance of consulting manufacturer documentation or regional guidelines before interpreting refrigerant line diagrams. For instance, in automotive HVAC systems, orange is sometimes used for liquid lines, while green denotes suction lines. These differences underscore the need for context-specific knowledge, as misidentifying lines can lead to inefficiencies, system damage, or safety hazards. Always verify the color coding scheme for the specific system you’re working on.
Beyond primary refrigerant lines, additional colors may indicate auxiliary components or special functions. For example, black or gray lines often represent oil equalization lines, which help maintain proper lubrication in the compressor. Purple or pink may signify tracer lines used for leak detection or pressure testing. Understanding these secondary codes is particularly useful in complex systems, such as those found in commercial HVAC units or industrial refrigeration. A systematic approach—cross-referencing colors with diagrams and labels—ensures accuracy and prevents costly mistakes.
To decode color codes effectively, start by examining the system’s schematic diagram, which typically includes a legend explaining the color scheme. If a diagram is unavailable, look for labels or markings directly on the lines themselves. In the absence of both, use a refrigerant line identifier tool to measure temperature and pressure, which can help infer the line’s function. For instance, a line with a temperature close to the ambient air is likely a suction line, while one significantly colder is probably a liquid line. Combining visual cues with diagnostic tools provides a reliable method for accurate identification.
Finally, while color coding is a valuable tool, it should not be the sole basis for decision-making. Factors like line size, insulation, and positioning also provide important clues. For example, liquid lines are often smaller in diameter than suction lines and are typically insulated to prevent heat gain. Suction lines, on the other hand, are usually larger and uninsulated to allow heat absorption. By integrating color coding with these physical characteristics, technicians can confidently navigate refrigerant line diagrams and perform precise, efficient work. Always prioritize safety and double-check your interpretations before proceeding.
LED Bulbs in Fridges: Safe, Efficient, or Risky Choice?
You may want to see also
Explore related products
Troubleshooting Diagrams: Use diagrams to locate leaks, blockages, or faulty components efficiently
Refrigerant line diagrams are not just static blueprints; they are dynamic tools that can significantly streamline the troubleshooting process. By understanding these diagrams, technicians can pinpoint issues such as leaks, blockages, or faulty components with precision. For instance, a diagram often highlights critical points like pressure switches, solenoid valves, and expansion devices, which are common trouble spots. When a system fails to cool, tracing the refrigerant flow through the diagram can reveal whether the issue lies in the evaporator coil, compressor, or elsewhere. This visual approach reduces guesswork and saves time, making it an indispensable skill for HVAC professionals.
To effectively use diagrams for troubleshooting, start by identifying the refrigerant flow path. Follow the lines from the compressor to the condenser, then to the expansion valve, and finally to the evaporator. Pay attention to symbols and labels, as they indicate components like filters, dryers, and pressure gauges. For example, a sudden drop in pressure between the condenser and evaporator could signal a blockage at the expansion valve. Similarly, oil stains or frost buildup at specific points on the diagram can guide you to potential leak locations. Always cross-reference the diagram with real-world observations to ensure accuracy.
One practical tip is to use a colored highlighter or digital markup tool to trace the refrigerant flow while troubleshooting. This helps in isolating sections of the system and focusing on specific components. For instance, if the system is not cooling adequately, highlight the evaporator and its associated lines. Check for signs of ice buildup, which could indicate a low refrigerant charge or a malfunctioning expansion valve. Conversely, if the system is short-cycling, focus on the compressor and condenser lines to identify overheating or inadequate airflow. This methodical approach ensures no area is overlooked.
While diagrams are powerful, they come with caveats. Not all diagrams are created equal; some may lack detail or contain errors. Always verify the diagram’s accuracy by comparing it with the actual system layout. Additionally, diagrams do not account for external factors like ambient temperature or user error. For example, a system may show normal pressure readings on the diagram but still underperform due to a dirty air filter or blocked vents. Pairing diagram analysis with hands-on inspection and diagnostic tools like manifold gauges or thermal cameras enhances troubleshooting effectiveness.
In conclusion, mastering the art of reading refrigerant line diagrams transforms troubleshooting from a hit-or-miss task into a systematic process. By understanding flow paths, identifying key components, and using visual aids, technicians can diagnose issues efficiently. However, reliance on diagrams alone is insufficient; they must be complemented with practical knowledge and tools. With practice, this skill becomes second nature, enabling faster repairs and improved system performance. Whether you’re a seasoned technician or a novice, leveraging diagrams is a game-changer in the HVAC field.
Watermelon Storage: Does It Go Bad Without Refrigeration?
You may want to see also
Frequently asked questions
Line thickness typically indicates the diameter or size of the refrigerant tubing, with thicker lines representing larger diameter pipes and thinner lines representing smaller diameter pipes.
The suction line is usually the line carrying low-pressure, low-temperature refrigerant vapor from the evaporator to the compressor, while the liquid line carries high-pressure, high-temperature refrigerant liquid from the condenser to the expansion device.
Arrows indicate the direction of refrigerant flow, helping to understand the sequence of components in the refrigeration cycle.
Components are typically represented by standardized symbols, such as a circle with a letter "C" for the compressor, a coil shape for the evaporator, and a grid pattern for the condenser.
Dotted or dashed lines often represent optional or auxiliary components, such as bypass lines, accumulator lines, or additional valves, depending on the system design.
