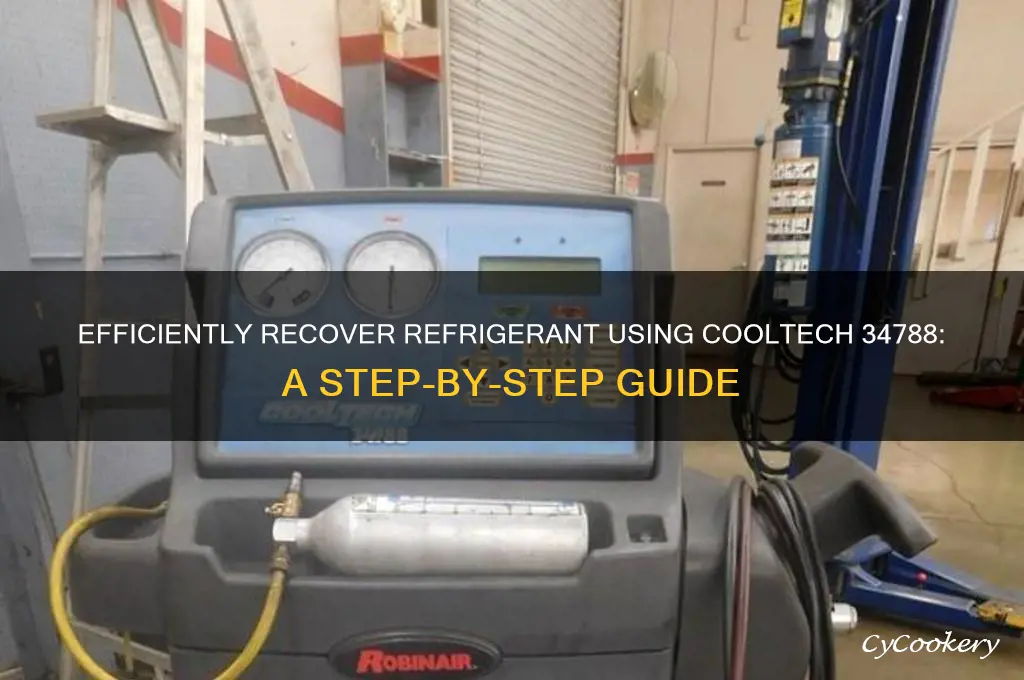

Recovering refrigerant with the Cooltech 34788 is a critical process in HVAC and refrigeration maintenance, ensuring compliance with environmental regulations and safe handling of refrigerants. The Cooltech 34788 is a specialized recovery machine designed to efficiently extract refrigerants from systems during repairs, retrofits, or decommissioning. To begin, ensure the unit is properly connected to the refrigeration system using appropriate hoses and fittings, and that the system is free of contaminants. Follow the manufacturer’s guidelines to power on the machine and initiate the recovery process, monitoring the pressure and temperature gauges to ensure optimal performance. Once complete, securely store the recovered refrigerant in approved cylinders for recycling or disposal, adhering to local regulations. Proper use of the Cooltech 34788 not only protects the environment but also extends the life of your equipment and ensures safe operation.
Explore related products
What You'll Learn
- Prepare Equipment: Gather recovery machine, hoses, gauges, and safety gear before starting the recovery process
- Connect Hoses: Attach hoses securely to the refrigerant system and recovery machine ports
- Start Recovery: Power on the Cooltech 34788 and initiate the refrigerant extraction process
- Monitor Progress: Observe gauges and machine indicators to ensure safe and efficient recovery
- Complete & Store: Shut down the machine, disconnect hoses, and store recovered refrigerant properly
Prepare Equipment: Gather recovery machine, hoses, gauges, and safety gear before starting the recovery process
Before initiating the refrigerant recovery process with the Cooltech 34788, meticulous preparation of equipment is paramount to ensure efficiency, safety, and compliance with environmental regulations. The recovery machine, often the centerpiece of this operation, must be compatible with the refrigerant type and system size. For instance, the Cooltech 34788 is designed to handle R-410A and R-22 refrigerants, but verifying compatibility through the user manual or manufacturer specifications is crucial. Equally important are the hoses, which should be rated for high-pressure applications and free from leaks or damage. Gauges, both high- and low-side, are indispensable for monitoring pressure levels during recovery, ensuring the process remains within safe operational limits. Lastly, safety gear, including gloves, goggles, and a respirator, protects against chemical exposure and physical hazards, making this step non-negotiable.
The analytical approach to equipment preparation reveals a hierarchy of priorities. The recovery machine’s capacity should align with the system’s refrigerant volume; for example, a 5-ton AC unit typically contains 4–6 pounds of refrigerant, requiring a machine capable of handling at least this amount. Hoses must be properly labeled to avoid cross-contamination between different refrigerant types, a common oversight that can lead to costly system damage. Gauges should be calibrated annually to ensure accuracy, as even minor deviations can compromise the recovery process. Safety gear, while often overlooked, is the last line of defense against accidents, particularly when handling refrigerants that can cause frostbite or respiratory issues upon exposure.
From a comparative perspective, the Cooltech 34788 stands out for its user-friendly design and robust construction, but its effectiveness hinges on proper equipment setup. Unlike manual recovery methods, which are labor-intensive and prone to errors, the Cooltech 34788 automates much of the process, reducing human error. However, this advantage is nullified if hoses are mismatched or gauges are faulty. For instance, using a hose not rated for R-410A’s high pressure can lead to ruptures, while a malfunctioning gauge may result in over-recovery or under-recovery, both of which violate EPA guidelines. Thus, the Cooltech 34788’s sophistication demands a commensurate level of preparation.
Instructively, the process begins with a checklist: confirm the recovery machine is powered off and disconnected before connecting hoses to prevent electrical hazards. Secure the high-side hose to the machine’s inlet and the low-side hose to the outlet, ensuring fittings are tight to prevent leaks. Attach the gauges to the system’s service ports, verifying they are compatible with the refrigerant type. Inspect all components for wear or damage, replacing any compromised parts immediately. Finally, don safety gear before initiating the recovery process, as even a minor leak can pose significant risks. This systematic approach not only streamlines the operation but also minimizes the likelihood of errors.
Descriptively, the workspace transforms into a hub of precision and caution once equipment is gathered. The recovery machine, with its sleek interface and sturdy build, sits at the center, flanked by coils of hoses in vibrant colors, each designated for specific functions. Gauges, with their gleaming dials and precise needles, stand ready to capture every fluctuation in pressure. Safety gear, though utilitarian, adds a layer of reassurance, symbolizing the commitment to protecting both the technician and the environment. This tableau underscores the importance of preparation—not just as a procedural step, but as a mindset that prioritizes safety, efficiency, and compliance in refrigerant recovery.
Refrigerating Canned Oysters: Optimal Storage Time and Safety Tips
You may want to see also
Explore related products
Connect Hoses: Attach hoses securely to the refrigerant system and recovery machine ports
Connecting hoses is a critical step in the refrigerant recovery process, ensuring a safe and efficient transfer of the refrigerant from the system to the recovery machine. Begin by identifying the correct ports on both the refrigerant system and the Cooltech 34788 recovery machine. Typically, the high-pressure hose connects to the service port on the refrigerant system, while the low-pressure hose attaches to the recovery machine’s inlet port. Ensure the hoses are compatible with the refrigerant type (e.g., R-134a, R-410A) to avoid contamination or damage. Proper identification and matching of ports prevent cross-contamination and system inefficiencies, making this step foundational for a successful recovery.
Once the ports are identified, securely attach the hoses using the appropriate fittings. Tighten the connections by hand first, then use a wrench to ensure a snug fit without over-tightening, which can damage the fittings. A common mistake is neglecting to check for leaks after connection. To verify the integrity of the setup, perform a visual inspection and, if possible, use a leak detector or soapy water to test for escaping refrigerant. Secure connections not only prevent leaks but also maintain the pressure balance required for effective recovery, ensuring the process is both safe and compliant with environmental regulations.
The order of hose connection matters. Start by attaching the high-pressure hose to the refrigerant system, followed by the low-pressure hose to the recovery machine. This sequence minimizes the risk of accidental release and ensures the system is ready for evacuation. Labeling hoses (e.g., "high-pressure" or "low-pressure") can prevent confusion, especially in complex systems. Additionally, using color-coded hoses or markings can streamline the process and reduce errors, particularly in time-sensitive scenarios.
Finally, consider the condition of the hoses before use. Inspect them for cracks, wear, or damage that could compromise their integrity. Hoses should be replaced if they show signs of aging or have been exposed to extreme conditions. For optimal performance, store hoses in a cool, dry place away from direct sunlight and chemicals. Regular maintenance, such as cleaning and proper storage, extends hose life and ensures they remain reliable for future recovery operations. By treating hose connection as a meticulous process, technicians can safeguard both the equipment and the environment.
Corona Virus Survival: How Long Does It Last in Your Fridge?
You may want to see also
Explore related products
Start Recovery: Power on the Cooltech 34788 and initiate the refrigerant extraction process
The Cooltech 34788 is a powerful tool designed for efficient refrigerant recovery, and starting the recovery process is a straightforward yet critical step. To begin, ensure the unit is properly connected to the refrigeration system and all safety measures are in place. Power on the Cooltech 34788 by pressing the designated power button, typically located on the control panel. The machine will initiate a self-diagnostic check, confirming that all components are functioning correctly before proceeding. This initial step is crucial, as it ensures the equipment is ready to handle the refrigerant extraction process safely and effectively.
Once the Cooltech 34788 is powered on, navigate to the recovery mode on the control panel. This is usually done by selecting the appropriate function from the menu, which may involve pressing a combination of buttons or turning a dial. The display will prompt you to confirm the start of the recovery process, often requiring a final acknowledgment to prevent accidental activation. At this stage, it’s essential to verify that all hoses and connections are secure, as any leaks can compromise the recovery efficiency and pose safety risks. The machine will then begin to extract refrigerant from the system, displaying real-time data such as pressure and temperature to monitor progress.
During the recovery process, the Cooltech 34788 operates by creating a vacuum that draws refrigerant from the system into its internal storage tank. The unit is designed to handle a wide range of refrigerants, but it’s important to ensure compatibility with the specific type being recovered. For example, R-410A requires different handling procedures than R-22 due to its higher pressure. Always refer to the manufacturer’s guidelines for specific instructions related to the refrigerant type. The machine’s built-in safety features, such as automatic shut-off at maximum capacity, help prevent overfilling and ensure a smooth recovery process.
A practical tip for optimizing recovery efficiency is to allow the system to stabilize at the correct pressure before initiating extraction. This can be achieved by running the system for a few minutes to equalize temperatures and pressures. Additionally, keeping the Cooltech 34788 in a well-ventilated area during operation helps maintain optimal performance and prevents overheating. For larger systems, consider using the machine’s multi-pass recovery feature, which allows for continuous extraction without manual intervention, saving time and effort. By following these steps and precautions, the Cooltech 34788 ensures a reliable and compliant refrigerant recovery process.
Should Coffee Liqueur Be Refrigerated? Storage Tips for Longevity
You may want to see also
Explore related products
Monitor Progress: Observe gauges and machine indicators to ensure safe and efficient recovery
The recovery process with the Cooltech 34788 is a delicate dance, and your role as the technician is akin to a conductor, ensuring every instrument plays in harmony. As the machine humms to life, your attention must be laser-focused on the gauges and indicators, for they are the windows into the system's soul. The high-side gauge, typically displaying pressures up to 500 psi, should be your primary concern during recovery. A steady rise in pressure indicates efficient refrigerant transfer, while an erratic or stagnant reading may signal a blockage or leak.
In the realm of refrigerant recovery, time is both a friend and foe. A typical residential system holds approximately 4-6 pounds of refrigerant, which should take around 20-30 minutes to recover at a rate of 1-2 pounds per minute. However, this is not a one-size-fits-all scenario. Larger commercial systems may require hours, while smaller automotive systems can be completed in under 10 minutes. The key is to remain vigilant, monitoring the low-side gauge to ensure it doesn't drop below 0 psi, which could indicate a deep vacuum and potential system damage.
Consider the following scenario: you're recovering refrigerant from a 3-ton air conditioning unit with an estimated charge of 6 pounds. After 15 minutes, the high-side gauge reads 250 psi, and the machine's indicator light shows a recovery rate of 1.5 pounds per minute. This data suggests you're on track, but it's crucial to cross-reference with the low-side gauge, which should display a corresponding drop in pressure. If the low-side gauge reads -10 psi, it's a red flag – either the recovery process is too aggressive, or there's an issue with the system. Adjusting the recovery rate or investigating potential leaks becomes a priority.
As you navigate the recovery process, remember that safety is paramount. Keep a watchful eye on the machine's temperature indicators, ensuring they don't exceed the recommended operating range of 100-120°F. Exceeding this threshold can lead to thermal stress, reduced recovery efficiency, and potential damage to the equipment. Additionally, be mindful of the recovery cylinder's capacity, typically ranging from 50-150 pounds, and never exceed the recommended fill level of 80%. Overfilling can result in catastrophic consequences, including cylinder rupture or refrigerant release.
In the grand symphony of refrigerant recovery, monitoring progress is the maestro's baton, guiding the process towards a safe and efficient conclusion. By observing gauges and machine indicators, you'll not only ensure a successful recovery but also safeguard the system, the environment, and yourself. As you refine your skills, you'll develop an intuitive sense for the subtle cues and nuances, allowing you to anticipate and address potential issues before they escalate. With practice, patience, and a keen eye, you'll master the art of monitoring progress, transforming the recovery process into a seamless, harmonious performance.
Refrigerating Bread: Does It Keep Loaves Fresher Longer or Not?
You may want to see also
Explore related products
Complete & Store: Shut down the machine, disconnect hoses, and store recovered refrigerant properly
Shutting down the Cooltech 34788 refrigerant recovery machine properly is critical to ensure safety, prevent contamination, and maintain system integrity. Begin by powering off the machine and allowing it to cool for at least 5 minutes. This step is essential because residual pressure or heat can cause injury or damage during disconnection. Once cooled, carefully close the service valves on both the high and low-pressure sides to isolate the recovered refrigerant. Failure to do this can lead to accidental release or system inefficiency in future operations.
Disconnecting hoses requires precision and care to avoid refrigerant leaks or equipment damage. Start by releasing any remaining pressure in the hoses by slowly opening the purge valve, ensuring all refrigerant is returned to the storage tank. Use a wrench to loosen hose connections, but avoid over-tightening or forcing components, as this can strip threads or damage seals. Label each hose (e.g., "high-pressure," "low-pressure") to streamline reassembly and reduce the risk of cross-contamination during the next use. Clean the hose ends with a lint-free cloth and cap them to prevent moisture or debris ingress.
Proper storage of recovered refrigerant is both a regulatory requirement and a best practice for environmental stewardship. Transfer the refrigerant to a DOT-approved cylinder, ensuring it is rated for the specific refrigerant type (e.g., R-134a, R-410A). Fill the cylinder to no more than 80% of its capacity to account for thermal expansion, especially in warmer climates. Store the cylinder in a well-ventilated area, away from direct sunlight, heat sources, or flammable materials. Affix a label indicating the refrigerant type, recovery date, and purity level (if known) to comply with EPA guidelines and facilitate future use.
A comparative analysis of storage methods reveals that using a dedicated recovery tank with a dip tube minimizes stratification and ensures consistent refrigerant composition. For instance, a vertical cylinder with a bottom-mounted valve outperforms horizontal storage in maintaining purity, particularly for blends like R-410A. Additionally, investing in a vacuum-insulated cylinder can reduce boil-off losses by up to 30%, making it a cost-effective choice for long-term storage. Always consult the Cooltech 34788 manual for compatibility with specific cylinder types and sizes.
In conclusion, the "Complete & Store" phase is not merely procedural but a safeguard against hazards and inefficiencies. By systematically shutting down the machine, disconnecting hoses with care, and storing refrigerant according to industry standards, technicians can ensure compliance, protect equipment, and contribute to environmental sustainability. Treat this step as the final quality check in the recovery process, where attention to detail yields long-term benefits for both the technician and the ecosystem.
Proper Squash Storage: Refrigerator Tips for Freshness and Longevity
You may want to see also
Frequently asked questions
The first step is to ensure the system is properly prepared by turning off the HVAC or refrigeration unit, allowing it to sit for at least 5 minutes, and verifying all components are in good working condition.
Yes, Cooltech 34788 is designed to recover refrigerant from both high-pressure and low-pressure systems, but ensure the correct hoses and settings are used for each type.
Connect the recovery unit to the system using the appropriate hoses: attach the low-side hose to the suction line service port and the high-side hose to the liquid line service port, ensuring all connections are secure.
Wear protective gear, including gloves and safety goggles, ensure proper ventilation, and avoid contact with refrigerant or oil. Also, check for leaks before starting the recovery process.
The recovery time varies depending on the system size and refrigerant type, but it typically takes between 15 minutes to an hour. Monitor the process and follow the manufacturer’s guidelines for optimal results.
