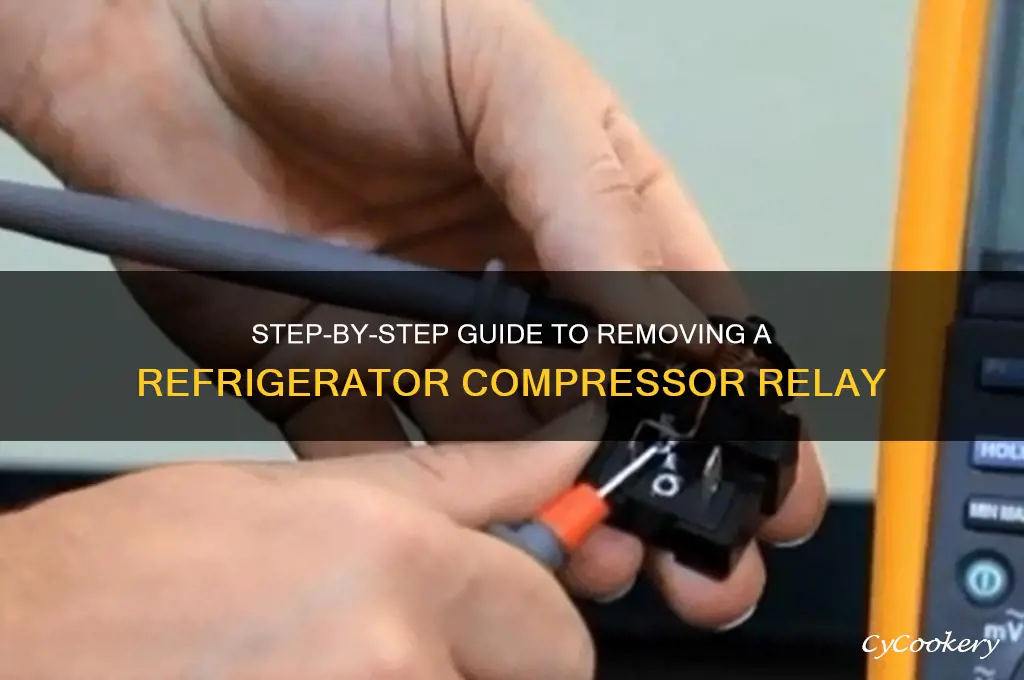

Removing a refrigerator compressor relay can be a straightforward task if approached with the right tools and precautions. The compressor relay, often located near the compressor, is a crucial component that controls the power supply to the compressor motor. Before beginning, ensure the refrigerator is unplugged to avoid electrical hazards. Start by locating the relay, typically housed in a small box or attached directly to the compressor. Carefully disconnect the wiring harness by gently pulling it away from the relay, taking note of the wire positions for reassembly. Next, remove any screws or clips securing the relay in place, and then carefully lift it out. Always handle the relay with care to avoid damaging the internal components. Once removed, inspect the relay for signs of wear or damage, as this could be the cause of any issues with the refrigerator’s cooling system. If replacing the relay, ensure the new one is compatible with your refrigerator model. Reassembly follows the reverse process, ensuring all connections are secure before plugging the refrigerator back in.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver (flathead or Phillips depending on screws), needle-nose pliers, gloves, safety goggles |
| Safety Precautions | Unplug refrigerator, discharge capacitor (if present), wear gloves and safety goggles |
| Location of Relay | Typically mounted on the side of the compressor, often covered by a protective shroud |
| Relay Identification | Small, rectangular or square component with multiple pins/terminals connected to wires |
| Removal Steps | 1. Locate relay, 2. Remove shroud (if present), 3. Disconnect wires (note their positions), 4. Unscrew relay (if screwed in), 5. Gently pry relay out (if clipped in) |
| Common Issues | Stuck relay (gently pry with screwdriver), damaged wires (repair or replace), capacitor discharge (shock hazard) |
| Replacement | Ensure new relay matches specifications (voltage, pin configuration, etc.), reconnect wires in correct order, secure relay |
| Testing | After replacement, plug in refrigerator and listen for compressor start-up, check for proper cooling |
| Professional Help | Recommended if unsure about capacitor discharge, relay identification, or replacement process |
Explore related products
What You'll Learn
- Safety Precautions: Unplug refrigerator, wear gloves, ensure no power to avoid electrical shock or injury
- Locate the Relay: Find compressor relay near the compressor, usually in a black box
- Disconnect Wires: Label and detach wires carefully to avoid confusion during reinstallation
- Remove the Relay: Unscrew or unclip the relay from its mounting bracket gently
- Test and Replace: Check relay for faults; replace with a compatible part if necessary
Safety Precautions: Unplug refrigerator, wear gloves, ensure no power to avoid electrical shock or injury
Before attempting to remove a refrigerator compressor relay, prioritize safety to prevent electrical shock or injury. The first and most critical step is to unplug the refrigerator from the power source. This action ensures that no electricity is flowing through the unit, eliminating the risk of accidental electrocution. Even if the refrigerator seems inactive, residual power can still be present, making this step non-negotiable. Verify that the power is off by checking the circuit breaker or using a voltage tester on the outlet. Only proceed once you are certain the appliance is completely disconnected from electricity.
Wearing protective gloves is another essential safety measure when handling a refrigerator compressor relay. Gloves provide a barrier against sharp edges, hot components, and potential electrical hazards. Opt for insulated gloves designed for electrical work, as they offer additional protection against shocks. Additionally, gloves can prevent skin oils and dirt from contaminating the relay or surrounding components, which could cause malfunctions or corrosion over time. This simple precaution not only safeguards your hands but also helps maintain the integrity of the appliance.
Ensuring no power is present goes beyond unplugging the refrigerator. For added safety, consider turning off the dedicated circuit breaker for the appliance. This step is particularly important in older homes where wiring may be less reliable. If you’re unsure about the electrical setup, consult a professional to avoid risks. Double-checking power absence with a non-contact voltage tester is a prudent practice, especially when working on components like the compressor relay, which are directly connected to the electrical system.
Incorporating these safety precautions into your process transforms a potentially hazardous task into a manageable one. Unplugging the refrigerator, wearing appropriate gloves, and confirming the absence of power are not just recommendations—they are critical steps that protect both you and the appliance. By adhering to these measures, you minimize the risk of accidents and ensure a safer, more efficient repair or maintenance experience. Remember, taking a few extra minutes to prioritize safety can prevent serious consequences down the line.
Fitting a Fridge in Tight Spaces: Tips and Tricks for Installation
You may want to see also
Explore related products
Locate the Relay: Find compressor relay near the compressor, usually in a black box
The compressor relay in a refrigerator is a critical component, acting as the switch that controls power to the compressor. To remove it, you must first locate it, and this involves a bit of detective work. Start by identifying the compressor itself, typically found at the bottom rear of the refrigerator. It’s the large, often cylindrical component that hums when the fridge is running. Once you’ve pinpointed the compressor, scan the surrounding area for a small, usually black box attached nearby. This box houses the relay, and its proximity to the compressor is no coincidence—it ensures efficient power management.
Analyzing the design, the black box is often secured with screws or clips, making it accessible yet protected from accidental damage. Its location near the compressor minimizes wiring length, reducing energy loss and potential points of failure. If you’re unsure which component is the relay, look for a part with multiple wires connected to it, often labeled with a diagram or part number. Manufacturers typically place it within arm’s reach of the compressor, so if you’re searching farther afield, double-check your identification of the compressor itself.
From a practical standpoint, locating the relay is simpler if you prepare ahead. Turn off the refrigerator and unplug it to ensure safety. Use a flashlight to illuminate the area, as the space behind or beneath the fridge can be dim. If your model has removable panels, take them off to expose the compressor and relay more clearly. Keep a screwdriver handy, as you may need to remove a cover or loosen screws to access the relay box. Patience is key—rushing can lead to misidentification or damage to nearby components.
Comparatively, while some appliances hide relays in less intuitive locations, refrigerators follow a consistent design logic. Unlike a washing machine, where relays might be integrated into a control board, refrigerator relays are standalone units for ease of replacement. This standardization means that once you’ve located one relay, you’ll have a good sense of where to find it in other models. However, always consult your refrigerator’s manual or a diagram specific to your make and model to avoid mistakes.
In conclusion, locating the compressor relay is a straightforward task if you follow the compressor’s lead. Its placement in a black box near the compressor is both practical and predictable. By understanding this design choice and preparing with the right tools, you can efficiently find and access the relay, setting the stage for a successful removal process.
Should You Refrigerate Enfamil Ready-to-Use Formula? Expert Tips
You may want to see also
Explore related products
Disconnect Wires: Label and detach wires carefully to avoid confusion during reinstallation
Before disconnecting any wires during the removal of a refrigerator compressor relay, pause and consider the potential chaos that awaits if you don’t label them. A tangle of wires, each seemingly identical, can turn a straightforward reinstallation into a frustrating puzzle. To avoid this, gather a set of colored labels or masking tape and a marker. As you detach each wire, note its position and function—whether it connects to the start capacitor, run capacitor, or overload protector. This simple act of labeling transforms a jumble of wires into a clear, organized system, ensuring you can reconnect them correctly without guesswork.
The process of detaching wires requires precision and patience. Start by identifying the wire terminals connected to the relay. Most relays have spade connectors or screw terminals, which can be released with a small flathead screwdriver or needle-nose pliers. Apply gentle pressure to avoid bending or breaking the terminals. As you remove each wire, immediately attach the corresponding label, ensuring the adhesive doesn’t obstruct the terminal. For wires without distinct markings, sketch a quick diagram of their original positions as a backup reference. This dual approach—labels and a diagram—provides redundancy, minimizing the risk of errors during reinstallation.
A common mistake is underestimating the importance of wire order. For instance, reversing the start and run wires can prevent the compressor from functioning properly or even damage the motor. To mitigate this, use a systematic labeling method, such as numbering wires in the order they’re disconnected or color-coding them based on their function. If your relay has multiple capacitors, label each wire with its specific role (e.g., "Start Cap – Red Wire"). This level of detail may seem excessive, but it’s far easier to invest a few extra minutes labeling than to troubleshoot a miswired compressor later.
Finally, store the detached wires and labels in a secure, dry place to prevent tangling or loss. A small plastic bag or container works well for this purpose. If the wires are long, loosely coil them and secure with a twist tie to maintain their integrity. By treating this step with the same care as the actual relay removal, you’ll ensure a smooth reinstallation process. Remember, the goal isn’t just to remove the relay—it’s to do so in a way that guarantees seamless reassembly, and proper wire management is the linchpin of that success.
Fresh Food Delivered: Top Places to Order Refrigerated Groceries Online
You may want to see also
Explore related products
Remove the Relay: Unscrew or unclip the relay from its mounting bracket gently
The relay, a small but crucial component, often sits securely on its mounting bracket, held in place by screws or clips designed to withstand the vibrations of the compressor. Before attempting removal, ensure the refrigerator is unplugged to avoid electrical hazards. This step is not just a precaution; it’s a necessity, as live electricity can cause severe injury or damage. Once safety is confirmed, locate the relay—typically found near the compressor, identifiable by its wiring connections and compact design.
Unscrewing the relay requires precision and the right tools. A Phillips or flathead screwdriver, depending on the screw type, is essential. Apply gentle, steady pressure to avoid stripping the screw heads, which can complicate the process. If the relay is clipped, inspect the bracket for release mechanisms or tabs. Some clips may require a firm but careful press or pull to disengage. Avoid using excessive force, as this can damage the relay or surrounding components, leading to costly repairs.
Gently removing the relay is an art that balances force and finesse. Tilt the relay slightly while unscrewing or unclipping to ease it away from the bracket. Take note of its orientation and wiring connections for reassembly or replacement. If resistance is encountered, pause and reassess—forcing the relay can bend mounting tabs or break internal connections. Patience here prevents unnecessary complications and ensures the relay remains functional if reinstallation is planned.
Comparing the removal process to everyday tasks can provide clarity. Think of it as carefully removing a watch battery—rush or force, and you risk damage; proceed methodically, and the task is straightforward. Similarly, treating the relay with the same care ensures a smooth removal. After detachment, inspect the bracket and relay for wear or corrosion, as these signs may indicate underlying issues that need addressing. This step not only facilitates removal but also contributes to the overall health of the refrigerator’s system.
Should Vegan Cupcakes Be Refrigerated? Storage Tips for Freshness
You may want to see also
Explore related products
Test and Replace: Check relay for faults; replace with a compatible part if necessary
A faulty refrigerator compressor relay can lead to inefficient cooling or complete system failure. Before assuming the relay is the culprit, it’s crucial to test it for faults. Start by unplugging the refrigerator to ensure safety. Locate the relay, typically found on the side of the compressor, and disconnect the wires carefully, labeling them to avoid confusion during reassembly. Use a multimeter set to the resistance (ohms) setting to test the relay’s continuity. A functional relay should show low resistance (usually between 0 and 10 ohms) across its terminals. If the reading is infinite or erratic, the relay is defective and needs replacement.
When replacing the relay, compatibility is key. Refrigerator relays are not universal, so identify the exact model number of your appliance or the relay itself. Cross-reference this with the manufacturer’s specifications or consult a parts supplier to ensure the new relay matches voltage, pin configuration, and mounting style. Generic relays may appear similar but lack the precise engineering required for your unit, leading to premature failure or damage to the compressor. Always opt for OEM (Original Equipment Manufacturer) parts or high-quality replacements to guarantee longevity and performance.
The replacement process is straightforward but requires attention to detail. After installing the new relay, reconnect the wires according to your earlier labeling. Double-check all connections to ensure they are secure and free of corrosion. Once reassembled, plug the refrigerator back in and monitor its operation. Listen for the compressor to engage smoothly and observe if the unit reaches the desired temperature within a reasonable timeframe. If issues persist, the problem may lie elsewhere, such as with the compressor itself or the thermostat, necessitating further diagnosis.
A proactive approach to relay maintenance can extend the life of your refrigerator. Regularly inspect the relay for signs of overheating, such as discoloration or melting, which indicate excessive current draw. Additionally, keep the area around the compressor clean and well-ventilated to prevent dust buildup, which can insulate the relay and cause it to overheat. By testing and replacing the relay as needed, you not only restore functionality but also prevent potential damage to more expensive components, saving time and money in the long run.
Can Butter Be Left Out After Refrigeration? Safety and Tips
You may want to see also
Frequently asked questions
You will typically need a screwdriver (flathead or Phillips, depending on the screws), needle-nose pliers, and possibly a multimeter to test the relay before removal.
The compressor relay is usually found near the compressor, often mounted on the side or top of it. It is a small, rectangular or cube-shaped component with wires connected to it.
No, always unplug the refrigerator or turn off the power at the circuit breaker before removing the compressor relay to avoid electrical shock or damage to the appliance.
