Marianne Martinez

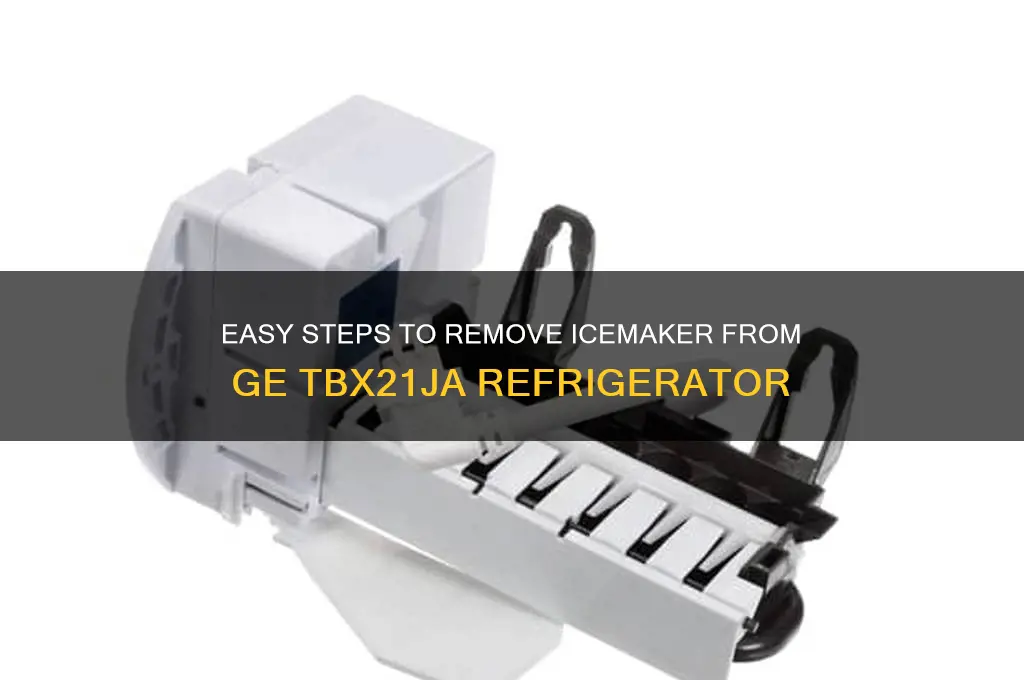

Removing the icemaker from a GE refrigerator model TBX21JA is a straightforward process that requires basic tools and careful attention to detail. Start by unplugging the refrigerator or turning off the power at the circuit breaker to ensure safety. Next, locate the icemaker assembly, typically found in the freezer compartment. Remove any ice cubes or ice buildup around the icemaker to access it easily. Disconnect the water supply line by unscrewing the coupling nut, and use a towel to catch any water that may spill. Then, remove the cover plate by unsnapping or unscrewing it, depending on the model. Carefully disconnect the wiring harness by releasing the tab and pulling it apart. Finally, remove the mounting screws that secure the icemaker to the freezer wall, and gently lift the icemaker out of the compartment. Always refer to the user manual for model-specific instructions if needed.
| Characteristics | Values |
|---|---|
| Model Compatibility | GE Refrigerator TBX21JA |
| Tools Required | Phillips screwdriver, flathead screwdriver, pliers |
| Steps to Remove Icemaker | 1. Turn off water supply and unplug refrigerator. |
| 2. Remove ice bin and dump any remaining ice. | |
| 3. Locate and remove the cover or panel over the icemaker assembly. | |
| 4. Disconnect the wiring harness by pressing the release tab. | |
| 5. Remove screws securing the icemaker to the freezer compartment. | |
| 6. Lift the icemaker out of the compartment. | |
| Common Issues | Icemaker not producing ice, jammed ice, water leakage |
| Safety Precautions | Ensure refrigerator is unplugged to avoid electrical shock. |
| Replacement Parts | Icemaker assembly, water inlet valve, ice bin (if damaged) |
| Manual Reference | GE Refrigerator TBX21JA user manual for specific diagrams and steps. |
| Estimated Time | 30-60 minutes depending on familiarity with the process. |
| Additional Tips | Clean the area around the icemaker before reinstallation or repair. |
Explore related products
What You'll Learn
- Unplug and Prepare: Safety first, disconnect power, gather tools, and clear access to the icemaker
- Remove Icemaker Cover: Locate and detach the icemaker cover panel carefully to access components
- Disconnect Wiring Harness: Unplug the wiring harness from the icemaker module to disable power
- Release Mounting Bracket: Loosen screws and slide the icemaker out of its mounting bracket
- Clean and Reinstall: Clean the area, reinstall if needed, or replace with a new icemaker
Unplug and Prepare: Safety first, disconnect power, gather tools, and clear access to the icemaker
Before attempting to remove the icemaker from your GE refrigerator model TBX21JA, prioritize safety and efficiency by unplugging the appliance and preparing your workspace. Electricity and moving parts pose risks, so disconnecting power is non-negotiable. Locate the power cord and unplug it from the wall outlet or flip the corresponding circuit breaker. This step eliminates the risk of electrical shock and prevents the icemaker from activating unexpectedly during removal. Wait at least 10 minutes to ensure all components have discharged before proceeding.
Next, gather the necessary tools to streamline the process. You’ll typically need a Phillips-head screwdriver, a flat-head screwdriver, and possibly a pair of needle-nose pliers for hard-to-reach areas. Check your refrigerator’s manual or online resources for model-specific tools, as some GE icemakers may require additional instruments. Lay out your tools within easy reach to avoid interruptions. This preparation not only saves time but also minimizes the risk of misplacing screws or damaging components during the removal process.
Clearing access to the icemaker is equally critical. Start by removing any food items or bins obstructing the area. For the TBX21JA model, this often involves sliding out the freezer basket or shelves. Be mindful of temperature-sensitive items; relocate them to a cooler or another refrigerator if necessary. Once cleared, inspect the icemaker’s surroundings for ice buildup or debris. Use a soft cloth or plastic scraper to gently remove any obstructions, ensuring a clear path for removal without damaging internal components.
Finally, take a moment to familiarize yourself with the icemaker’s layout. Locate the water line connection, mounting screws, and electrical harness. Some GE models may have a cover plate or panel that needs removal first. Refer to diagrams or videos specific to the TBX21JA for visual guidance. This preparatory step ensures you understand the disassembly sequence, reducing the likelihood of errors or frustration. With power disconnected, tools ready, and access cleared, you’re now equipped to safely and efficiently remove the icemaker.
Should You Refrigerate Cream Cheese Frosting? Tips for Storage
You may want to see also
Explore related products
Remove Icemaker Cover: Locate and detach the icemaker cover panel carefully to access components
The icemaker cover panel on a GE refrigerator model TBX21JA is a crucial component that protects the inner workings of the icemaker while providing a sleek, integrated appearance. To access the icemaker's components for maintenance, repair, or cleaning, you must first locate and carefully detach this cover. Typically, the cover is situated at the front of the icemaker assembly, often secured with clips or screws that require a gentle touch to avoid damage.
Begin by unplugging the refrigerator or turning off the power at the circuit breaker to ensure safety during the process. Next, inspect the cover panel to identify the type of fasteners used. In many GE models, the cover is held in place by a combination of clips and screws. Use a flathead screwdriver to gently pry the clips loose, taking care not to apply excessive force that could crack the plastic. If screws are present, use the appropriate screwdriver to remove them, keeping track of their locations for reassembly.
Once the fasteners are removed, carefully lift or slide the cover panel away from the icemaker assembly. Be mindful of any wiring or connectors attached to the cover, as these may need to be detached or maneuvered gently to avoid damage. If the cover feels stuck, double-check for any hidden clips or screws that may have been overlooked. Patience is key here, as forcing the cover can result in breakage or misalignment during reinstallation.
After removing the cover, take a moment to inspect the exposed components for signs of wear, ice buildup, or debris. This step is particularly useful if you’re troubleshooting issues like ice not dispensing or the icemaker functioning improperly. With the cover off, you’ll have clear access to clean the area, replace parts, or perform diagnostics. Remember to handle all components with care, as the icemaker’s mechanisms are sensitive to misalignment or damage.
Reattaching the cover is a reverse process: align it carefully with the icemaker assembly, reinsert any screws, and snap the clips back into place. Ensure the cover sits flush and securely before restoring power to the refrigerator. By approaching this task methodically, you’ll avoid unnecessary complications and maintain the functionality and appearance of your GE TBX21JA refrigerator’s icemaker.
McMenamins Edgefield Rooms: Do They Include Refrigerators?
You may want to see also
Explore related products
Disconnect Wiring Harness: Unplug the wiring harness from the icemaker module to disable power
Before attempting to remove the icemaker from your GE refrigerator model TBX21JA, one critical step is to disconnect the wiring harness. This process ensures that power is disabled, preventing any electrical mishaps during the removal. The wiring harness is essentially the lifeline of the icemaker module, supplying it with the necessary electricity to function. By unplugging it, you effectively cut off this power source, making the icemaker safe to handle.
To begin, locate the wiring harness connected to the icemaker module. This is typically found at the back or underside of the icemaker assembly. The harness consists of a bundle of wires encased in a protective covering, often color-coded for easy identification. Gently grasp the connector and pull it straight out from the module. Avoid tugging on the wires themselves, as this can cause damage. Most connectors are designed to release with a firm, even pull, but if you encounter resistance, double-check to ensure you’re not missing a release mechanism, such as a tab or latch.
While this step may seem straightforward, it’s crucial to approach it with caution. Mishandling the wiring harness can lead to bent pins, broken wires, or even damage to the icemaker’s control board. If the connector feels stuck, inspect it for any locking mechanisms that need to be disengaged first. Some models may require a small tool, like a flathead screwdriver, to gently pry the connector loose. Always work methodically and avoid forcing anything, as the components are often made of plastic and can be fragile.
Once the wiring harness is disconnected, take a moment to inspect both the connector and the module’s port for any signs of wear, corrosion, or debris. If you notice any issues, such as frayed wires or a damaged connector, this could be an opportunity to address them before reassembling the unit. Additionally, consider taking a photo of the wiring harness before removal—this can serve as a helpful reference when it’s time to reconnect everything, ensuring the correct orientation and avoiding potential errors.
In summary, disconnecting the wiring harness is a pivotal step in removing the icemaker from your GE refrigerator TBX21JA. By doing so, you not only ensure safety but also gain the opportunity to inspect and maintain the electrical components. Approach this task with care, using the right techniques to avoid damage, and always take note of the connector’s orientation for seamless reinstallation. This small but significant step sets the stage for a successful icemaker removal process.
Should Fresh Garlic Be Refrigerated? Storage Tips for Longer Shelf Life
You may want to see also
Explore related products
$6.5 $9.78
Release Mounting Bracket: Loosen screws and slide the icemaker out of its mounting bracket
The mounting bracket is the icemaker's anchor, securing it firmly within the freezer compartment of your GE TBX21JA refrigerator. To remove the icemaker, this bracket must be released, a process that requires precision and care to avoid damaging surrounding components. Begin by locating the screws that fasten the icemaker to the bracket. Typically, these are found at the top or sides of the unit, depending on the model. Use a Phillips-head screwdriver to loosen these screws, turning them counterclockwise until they are free but still attached to the bracket. Over-tightening or stripping the screws can complicate reassembly, so proceed with caution.
Once the screws are loosened, gently slide the icemaker downward or outward, depending on its orientation. The bracket is designed to allow this movement, but resistance may indicate that the screws are not sufficiently loosened or that ice buildup is hindering progress. If ice is present, allow it to thaw naturally or use a hairdryer on a low setting to expedite the process. Avoid forcing the icemaker, as this can damage the bracket or the icemaker itself. A smooth, controlled motion ensures that the unit disengages from the bracket without issue.
Comparing this step to other icemaker removal processes highlights its simplicity yet critical nature. Unlike models that require disassembling the entire bracket or dealing with complex locking mechanisms, the GE TBX21JA’s design prioritizes accessibility. However, this ease of removal also underscores the importance of following the correct sequence. Skipping the screw-loosening step or attempting to force the icemaker out can lead to unnecessary complications, turning a straightforward task into a frustrating ordeal.
A practical tip for this stage is to keep track of the screws once they are loosened. Place them in a small container or tape them to a nearby surface to prevent loss. Additionally, if the icemaker feels stuck despite loosening the screws, inspect the area for hidden obstructions, such as ice shards or misaligned components. Addressing these issues before proceeding ensures a seamless removal process. By focusing on this specific step—releasing the mounting bracket—you lay the groundwork for successfully removing the icemaker and addressing any maintenance or repair needs efficiently.
Storing a Refrigerator in a Freezing Garage: Risks and Solutions
You may want to see also
Explore related products
Clean and Reinstall: Clean the area, reinstall if needed, or replace with a new icemaker
Before reinstalling or replacing your GE TBX21JA refrigerator’s icemaker, cleaning the area is non-negotiable. Over time, mineral deposits, mold, and debris accumulate around the icemaker, compromising its efficiency and hygiene. Use a mixture of warm water and mild dish soap to wipe down the compartment, ensuring no residue remains. For stubborn mineral buildup, a 50/50 solution of white vinegar and water works effectively. Avoid harsh chemicals like bleach, as they can damage the plastic components and contaminate ice. A clean environment not only ensures better ice quality but also extends the lifespan of the icemaker.
Reinstalling the icemaker after cleaning requires precision and patience. Start by aligning the icemaker with the mounting holes and securing it with the original screws. Ensure the water inlet tube is properly connected and free from kinks, as even a minor obstruction can disrupt ice production. Test the icemaker by manually initiating a cycle—most GE models have a test button or lever for this purpose. If the icemaker fails to function, double-check the electrical connections and water supply line. Reinstallation is often a straightforward process, but rushing it can lead to misalignment or damage.
While cleaning and reinstalling may resolve minor issues, there are scenarios where replacing the icemaker is the only viable solution. Signs of irreparable damage include consistent underproduction of ice, leaks, or mechanical failure despite proper cleaning and reinstallation. When purchasing a replacement, ensure compatibility with the GE TBX21JA model—using a mismatched icemaker can void warranties and cause operational issues. Installation of a new unit follows the same steps as reinstalling the old one, but with the added benefit of starting fresh with a fully functional component.
A comparative analysis reveals that cleaning and reinstalling is the most cost-effective approach, costing only the price of cleaning supplies. Replacing the icemaker, on the other hand, ranges from $100 to $200, depending on the brand and model. However, the long-term reliability of a new icemaker often justifies the investment, especially if the existing unit is over five years old. For those comfortable with DIY repairs, cleaning and reinstalling is a practical first step, while replacement is best left to professionals if you’re unsure about handling electrical or water connections.
In conclusion, whether you choose to clean and reinstall or replace the icemaker, the goal is to restore optimal functionality to your GE TBX21JA refrigerator. Regular maintenance, such as biannual cleaning, can prevent many common issues. If problems persist, weigh the cost and effort of reinstalling against the benefits of a new unit. By taking a systematic approach, you can ensure your icemaker operates efficiently, providing a steady supply of clean, fresh ice for years to come.
Should Coconut Cream Be Refrigerated? Storage Tips for Freshness
You may want to see also
Frequently asked questions
To access the icemaker, first remove any ice bins or shelves blocking the icemaker compartment. Then, locate the screws or clips holding the icemaker in place, and carefully remove them to detach the unit.
You will typically need a Phillips screwdriver, a flathead screwdriver, and possibly a pair of pliers to disconnect any wiring harnesses or clips securing the icemaker.
It is highly recommended to turn off the water supply to the refrigerator before removing the icemaker to avoid water leakage or damage to the system.
Gently press the release tab on the wiring harness connector and pull it straight out. Avoid pulling on the wires themselves to prevent damage.
