Removing the engine oil pan from a John Deere 4010 tractor is a task that may need to be performed for maintenance or repairs. John Deere tractors are known for their oil leaks, and the oil pan gasket is often the culprit. When replacing the gasket, it is important to ensure that the pocket is clean and that no gasket sealant is used, as any dirt or remnants can end up in the engine. Used engine oil pans compatible with the John Deere 4010 are available from various suppliers, with prices ranging from $590.00.

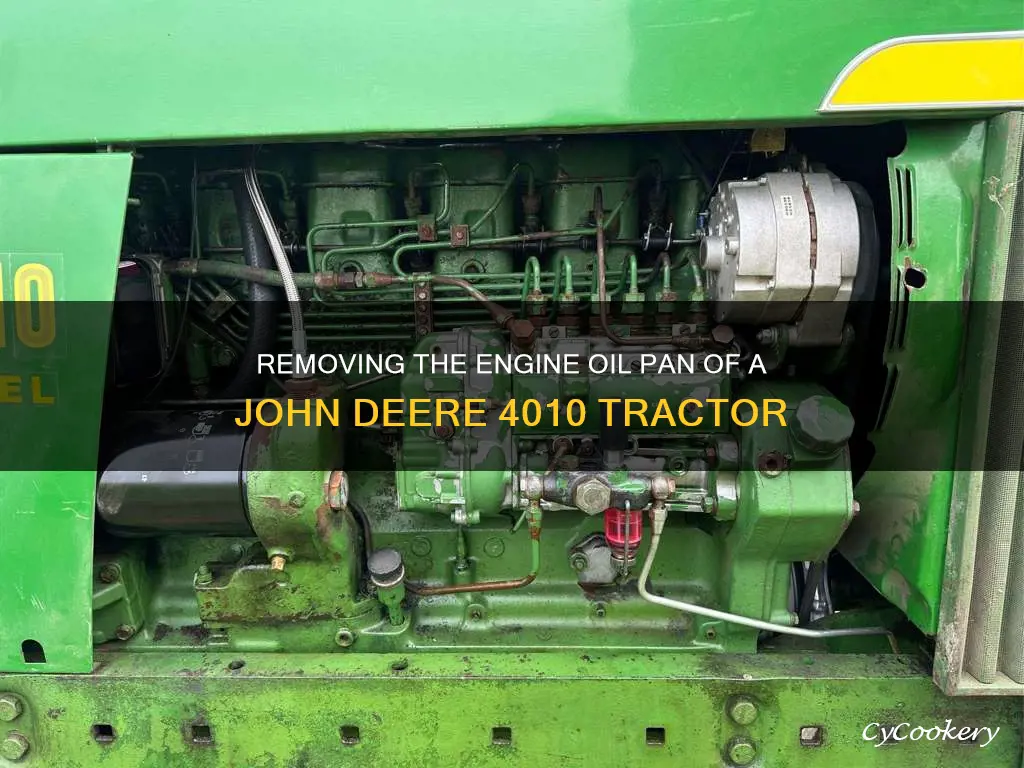

Removing the John Deere 4010 Engine Oil Pan
| Characteristics | Values |
|---|---|
| Tractor Model | 4010 |
| Compatible Models | 4000, 4020, 4230 |
| Part Numbers | AR34405, AR27558, AR63193, AR45787, R27185, R34737, R44419, R53741 |
| Gasket | Yes, a gasket is used between the oil pan and the engine block |
| Oil Leak Issues | Oil leaks can occur due to a faulty gasket or dirt in the oil system |
| Price | Used oil pans range from $590 |
Explore related products
What You'll Learn
Clean the oil pan pocket before bolting the flange on
It is important to clean the oil pan pocket before bolting the flange on. This is because John Deere casts a blind pocket in the block at the location of the flange. They then drill a hole that intersects the discharge from the oil pump and oil filter and another that communicates with the oil cooler in this blind pocket. The flange covers this pocket, and oil is supplied to the engine oil galleries. Therefore, before bolting the flange on, one needs to be sure that the pocket is clean. Any dirt or sealant remnants will go into the engine as the oil is already filtered.
To clean the oil pan pocket, start by putting on some safety goggles or a full-face shield. It is also recommended to wear nitrile gloves. Ensure that the engine is switched off. Wash the entire oily area thoroughly with brake parts cleaner and allow it to dry. You can then spray white foot powder or an equivalent all over the suspected leak area as if you were spray painting it. Get ready with a bright light and start the engine, staying clear of moving and hot parts. You will usually spot the leak right away.
It is important to never get underneath a car unless it is safely and properly supported. Some pickup trucks sit high enough that they don't need to be raised for this step. A low oil level can also indicate a leak, potentially from the oil pan.
Once the area is clean, you can install a new gasket and the oil pan. Place the gasket on top of the pan and insert a couple of bolts through the pan to hold the gasket in place. Some replacement gaskets have four plastic inserts that can be threaded into the pan bolt holes at each corner of the block. This allows you to line the gasket up, snap the pan up onto the plastic inserts, and take your time with the rest of the job. The pan will be slightly below its bolted-up position, enabling you to line up the gasket holes and start all the bolts. Finally, thread the bolts into the engine by hand. Once the pan is in place, you can thread the rest of the bolts in, also by hand.
Pan-Seared Turkey: Golden and Juicy
You may want to see also
Explore related products
Don't use gasket sealant on the gasket
When removing the engine oil pan on a John Deere 4010 tractor, it is important to consider the use of a gasket sealant on the gasket. While it may seem like a good idea to ensure a tight seal, using a gasket sealant on the gasket can actually cause more harm than good.
Firstly, it is important to understand the design of the John Deere 4010 engine. John Deere casts a blind pocket in the block at the location of the flange, and this pocket is covered by the flange. Oil is supplied to the engine oil galleries through this pocket. Before bolting the flange on, it is crucial to ensure that the pocket is clean and free of any debris. Using a gasket sealant on the gasket can introduce dirt or sealant remnants into the engine, as the oil is already filtered. Any contaminants in the sealant or on the gasket can end up in the engine, causing potential damage or performance issues.
Additionally, the use of a gasket sealant may not be necessary. The John Deere 4010 oil pan gasket is designed to provide a tight seal without the need for additional sealants. The gasket is made of a flexible material that conforms to the surfaces of the oil pan and the engine block, creating a secure seal. Using a gasket sealant can actually degrade the integrity of the gasket, causing it to become less effective over time.
Furthermore, the use of a gasket sealant can make it more difficult to remove the oil pan in the future. The sealant can harden and become brittle, making it challenging to separate the oil pan from the engine block without causing damage. This can increase the time and effort required for future maintenance or repairs.
In some cases, gasket manufacturers may recommend using a gasket sealant in addition to the gasket. However, this is typically not necessary for the John Deere 4010 oil pan gasket. It is always important to refer to the manufacturer's instructions and recommendations when installing or replacing any parts.
By following the proper installation techniques and using the correct parts, you can ensure a secure seal without the need for a gasket sealant. This will help maintain the longevity and performance of your John Deere 4010 tractor's engine.
Pan-Head Bolts: One Size Fits All?
You may want to see also
Explore related products
Compatible oil pan gasket sets for John Deere 4010
When removing the engine oil pan on a John Deere 4010 tractor, it is important to use the correct tools and techniques to ensure a proper seal and avoid oil leaks. To do this, you will need a compatible oil pan gasket set.
There are several compatible oil pan gasket sets available for the John Deere 4010 tractor. These include:
- The RE524085 Oil Pan Gasket Set, which is compatible with John Deere 4000 and 4010 tractors. This set can be purchased from eBay and other online retailers. It is a direct replacement for the original John Deere part and offers a significant cost saving compared to the dealer price.
- Oil Pan Gasket Set with product number TP-R71918, compatible with John Deere 4000, 4010, 4020, 4040, 4230, 4250, 4320, 4430, and 4440 tractors. This set is available on Amazon and can be used with various engine types, including 301 CID 6-cylinder gas engines and 340 CID 6-cylinder gas engines.
- Oil Pan Gasket Set that replaces John Deere OEM nos AR30547, RE524085. This set fits a wide range of John Deere tractors, including the 4000, 4010, 4020, 4230, as well as combines, construction and industrial models, and specific engine types.
- Used Engine Oil Pan (part number AR34405) compatible with John Deere tractors 4000, 4010, and 4020. This option from TractorPartsASAP comes with a 1-year warranty and may be a more affordable choice, although used parts may not always be in stock.
When purchasing an oil pan gasket set, it is important to ensure compatibility with your specific John Deere 4010 tractor model and engine type. Additionally, some gaskets may not be suitable for certain block numbers, so it is essential to verify this information before making a purchase.
Cleaning Cast Iron: Removing Plastic the Right Way
You may want to see also
Explore related products
Used engine oil pan for John Deere 4010 tractor
If you are looking for a used engine oil pan for your John Deere 4010 tractor, there are a few options available. It is important to note that due to the nature of used parts, these may not always be in stock, and additional handling and oversize fees may apply.
One option is a used engine oil pan with the John Deere OEM number AR34405 and casting numbers R27185 and R34737. This oil pan is compatible with the John Deere 4000, 4010, and 4020 tractors. It comes with a 1-year warranty and may require additional arrangements for shipping outside the continental US.
Another option is a used engine oil pan with the John Deere OEM number AR63193 and part number AR45787. This oil pan is compatible with the John Deere 4000, 4010, 4020, and 4230 tractors. Similar to the previous option, it also comes with a 1-year warranty and may require additional arrangements for shipping outside the continental US.
When removing the engine oil pan from your John Deere 4010 tractor, it is important to take the necessary safety precautions and have the proper tools and equipment. Here are the general steps to remove the engine oil pan:
- Park the tractor on a level surface, engage the parking brake, and allow the engine to cool down if it has been running recently.
- Place a suitable oil drain pan or container underneath the engine oil pan to catch the drained oil.
- Locate the oil drain plug at the bottom of the oil pan. Place an oil drain pan or container underneath the drain plug.
- Remove the oil drain plug using the appropriate tool, such as an oil filter wrench or a socket wrench. Allow the oil to drain completely.
- Clean the area around the oil pan and tighten any loose bolts or fasteners.
- Remove the bolts securing the oil pan to the engine block in a sequential manner to avoid warping the oil pan.
- Carefully lower the oil pan, as it may still contain some oil. Clean the mating surface of the engine block and the gasket surface of the oil pan.
- Inspect the gasket and O-rings for any damage or wear. Replace them if necessary.
- Install the new or cleaned oil pan by positioning it correctly and tightening the bolts securely.
- Reinstall the oil drain plug and refill the engine with the appropriate type and amount of oil.
Please note that these are general steps, and it is always recommended to refer to the specific repair manual for your John Deere 4010 tractor for detailed instructions and safety precautions. Additionally, proper disposal of used engine oil and compliance with local regulations are important to avoid environmental hazards.
Removing Scorched Butter: Tips to Save Your Pan
You may want to see also
Explore related products
Oil pan drain plug for John Deere 4010 tractor
The oil pan drain plug is an essential component of the John Deere 4010 tractor, facilitating the critical function of engine oil drainage. Proper maintenance of this system is key to the tractor's performance and longevity.
To begin the process of removing the engine oil pan on a John Deere 4010 tractor, it is necessary to first locate and remove the oil pan drain plug. This plug serves as a critical seal, preventing engine oil from leaking out of the pan during normal operation. By removing this plug, you can drain the oil and access the oil pan for further maintenance or repairs.
The oil pan drain plug for the John Deere 4010 tractor is specifically designed for this model and other John Deere tractor variants. It is a standardised part, ensuring compatibility and easy replacement. The plug is typically located at the bottom of the oil pan, often with an attached washer to ensure a tight seal.
When removing the oil pan drain plug, it is important to take precautions to avoid any potential hazards. Place a suitable container underneath the plug to catch the draining oil, as it will start flowing out once the plug is removed. Ensure you are wearing appropriate protective gear, including gloves and eye protection, to shield yourself from the used oil.
In addition to the oil pan drain plug, John Deere tractors utilise a range of other oil drain plugs for various components. These include different engine series and models, such as the 496CID, 4*50, and 4*55 series, as well as specific oil pan numbers like 1909 and 1944. It is important to use the correct plug for the respective application to ensure a proper seal and avoid oil leaks.
