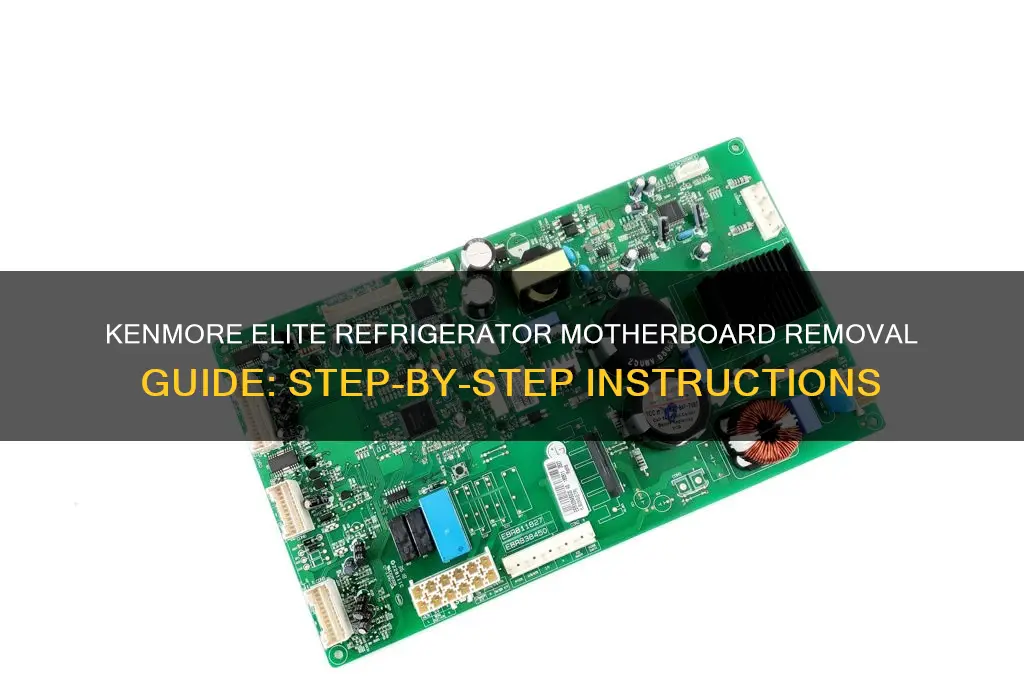

Removing the motherboard from a Kenmore Elite refrigerator requires careful preparation and precision to avoid damaging the appliance or its components. Begin by unplugging the refrigerator to ensure safety and disconnecting the water supply if applicable. Next, locate the access panel, typically found at the back or top of the unit, and remove it using a screwdriver. Identify the motherboard, which is usually situated near the control panel or compressor area, and take note of all connected wires and sensors. Carefully detach each connector, labeling them for reassembly, and unscrew the motherboard from its mounting bracket. Handle the board gently to prevent static electricity damage, and consider using an anti-static wrist strap for added protection. Once removed, inspect the motherboard for any signs of corrosion or damage before proceeding with repairs or replacements.
| Characteristics | Values |
|---|---|
| Model Compatibility | Kenmore Elite Refrigerator Models (specific model number required) |
| Tools Required | Screwdriver (Phillips and flathead), socket wrench, pliers, flashlight |
| Safety Precautions | Unplug refrigerator, wear safety gloves, avoid touching electrical components |
| Location of Motherboard | Typically behind the control panel or inside the refrigerator compartment |
| Steps to Access Motherboard | 1. Remove screws from control panel. 2. Lift or slide off the panel. |
| Disconnecting Wires | Label and carefully detach wire harnesses connected to the motherboard |
| Removing Motherboard | Unscrew mounting screws and gently lift the motherboard out |
| Reinstallation Notes | Ensure proper alignment and secure all connections before reinstalling |
| Common Issues | Loose connections, damaged wires, or faulty motherboard components |
| Professional Assistance | Recommended if unsure about handling electrical components |
| Replacement Parts | Compatible motherboard specific to Kenmore Elite model |
| Warranty Considerations | Check warranty status before attempting DIY repairs |
| Online Resources | Kenmore Elite manual, repair forums, or YouTube tutorials |
| Estimated Time | 30 minutes to 1 hour depending on experience and model complexity |
Explore related products
What You'll Learn
- Unplug and Prepare: Safety first, disconnect power, gather tools, and clear workspace for access
- Remove Panels: Locate and detach back or side panels to expose motherboard
- Disconnect Wires: Identify and unplug all connected wires and cables carefully
- Unscrew Motherboard: Remove screws holding the motherboard in place securely
- Lift and Extract: Gently lift and remove the motherboard without damaging components
Unplug and Prepare: Safety first, disconnect power, gather tools, and clear workspace for access
Before attempting to remove the motherboard from your Kenmore Elite refrigerator, prioritize safety and efficiency by unplugging the appliance and preparing your workspace. This initial step is non-negotiable, as working on any electrical device without disconnecting power poses a significant risk of electric shock or short circuits. Locate the power cord and firmly pull the plug from the electrical outlet. For added safety, consider testing the outlet with a voltage tester to ensure no current is flowing. This simple action transforms a potentially hazardous task into a controlled environment where you can focus on the intricacies of the repair.
With the power disconnected, shift your attention to gathering the necessary tools. Removing a refrigerator motherboard typically requires a Phillips-head screwdriver, a flat-head screwdriver, and possibly needle-nose pliers for delicate connections. Organize these tools within arm’s reach to streamline the process and avoid mid-task interruptions. Additionally, prepare a container or tray to hold screws and small components as you disassemble the unit. This organizational step not only saves time but also prevents the loss of critical parts, ensuring a smoother reassembly later.
Clearing the workspace is equally crucial, as it provides unobstructed access to the refrigerator’s interior components. Start by removing all food items and shelves from the appliance, taking care to handle glass shelves gently to avoid breakage. Wipe down surfaces to eliminate debris that could interfere with the repair. If the refrigerator is positioned tightly against a wall, carefully pull it forward to access the rear panel, where the motherboard is often located. Ensure sufficient lighting in the workspace, either by natural light or a portable lamp, to clearly see screws, wires, and connectors.
Finally, take a moment to mentally map out the task ahead. Familiarize yourself with the refrigerator’s layout by consulting the user manual or online diagrams specific to your Kenmore Elite model. Identify the motherboard’s location and note any surrounding components that may need to be temporarily removed for access. This preparatory step not only builds confidence but also minimizes the risk of accidental damage during disassembly. By unplugging, gathering tools, and clearing the workspace, you’ve laid the foundation for a safe, efficient, and successful motherboard removal.
