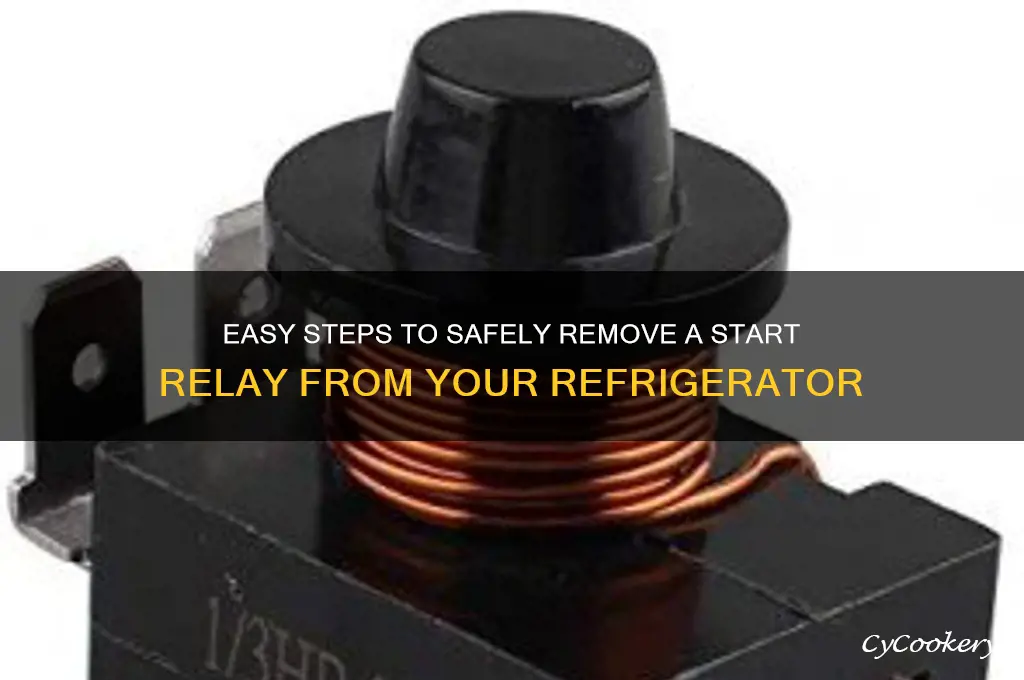

Removing the start relay from a refrigerator is a task that requires careful attention to safety and detail. The start relay is a crucial component that helps the compressor motor start efficiently. To begin, ensure the refrigerator is unplugged to avoid electrical hazards. Locate the relay, typically found near the compressor, often attached to the side or top of the unit. Gently remove the protective cover, if any, and identify the relay by its cylindrical or rectangular shape with wires connected to it. Using a screwdriver or appropriate tool, carefully detach the wires, noting their positions for reassembly. Then, unsnap or unscrew the relay from its mounting bracket, taking care not to damage surrounding components. Once removed, inspect the relay for signs of wear or damage, as this may indicate the need for replacement. Always refer to the refrigerator’s manual for model-specific instructions to ensure a smooth and safe process.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver (usually Phillips head), needle-nose pliers |
| Safety Precautions | Unplug refrigerator from power source, discharge capacitor if present |
| Location of Start Relay | Typically near compressor, often mounted on side or top |
| Relay Type | Usually a combination start relay and overload protector |
| Removal Process | 1. Locate relay near compressor 2. Remove mounting screw(s) or clip 3. Gently pull relay away from compressor 4. Disconnect wiring harness (note wire positions) |
| Common Issues | Burnt relay, melted plastic, loose connections |
| Replacement | Match replacement relay to original specifications (voltage, amperage, pin configuration) |
| Testing | Use multimeter to check continuity of relay contacts and overload protector |
| Reinstallation | Reattach wiring harness, secure relay with screw(s) or clip, ensure proper seating |
| Post-Installation | Plug in refrigerator, monitor for proper operation, check for unusual noises or vibrations |
Explore related products
What You'll Learn
- Locate the Relay: Identify the start relay's position near the compressor
- Disconnect Power: Unplug the refrigerator or turn off the circuit breaker
- Access the Relay: Remove the back panel to expose the relay
- Detach Wires: Carefully disconnect the wires connected to the relay
- Remove the Relay: Pull the relay straight out of its socket
Locate the Relay: Identify the start relay's position near the compressor
The start relay in a refrigerator is typically nestled near the compressor, the heart of the cooling system. This strategic placement ensures efficient power delivery to kickstart the compressor, which is crucial for maintaining optimal temperatures. Understanding this relationship is key to locating the relay swiftly, especially when troubleshooting or replacing it. The compressor, often found at the back or bottom of the refrigerator, is usually encased in a protective housing, with the relay attached nearby for easy access.
To identify the start relay’s position, begin by unplugging the refrigerator to ensure safety. Slide the appliance away from the wall and locate the compressor, which is typically a large, cylindrical or box-like component. The relay is usually a small, rectangular or square-shaped device mounted on or near the compressor, connected by wires. It may be secured with screws or clips, depending on the model. Familiarize yourself with the relay’s appearance beforehand—often black or gray, with terminals for wire connections—to avoid confusion with other components.
A comparative approach can simplify the search: think of the compressor as the engine and the relay as the ignition switch. Just as a car’s ignition is conveniently located near the engine, the relay is positioned for direct interaction with the compressor. If the relay is not immediately visible, check for a wiring harness leading from the compressor, as it often connects directly to the relay. Some models may conceal the relay under a protective cover, so inspect the area thoroughly, using a flashlight if necessary.
For practical tips, consult your refrigerator’s manual for a diagram or description of the relay’s location. If the manual is unavailable, online resources or appliance forums often provide model-specific guidance. Once located, take a photo of the relay’s position and wiring connections before proceeding with removal. This ensures you can reassemble the components correctly, avoiding potential errors during reinstallation. Precision in this step saves time and prevents damage to the system.
In conclusion, locating the start relay near the compressor is a straightforward task with the right approach. By understanding the relay’s role and its proximity to the compressor, you can efficiently identify its position. Safety precautions, visual familiarity, and practical tools like manuals or photos streamline the process, making it accessible even for those new to appliance repair. Master this step, and you’re well on your way to successfully removing and replacing the start relay.
Pear and Frangipane Tart Storage: To Refrigerate or Not?
You may want to see also
Explore related products
Disconnect Power: Unplug the refrigerator or turn off the circuit breaker
Before attempting to remove the start relay from your refrigerator, ensuring your safety is paramount. Electricity can be hazardous, and refrigerators operate on high voltage. The first and most critical step is to disconnect the power supply to the appliance. This simple action is a fundamental safety measure that cannot be overlooked.
The Power-Down Process:
Unplugging the refrigerator from the wall outlet is the most straightforward method. This action immediately severs the power connection, making it safe to proceed with any internal repairs or part replacements. If the outlet is hard to access or the cord is short, an alternative approach is to locate your home's circuit breaker panel. Find the breaker that controls the refrigerator's circuit and switch it off. This method is equally effective in cutting power but requires a bit more familiarity with your home's electrical system.
Why This Step is Crucial:
The start relay is an electrical component, and working on it while the refrigerator is powered can lead to severe consequences. Electric shock is a significant risk, potentially causing injury or even being fatal. Additionally, the relay's function is to initiate the compressor's start-up, and tampering with it while live could damage the compressor or other connected components due to sudden power surges.
Practical Tips:
- If you opt to turn off the circuit breaker, ensure you've identified the correct one. Labeling the breakers can be helpful, especially if you're new to the house.
- After unplugging or switching off the power, it's a good practice to test the refrigerator's power. Try opening the door; if the light doesn't turn on, you've successfully cut the power.
- For added safety, consider using a voltage tester to confirm that no power is reaching the refrigerator. This step is particularly useful for those less experienced with electrical work.
In summary, disconnecting power is a critical safety measure that should never be skipped. It ensures a safe working environment and protects both the repair person and the refrigerator's components. Whether you choose to unplug the appliance or switch off the circuit breaker, this initial step is the foundation for a safe and successful start relay removal process.
Unplugged Refrigerator in a Cold Garage: Safe or Risky?
You may want to see also
Explore related products
Access the Relay: Remove the back panel to expose the relay
The back panel of your refrigerator is more than just a protective cover; it’s the gateway to critical components like the start relay. Removing it requires precision and care to avoid damaging internal parts or voiding warranties. Most modern refrigerators use screws or clips to secure the panel, so gather a Phillips-head screwdriver and a flat-blade tool before starting. Always unplug the appliance or turn off the circuit breaker to eliminate electrical hazards during this step.
Analyzing the process reveals a common oversight: failing to identify the correct panel. The relay is typically located near the compressor, often at the bottom rear of the refrigerator. Look for a rectangular or square-shaped component with wires attached. If your model has multiple panels, consult the user manual or online diagrams to pinpoint the right one. Ignoring this step can lead to unnecessary disassembly and frustration.
Persuasive as it may sound, skipping the back panel removal is not an option if you aim to access the start relay. While some components are reachable through front panels or side compartments, the relay’s position demands direct exposure. Attempting shortcuts, like prying open panels without proper tools, risks bending metal or cracking plastic. Invest the time to remove the panel correctly—it’s a small effort compared to the cost of repairs from mishandling.
Descriptively, the process unfolds like this: Start by locating the screws or clips holding the back panel in place. For screw-mounted panels, turn the screwdriver counterclockwise to loosen each fastener, keeping them organized for reassembly. Clip-mounted panels may require gently prying with a flat tool, working from the top or bottom to release the catches. Once freed, tilt the panel backward and lift it away, exposing the relay and surrounding components. Take a moment to observe the layout—this familiarity will streamline the relay removal process.
Instructively, here’s a practical tip: If the panel feels stuck, check for hidden screws or tabs. Some models conceal fasteners behind stickers or labels, so peel these back carefully. For stubborn clips, apply steady pressure rather than force to avoid breakage. After removing the panel, inspect the area for dust or debris, using a soft brush or compressed air to clean if necessary. This not only improves visibility but also prevents particles from interfering with the relay’s operation during reinstallation.
Searing Beef: Can You Refrigerate Before Cooking? Tips and Tricks
You may want to see also
Explore related products
Detach Wires: Carefully disconnect the wires connected to the relay
Before attempting to remove the start relay from your refrigerator, it's crucial to address the wires connected to it. These wires are the lifeline of the relay, supplying power and facilitating communication with the compressor. Detaching them improperly can lead to damage, short circuits, or even safety hazards.
Understanding Wire Connections:
Most start relays have three terminals: one for the compressor, one for the capacitor, and one for the power supply. Identifying these terminals beforehand using your refrigerator's manual or online resources is essential. Some relays use screw terminals, while others employ push-in connectors. Understanding the type of connection will dictate the detachment method.
Detachment Techniques:
For screw terminals, use a screwdriver of the appropriate size to loosen the screws securing the wires. Gently pull the wires straight out, avoiding any twisting or bending that could damage the strands. For push-in connectors, locate the release mechanism, often a small tab or lever, and gently depress it while pulling the wire out. Be mindful of the force applied to prevent breaking the connector.
Cautions and Considerations:
Always disconnect the refrigerator from the power source before handling any electrical components. This prevents accidental shocks or short circuits. If the wires are brittle or damaged, consider replacing them along with the relay to ensure reliable operation. Labeling the wires before detachment can simplify reinstallation and prevent confusion later. Takeaway:
Detaching wires from a start relay requires precision and caution. By understanding the connection type, employing the correct detachment technique, and prioritizing safety, you can successfully disconnect the wires without causing damage, paving the way for a smooth relay replacement.
Should Vanilla Extract Be Refrigerated After Opening? Expert Tips
You may want to see also
Explore related products
Remove the Relay: Pull the relay straight out of its socket
Pulling the start relay straight out of its socket is a straightforward task, but it requires precision to avoid damaging the component or its housing. Begin by locating the relay, typically found near the compressor, often encased in a plastic or metal cover. Ensure the refrigerator is unplugged to prevent electrical shock. Using a gentle but firm grip, grasp the relay’s body—avoid pulling on wires or connectors, as this can cause strain or disconnection. Apply steady, even pressure in a straight line away from the socket, mimicking the motion of removing a key from a lock. If resistance is felt, inspect for locking mechanisms or clips that may need to be released first.
The design of start relays varies across refrigerator models, but the principle of removal remains consistent: minimize lateral movement to prevent socket damage. For instance, some relays have a slight taper or notch that aligns with the socket, requiring a precise pull to disengage. If the relay feels stuck, lightly wiggle it back and forth while pulling to break any adhesive residue or corrosion. However, avoid excessive force, as this can bend pins or crack the socket, rendering the component unusable. Always refer to the appliance’s manual for model-specific guidance, as some relays may require tools like a flathead screwdriver to depress a release tab.
From a comparative standpoint, removing a start relay is simpler than replacing a compressor or repairing a sealed system, yet it demands similar attention to detail. Unlike other refrigerator repairs, this task rarely involves refrigerant handling or complex diagnostics, making it accessible to most DIY enthusiasts. However, the relay’s proximity to the compressor means working in a confined space, often requiring awkward positioning. A practical tip is to use a flashlight or headlamp to illuminate the area, ensuring visibility of the relay’s orientation and any retaining features. This step not only expedites the process but also reduces the risk of errors.
Persuasively, mastering this skill can save both time and money, as a faulty start relay is a common cause of compressor failure. By diagnosing and replacing this component yourself, you bypass costly service calls and potential upsells. Additionally, understanding the mechanics of relay removal fosters a deeper appreciation for appliance engineering, empowering you to tackle future repairs with confidence. For those hesitant to proceed, consider this: the relay’s socket is designed for repeated insertion and removal, meaning the risk of damage is minimal when proper technique is employed. With patience and care, this task becomes a rewarding step toward appliance self-sufficiency.
Refrigerating Clarified Butter: Best Practices for Storage and Freshness
You may want to see also
Frequently asked questions
The start relay is typically located near the compressor, often attached to the side of it. It is a small, rectangular or cylindrical component with wires connected to it. Consult your refrigerator’s manual or look for a label near the compressor to confirm its location.
You’ll typically need a screwdriver (flathead or Phillips, depending on the screws), needle-nose pliers, and possibly a socket wrench. Ensure the refrigerator is unplugged before starting to avoid electrical hazards.
Yes, removing the start relay is a DIY-friendly task if you’re comfortable working with basic tools. However, if you’re unsure or encounter complications, it’s best to consult a professional technician to avoid damaging the refrigerator.
