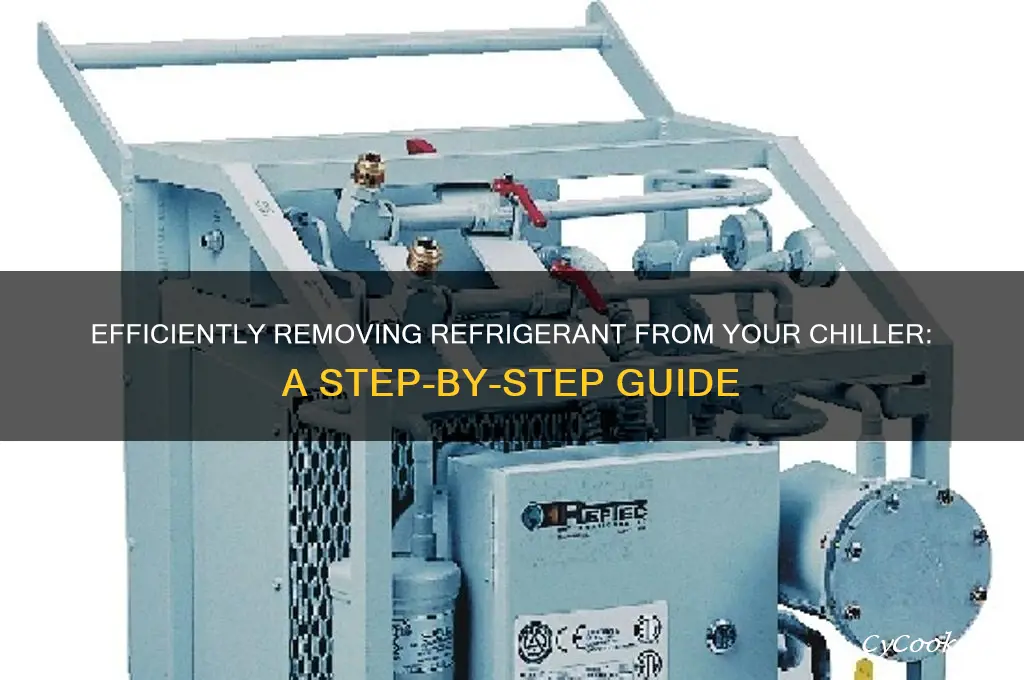

Removing refrigerant from a chiller is a critical process that requires precision, safety, and adherence to environmental regulations. It involves evacuating the refrigerant from the system using specialized equipment, such as a recovery unit, to ensure it is safely captured and stored for reuse or disposal. Before beginning, technicians must wear appropriate personal protective equipment (PPE), verify the system is powered off, and follow manufacturer guidelines. The process typically includes connecting the recovery unit to the chiller, isolating the refrigerant circuit, and gradually evacuating the refrigerant while monitoring pressure levels. Proper documentation and compliance with local laws, such as those under the Clean Air Act, are essential to prevent environmental harm and ensure legal adherence.
| Characteristics | Values |
|---|---|
| Safety Precautions | Wear PPE (gloves, goggles, respirator); ensure proper ventilation; follow ASHRAE/EPA guidelines. |
| Tools Required | Recovery unit, manifold gauge set, refrigerant hoses, vacuum pump, scales. |
| Refrigerant Type | Identify refrigerant type (e.g., R-22, R-410A) using labels or documentation. |
| Recovery Process | Connect recovery unit to chiller; evacuate refrigerant into storage cylinder. |
| Pressure Monitoring | Monitor system pressure during recovery to prevent over-pressurization. |
| Environmental Compliance | Comply with EPA Section 608 regulations for refrigerant handling and disposal. |
| System Isolation | Isolate chiller from other systems to prevent cross-contamination. |
| Post-Recovery Steps | Purge system with dry nitrogen; perform vacuum test to ensure no leaks. |
| Documentation | Record refrigerant type, amount recovered, and disposal method for compliance. |
| Professional Assistance | Hire EPA-certified technician for complex systems or large-scale recovery. |
| Disposal Method | Dispose of refrigerant through EPA-approved reclamation or destruction facilities. |
| System Recharge | Recharge with new refrigerant only after leak repairs and system cleaning. |
| Legal Requirements | Adhere to local, state, and federal laws regarding refrigerant handling. |
| Time Frame | Recovery time varies based on system size and refrigerant quantity. |
| Cost Considerations | Costs include recovery unit rental, technician fees, and disposal charges. |
Explore related products
What You'll Learn
- Safety precautions and equipment needed for refrigerant removal
- Locating and identifying refrigerant access ports on the chiller
- Proper use of recovery equipment to extract refrigerant safely
- Steps to purge and evacuate the chiller system post-removal
- Disposal and documentation requirements for recovered refrigerant
Safety precautions and equipment needed for refrigerant removal
Refrigerant removal from a chiller is a task that demands precision and adherence to safety protocols to prevent accidents, environmental harm, and equipment damage. Before initiating the process, ensure compliance with local regulations, such as the EPA’s Section 608 requirements in the U.S., which mandate technician certification for handling refrigerants. Failure to comply can result in fines exceeding $37,500 per day per violation. Always verify the refrigerant type (e.g., R-22, R-410A) using the chiller’s nameplate or service manual, as different refrigerants require specific recovery methods and equipment.
Personal protective equipment (PPE) is non-negotiable. Refrigerants like ammonia or R-410A can cause severe skin frostbite or respiratory distress within seconds of exposure. Wear nitrile gloves resistant to refrigerant oils, safety goggles with side shields, and a full-face respirator with cartridges rated for organic vapors. For systems containing ammonia, carry an ammonia gas detector with audible alarms and ensure proper ventilation or use a self-contained breathing apparatus (SCBA) in confined spaces. Never work alone; have a trained assistant monitor the process and be prepared to initiate emergency procedures.
The equipment required for safe refrigerant removal includes a recovery unit certified for the specific refrigerant type, with a recovery rate matching the chiller’s capacity. For example, a 5-ton chiller typically requires a recovery unit capable of handling at least 10 lbs of refrigerant per hour. Use double-valve manifolds with hoses rated for the refrigerant’s pressure and temperature range—never exceed 70% of the hose’s maximum working pressure. A vacuum pump with a micron gauge is essential for evacuating non-condensables post-recovery, ensuring the system is purged to below 500 microns. Always inspect hoses and fittings for cracks or leaks before use, as even minor damage can lead to catastrophic failure under pressure.
Environmental safeguards are critical during refrigerant removal. Position the recovery unit on a stable surface away from ignition sources, as refrigerants like R-22 are flammable in high concentrations. Use a refrigerant scale to monitor the recovered amount, ensuring it matches the system’s charge within a 10% margin to detect leaks. Store recovered refrigerant in DOT-approved cylinders with tamper-evident caps, clearly labeled with the refrigerant type, date, and purity level. Dispose of or reclaim refrigerants through EPA-certified facilities to avoid penalties and environmental contamination.
Finally, procedural discipline is paramount. Isolate the chiller by shutting off power at the disconnect and locking out/tagging out the system to prevent accidental startup. Purge the service hoses with dry nitrogen before connecting to the chiller to prevent air or moisture ingress. During recovery, monitor the refrigerant temperature and pressure continuously, halting the process if the cylinder temperature exceeds 125°F or if pressure drops below the refrigerant’s triple point. After recovery, perform a standing vacuum test for at least 30 minutes to confirm the system’s integrity before recharging or decommissioning. Adhering to these precautions minimizes risks and ensures compliance with industry standards.
