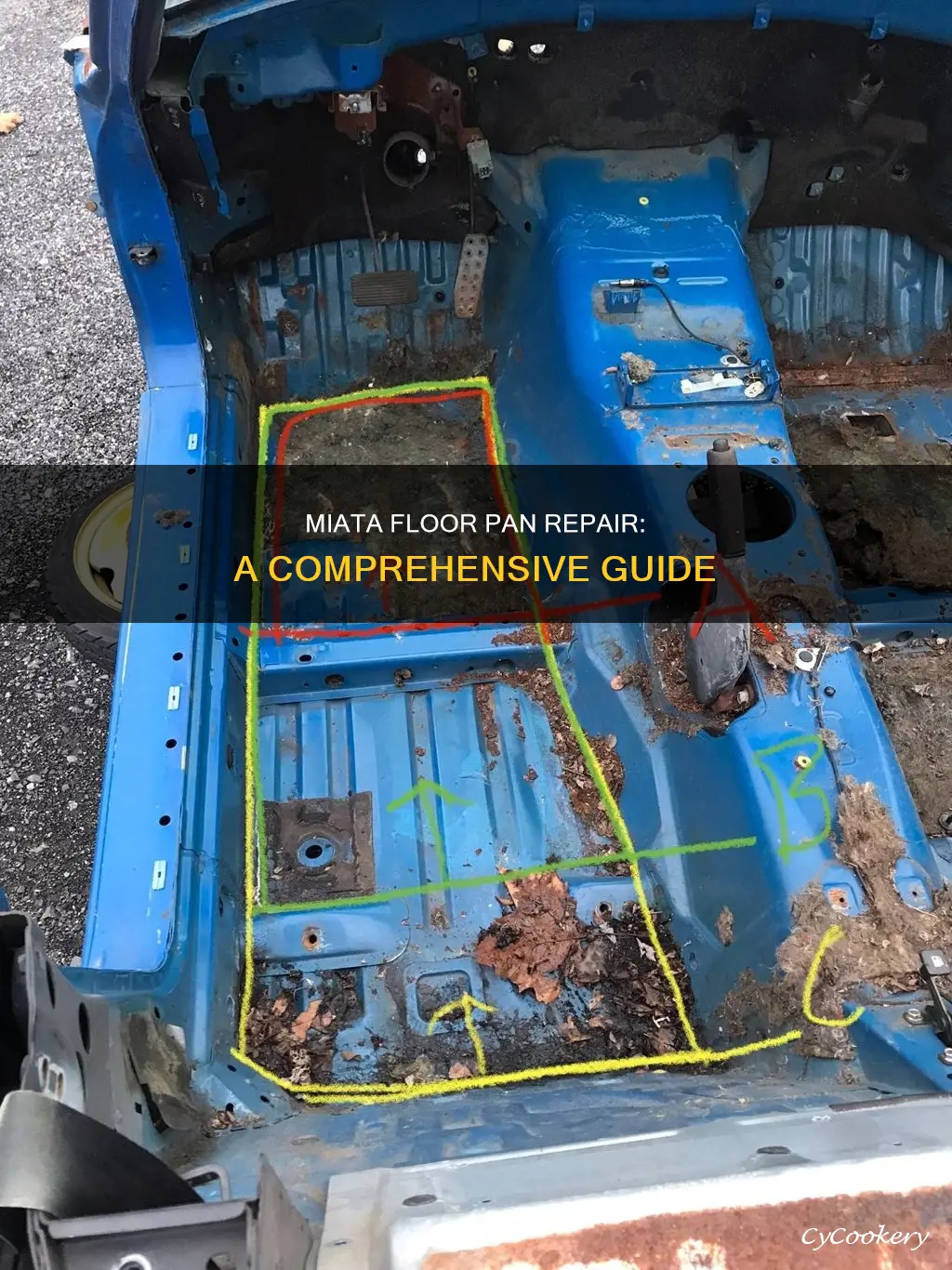

Repairing the floor pan of a NA Miata can be a challenging task, especially if the car has significant rust damage. The process typically involves stripping the interior, assessing the extent of the rust, and determining the necessary repairs. In some cases, a patch panel may be required to fix holes caused by rust, while others may require cutting out the affected areas and welding in new floor pans. The complexity of the repair process depends on the specific model of the NA Miata and the severity of the floor pan damage. Seeking professional assistance or purchasing a drop floorpan kit are also options to consider.
Explore related products
What You'll Learn
Rust repair
After the rusted metal has been removed, the next step is to prepare the area for repair. This may involve grinding down the metal to create a smooth surface for the new metal to adhere to. It is important to note that welding on a car can be dangerous, especially when working with thin metal, as the heat can cause fires. Once the area is prepared, new metal can be welded in to replace the rusted sections. It is important to use metal that is similar in thickness to the original metal and to ensure that it is securely welded in place.
In some cases, it may be necessary to use a patch panel to repair the rust damage. Patch panels are pre-made sections of metal that can be welded or bonded into place to repair a rusted area. When repairing a Miata floor pan, it is important to ensure that the patch panel is securely attached and sealed to prevent further rust from occurring. It is also critical to follow any relevant rules or regulations, especially if the car is being prepared for racing events.
Finally, the repaired area should be treated to prevent future rust. This can involve the use of automotive sealant, etching primer, and paint. It is also important to address any sources of moisture that may have caused the rust in the first place, such as a leaking window seal or battery. By following these steps, a rusted NA Miata floor pan can be repaired, restoring the structural integrity and aesthetic appearance of the vehicle.
Pizza Crunch: Rack vs. Pan
You may want to see also
Explore related products
Welding and grinding
When welding the floor pan, it is recommended to grind off the compound on the underside to prevent the arc from wandering and reduce the risk of fire. This step is crucial for safety and ease of welding. After grinding, the next step is to tack the strips in place and hammer a contour with a ball peen. This helps create a smooth and accurate fit for the new floor pan.
Once the strips are securely tacked and contoured, the finish welds can be completed. These welds should be ground flush with the floor pan to ensure a seamless and smooth surface. It is important to note that welding and grinding require proper safety equipment and techniques to avoid injury and property damage.
After welding and grinding, automotive sealant can be applied around the welds for added protection. Additionally, the use of etching primer and paint can enhance the appearance and provide further corrosion resistance. It is important to follow the manufacturer's instructions and take the necessary precautions during the welding and grinding process to ensure a safe and successful repair of the floor pan in a NA Miata.
Replacing Oil Pan Gasket in 2008 Ford Fusion: Step-by-Step Guide
You may want to see also
Explore related products
Patch panelling
The first step in patch panelling is to assess the extent of the rust damage and mark the areas that need to be cut out. In the case of the NA Miata, common areas that require patch panelling include the driver's side and passenger side floor pans, as well as the trunk or battery area, where the metal may be rusted through.
Once the damaged areas have been identified, the next step is to cut out the rusted metal. This can be done using various tools such as a cutting wheel, plasma cutter, or even a drill with a cutting attachment. It is important to cut out all the rusted metal, leaving only clean, solid metal around the edges of the patch area.
After cutting out the damaged metal, the edges of the existing floor pan should be prepared for welding. This involves grinding down the edges to create a smooth, clean surface for the new metal to adhere to. It is also important to ensure that any grease, dirt, or debris is removed from the area to ensure a strong weld.
The next step is to measure the cut-out area and cut a new piece of metal to fit. The thickness of the new metal should match the original floor pan as closely as possible. It is important to ensure that the new patch is securely welded in place, filling any gaps between the old and new metal.
Finally, the new patch should be finished to match the contour of the original floor pan. This can be done using a hammer and dolly, or a ball peen hammer, to gently shape the metal. Once the patch is flush with the surrounding area, the welds can be ground down to create a smooth, seamless finish.
Healthy Living Brand Cookware: Safe?
You may want to see also
Explore related products
Seat installation
The tight confines of the Miata make cage design and seat installation difficult, which often leads to an uncomfortable seating position for the driver. The driver's side floor pan may be modified to accommodate larger/taller drivers. All modifications should be contained between the transmission tunnel, driver's side rocker, rear bulkhead, and no more than 24" forward of the rear bulkhead. The modification should not extend below the factory floor stiffener/frame rail.
To install seats, first, remove the old seats. This involves removing all loose items from on and around the seats, including floor mats, items from the map pocket, and items from the parcel shelf. Be sure your Miata is parked in a safe location where you can open the doors all the way, and leave the car for at least one day. If your Miata has headrest speakers, disconnect the speaker wiring harness. For factory-installed speakers, there is usually a plastic connector at the bottom of the back of the seat back or under the seat.
Next, remove the headrest of the seat back and remove the panel covering the headrest speakers. Set the speakers aside in a safe place. Cut the rings along the sides and back of the top of the seat cushion, being sure to cover them so they don't fly off. You may want to use a magnet to fish out any loose pieces from the foam.
Now, install the new seat covers. Compare each new piece with the corresponding original cloth piece, starting with the seat cushion. Each cushion is manufactured with a slit in the seat where the short metal arm of the seat pan will protrude. If the foam backing is not split under the seat cover, use a sharp blade to slit the foam so that the arm can be slid through. Make holes in the leather to accommodate attachment bolts. Each new piece of the cover contains several types of attachment material, known as listing and welting. The outer exposed attachments generally consist of a strip of vinyl with a nylon cord along the edge, while the inner attachments consist of a folded fiber-cloth strip sewn lengthwise along the seam.
Finally, fold over the front and rear of the seat cushion, attaching at the various hog ring points. Your seat cushion should now be covered in new leather! The seat back is covered in a similar fashion, but it is critical to ensure that the cover is straight. Check your progress along the way to ensure that the seats do not look crooked.
Hot Pot Cooking: Endless Possibilities
You may want to see also
Explore related products
Sheet metal thickness
The sheet metal thickness of the floor pan in a NA Miata is an important consideration when repairing rust damage. The original sheet metal thickness of the floor pan in a Miata is around 22 gauge. When performing patch repairs, a thicker gauge metal, such as 18 gauge, can be used as it provides more room for grinding and shaping.
Some Miata owners have used 16-gauge sheet metal for their floor pan repairs, which is thicker and can be more challenging to form into shapes. However, the thicker metal may provide added strength and durability. It is also important to consider the availability of sheet metal gauges, as some individuals have opted for 20-gauge metal due to its convenience and ease of acquisition.
When repairing the floor pan of a Miata, it is essential to strike a balance between the thickness of the sheet metal and the ease of working with it. Thicker sheet metal may require more effort to shape and weld, but it can provide added strength to the repair. On the other hand, thinner sheet metal may be easier to work with but may not offer the same level of durability.
Ultimately, the choice of sheet metal thickness will depend on the specific repair needs, the availability of materials, and the skills and preferences of the person performing the repair. It is recommended to consult with experienced Miata enthusiasts or professionals before commencing the repair work to ensure the best outcome.
Stripping Cast Iron: Back to Basics
You may want to see also
Frequently asked questions
The process involves stripping the interior, assessing the extent of rust, cutting out the affected metal, welding in a new floor pan, and sealing the welds.
One common issue is the discovery of more rust than initially anticipated, especially in the trunk and battery areas. Another challenge is finding a suitable welder or mechanic to perform the repair, as it requires specialized skills.
Yes, some people choose to use a patch panel or a drop-in floor pan kit as an alternative to welding. These options may be more suitable for those who are not experienced welders.
Signs that your floor pan may need repairing include visible rust, water leaks, or structural damage. It is important to regularly inspect your vehicle for any signs of deterioration.
The cost can vary depending on the extent of the damage and the labor involved. It is recommended to contact local body shops to obtain estimates for the specific repair work required.
