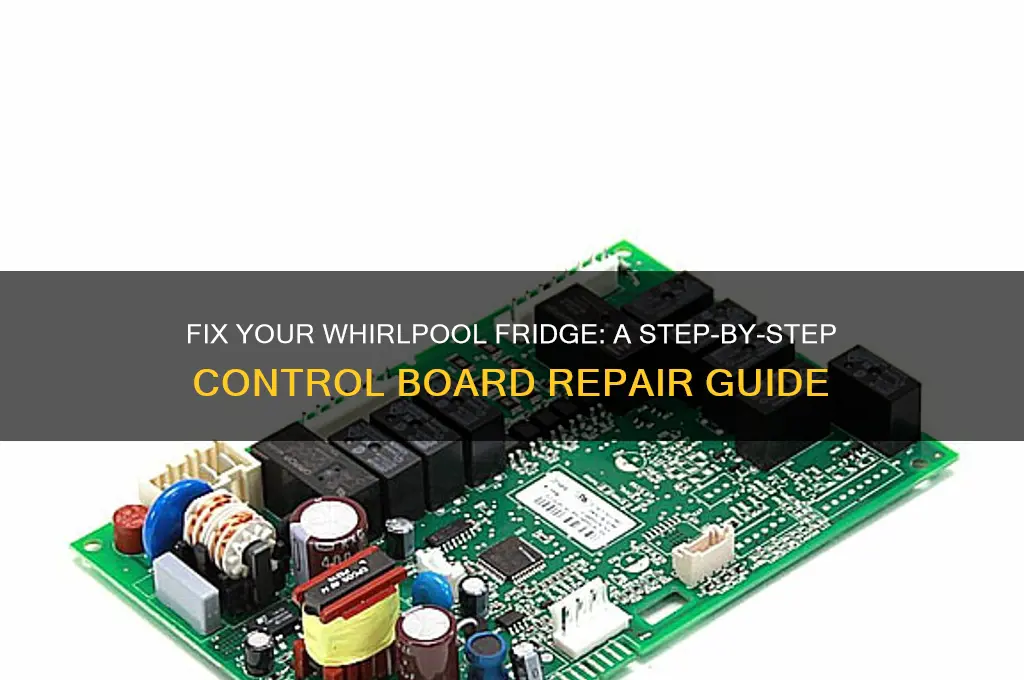

Repairing a Whirlpool refrigerator control board can be a cost-effective solution to restore functionality without replacing the entire unit. The control board, often located at the back of the refrigerator or inside the control panel, manages critical functions like temperature regulation, defrost cycles, and compressor operation. Common issues include erratic temperature control, error codes, or a completely unresponsive display. To repair it, start by unplugging the refrigerator and safely accessing the control board. Inspect for visible damage, such as burnt components or loose connections, and use a multimeter to test for continuity or voltage issues. If a faulty component is identified, such as a relay or capacitor, it can often be replaced individually. However, if the board is severely damaged, a replacement may be necessary. Always refer to the refrigerator’s manual or consult a professional if unsure, as improper handling can cause further damage.
| Characteristics | Values |
|---|---|
| Common Issues | No cooling, erratic temperature, display not working, ice maker malfunction |
| Tools Required | Multimeter, soldering iron, screwdriver, desoldering pump, replacement components |
| Safety Precautions | Unplug refrigerator, discharge capacitors, wear anti-static wrist strap |
| Diagnostic Steps | Check power supply, test relays, inspect capacitors, verify sensor functionality |
| Component Replacement | Replace damaged capacitors, relays, resistors, or the entire control board if necessary |
| Soldering Skills | Required for repairing loose connections or replacing surface-mounted components |
| Cost of Repair | DIY: $20–$50 (parts), Professional: $200–$400 (labor + parts) |
| Time Required | DIY: 1–3 hours, Professional: 1–2 hours |
| Difficulty Level | Intermediate to Advanced (depending on issue) |
| Warranty Consideration | DIY repair may void warranty; check manufacturer terms before proceeding |
| Replacement Board Cost | $100–$250 (depending on model) |
| Preventive Maintenance | Regularly clean condenser coils, check door seals, monitor temperature settings |
| Online Resources | Whirlpool service manuals, YouTube tutorials, appliance repair forums |
| Professional Help | Recommended for complex issues or lack of technical skills |
| Compatibility Check | Ensure replacement board matches refrigerator model and part number |
| Environmental Impact | Repairing extends appliance lifespan, reduces e-waste |
Explore related products
![[Upgraded] W10861519 Deli Drawer Hanger, Refrigerator Meat Drawer Shelf Holder for Whirlpool WRT148/WRT311/WRT318, Replaces W10628698, 4382323, AP5999492](https://m.media-amazon.com/images/I/418VSTrYGKL._AC_UY218_.jpg)
![[2 PACK] UPGRADED W11239961 W10900538 Refrigerator Door Bin Shelf Compatible with Whirlpool Refrigerator Door Shelf Parts WRS321SDHW01 WRS315SDHM05 Door shelf Whirlpool Shelf Replacement WRS321SDH](https://m.media-amazon.com/images/I/71ymkDbe0xL._AC_UY218_.jpg)
What You'll Learn
Diagnosing Control Board Issues
A malfunctioning control board can be the culprit behind a Whirlpool refrigerator's erratic behavior, from inconsistent temperatures to unresponsive displays. Diagnosing the issue requires a systematic approach, blending observation, testing, and logical deduction. Start by noting the symptoms: Is the refrigerator failing to cool? Are error codes displayed? Or is the compressor running continuously? These clues can point directly to the control board as the source of the problem.
To isolate the control board as the issue, begin by ruling out simpler causes. Check the power supply to ensure the refrigerator is receiving adequate voltage. Inspect the door seals for leaks that could cause temperature fluctuations. Verify that the evaporator fan and condenser coils are functioning properly. If these components are operational, the control board becomes the next logical suspect. A multimeter can be used to test the board’s voltage outputs; if readings are outside the specified range (typically 12V or 24V, depending on the model), the board is likely faulty.
One common diagnostic technique involves bypassing the control board temporarily to test its functionality. For example, if the compressor isn’t running, connect it directly to the power supply (with caution) to see if it operates. If the compressor works, the control board’s relay or circuitry is likely defective. Similarly, unplug the board and inspect it for visible signs of damage, such as burnt components, melted solder, or corrosion. These physical indicators often confirm the need for a replacement.
Persuasive as it may seem to replace the control board immediately, misdiagnosis can lead to unnecessary expense. Consider environmental factors that could mimic control board failure. High ambient temperatures or frequent door openings can strain the system, causing symptoms that resemble a faulty board. Additionally, software glitches can sometimes be resolved by resetting the refrigerator—unplug it for 5–10 minutes, then reconnect it to see if the issue persists. This simple step can save time and money before committing to a repair.
In conclusion, diagnosing control board issues in a Whirlpool refrigerator demands a methodical approach. By systematically eliminating other potential causes, testing voltage outputs, and inspecting for physical damage, you can confidently determine whether the control board is at fault. Always balance thorough testing with practical considerations, such as environmental factors or software resets, to ensure an accurate diagnosis and avoid unnecessary repairs.
Easy Tips for Storing Fresh Okra in Your Refrigerator
You may want to see also
Explore related products
Tools and Safety Precautions
Repairing a Whirlpool refrigerator control board demands precision and caution, starting with the right tools. Essential items include a multimeter for testing voltage and continuity, a soldering iron with desoldering pump for component replacement, and a set of precision screwdrivers to access the board. Additionally, anti-static gloves and an anti-static mat are critical to prevent electrostatic discharge, which can irreparably damage sensitive electronics. Investing in these tools not only ensures efficiency but also safeguards the board during repair.
Safety precautions are non-negotiable when handling electrical components. Always disconnect the refrigerator from the power source before beginning any work—verify the absence of voltage using a non-contact voltage tester. Avoid wearing jewelry or loose clothing that could snag on components or create a grounding hazard. Work in a well-lit, clean area to minimize the risk of misplaced screws or dropped tools. These measures protect both the technician and the appliance, reducing the likelihood of accidents or further damage.
A comparative analysis of repair scenarios highlights the importance of preparation. For instance, attempting to solder without proper ventilation can lead to inhaling toxic fumes, while skipping anti-static measures often results in fried circuits. Conversely, technicians who follow safety protocols and use the correct tools report higher success rates and fewer complications. This underscores the value of treating safety and tool selection as integral parts of the repair process, not optional steps.
Finally, consider the long-term benefits of adhering to these guidelines. Proper tool use and safety precautions not only increase the likelihood of a successful repair but also extend the lifespan of the refrigerator. By avoiding common pitfalls like static discharge or electrical shorts, you preserve the integrity of the control board and other connected components. This approach transforms a potentially daunting task into a manageable, even rewarding, DIY project.
Why Refrigerating Cinnabons Ruins Their Texture and Flavor
You may want to see also
Explore related products
Step-by-Step Board Replacement
Replacing a Whirlpool refrigerator control board is a task that demands precision and patience. Before diving into the process, ensure you have the correct replacement board, as compatibility is crucial. Start by unplugging the refrigerator to eliminate any risk of electrical shock. Gather your tools: a Phillips screwdriver, a flathead screwdriver, and possibly a multimeter for testing. With these essentials in hand, you’re ready to begin the step-by-step replacement process.
The first step involves accessing the control board, typically located behind the refrigerator’s rear panel or inside the control panel on the front. Remove the screws securing the panel and carefully set them aside, noting their positions for reassembly. Once the panel is off, locate the control board, which is usually a circuit board with wires and connectors attached. Take a moment to inspect the board for visible damage, such as burnt components or loose connections, which can confirm the need for replacement.
Next, disconnect the wires and connectors from the faulty control board. Label each wire or take a photo to ensure you reconnect them correctly later. Some connectors may require gently prying or pressing a release tab to detach. Once all connections are removed, unscrew the control board from its mounting bracket. Handle the board carefully to avoid damaging any components or nearby wiring. Install the new control board by reversing these steps: secure it to the bracket, reconnect the wires and connectors, and ensure everything is snug and properly aligned.
After installation, reassemble the panels by reattaching the screws in their original positions. Plug the refrigerator back in and test the new control board by adjusting the temperature settings and observing the display. If the refrigerator responds correctly, the replacement was successful. However, if issues persist, double-check connections and consult a professional to rule out other potential problems. This methodical approach ensures a smooth and effective control board replacement, restoring your refrigerator’s functionality.
Chilling Cigarettes: Pros, Cons, and Best Storage Practices Explained
You may want to see also
Explore related products
Troubleshooting Common Errors
Whirlpool refrigerator control boards often fail due to power surges, component wear, or software glitches. Before assuming the board is defective, check the power supply and outlet. Use a multimeter to verify that the outlet is delivering 120V AC. If the voltage is unstable, consider installing a surge protector to prevent future damage. Additionally, inspect the wiring harness for loose connections or frayed wires, as these can disrupt communication between the board and other components.
One common error is the refrigerator failing to cool despite the compressor running. This issue often stems from a faulty temperature sensor or a malfunctioning relay on the control board. To diagnose, unplug the refrigerator and access the control board. Test the temperature sensor for continuity using a multimeter; it should show a resistance change when exposed to varying temperatures. If the sensor is functional, inspect the relay for signs of burning or arcing. Replacing the defective component typically resolves the issue, but ensure the new part is compatible with your Whirlpool model.
Another frequent problem is the control panel displaying error codes or becoming unresponsive. This can indicate a software glitch or a failing EEPROM (Electrically Erasable Programmable Read-Only Memory) chip. In such cases, perform a hard reset by unplugging the refrigerator for 5 minutes to allow the capacitors to discharge. If the issue persists, reprogram the control board using the manufacturer’s instructions, which often involve pressing specific button combinations. For persistent errors, replacing the EEPROM chip may be necessary, though this requires soldering skills or professional assistance.
Water leakage around the dispenser area is sometimes linked to a malfunctioning control board that fails to regulate the water valve properly. Start by checking the water inlet valve for clogs or damage. If the valve is functional, the control board may be sending incorrect signals. Test the dispenser switch for continuity; if it’s defective, replace it. If the problem continues, the control board’s relay controlling the water valve may be faulty, necessitating a board replacement. Always disconnect power before working on electrical components to avoid shocks.
Finally, unusual noises or erratic behavior, such as the fan running continuously, often point to a control board struggling to manage system functions. Inspect the evaporator and condenser fans for obstructions or damage, as these can strain the board. If the fans are operational, the control board’s fan relay may be failing. Monitor the refrigerator’s behavior over 24 hours, noting any patterns in the noise or malfunctions. If the issue is consistent, replacing the control board is typically the most effective solution, ensuring all relays and components function harmoniously.
Chemical Fridge Odor: Causes and Solutions for a Fresh Refrigerator
You may want to see also
Explore related products
Testing After Repair
After repairing a Whirlpool refrigerator control board, testing is crucial to ensure functionality and prevent future issues. Begin by reconnecting the control board to the refrigerator, ensuring all wires are securely attached and no components are loose. Restore power to the unit, but avoid closing the refrigerator door immediately to allow easy access for monitoring. Observe the display panel for any error codes or unusual behavior, such as erratic temperature readings or unresponsive controls. If the display functions correctly, proceed to the next step; if not, recheck connections or consider further troubleshooting.
A systematic approach to testing involves verifying each controlled function individually. Start with the compressor by placing a thermometer inside the refrigerator and freezer compartments. Allow the unit to run for at least 30 minutes, then check if temperatures stabilize within the recommended range (35–38°F for the refrigerator, 0°F for the freezer). Next, test the defrost cycle by manually initiating it through the control board’s diagnostic mode, if available. Observe whether the defrost heater activates and the evaporator coils thaw properly. Inconsistent temperatures or a failed defrost cycle indicate a potential issue with the repaired board or related components.
Persuasive testing extends beyond basic functionality to include stress scenarios. Simulate high-demand conditions by placing warm items in the refrigerator or leaving the door open briefly. Monitor how the control board responds—does it adjust the compressor cycles appropriately? Additionally, test the door alarm by leaving the refrigerator door ajar for 30 seconds. A properly functioning control board should trigger the alarm promptly. These tests not only confirm repairs but also build confidence in the refrigerator’s reliability under real-world conditions.
Comparative analysis can highlight subtle issues that basic testing might miss. If possible, compare the repaired refrigerator’s performance to a similar model or reference its pre-repair behavior. Pay attention to energy consumption patterns, such as the frequency and duration of compressor cycles. A repaired control board should align with expected efficiency metrics; deviations may suggest residual problems. For instance, excessive cycling could indicate a faulty relay or sensor, even if temperatures appear normal.
Finally, document all test results for future reference. Note any anomalies, even minor ones, as they could signal emerging issues. If the control board passes all tests, conclude with a 24-hour observation period to ensure consistent performance. Testing after repair is not just a final step—it’s a diagnostic tool that ensures longevity and safety. By combining methodical checks with practical stress tests, you can confidently determine whether the Whirlpool refrigerator control board is fully restored.
Do Cooked Eggs Need Refrigeration? Essential Food Safety Tips
You may want to see also
Frequently asked questions
Common signs include the refrigerator not cooling, erratic temperature control, error codes on the display, or unresponsive buttons. If these issues persist after basic troubleshooting, the control board may need repair or replacement.
Minor issues like loose connections or blown fuses can be DIY repairs, but complex problems like damaged circuitry typically require professional expertise. Always consult the manual or a technician if unsure.
You’ll need a multimeter, soldering iron, desoldering pump, replacement components (e.g., capacitors, relays), and safety gear. If replacing the board entirely, ensure you have the correct model-specific part.
