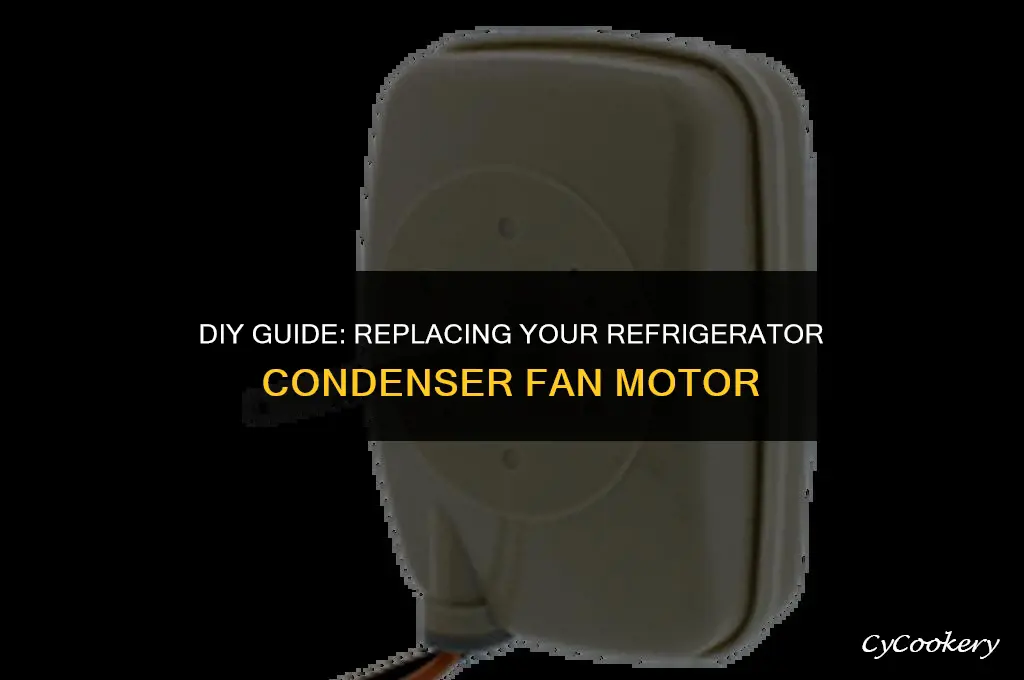

Replacing a refrigerator condenser fan motor is a task that requires some technical knowledge and careful handling. The condenser fan motor is a crucial component of your refrigerator's cooling system, responsible for dissipating heat from the condenser coils. Over time, it may wear out or malfunction, leading to reduced efficiency or even complete failure of the cooling system. In this guide, we will walk you through the steps to safely and effectively replace the condenser fan motor in your refrigerator. Before starting, it's important to ensure you have the correct replacement part and tools, and that you follow all safety precautions to avoid injury or damage to your appliance.
| Characteristics | Values |
|---|---|
| Part Name | Refrigerator condenser fan motor |
| Function | Circulates air through the condenser coils to dissipate heat |
| Location | Typically found at the back or bottom of the refrigerator |
| Appearance | Small, cylindrical electric motor with fan blades attached |
| Common Issues | Noise, overheating, failure to start |
| Tools Required | Screwdriver, pliers, multimeter |
| Replacement Steps | 1. Unplug refrigerator 2. Remove back or bottom panel 3. Disconnect electrical connections 4. Remove mounting screws 5. Install new motor 6. Reattach panel and plug in refrigerator |
| Safety Precautions | Ensure refrigerator is unplugged before starting repair |
| Estimated Time | 30 minutes to 1 hour |
| Difficulty Level | Moderate |
| Cost | $50 to $150 depending on model and brand |
| Warranty | Typically covered under refrigerator manufacturer's warranty |
| Lifespan | 10 to 15 years with proper maintenance |
| Maintenance Tips | Regularly clean condenser coils to prevent overheating |
| Troubleshooting Tips | Check for loose connections, test motor with multimeter |
| Professional Help | Recommended if unsure about the replacement process |
Explore related products
What You'll Learn
- Safety Precautions: Unplug refrigerator, wear gloves, ensure proper ventilation to avoid refrigerant exposure
- Accessing the Fan Motor: Remove back panel, locate fan motor, disconnect electrical connections carefully
- Removing Old Fan Motor: Unscrew mounting bolts, gently pull out old motor, taking note of wiring configuration
- Installing New Fan Motor: Align new motor with mounting holes, secure with bolts, reconnect electrical wires as noted
- Testing and Reassembly: Plug in refrigerator, turn on, listen for fan operation, replace back panel securely
Safety Precautions: Unplug refrigerator, wear gloves, ensure proper ventilation to avoid refrigerant exposure
Before beginning the process of replacing a refrigerator condenser fan motor, it is crucial to take several safety precautions to protect yourself and your appliance. First and foremost, ensure that the refrigerator is unplugged from the power source. This step is essential to prevent any electrical shocks or short circuits during the repair process. Additionally, wearing gloves is highly recommended to protect your hands from sharp edges, cold surfaces, and any potential exposure to refrigerant.
Proper ventilation is another key safety measure when working on a refrigerator. Refrigerants can be harmful if inhaled, so it is important to work in a well-ventilated area to avoid any exposure. Open windows and doors to allow fresh air to circulate, and consider using a fan to improve airflow. If you suspect a refrigerant leak, it is best to evacuate the area and seek professional assistance.
When handling the condenser fan motor, be cautious of the fan blades, as they can be sharp and may cause injury if touched. Use a screwdriver or other appropriate tool to carefully remove the fan from the motor housing. Take note of the wiring connections and ensure that they are properly disconnected before removing the motor.
During the replacement process, it is important to follow the manufacturer's instructions carefully. Ensure that the new motor is compatible with your refrigerator model and that all connections are secure. When reinstalling the fan, make sure that the blades are properly aligned and that the motor is mounted securely to prevent any vibrations or noise.
Finally, after completing the replacement, plug the refrigerator back in and allow it to cool down for a few hours before restocking it with food. This will ensure that the new motor is functioning properly and that the refrigerator is maintaining the correct temperature. By following these safety precautions and steps, you can successfully replace a refrigerator condenser fan motor and ensure the continued safe operation of your appliance.
