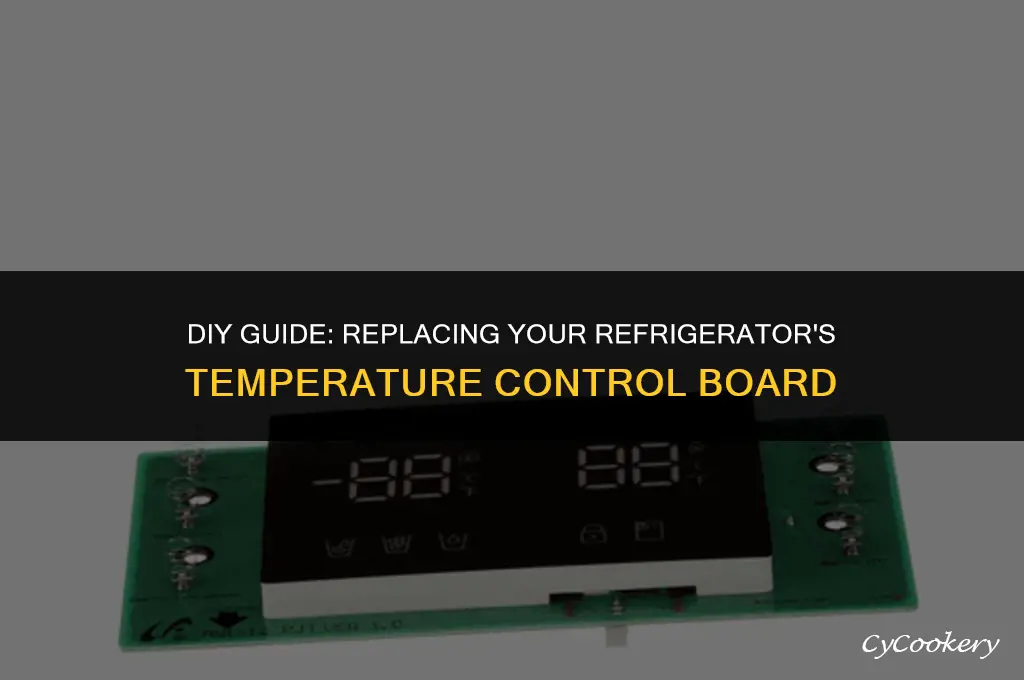

Replacing a refrigerator temperature control board can seem like a daunting task, but with the right tools and guidance, it's a manageable DIY project. This paragraph will introduce the topic by explaining the importance of the temperature control board in maintaining the optimal temperature inside your refrigerator. We'll also discuss common signs that indicate the control board might be malfunctioning, such as inconsistent temperatures or error codes on the display. Additionally, we'll provide a brief overview of the steps involved in replacing the control board, including safety precautions, tools needed, and tips for a successful installation. By the end of this paragraph, you'll have a clear understanding of what to expect when tackling this repair and be prepared to dive into the detailed instructions that follow.
| Characteristics | Values |
|---|---|
| Part Name | Refrigerator Temperature Control Board |
| Function | Regulates and maintains the internal temperature of the refrigerator |
| Location | Typically found inside the refrigerator, often behind the crisper drawers or on the back wall |
| Appearance | Small circuit board with various electronic components, connectors, and wiring harnesses |
| Common Issues | Malfunctioning temperature sensors, faulty wiring, worn-out capacitors, damaged resistors |
| Tools Required | Screwdriver, pliers, multimeter, soldering iron (optional) |
| Replacement Steps | 1. Unplug the refrigerator, 2. Remove the back panel or crisper drawers, 3. Disconnect wiring harnesses, 4. Unscrew the old control board, 5. Install the new control board, 6. Reconnect wiring harnesses, 7. Reassemble the refrigerator, 8. Plug in and test the refrigerator |
| Safety Precautions | Always unplug the refrigerator before starting the replacement process, handle electronic components with care to avoid static discharge |
| Estimated Time | 30 minutes to 1 hour, depending on the model and complexity |
| Difficulty Level | Intermediate to advanced, requires some technical knowledge and experience with electronics |
| Cost | Varies depending on the model and brand, typically ranges from $50 to $200 |
| Warranty | Check with the manufacturer or retailer for warranty information on the replacement part |
| Compatibility | Ensure the replacement control board is compatible with your refrigerator model and brand |
| Additional Tips | Before replacing the control board, check for any loose connections or damaged wiring that may be causing the issue |
Explore related products
What You'll Learn
- Safety Precautions: Unplug refrigerator, wear gloves, ensure proper ventilation
- Tools Needed: Screwdriver, pliers, multimeter, replacement control board
- Accessing Control Board: Remove back panel, locate control board, disconnect wires
- Testing Continuity: Use multimeter to check for broken wires, ensure proper connection
- Installing New Board: Connect wires, secure board with screws, replace back panel
Safety Precautions: Unplug refrigerator, wear gloves, ensure proper ventilation
Before beginning the process of replacing a refrigerator temperature control board, it is crucial to prioritize safety. Unplugging the refrigerator is the first and most important step. This prevents any electrical shocks or short circuits that could occur during the replacement process. It's essential to ensure that the power is completely disconnected before proceeding.
Wearing gloves is another critical safety precaution. The gloves protect your hands from sharp edges, cold surfaces, and any potential electrical hazards. When handling the temperature control board, it's also important to avoid touching any of the electrical components directly, as this can cause damage to the board or pose a risk of electric shock.
Proper ventilation is key when working with refrigerators. The gases and chemicals used in refrigeration can be hazardous if inhaled, so it's important to work in a well-ventilated area. Open windows and doors to ensure a steady flow of fresh air. If you're working in a confined space, consider using a respirator or mask to protect yourself from any fumes or gases that may be released during the process.
Additionally, it's important to keep the work area clean and organized. This helps prevent any accidents or injuries that could occur from tripping over tools or parts. Make sure to have all the necessary tools and replacement parts on hand before starting the process. This will help minimize the time you spend working on the refrigerator and reduce the risk of exposure to hazardous materials.
Finally, if you're not confident in your ability to replace the temperature control board safely, it's best to consult a professional. Refrigerators can be complex appliances, and improper handling can lead to serious safety issues. A qualified technician will have the knowledge and experience to complete the task safely and efficiently.
