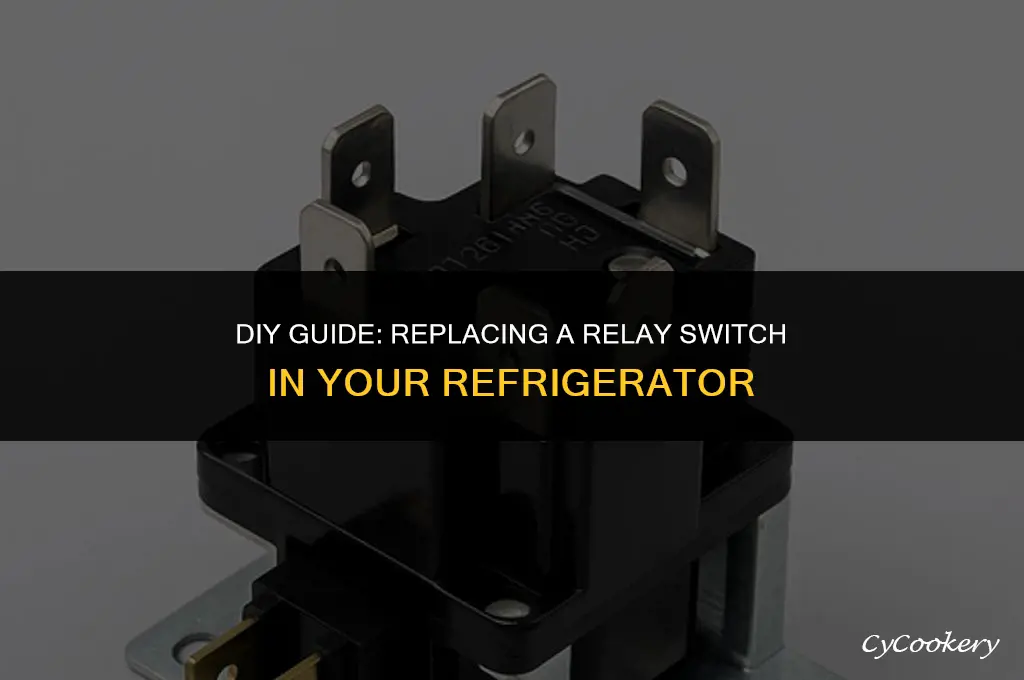

Replacing a relay switch in a refrigerator is a task that requires some basic knowledge of electrical components and safety precautions. A relay switch is an essential part of a refrigerator's electrical system, acting as a bridge between the power source and the various electrical components such as the compressor, fan, and light. Over time, a relay switch may wear out or malfunction, leading to issues with the refrigerator's operation. In this guide, we will walk you through the steps to safely and effectively replace a relay switch in your refrigerator, ensuring that you have the necessary tools and knowledge to complete the task successfully.
| Characteristics | Values |
|---|---|
| Task Complexity | Moderate to High |
| Required Tools | Screwdriver, Relay Tester, Replacement Relay |
| Estimated Time | 30 minutes to 1 hour |
| Safety Precautions | Unplug refrigerator, Wear protective gloves |
| Component Location | Usually behind the control panel or in the compressor area |
| Relay Type | Typically a 120VAC, 1/2 HP relay |
| Symptoms of Failure | Refrigerator not cooling, compressor not running |
| Steps Involved | 1. Unplug refrigerator 2. Locate relay 3. Remove old relay 4. Test relay with multimeter 5. Install new relay 6. Reconnect power 7. Test refrigerator |
| Cost of Replacement | $20 to $50 depending on model |
| Frequency of Replacement | Rarely, only when relay fails |
| Skill Level Required | Intermediate to Advanced DIY |
| Common Issues | Relay stuck in open or closed position, Corroded relay contacts |
| Preventative Measures | Regular cleaning of relay contacts, Checking for loose connections |
| Troubleshooting Tips | Check for power supply issues, Inspect relay for physical damage |
| Environmental Impact | Proper disposal of old relay required, Avoid releasing refrigerants |
| Compatibility | Ensure new relay matches specifications of old relay |
| Warranty Considerations | Check if replacement affects refrigerator warranty |
Explore related products
What You'll Learn
- Identify the Relay Switch: Locate the relay switch within the refrigerator's control panel or near the compressor
- Disconnect Power: Unplug the refrigerator or turn off the circuit breaker to ensure safety during the replacement
- Remove Old Relay: Carefully unscrew or unclip the old relay switch from its mounting bracket or panel
- Install New Relay: Attach the new relay switch to the mounting bracket or panel, ensuring proper alignment and secure fastening
- Reconnect Power and Test: Plug in the refrigerator or turn on the circuit breaker, then test the new relay switch to confirm proper operation
Identify the Relay Switch: Locate the relay switch within the refrigerator's control panel or near the compressor
To identify the relay switch in your refrigerator, begin by examining the control panel. This is typically located inside the fridge, often at the top or bottom. Look for a small rectangular or square component with multiple wires connected to it. The relay switch is usually marked with a label indicating its function or may be color-coded for easy identification.
If the relay switch is not immediately visible in the control panel, it may be situated near the compressor. The compressor is generally found at the back or bottom of the refrigerator. Carefully inspect the area around the compressor for a relay switch, which might be mounted on the wall or attached to the compressor itself.
When locating the relay switch, ensure that the refrigerator is unplugged to avoid any electrical hazards. Use a flashlight to illuminate the area if necessary, and take note of the switch's position and connections for future reference.
In some refrigerator models, the relay switch might be integrated into a larger component, such as the main control board. In this case, you may need to consult the refrigerator's user manual or contact the manufacturer for specific guidance on identifying and replacing the relay switch.
Remember to handle the relay switch with care, as it is an essential component of your refrigerator's cooling system. If you are unsure about any aspect of the replacement process, it is recommended to seek professional assistance from a qualified appliance technician.
Refrigerator Power Outage Survival: How Long Can Food Stay Safe?
You may want to see also
Explore related products
Disconnect Power: Unplug the refrigerator or turn off the circuit breaker to ensure safety during the replacement
Before initiating the replacement of a relay switch in a refrigerator, it is crucial to disconnect the power supply to ensure safety. This involves either unplugging the refrigerator from the electrical outlet or turning off the circuit breaker that supplies power to the unit. Failure to do so can result in electrical shock or damage to the refrigerator's components.
To unplug the refrigerator, locate the power cord and gently pull it out of the outlet. If the cord is not easily accessible, you may need to move the refrigerator away from the wall to reach it. Ensure that the refrigerator is completely disconnected from the power source before proceeding with the replacement.
Alternatively, if your refrigerator is hardwired into the electrical system, you will need to turn off the circuit breaker. Locate the breaker box, which is typically found in a utility room or near the main entrance of your home. Identify the breaker that corresponds to the refrigerator and flip it to the "off" position. To confirm that the power is off, you can use a voltage tester to check for any electrical current flowing to the refrigerator.
Once the power is disconnected, you can safely proceed with the replacement of the relay switch. Remember to always follow the manufacturer's instructions and consult a professional if you are unsure about any aspect of the process.
Understanding the Functionality of a Refrigeration Defrost Timer Mechanism
You may want to see also
Explore related products
Remove Old Relay: Carefully unscrew or unclip the old relay switch from its mounting bracket or panel
Begin by locating the old relay switch within the refrigerator's control panel. This is typically found at the back of the fridge, often near the top or bottom. Ensure the refrigerator is unplugged before proceeding to avoid any electrical hazards.
Carefully examine the mounting bracket or panel holding the old relay switch in place. Depending on the model, this may involve unscrewing a few screws or unclipping a plastic fastener. Be gentle to avoid damaging the surrounding components or the relay switch itself, as you may need to reuse some parts.
If the relay switch is particularly stubborn or corroded, you may need to use a bit of force or a specialized tool to remove it. However, always prioritize safety and avoid applying excessive force, which could damage the electrical connections or the switch housing.
Once the old relay switch is removed, take a moment to inspect it for any signs of damage or wear. This can help you determine if the switch is indeed the cause of your refrigerator's issues or if there may be other underlying problems. Additionally, inspecting the switch can provide valuable information for selecting a suitable replacement.
Remember to handle the old relay switch with care, as it may contain sensitive electronic components. If you're unsure about any part of the removal process, it's always best to consult the refrigerator's user manual or seek assistance from a professional technician.
Amana Refrigerator Size Guide: Cubic Feet Explained Simply
You may want to see also
Explore related products
$13.49 $16.99
![True MODS 6 Pack 4-Pin 12V Bosch Style Fused Relay Switch Kit [Interlocking Harness Socket Holder] [14 AWG Hot Wires] [SPST] [30 Amp] 12 Volt Automotive relays with Fuse for Auto Cars](https://m.media-amazon.com/images/I/81FVp-H-BUL._AC_UY218_.jpg)
Install New Relay: Attach the new relay switch to the mounting bracket or panel, ensuring proper alignment and secure fastening
Begin by preparing the mounting area for the new relay switch. Ensure the surface is clean and free of any debris or old adhesive. If the previous relay switch left behind any residue, use a suitable cleaning agent to remove it completely. This will ensure a secure and stable attachment for the new switch.
Next, examine the new relay switch and identify the mounting holes. These are typically located at the corners or sides of the switch. Align these holes with the corresponding holes or slots on the mounting bracket or panel. If the holes do not align perfectly, you may need to adjust the position of the switch or use an adapter plate to ensure a proper fit.
Once the switch is properly aligned, use the appropriate fasteners to secure it in place. This may involve screws, bolts, or clips, depending on the design of the switch and the mounting bracket. Ensure that the fasteners are tightened securely, but be careful not to overtighten, as this could damage the switch or the mounting surface.
After the switch is securely fastened, test its operation to ensure it is functioning correctly. This may involve turning the switch on and off several times and checking for any signs of malfunction, such as sparking or unusual noises. If the switch operates smoothly and without any issues, it is likely installed correctly.
Finally, replace any covers or panels that were removed during the installation process. Ensure that all components are properly aligned and secured before closing up the refrigerator. Once everything is in place, plug the refrigerator back in and allow it to cool down to the desired temperature before restocking it with food items.
Effective Ways to Preserve Lime Juice Without Refrigeration
You may want to see also
Explore related products
Reconnect Power and Test: Plug in the refrigerator or turn on the circuit breaker, then test the new relay switch to confirm proper operation
After installing the new relay switch, it's crucial to reconnect the power and test the unit to ensure everything is functioning correctly. Begin by carefully plugging the refrigerator back into the wall outlet or flipping the circuit breaker to the 'on' position. Make sure the area around the refrigerator is clear of any obstructions and that you have easy access to the unit.
Once the power is reconnected, locate the newly installed relay switch. Depending on the model of your refrigerator, the relay switch may be accessible through a small panel on the front or sides of the unit. Consult your refrigerator's user manual or the installation guide for the relay switch to determine the exact location.
To test the new relay switch, you'll need to simulate the conditions that would normally activate the switch. This typically involves opening the refrigerator door and allowing the internal temperature to rise slightly. The relay switch should then engage, activating the compressor and cooling system to bring the temperature back down.
Listen carefully for any unusual noises or vibrations coming from the refrigerator. A properly functioning relay switch should operate quietly and smoothly. If you notice any rattling, buzzing, or other abnormal sounds, it may indicate a problem with the installation or the switch itself.
After testing the relay switch, monitor the refrigerator's performance over the next few hours. Check the internal temperature periodically to ensure it's maintaining the desired level of coolness. If you notice any fluctuations or issues with the temperature, you may need to adjust the settings or consult a professional for further assistance.
Remember to always follow safety precautions when working with electrical components. If you're unsure about any aspect of the installation or testing process, it's best to consult a qualified technician to avoid any potential risks or damage to your refrigerator.
Prednisolone Sodium Storage: Refrigeration Required or Room Temperature Safe?
You may want to see also
Frequently asked questions
To replace a relay switch in a refrigerator, you will typically need a screwdriver (usually a flathead or Phillips head), a pair of pliers, and possibly a multimeter to test the electrical connections. It's also a good idea to have a replacement relay switch that matches the specifications of your refrigerator model.
The relay switch in a refrigerator is usually located in the control panel or behind the crisper drawers. To access it, you may need to remove the front panel or the drawers, depending on your refrigerator model. Consult your refrigerator's user manual or look up a repair guide specific to your model for detailed instructions on how to access the relay switch.
When replacing a relay switch in a refrigerator, it's important to take several safety precautions. First, unplug the refrigerator from the power outlet to avoid electrical shock. Next, wear insulated gloves and safety glasses to protect yourself from any sharp edges or electrical components. Make sure to handle the relay switch carefully, as it can be fragile. Finally, if you're unsure about any part of the process, it's best to consult a professional appliance repair technician to avoid causing further damage to your refrigerator.
