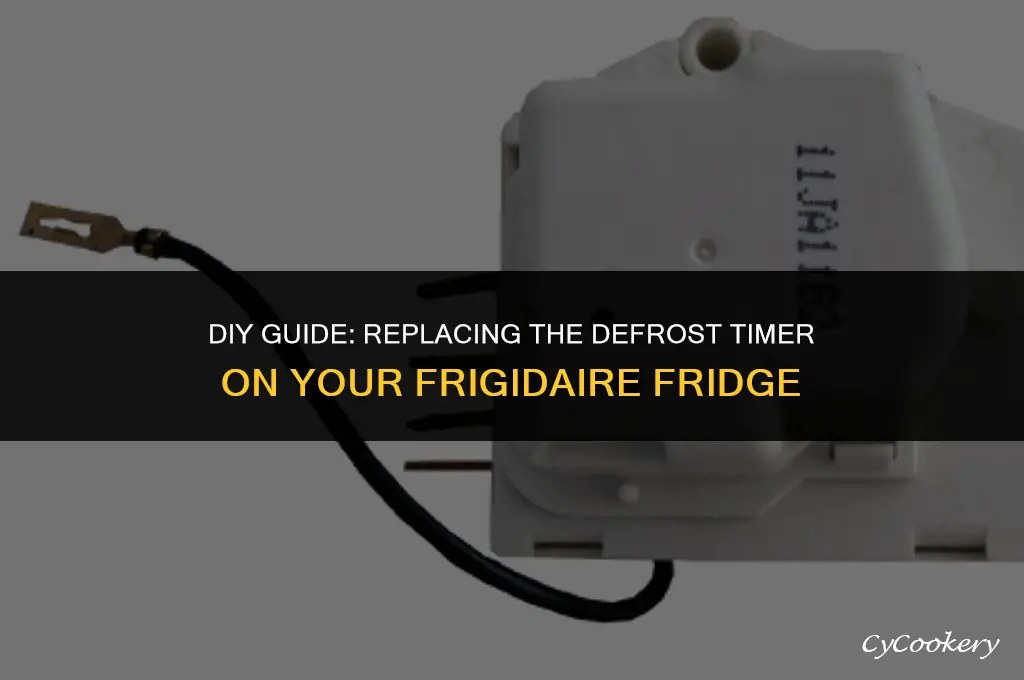

Replacing the defrost timer on a Frigidaire refrigerator is a task that requires some technical knowledge and careful handling. The defrost timer is a crucial component that controls the automatic defrosting process, ensuring your refrigerator operates efficiently and maintains optimal temperature. Over time, this part may wear out or malfunction, leading to issues such as excessive frost buildup or inadequate cooling. In this guide, we will walk you through the step-by-step process of replacing the defrost timer, including the necessary tools, safety precautions, and troubleshooting tips to help you get the job done effectively.
| Characteristics | Values |
|---|---|
| Task Type | Maintenance |
| Appliance | Frigidaire Refrigerator |
| Component | Defrost Timer |
| Difficulty Level | Intermediate |
| Tools Required | Screwdriver, Pliers |
| Time Estimate | 30-60 minutes |
| Safety Precautions | Unplug refrigerator, Wear gloves |
| Steps Involved | Remove back panel, Locate defrost timer, Disconnect wires, Remove old timer, Install new timer, Reconnect wires, Replace back panel |
| Common Issues | Timer malfunction, Refrigerator not defrosting |
| Replacement Part | Defrost Timer Assembly |
| Part Number | Specific to Frigidaire models (e.g., 5303918475) |
| Cost Estimate | $20-$50 (varies by model) |
| Frequency of Replacement | Every 5-10 years (or as needed) |
| Symptoms of Failure | Frost buildup, Water leakage, Unusual noises |
| Preventative Measures | Regular cleaning, Proper storage of food, Avoiding overloading |
| Additional Tips | Refer to user manual, Watch instructional videos, Consult a professional if unsure |
Explore related products
What You'll Learn
- Identify the Timer: Locate the defrost timer in your Frigidaire refrigerator, typically found in the control panel
- Disconnect Power: Unplug the refrigerator or turn off the circuit breaker to ensure safety during the replacement process
- Remove Old Timer: Carefully detach the old defrost timer by unscrewing it and disconnecting any wires attached
- Install New Timer: Attach the new timer by connecting the wires and securing it with screws, following the manufacturer's instructions
- Test the Timer: Reconnect power and test the new defrost timer to ensure it's functioning correctly, monitoring the defrost cycle
Identify the Timer: Locate the defrost timer in your Frigidaire refrigerator, typically found in the control panel
To identify the defrost timer in your Frigidaire refrigerator, you'll need to locate the control panel first. This is typically situated on the front of the fridge, either at the top or bottom, depending on the model. Once you've found the control panel, look for a small rectangular or square component with a dial or digital display. This is likely the defrost timer.
If you're having trouble locating the timer, consult your refrigerator's user manual for specific guidance on where to find it. The manual should also provide information on how to access the timer, which may involve removing a cover or panel.
Before attempting to replace the defrost timer, it's important to ensure that your refrigerator is unplugged and that you've followed all necessary safety precautions. This includes wearing gloves and safety glasses to protect yourself from any sharp edges or electrical components.
When replacing the defrost timer, make sure to purchase a replacement part that is compatible with your specific Frigidaire refrigerator model. You can usually find this information in your user manual or by contacting Frigidaire's customer support.
To install the new timer, follow the manufacturer's instructions carefully. This may involve disconnecting wires, removing screws, and carefully positioning the new timer in place. Once the new timer is installed, plug your refrigerator back in and test it to ensure that it's working properly.
Remember, if you're not comfortable with this process or if you encounter any difficulties, it's always best to consult a professional appliance repair technician. They have the expertise and tools necessary to safely and effectively replace your defrost timer.
Should Chocolate Sundae Cake Be Refrigerated? Storage Tips Revealed
You may want to see also
Explore related products
Disconnect Power: Unplug the refrigerator or turn off the circuit breaker to ensure safety during the replacement process
Before initiating the replacement of the defrost timer on your Frigidaire refrigerator, it is crucial to disconnect the power to ensure your safety. This involves either unplugging the refrigerator from the electrical outlet or turning off the circuit breaker that supplies power to the unit. Failure to do so could result in electrical shock or damage to the refrigerator's components.
To unplug the refrigerator, locate the power cord at the back of the unit. Ensure that you have a firm grip on the plug and pull it straight out of the outlet. If the outlet is difficult to access, you may need to move the refrigerator away from the wall. When handling the power cord, be cautious not to damage the prongs or the insulation, as this could lead to electrical hazards.
Alternatively, if you choose to turn off the circuit breaker, locate the breaker box in your home. Identify the breaker that corresponds to the refrigerator's power supply. This is typically labeled or can be determined by tracing the wiring from the refrigerator to the breaker box. Flip the breaker switch to the "off" position to cut off power to the refrigerator. It is essential to verify that the power is off by attempting to operate the refrigerator or checking the voltage with a multimeter.
Once the power is disconnected, you can safely proceed with the replacement of the defrost timer. Remember to handle all electrical components with care and follow the manufacturer's instructions for proper installation. After completing the replacement, ensure that all connections are secure and that the power is restored safely.
Top Refrigerator Extended Warranties: Which Brand Offers the Best Protection?
You may want to see also
Explore related products
Remove Old Timer: Carefully detach the old defrost timer by unscrewing it and disconnecting any wires attached
To remove the old defrost timer from a Frigidaire refrigerator, begin by locating the timer itself. It is typically found at the back of the refrigerator, near the top. Once located, carefully unscrew the timer from its mounting bracket. Be sure to use the appropriate screwdriver for the screws, as using the wrong size or type can damage the screws or the timer.
After unscrewing the timer, gently pull it away from the mounting bracket. Be cautious not to yank or jerk the timer, as this can damage the wires or the timer itself. Next, disconnect any wires attached to the timer. This may involve gently pulling the wires out of their connectors or unscrewing wire nuts. Take note of the wire connections, as you will need to reconnect them in the same manner when installing the new timer.
Before proceeding, it is important to ensure that the power to the refrigerator is turned off. This will prevent any electrical shocks or damage to the refrigerator or the timer. Once the old timer is removed, inspect it for any signs of damage or wear. If the timer appears to be in good condition, it may be possible to reuse it in another appliance or as a spare part.
When removing the old defrost timer, it is crucial to be patient and gentle. Forcing the timer or wires can result in damage that may affect the performance of the new timer or even the refrigerator itself. By taking the time to carefully detach the old timer, you can ensure a smooth and successful replacement process.
Should Mangoes Be Refrigerated? Expert Tips for Perfect Storage
You may want to see also
Explore related products
Install New Timer: Attach the new timer by connecting the wires and securing it with screws, following the manufacturer's instructions
Begin by ensuring the refrigerator is unplugged to avoid any electrical hazards. Locate the old defrost timer, which is typically found at the back of the refrigerator, near the bottom. Carefully disconnect the wires from the old timer, taking note of their positions for proper reconnection later. Remove the screws securing the old timer in place and gently pull it out.
Next, prepare the new timer for installation. Refer to the manufacturer's instructions for any specific preparation steps, such as setting the clock or configuring the defrost cycle. Connect the wires to the new timer, ensuring each wire is securely attached to its corresponding terminal. It's crucial to match the wire colors and positions correctly to prevent any malfunction.
Once the wires are connected, position the new timer in the designated slot and secure it with the provided screws. Make sure the timer is firmly attached and there are no loose wires. Reconnect the refrigerator to the power supply and turn it on.
To verify the new timer's functionality, check the refrigerator's defrost cycle. This may involve waiting for the next scheduled defrost or manually initiating the cycle, depending on the model. Observe the timer's display and listen for any sounds indicating the defrost cycle is in progress. If the cycle starts and completes successfully, the installation is complete.
Remember to dispose of the old timer responsibly, following local regulations for electronic waste. Keep the manufacturer's instructions handy for future reference, as they may contain important information about the timer's settings and maintenance.
Refrigerated Chicken Broth: Safe Storage Time and Tips
You may want to see also
Test the Timer: Reconnect power and test the new defrost timer to ensure it's functioning correctly, monitoring the defrost cycle
After replacing the defrost timer on your Frigidaire refrigerator, it's crucial to test its functionality to ensure your appliance operates efficiently. Reconnect the power supply to the refrigerator, taking care to secure all connections properly. This step is vital as loose connections can lead to erratic timer behavior or even electrical hazards.
Once the power is reconnected, initiate the defrost cycle manually, if possible, or wait for the timer to trigger it automatically according to its programmed schedule. Observe the defrost cycle closely, noting the time it starts and ends. The duration of the defrost cycle can vary depending on the model and settings of your refrigerator, but typically it should last between 30 minutes to 2 hours.
During the defrost cycle, you should hear the sound of melting ice and possibly see water pooling at the bottom of the refrigerator. This is a normal part of the process as the timer controls the defrosting of the freezer coils. If you notice any unusual noises, excessive water leakage, or if the cycle does not start or end as expected, it may indicate a problem with the new timer or another component of the refrigerator.
To further ensure the timer's accuracy, you can use a multimeter to test its electrical continuity and resistance. This step requires some technical knowledge, so if you're not comfortable with electrical testing, it's best to consult a professional technician. Testing the timer's electrical properties can help identify any internal faults that might not be apparent during a simple visual inspection.
In conclusion, testing the new defrost timer is a critical step in the replacement process. It not only confirms that the timer is working correctly but also helps to identify any potential issues early on, preventing more significant problems down the line. By following these steps and closely monitoring the defrost cycle, you can ensure your Frigidaire refrigerator operates efficiently and effectively.
