Replacing the floor pan of a car is a challenging task that requires a range of tools and a good understanding of car bodywork. The process involves cutting out the old floor pan and welding in a new one, which can be time-consuming and complex, particularly for those without experience in car repair. The level of difficulty depends on the make and model of the car, as well as the extent of the damage. For example, replacing the entire floor of a unibody car is a major structural change that will require a lot of welding, whereas replacing just the centre of the pan is a smaller job.

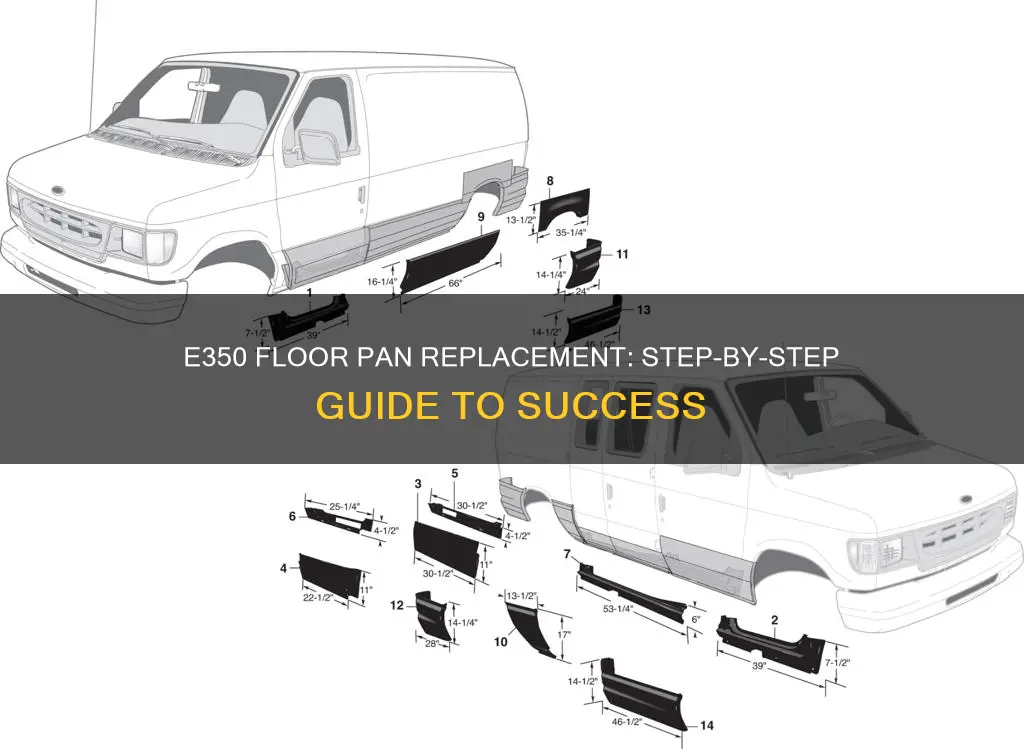

| Characteristics | Values |
|---|---|
| Tools | Miller 140 with Autoset, Hobart plasma cutter, Blair spot weld cutters, Harbor Freight hole punch tool, DeWalt grinder with a flap wheel, Harbor Freight grinder with a cut-off wheel, body hammers, dollies, C-clamps, magnets, snips, drill driver, self-tapping screws, scrapers, center punch, ballpeen hammer, Sharpies, straight edge |
| Preparation | Get the truck on level concrete and support the cab at the front and rear of the rocker panel before cutting anything apart. Measure multiple times, line it up, cut the panel big, trim the panel a little at a time, and sneak up on it. |
| Paint | Eastwood Rust Encapsulator, POR-15 |
| Time | One weekend for the driver's side, another weekend for the passenger side |
| Parts | Ford E-series Replacement Floor Pans, Rocker Panels, Factory Door Sills, Rocker Panel Hardware, Tail Panels, Fenders, Ford OE - Front Right Floor Side Rail, Sherman - Front Driver/Passenger Side Cab Floor Pan Patch Section, Rear Driver/Passenger Side Cab Floor Pan Patch Section |
Explore related products
What You'll Learn
Tools needed for replacement
To replace the floor pan of an E350, you will need a range of tools to ensure a safe and efficient process. Here is a detailed list of the tools required:
First and foremost, you will need a variety of hand tools. These include a set of wrenches and sockets in various sizes to tackle the multitude of bolts and nuts that secure the floor pan in place. A reliable torque wrench is essential to ensure that new bolts are tightened to the manufacturer's specifications. Additionally, you'll need screwdrivers, both flat-head and Phillips-head, as well as pry bars of different sizes to carefully remove interior components and trim without causing damage.
For cutting and shaping new metal patches or panels, you will need several metalworking tools. This includes an angle grinder with cutting and grinding discs, which can be used to cut through old metal and prepare surfaces for welding. A drill with a range of bits will also be useful for drilling pilot holes and driving self-tapping screws. For more precise metal cutting, a nibbler tool or a pair of tin snips can be used to create straight or curved cuts, respectively.
A welding setup is crucial for this project. You will need a welding machine, preferably one suited for automotive work, along with the necessary safety gear, including a welding helmet, gloves, and a long-sleeved shirt. Ensure you have the correct type of welding wire and gas mixture for the welding process you plan to use (MIG or TIG). Additionally, a supply of body filler, fiberglass resin, and hardener will be useful for filling in small imperfections and creating a smooth surface.
Finally, for your safety and comfort during the repair process, it is important to have personal protective equipment (PPE). This includes eye protection in the form of safety glasses or a face shield, ear protection such as earplugs or earmuffs, and a respirator to prevent the inhalation of metal dust and welding fumes. Work gloves will protect your hands, and a set of knee pads will make working on the floor of the vehicle much more comfortable.
Copper Chef Pans: Safe for Eating?
You may want to see also
Explore related products
Removing the old floor pan
Prepare the Vehicle:
Begin by parking your E350 on level ground, preferably concrete, to ensure stability during the removal process. It is crucial to properly support the cab at the front and rear of the rocker panel to prevent any movement that could create fitment problems later on.
Measure and Mark:
Before making any cuts, carefully measure and mark the areas you will be working on. Measure multiple times to ensure accuracy. Mark the edges of the floor pan that you will be removing, and then create a second set of marks about an inch inside the original marks. This will be your cutting line.
Cutting the Old Floor Pan:
Using appropriate cutting tools, cut along the inner line that you marked. Take your time and cut a little at a time to avoid removing too much at once. You can always trim more if needed, but you cannot add metal back once it's cut. After cutting, bend a return on what's left of the old floor pan, bending it back to the outer line.
Drilling and Removal:
Drill holes along the edges and corners of the crossmembers from underneath. This will help with the removal of the old floor pan. Once you have drilled the necessary holes, carefully remove the old floor pan from your vehicle.
Clean and Prepare:
With the old floor pan removed, take the opportunity to clean and prepare the area for the new floor pan. Ensure all rust and damaged metal is removed, leaving a clean and solid surface to which you can weld the new floor pan.
Creative Fritatta Muffin Pan Ideas for Breakfast
You may want to see also
Explore related products
Measuring and cutting the new pan
Measuring and cutting a new floor pan for your E350 requires a number of tools and careful preparation. It is important to take accurate measurements and to cut the new pan to fit the space.
First, take measurements of the existing floor pan. You will need to know the basic shape of the pan and the correct number of body bolts. Measure where the bolt holes are, as well as seat belt holes and any other pieces of the pan relative to the frame. You should also measure where the seat attachments will go if they are not already welded in place. Take more measurements than you think you need, as once you start cutting, there is no going back.
Next, create a template for your new floor pan. You can use simple materials such as cardboard, manila folders, or poster boards. Trace the pattern of the old floor pan, kick panels, and any necessary holes, leaving a few inches for welding overlap. This template will be used to cut the new sheet metal, so it is important to be as accurate as possible.
When you are ready to cut the new sheet metal, use a plasma torch to make straight and precise cuts. You can use 16-gauge or 18-gauge steel, depending on the original thickness of the metal and your personal preference. It is important to only cut away the offending metal after creating the new panel, as this ensures that you only remove the necessary amount.
Once the new panel is cut, test fit it in the car to ensure it aligns properly. This allows for any necessary adjustments to be made before final installation.
Take your time and be methodical throughout the process to ensure a successful floor pan replacement.
Best Places to Buy Pots and Pans
You may want to see also
Explore related products
Welding the new pan in place
Welding in a new floor pan is a complex process that requires careful preparation and execution. Here is a step-by-step guide to help you weld a new floor pan in place for your E350:
Preparation:
Firstly, ensure your vehicle is securely positioned on level ground, and adequately support the cab at the front and rear of the rocker panel. This step is crucial to maintaining stability and avoiding fitment issues later on. Next, gather the necessary tools and materials, including a welder, welding helmet, scrap metal for practice, sheet metal, a grinder, clamps, and a hammer.
Cutting and Tracing:
Before cutting, it is essential to carefully measure and mark the areas that require replacement. Cut out the rusty sections of the original pans and use them as a template by tracing their outline onto the new pans. Cut the new pans slightly larger than the traced lines to ensure a precise fit, as it is easier to trim excess material than to fill in gaps during welding.
Test Fitting:
Place the newly cut pan inside the vehicle, overlapping the old pan, and use it as a guide to trace the exact shape needed. Remove the new pan and cut the old rusty pan along the inside of the trace line. Test fit the new pan into the opening, making any necessary adjustments with a hammer and dolly to ensure a snug fit. Take your time with this step, as a good fit will make the welding process much easier.
Welding:
Once you are satisfied with the fit, use panel clamps to hold the new pan securely in place. Start by tack welding the new pan, placing at least one tack on each side to hold it firmly. Practice butt welding with your scrap metal to refine your technique before welding the car itself. For thin sheet metal, use the MIG welding technique to limit heat and burn-through.
Final Steps:
After welding, you may need to grind down the welds and fill them to create a smooth surface. Finally, apply a coat of paint, such as Eastwood Rust Encapsulator, to protect the new pan and enhance its appearance.
Remember, welding a floor pan can be challenging, especially for beginners. Take your time, be patient, and don't hesitate to seek guidance from experienced welders or professionals if needed.
Best Pan Coatings for High Heat
You may want to see also
Explore related products
Painting the new pan
Preparation:
Before painting, it is essential to prepare the surface of the new floor pan thoroughly. This includes cleaning the metal surface to remove any grease, oil, or dirt that may interfere with the paint adhesion. Sanding the surface is also recommended to create a smooth base for the paint to adhere to. It is crucial to fill any dents or imperfections with an appropriate filler and sand it again for a uniform surface.
Priming:
The next step is to apply a primer to the prepared surface. A primer will enhance the adhesion of the paint to the metal and provide an extra layer of protection against rust. Choose a primer suitable for metal surfaces, and apply it evenly across the new floor pan, following the manufacturer's instructions. Allow the primer to dry completely before proceeding to the next step.
Painting:
Select a paint that is specifically designed for metal surfaces and offers rust protection. Paints like Eastwood Rust Encapsulator or POR-15 are often recommended for this purpose. Follow the paint manufacturer's instructions for proper application techniques and drying times. Typically, multiple thin coats of paint are applied, with adequate drying time between coats, to achieve the best results.
Final Touches:
After the final coat of paint has dried, it is essential to inspect the new floor pan for any imperfections or uneven areas. Lightly sand any raised fibres or imperfections and apply another thin coat of paint if necessary. Once the paint has cured completely, you may proceed with the rest of the floor pan replacement process, including reassembling the vehicle's interior and ensuring that all components are securely fastened.
Remember to work in a well-ventilated area and wear appropriate protective gear, including gloves, eye protection, and a respirator, during the painting process.
Oil Pan Gasket and Oil Pump: What's the Connection?
You may want to see also
Frequently asked questions
It depends on the make of the car and how much of the floor needs to be replaced. If it's just the centre of the pan, it's not too hard, but if the entire floor needs to be replaced, it will be a huge job.
You will need a spot weld cutter, a welder, and a buddy or two to help you out. You can use power tools to make cutting out the spot welds easier, or you can use a cold chisel. Other tools that may be useful include a drill driver, self-tapping screws, a ballpeen hammer, and a straight edge.
First, get the truck on level concrete and support the cab at the front and rear of the rocker panel. Measure and cut the panel, lining it up as you go. Drill the edge of the replacement pan and weld it in.
It depends on how much of the floor needs to be replaced and how interrupted you are during the process. It could take one to two weekends to complete.
You can buy aftermarket reproduction pans or original pans.
