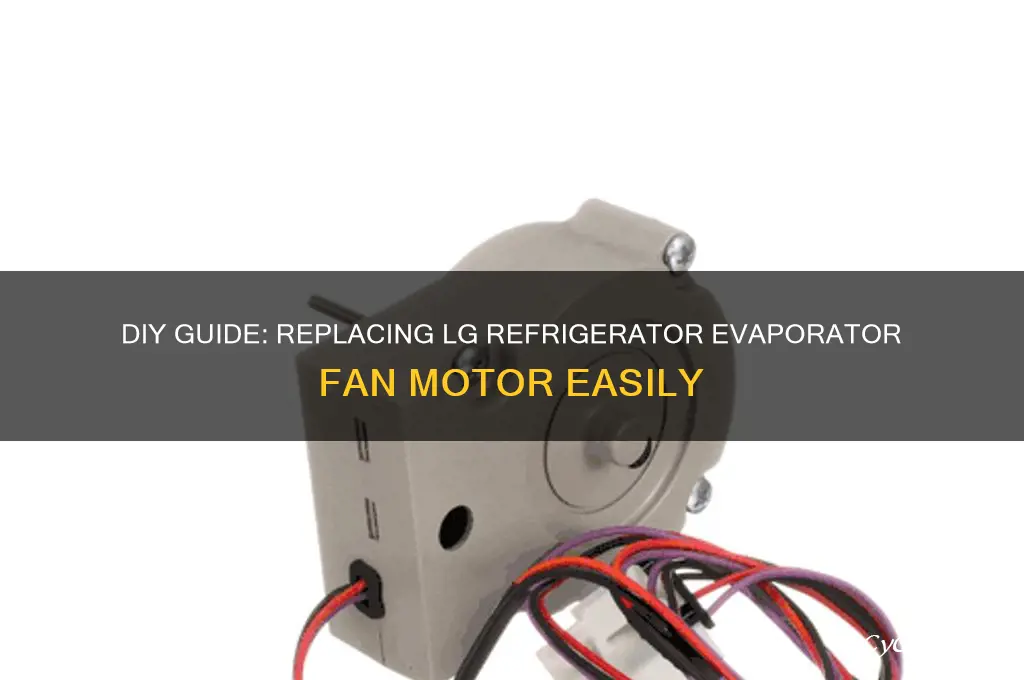

Replacing the evaporator fan motor on an LG refrigerator is a task that can restore proper cooling functionality if the motor has failed. The evaporator fan motor is responsible for circulating cold air throughout the freezer and refrigerator compartments, and a malfunctioning motor can lead to inadequate cooling or frost buildup. To begin the replacement process, you’ll need to unplug the refrigerator, locate the evaporator fan motor (typically found behind the freezer’s rear panel), and carefully remove the old motor by disconnecting the wiring harness and unscrewing it from its mounting bracket. After installing the new motor, ensure it’s securely attached and reconnected to the wiring harness before reassembling the panel and testing the refrigerator to confirm it’s operating correctly. Always refer to your LG refrigerator’s manual or model-specific instructions for detailed guidance.
| Characteristics | Values |
|---|---|
| Appliance Type | LG Refrigerator |
| Component to Replace | Evaporator Fan Motor |
| Tools Required | Screwdriver (Phillips and flathead), Nut Driver, Pliers, Work Gloves |
| Safety Precautions | Unplug refrigerator, Wear gloves, Avoid touching sharp edges |
| Location of Fan Motor | Inside freezer compartment, behind the rear panel |
| Steps to Access Motor | Remove freezer contents, unscrew panel, disconnect wiring harness |
| Motor Removal Process | Unclip or unscrew motor mounting bracket, detach fan blade if necessary |
| New Motor Installation | Align new motor, secure with screws, reattach fan blade, reconnect wiring |
| Reassembly | Reattach rear panel, restore freezer contents |
| Testing | Plug in refrigerator, check for proper fan operation |
| Common Issues | Fan not spinning, unusual noise, ice buildup |
| Part Compatibility | Ensure new motor matches LG model specifications |
| Difficulty Level | Moderate (DIY-friendly with basic tools and caution) |
| Estimated Time | 30-60 minutes |
| Cost of Replacement Motor | $30-$100 (varies by model and retailer) |
| Warranty Check | Verify if motor replacement is covered under warranty |
| Additional Tips | Clean coils and area around motor during replacement |
Explore related products
What You'll Learn
Safety precautions and tools needed
Before attempting to replace the evaporator fan motor on your LG refrigerator, it's crucial to prioritize safety. This task involves working with electrical components and potentially sharp edges, so taking the necessary precautions is essential to prevent accidents. Start by unplugging the refrigerator from the power source to eliminate the risk of electric shock. If your model has a water supply line, turn off the water valve and disconnect the line to avoid leaks. Additionally, wear protective gear such as insulated gloves and safety goggles to shield yourself from sharp metal edges and electrical hazards.
Analyzing the tools required for this repair reveals a straightforward but specific set. You’ll need a Phillips head screwdriver for removing the motor cover and mounting screws, a flathead screwdriver for prying or adjusting components, and needle-nose pliers for handling wires or connectors. A multimeter is also essential to test the motor and wiring for continuity before and after replacement, ensuring the issue is resolved. Keep a towel or tray handy to catch any water or debris that may spill during the process. Organizing these tools beforehand streamlines the repair, reducing the risk of errors or delays.
From a practical standpoint, the workspace itself is a critical safety consideration. Ensure the refrigerator is on a stable, flat surface to prevent tipping during the repair. Clear the area around the appliance to provide ample room to move and access components. Good lighting is also vital; use a portable work light if the area is dim to avoid straining your eyes or missing small details. If you’re working in a tight space, consider removing shelves or drawers to create easier access to the evaporator fan motor compartment.
Comparing this repair to other refrigerator maintenance tasks highlights the importance of precision. Unlike replacing a water filter or cleaning coils, replacing the evaporator fan motor involves more intricate steps and potential risks. For instance, mishandling wires or connectors can lead to short circuits or further damage. Always refer to your LG refrigerator’s manual or a reliable repair guide to ensure you’re following model-specific instructions. If you’re unsure about any step, consult a professional to avoid costly mistakes.
In conclusion, safety precautions and the right tools are the foundation of a successful evaporator fan motor replacement. By unplugging the refrigerator, wearing protective gear, and organizing your tools, you minimize risks and set the stage for a smooth repair. A well-prepared workspace and attention to detail further ensure efficiency and accuracy. While this task may seem daunting, approaching it methodically and with the proper precautions makes it manageable, restoring your refrigerator’s functionality safely and effectively.
