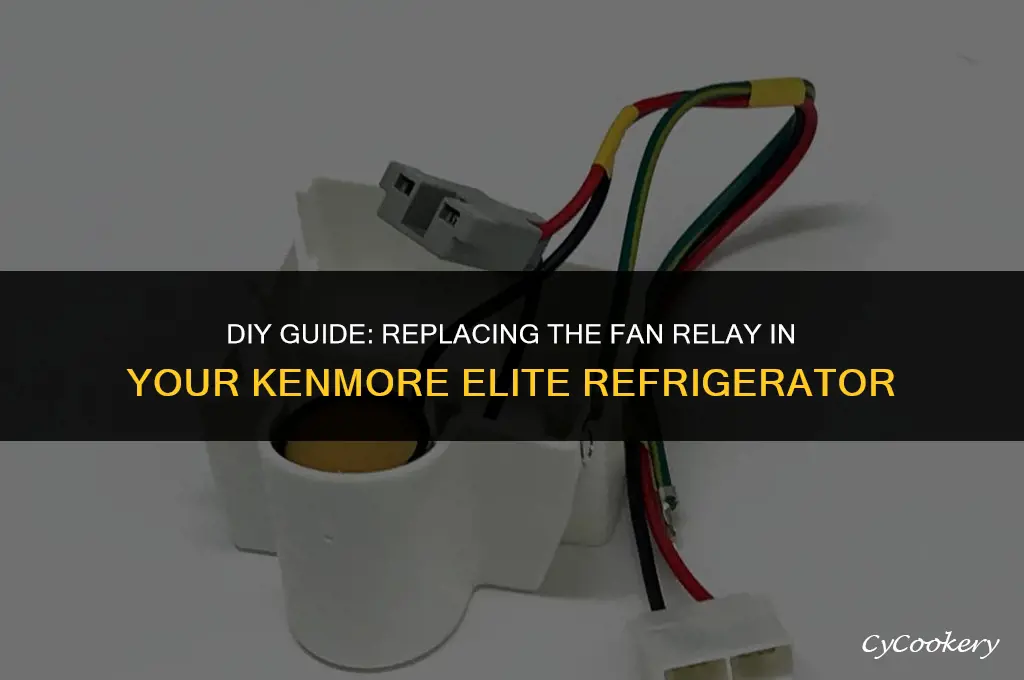

Replacing the fan relay in an Elite Kenmore refrigerator is a task that requires some technical knowledge and careful handling. The fan relay is a crucial component that controls the operation of the refrigerator's cooling fan. If the relay is faulty, it can lead to issues such as inadequate cooling or complete failure of the cooling system. To replace the fan relay, you will need to locate it first, which is typically found in the control panel or near the compressor. Once located, you must disconnect the power supply to the refrigerator to ensure safety. Then, remove the old relay by unscrewing it from its mounting position and disconnecting the wires. Install the new relay by connecting the wires as per the manufacturer's instructions and secure it in place. Finally, reconnect the power supply and test the refrigerator to ensure the new relay is functioning correctly.
| Characteristics | Values |
|---|---|
| Part Type | Fan Relay |
| Appliance Brand | Kenmore Elite |
| Appliance Type | Refrigerator |
| Function | Controls the operation of the refrigerator's fan |
| Location | Typically found in the back or bottom of the refrigerator |
| Appearance | Small, rectangular component with electrical connectors |
| Common Issues | Failure to control fan speed, complete fan failure, intermittent fan operation |
| Replacement Tools | Screwdriver, pliers, multimeter (optional) |
| Replacement Steps | 1. Unplug refrigerator, 2. Remove back or bottom panel, 3. Locate and disconnect fan relay, 4. Remove old relay, 5. Install new relay, 6. Reconnect electrical connectors, 7. Replace panel, 8. Plug in refrigerator |
| Safety Precautions | Ensure refrigerator is unplugged before starting replacement, avoid touching electrical components with bare hands |
| Estimated Replacement Time | 30-60 minutes |
| Difficulty Level | Moderate |
| Cost of Replacement Part | Varies by model, typically $20-$50 |
| Warranty Information | Check Kenmore Elite warranty terms for coverage |
| Additional Tips | Consider replacing the fan motor if it's also malfunctioning, ensure proper installation to avoid future issues |
Explore related products
What You'll Learn
- Identify the Problem: Recognize signs of a faulty fan relay in your Kenmore Elite refrigerator
- Gather Tools: Assemble necessary tools and replacement parts for the fan relay repair
- Access the Relay: Locate and safely remove the fan relay from its housing
- Install New Relay: Securely install the new fan relay, ensuring proper connections
- Test the Repair: Reconnect power and test the refrigerator to confirm the fan relay functions correctly
Identify the Problem: Recognize signs of a faulty fan relay in your Kenmore Elite refrigerator
A faulty fan relay in your Kenmore Elite refrigerator can lead to several noticeable issues. One of the primary signs is the refrigerator failing to maintain the desired temperature, which can result in food spoilage. You may also hear unusual noises coming from the refrigerator, such as clicking or buzzing sounds, which are indicative of electrical problems. Additionally, the fan may not be running at all, or it may be running continuously, both of which can cause the refrigerator to overheat or undercool.
To identify a faulty fan relay, you should first check the fan itself to ensure it is not the problem. If the fan is functioning correctly, the next step is to inspect the relay. The fan relay is typically located in the control panel of the refrigerator. You can access this panel by removing the cover, which is usually held in place by screws or clips. Once you have accessed the control panel, you can test the relay using a multimeter to check for continuity.
If the relay is found to be faulty, it will need to be replaced. Before replacing the relay, it is important to disconnect the power to the refrigerator to avoid any electrical hazards. The new relay should be compatible with your Kenmore Elite refrigerator model. After replacing the relay, you should reconnect the power and test the refrigerator to ensure it is functioning correctly.
In some cases, a faulty fan relay may be a symptom of a larger problem with the refrigerator's control board. If replacing the relay does not resolve the issue, it may be necessary to inspect the control board for any signs of damage or malfunction. This can be a more complex repair and may require the assistance of a professional technician.
Regular maintenance of your refrigerator, including checking the fan and relay, can help prevent these issues and extend the life of your appliance. By recognizing the signs of a faulty fan relay and taking prompt action, you can ensure that your Kenmore Elite refrigerator continues to operate efficiently and effectively.
