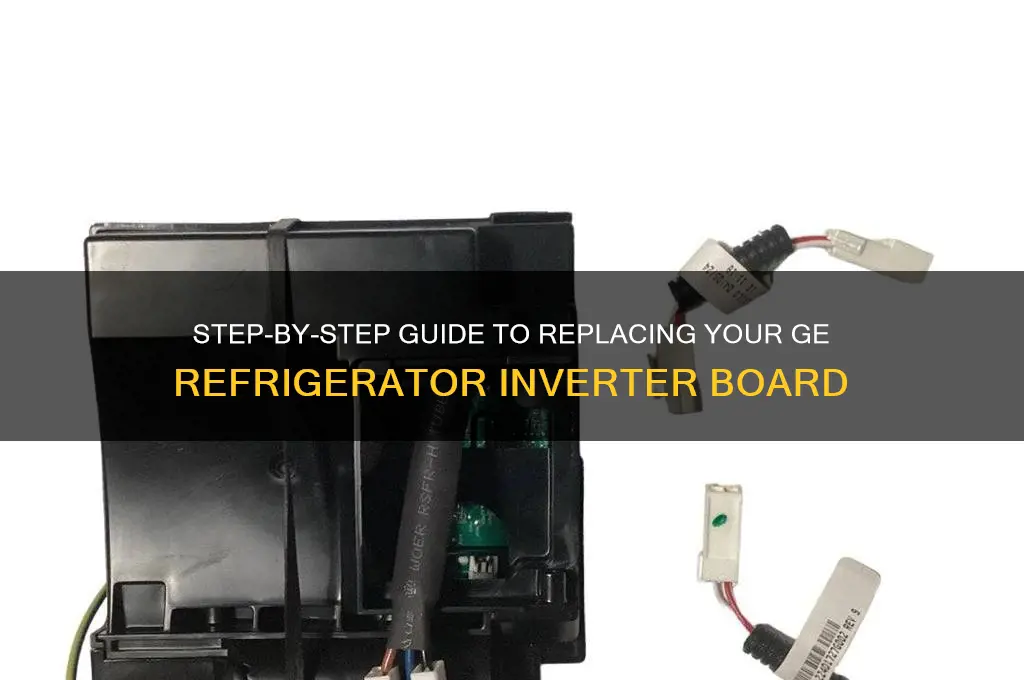

Step-By-Step Guide To Replacing Your Ge Refrigerator Inverter Board

Replacing the inverter board in a GE refrigerator can be a cost-effective solution to resolve issues such as the compressor not running, unusual noises, or inconsistent cooling. The inverter board, which controls the compressor's speed and operation, is a critical component in modern refrigerators with variable-speed compressors. Before starting the replacement process, ensure you have the correct replacement part, disconnect the refrigerator from the power source, and gather necessary tools like a screwdriver and multimeter. Begin by locating the inverter board, typically found near the compressor, and carefully remove the cover to access it. Disconnect the wiring harness and unscrew the board, taking note of the wiring configuration for proper reinstallation. Install the new inverter board, reconnect the wires, and secure it in place. Finally, reassemble any removed panels, restore power, and test the refrigerator to ensure it functions correctly. Always refer to the manufacturer’s manual or seek professional assistance if unsure about any step.

Explore related products

Parts Master Replacement for GE/Café/Profile/Monogram Refrigerator Compressor Inverter WR49X10283 AP5669522 PS6883663

$85.93

[WR49X10283 Inverter OEM Mania] WR49X10283 (Item Code: 519306299) New OEM Produced for GE Refrigerator Inverter No Wire VCC3 1156 K8 F 90 - AP5669522 PS6883663 2677747 WR55X10490

$92.89

GE WR49X10283 Genuine OEM Inverter Board for GE Refrigerator

$91.95 $98.95

WR49X10283 Inverter Control Board OEM Replacement Parts VCC3 1156 K8 F 90 for GE Refrigerator, Replaces WR55X10490, WR55X10685, WR55X10979, WR55X11029, 2677747, AP5669522, PS6883663, 519306299

$85.99

Replacement embraco vcc3 1156 Refrigerator Inverter Compressor Driver Board 0193525048 115V Main Control Board (Without Hard Case)

$42.99

[WR49X10283 Inverter OEM Mania] WR49X10283 (Item code: 519306299) NEW OEM Produced for GE Refrigerator Inverter Control with 2 JUMPER WIRES - AP5669522 PS6883663 2677747 WR55X10490

$88.79

Identify the Correct Inverter Board Model

The inverter board is the brain of your GE refrigerator's compressor, and replacing it requires precision. Identifying the correct model is the first critical step, as using an incompatible board can lead to system failure or damage. Start by locating the model and serial number on the refrigerator’s label, typically found inside the fresh food compartment or on the back of the unit. These numbers are your key to finding the exact inverter board designed for your appliance.

Analyzing the existing inverter board provides additional assurance. Remove the board carefully, noting its part number, which is usually printed directly on the component. This number is more specific than the refrigerator’s model and ensures compatibility. Cross-reference this part number with GE’s official parts list or a trusted supplier’s database to confirm accuracy. If the part number is faded or illegible, take a photo of the board and consult a technician or appliance parts expert for identification.

A common mistake is assuming all GE inverter boards are interchangeable. While some models may appear similar, subtle differences in voltage, pin configuration, or firmware can render a board incompatible. For example, the WR55X11053 and WR55X11158 boards are both used in GE refrigerators but are not interchangeable due to variations in their design. Always verify the exact model to avoid costly errors and additional downtime.

Practical tips can streamline the identification process. If you’re unsure, contact GE’s customer support with your refrigerator’s model and serial number. They can provide the correct part number or guide you to authorized dealers. Alternatively, use online forums or appliance repair communities where users often share experiences and solutions. When ordering, ensure the supplier guarantees compatibility with your specific refrigerator model to avoid returns or delays.

In conclusion, identifying the correct inverter board model is a blend of research, observation, and verification. By leveraging the refrigerator’s model and serial number, examining the existing board, and consulting reliable resources, you can confidently select the right component. This precision not only ensures a successful replacement but also extends the life of your appliance, saving time and money in the long run.

Explore related products

WR87X29409 No Wire Enterpark Refrigerator Compressor Inverter Control Board Replacement Module Replaces AP6332922, WR55X26038, WR55X11099, WR55X11138, 4864662, WR55X10855, WR55X20326, WR55X20752

$87.79

Refrigerator Inverter Control Board VCC3 1156 QA F 06 Replacement Part Fits For Frigidaire Electrolux Kenmore Crosley,241577505 519306005 Replaces 7241577505,1512577,AP4393275,PS2361242,EAP2361242

$154.25 $167.98

DA92-00111B Refrigerator Inverter Power Control Board Compatible With Samsung DA92-00111B Refrigerator Inverter Board

$40.99 $48.88

Upgraded Refrigerator Inverter Control Board VCC3 1156 M4 F 9B Replaces W10710090, W10154805, W10893917, WR55X10490 for Major Refrigerator Brands, 3.3A Output, Latest Manufacturing, 3 Year Warranty

$152.99 $172.99

[W10449006 Inverter OEM Mania] W10449006 (Item Code:519306306) New OEM Produced for Whirlpool Refrigerator Inverter Board VCC3 1156 09 B 01 Replacement Part 4446958 AP6021557 PS11754881 EAP11754881

$86.99

[241577505 Inverter OEM Mania] 241577505 (Item code: 519306005=(519308521)) NEW OEM Produced for Electrolux Frigidaire Whirlpool Refrigerator Inverter Control Board VCC3 1156 QA F 06 Replacement Part

$174.21

Safety Precautions Before Starting the Replacement

Before attempting to replace the inverter board on your GE refrigerator, ensure the appliance is completely disconnected from its power source. Unplug the refrigerator or switch off the dedicated circuit breaker to eliminate any risk of electrical shock. Even if the unit appears dormant, residual electricity can still pose a hazard during disassembly. Verify the power is off by checking the interior lights or using a non-contact voltage tester on the outlet.

Refrigerators contain components that retain electrical charges even after being unplugged. Capacitors, in particular, can store energy capable of delivering a dangerous shock. To neutralize this risk, locate the capacitor (typically near the inverter board) and discharge it using a screwdriver with an insulated handle, bridging the terminals to release stored energy. If you’re unsure about this step, consult the appliance’s manual or seek professional assistance.

Static electricity from your body can damage sensitive electronic components like the inverter board. Before handling any circuitry, ground yourself by wearing an anti-static wrist strap connected to a grounded metal object, or touch a large metal surface to dissipate any charge. Keep the work area free of carpeting and use a non-conductive mat to place components, minimizing the risk of electrostatic discharge during the replacement process.

Replacing an inverter board involves working with sharp metal edges, exposed wires, and potentially heavy components. Protect your hands with cut-resistant gloves and your eyes with safety goggles to guard against accidental cuts or debris. Additionally, lay down a soft cloth or towel on your work surface to prevent scratches to the refrigerator’s finish and provide a stable base for tools and parts.

If at any point you feel uncertain about the replacement process, stop and reassess. Incorrectly installing the inverter board or damaging surrounding components can lead to costly repairs or safety hazards. GE refrigerators often have model-specific quirks, so cross-reference your actions with the official service manual or a reliable online guide. When in doubt, contact a certified technician to ensure the job is done safely and correctly.

Explore related products

WR49X10283 WR55X10490 Refrigerator Inverter Control Board Compatible with Various GE (General Electric) Refrigerator models Replaces WR55X10685 WR55X10979 WR55X11029 AP5669522 2677747 PS6883663

$84.99

[W10133449 Inverter OEM Mania] (Item Code: 519306000) New OEM Produced for Whirpool Refrigerator Inverter Control Board VCC3 1156 09 A 52 Replacement 2209324 2221559 2223385 W10133449

$154.99

DA92-00483B Inverter Board: Ideal Replacement for Samsung DA92-00483B Refrigerator Inverter

$69.99

[What's up?] Refrigerator Inverter Board W10133449 – OEM Replacement for 2209324, 2221559, 2223385, 2224047, 2304098, 2304175, 2306957, 8201670, 519306000, 2997771, AP5801669, EAP8760019

$154.59

Washer Inverter Control Board - OEM Replacement (WH22X38837)

$156.41 $165.7

WR55X10942C WR55X10942 Replacement Control Board for GE Refrigerator Replace WR55X10942P WR55X11130 WR55X10552 WR55X10656 WR55X10996 WR55X11072 WR55X10775

$83.27 $87.67

Tools Needed for the Replacement Process

Replacing a GE refrigerator inverter board requires a precise set of tools to ensure the job is done safely and efficiently. The first essential tool is a nut driver set, specifically one that includes sizes compatible with the screws on your refrigerator model. GE appliances often use standard metric sizes, so a set with 5mm, 7mm, and 8mm drivers will typically suffice. These tools allow you to remove the panel covering the inverter board without damaging the screws or surrounding components.

Equally important is a multimeter, a device used to test electrical continuity and voltage. Before disconnecting the inverter board, use the multimeter to confirm that power is off to avoid electrical shock. After installation, it can also verify that the new board is functioning correctly. Ensure the multimeter is set to the appropriate range for your refrigerator’s voltage, typically 120V for household appliances in the U.S.

A prying tool or trim removal tool is another critical item, especially for accessing the inverter board without scratching or denting the refrigerator’s interior panels. These tools are designed to apply leverage gently, making it easier to separate plastic or metal components that clip together. Avoid using sharp objects like screwdrivers, which can cause irreversible damage.

Finally, thermal paste or compound is often overlooked but essential for maintaining proper heat dissipation from the inverter board. When installing the new board, apply a thin, even layer of thermal paste between the board and its heat sink. This ensures efficient heat transfer, prolonging the life of the component. A small tube of thermal paste is inexpensive and readily available at hardware or electronics stores.

By gathering these tools—a nut driver set, multimeter, prying tool, and thermal paste—you’ll be well-prepared to tackle the replacement process with confidence and precision. Each tool plays a specific role, ensuring not only the successful installation of the inverter board but also the safety and longevity of your refrigerator.

Explore related products

WB27X45466 Range/Wall Oven Control Board + Display (Replaces: WB18X20153, WB27K10097, WB27K10098)

$135.73

Refrigerator Main Control Board - OEM Replacement (WR55X46805)

$213.62 $228.94

Appliances WD21X24900 Dishwasher Electronic Control Board Assembly

$139.76

WH22X37840 Main Control Board Compatible With GE Washer Machines - Budora - AP7245609, WH22X36637, WH22X35517, WH22X34659, WH22X30898

$199.99

Washer Main Control Board - OEM Replacement (WH22X37840)

$164.02 $176.94

Upgrade WR55X10942C WR55X10942 Control Board Compatible with GE Refrigerator Main Control Board Replace Part Number PS2364946, WR55X10942P, PS2364946, AP443621-1 Year Warranty

$74.99

Step-by-Step Removal of the Old Board

Before attempting to replace the inverter board on your GE refrigerator, it's crucial to understand the process of removing the old board, as this step sets the foundation for a successful replacement. The inverter board is typically located at the back of the refrigerator, near the compressor, and is responsible for controlling the compressor's speed, making it a vital component for efficient cooling.

To begin the removal process, start by unplugging the refrigerator from the power source to ensure safety and prevent electrical hazards. Next, locate the inverter board, which is usually housed in a protective cover or compartment. Carefully remove the cover by unscrewing or unclipping it, taking note of the screw locations or clip mechanisms for reassembly. Once the cover is removed, you'll have access to the inverter board, which is connected to the refrigerator via a series of wires and connectors.

The next step involves disconnecting the wires and connectors from the old inverter board. It's essential to take a systematic approach, labeling each wire and connector as you disconnect them to avoid confusion during reinstallation. Use a small piece of tape or a labeling system to mark the wires, noting their corresponding connections. Some connectors may require gentle prying or pressing of tabs to release, so proceed with caution to prevent damage. As you disconnect the wires, be mindful of their routing and organization, as this will facilitate a smoother reinstallation process.

As you carefully lift the old inverter board out of its compartment, take note of its orientation and any mounting brackets or screws that secure it in place. Some models may have additional screws or clips holding the board, so ensure you remove all necessary fasteners before attempting to extract the board. With the old board removed, inspect the compartment for any signs of damage, corrosion, or debris, and clean the area if necessary to ensure a suitable environment for the new inverter board. By following these steps, you'll have successfully removed the old inverter board, paving the way for a seamless replacement and restoring your GE refrigerator's cooling efficiency.

In comparison to other refrigerator repairs, replacing the inverter board requires a moderate level of technical skill and attention to detail. The removal process, in particular, demands patience and organization to avoid complications during reinstallation. By adopting a methodical approach, labeling wires, and documenting the removal process, you can minimize the risk of errors and ensure a successful outcome. Remember, a well-executed removal sets the stage for a smooth replacement, ultimately contributing to the longevity and performance of your GE refrigerator.

Explore related products

Upgraded WR55X26671 Refrigerators LED Light Board Compatible with GE Refrigerators GE Freezer, Replacement Part PS11767930 AP6035586 4468532 EAP11767930 PD00048392 (5 Pcs)

$15.59

Washer Control Board - OEM Replacement (WH22X38697)

$181.9 $193.25

OEM WH22X35837 Inverter Control Board Compatible with GE Washer Board WH22X29531 WH22X32059 WH22X32957 WH22X34657 AP7211663

$115.99

WD21X24899 Dishwasher Electronic Control Board Genuine Original Equipment Manufacturer (OEM) Part, Replaces WD21X24797

$89.94 $99.44

WR55X10996 Genuine OEM Main Control Board Assembly for GE Refrigerators

$213.07

WR55X26671 Refrigerator Light Board Genuine Original Equipment Manufacturer (OEM) Part

$21.89

Installing and Testing the New Inverter Board

Before installing the new inverter board, ensure the refrigerator is unplugged to avoid electrical hazards. Locate the inverter board, typically found behind the refrigerator’s rear panel or near the compressor. Carefully remove the old board by disconnecting the wiring harnesses and unscrewing it from its mounting bracket. Take note of the wire placements to simplify the reinstallation process. Once the old board is removed, align the new inverter board with the mounting holes and secure it in place. Reattach the wiring harnesses, ensuring each connector is firmly seated. Double-check the connections to prevent loose wires that could cause malfunctions.

Testing the new inverter board is crucial to confirm proper functionality. After reinstalling the rear panel and plugging in the refrigerator, observe the compressor’s behavior. A functioning inverter board will activate the compressor smoothly, with no unusual noises or delays. Monitor the refrigerator’s cooling performance over the next hour to ensure temperatures stabilize. If the compressor fails to start or the refrigerator doesn’t cool, recheck the wiring connections and consult the manufacturer’s troubleshooting guide.

A common mistake during installation is overlooking the polarity of wiring harnesses, which can damage the new board. Always match the color-coded connectors to their corresponding ports. Additionally, avoid forcing connectors into place, as this can bend pins or damage the board. If the refrigerator still doesn’t operate correctly after installation, verify the model compatibility of the replacement board. Using an incorrect part can lead to persistent issues.

For optimal results, consider testing the inverter board outside the refrigerator before full installation. Connect the board to a power source and observe its response. This preemptive step can save time and effort if the board is defective. Finally, keep a record of the replacement date and part number for future reference. Proper installation and testing not only restore functionality but also extend the refrigerator’s lifespan.
