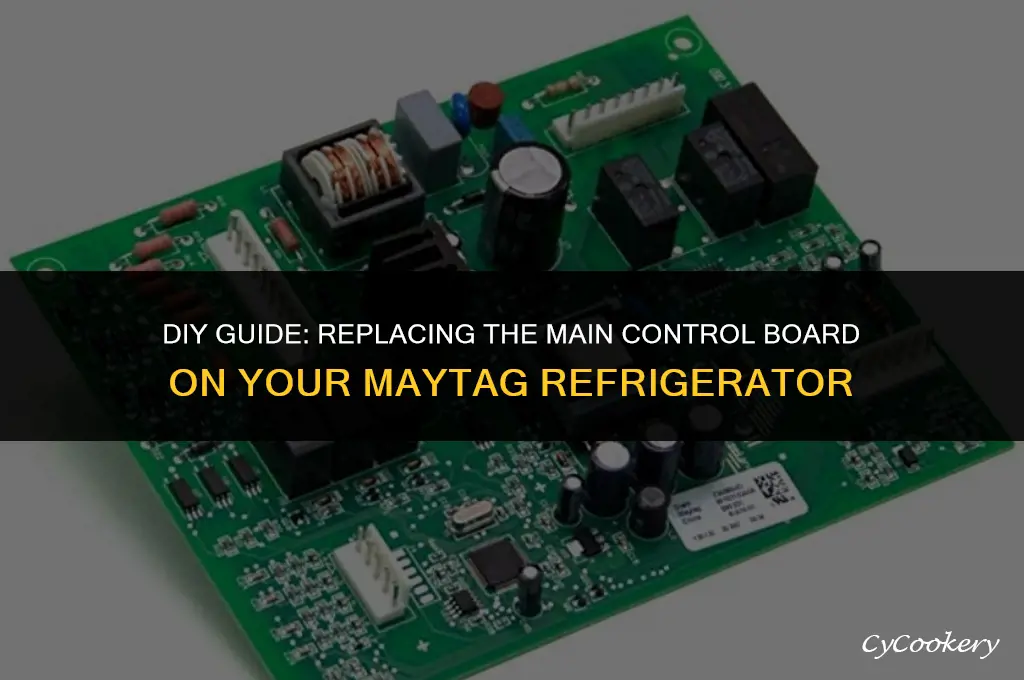

Replacing the main control board on a Maytag refrigerator can seem like a daunting task, but with the right tools and guidance, it can be accomplished relatively easily. The main control board is responsible for regulating various functions of the refrigerator, such as temperature settings, water and ice dispensing, and lighting. If your Maytag refrigerator is experiencing issues with these functions, it may be necessary to replace the control board. Before beginning the replacement process, it's important to ensure that you have the correct replacement part for your specific refrigerator model. You can find this information in your refrigerator's user manual or by contacting Maytag customer support. Once you have the replacement part, follow these steps to replace the main control board on your Maytag refrigerator:
Explore related products
![Factory Authorized OEM P/N W10312695B 734060-04 WPW10312695 W10312695 Control Board Direct Replacement for Whirlpool Maytag Kemore KitchenAid Amana Dacor [NOT for Program Code 0302 0202 0304]](https://m.media-amazon.com/images/I/81wFVcp7W5L._AC_UY218_.jpg)
What You'll Learn
- Safety Precautions: Unplug refrigerator, wear gloves, ensure workspace is clear and well-lit
- Tools Required: Screwdriver, pliers, multimeter, replacement control board, anti-static wrist strap
- Accessing Control Board: Remove back panel, locate control board, disconnect power and sensor connections
- Replacing Control Board: Install new board, reconnect wires and sensors, secure with screws
- Testing and Troubleshooting: Restore power, check functionality, troubleshoot any issues with connections or board
Safety Precautions: Unplug refrigerator, wear gloves, ensure workspace is clear and well-lit
Before beginning the process of replacing the main control board on a Maytag refrigerator, it is crucial to prioritize safety. Start by unplugging the refrigerator from the power outlet to eliminate the risk of electrical shock. This step is non-negotiable and must be done every time you work on electrical appliances. Additionally, wearing gloves can protect your hands from sharp edges and potential electrical hazards. Ensure that your workspace is clear of any clutter and well-lit to prevent accidents and improve visibility.
When working with electrical components, it is essential to be aware of your surroundings and avoid distractions. Keep children and pets away from the work area to prevent any unforeseen incidents. It is also advisable to have a fire extinguisher nearby in case of an electrical fire. Remember to always follow the manufacturer's instructions and guidelines for replacing the control board, as well as any local electrical codes and regulations.
In addition to these safety precautions, it is important to have the necessary tools and equipment readily available before starting the replacement process. This includes a screwdriver, wire cutters, and a multimeter to test for electrical continuity. Having these tools on hand will help ensure a smooth and efficient replacement process.
Before removing the old control board, take a moment to inspect it for any signs of damage or wear. This can help you identify potential issues that may have caused the control board to fail in the first place. Once the new control board is installed, double-check all connections to ensure they are secure and properly aligned. This will help prevent any future problems and ensure the refrigerator operates smoothly.
Finally, after completing the replacement process, plug the refrigerator back in and test it to make sure everything is working correctly. If you encounter any issues, consult the manufacturer's troubleshooting guide or contact a professional for assistance. Remember, safety should always be your top priority when working with electrical appliances.
Refrigerated Raw Chopped Vegetables: Safe Storage Time and Tips
You may want to see also
Explore related products
Tools Required: Screwdriver, pliers, multimeter, replacement control board, anti-static wrist strap
Before beginning the replacement process of the main control board on a Maytag refrigerator, it is crucial to gather all the necessary tools. These include a screwdriver, pliers, a multimeter, a replacement control board, and an anti-static wrist strap. The screwdriver and pliers are essential for removing screws and manipulating small parts, while the multimeter will help in diagnosing any electrical issues. The replacement control board is, of course, the main component needed for the repair, and the anti-static wrist strap is a safety precaution to prevent damage to the sensitive electronic components.
When selecting the replacement control board, it is important to ensure that it is compatible with the specific model of the Maytag refrigerator. This can be done by checking the part number and cross-referencing it with the manufacturer's specifications. Additionally, it is advisable to purchase the control board from a reputable supplier to ensure its quality and reliability.
Before starting the replacement process, it is essential to unplug the refrigerator from the power source to avoid any electrical hazards. Then, remove the screws that secure the control board in place. This may require the use of both the screwdriver and pliers, depending on the type of screws used. Once the screws are removed, carefully disconnect the electrical connectors from the control board. It is important to take note of the orientation and placement of these connectors to ensure proper reconnection later.
After removing the old control board, it is a good practice to inspect it for any visible damage or signs of wear. This can help in identifying the cause of the problem and prevent similar issues in the future. If any damage is found, it may be necessary to replace additional components or perform further repairs.
Before installing the new control board, it is important to ensure that the refrigerator's interior is clean and free of any debris. This will help in preventing any short circuits or other electrical issues. Once the new control board is in place, reconnect the electrical connectors, ensuring that they are properly aligned and securely fastened. Finally, replace the screws that hold the control board in place and plug the refrigerator back into the power source.
After completing the replacement process, it is advisable to test the refrigerator to ensure that it is functioning properly. This can be done by checking the temperature settings, the operation of the ice maker and water dispenser, and the overall performance of the appliance. If any issues are detected, it may be necessary to perform additional troubleshooting or seek professional assistance.
Understanding 4-Ton Refrigeration: Converting Tons to kW Explained
You may want to see also
Explore related products
Accessing Control Board: Remove back panel, locate control board, disconnect power and sensor connections
To access the control board of a Maytag refrigerator for replacement, begin by removing the back panel. This typically involves unscrewing several screws that secure the panel in place. Ensure that the refrigerator is unplugged from the power source before starting this process to avoid any electrical hazards. Once the back panel is removed, locate the control board, which is usually situated in the upper section of the refrigerator's rear compartment.
Disconnecting the power and sensor connections is a critical step in safely removing the control board. Carefully unplug the power connector, which is often a multi-pin plug that supplies electricity to the board. Next, identify and disconnect the various sensor connections. These may include temperature sensors, light sensors, and other components that communicate with the control board to regulate the refrigerator's functions.
When disconnecting the sensors, it's important to note their positions and orientations to ensure correct reconnection later. Some sensors may be clipped or screwed into place, requiring careful removal to avoid damaging the components. Once all connections are disconnected, gently lift the control board out of its housing, taking care not to snag any wires or components on the surrounding edges.
Before proceeding with the replacement, inspect the control board for any visible signs of damage or wear. Check the connectors for corrosion or loose pins, and examine the board itself for burnt components or other issues that may have caused its failure. If the board appears to be in good condition, the problem may lie elsewhere in the refrigerator's electrical system, and further troubleshooting may be necessary.
When installing the new control board, reverse the steps taken to remove the old one. Ensure that all connections are securely fastened and that the board is properly seated in its housing. Replace the back panel, making sure all screws are tightened evenly to prevent any gaps or leaks. Finally, plug the refrigerator back into the power source and test its functions to ensure that the new control board is operating correctly.
Should Peppers in Oil Be Refrigerated? Essential Storage Tips
You may want to see also
Explore related products
Replacing Control Board: Install new board, reconnect wires and sensors, secure with screws
Begin by ensuring the refrigerator is unplugged and the power is disconnected to avoid any electrical hazards during the replacement process. Locate the control board, which is typically found at the back of the refrigerator, either at the top or bottom depending on the model. Carefully remove any screws or clips securing the control board cover and set them aside for reassembly.
Gently disconnect the wires and sensors attached to the control board. It's crucial to take note of the wire placement and connections to ensure correct reattachment later. If necessary, use a small screwdriver or tool to release the connectors. Once all connections are removed, carefully lift the old control board out of its housing.
Install the new control board by aligning it with the housing and gently pushing it into place. Reconnect the wires and sensors, ensuring each one is securely attached to its corresponding terminal. Double-check the connections to prevent any loose wires that could cause malfunctions or safety issues.
Secure the new control board with the screws or clips previously removed. Make sure the board is firmly in place and all connections are stable. Reconnect the power supply and plug the refrigerator back in. Turn it on and monitor its operation to ensure the new control board is functioning correctly.
Throughout this process, it's essential to handle the components with care to avoid damaging the sensitive electronics. If unsure about any step, consult the refrigerator's user manual or seek assistance from a professional technician to prevent potential damage or safety hazards.
Counter Depth Refrigerator Dimensions: Understanding Standard Inches for Your Kitchen
You may want to see also
Explore related products
Testing and Troubleshooting: Restore power, check functionality, troubleshoot any issues with connections or board
After replacing the main control board on a Maytag refrigerator, it's crucial to test and troubleshoot the unit to ensure everything is functioning correctly. Begin by restoring power to the refrigerator. Plug it back into the wall outlet, and if you haven't already, ensure that the circuit breaker hasn't tripped. Once power is restored, give the refrigerator a few minutes to stabilize before proceeding with the checks.
Next, check the functionality of the refrigerator. Open the doors and verify that the interior lights are working. Adjust the temperature settings and observe if the compressor and fans are operating as expected. Test the ice maker and water dispenser, if applicable, to ensure they are functioning properly. If any of these components are not working, it may indicate an issue with the new control board or a problem elsewhere in the system.
Troubleshooting any issues with connections or the board itself is the next step. Ensure that all connections to the control board are secure and properly aligned. Check for any signs of damage or corrosion on the board or the connectors. If you suspect a faulty connection, try re-seating the connector or replacing it if necessary. If the problem persists, it may be an issue with the control board itself. In this case, double-check the installation process to ensure that the new board was installed correctly and that all necessary steps were followed.
If you're still experiencing issues, it's important to consult the refrigerator's user manual or contact Maytag customer support for further assistance. They may be able to provide additional troubleshooting steps or guide you through the process of obtaining a replacement part if needed. Remember to always follow safety precautions when working with electrical appliances, and if you're unsure about any aspect of the process, it's best to seek professional help.
