Replacing a Whirlpool refrigerator defrost timer is a straightforward task that can help resolve issues such as excessive frost buildup or irregular cooling cycles. The defrost timer controls the automatic defrosting process, ensuring the evaporator coils remain frost-free for efficient operation. To begin, locate the timer, typically found behind the refrigerator’s control panel or near the compressor. After unplugging the appliance for safety, remove the panel to access the timer, then disconnect the wiring harness and unscrew the timer from its mounting bracket. Install the new timer by reversing these steps, ensuring all connections are secure. Always refer to your refrigerator’s manual for model-specific instructions, and consider testing the new timer to confirm proper functionality before reassembling the unit.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver (Phillips and flathead), needle-nose pliers, work gloves |
| Parts Needed | Replacement defrost timer (Whirlpool-compatible), model-specific wiring harness (if applicable) |
| Safety Precautions | Unplug refrigerator before starting, wear gloves to avoid sharp edges |
| Location of Timer | Typically behind the refrigerator’s kickplate, control panel, or inside the fresh food compartment (varies by model) |
| Steps to Access Timer | 1. Unplug refrigerator. 2. Remove kickplate or control panel cover. 3. Locate timer (usually a small, round device with wires attached). |
| Steps to Replace Timer | 1. Disconnect wires from old timer (take photos for reference). 2. Remove mounting screws. 3. Install new timer, reattach wires, and secure with screws. |
| Testing After Replacement | Plug in refrigerator, listen for compressor and fan operation, check for proper cooling and defrost cycles. |
| Common Issues | Timer stuck in defrost mode, refrigerator not cooling, excessive frost buildup |
| Model Compatibility | Verify replacement timer is compatible with your Whirlpool refrigerator model (check user manual or manufacturer’s website) |
| Estimated Time | 30–60 minutes, depending on accessibility and experience |
| Cost of Replacement Timer | $20–$50 (varies by model and retailer) |
| Professional Help | Recommended if unsure about wiring or troubleshooting |
Explore related products
What You'll Learn
- Identify Timer Location: Locate the defrost timer, usually found at the back or bottom of the fridge
- Unplug Refrigerator: Ensure safety by disconnecting power before starting the replacement process
- Remove Old Timer: Disconnect wires and unscrew the old timer to remove it carefully
- Install New Timer: Attach the new timer, reconnect wires, and secure it in place
- Test Functionality: Plug in the fridge and verify the new timer works correctly
Identify Timer Location: Locate the defrost timer, usually found at the back or bottom of the fridge
The defrost timer in a Whirlpool refrigerator is a small but critical component, often tucked away in a location that’s both accessible and out of sight. Typically, you’ll find it at the back or bottom of the fridge, near the compressor or behind the kickplate. This placement is strategic: it keeps the timer away from moisture and temperature fluctuations while ensuring it remains reachable for maintenance. Before you begin, unplug the refrigerator to avoid electrical hazards. Armed with a flashlight and a basic understanding of appliance anatomy, you’re ready to pinpoint this elusive part.
Analyzing the design of Whirlpool refrigerators reveals a consistent pattern in timer placement. Models like the Whirlpool WRF535SMHZ or the WRS325FDAM often house the defrost timer near the compressor, which is usually at the bottom rear of the unit. If your fridge has a kickplate, remove it by gently pulling or unscrewing it to expose the timer. For top-freezer models, the timer might be mounted on the back panel, requiring you to slide the fridge away from the wall for access. Knowing your specific model can save time, as some designs deviate slightly from this norm.
Persuasively, locating the timer yourself is not just cost-effective but also empowering. Instead of relying on a technician, you can diagnose and address defrosting issues firsthand. Start by consulting your refrigerator’s manual for a diagram or description of the timer’s location. If the manual is unavailable, online resources or Whirlpool’s support page often provide model-specific guidance. Remember, the timer’s position is deliberate—it’s designed for accessibility, so don’t be intimidated by the initial search.
Comparatively, while some appliances bury components in hard-to-reach areas, Whirlpool’s approach to timer placement is user-friendly. Unlike older models where timers were hidden behind panels requiring extensive disassembly, modern designs prioritize ease of access. For instance, side-by-side refrigerators often have the timer mounted on the back panel, while French door models may place it near the compressor. This evolution in design underscores the importance of understanding your fridge’s layout before attempting replacement.

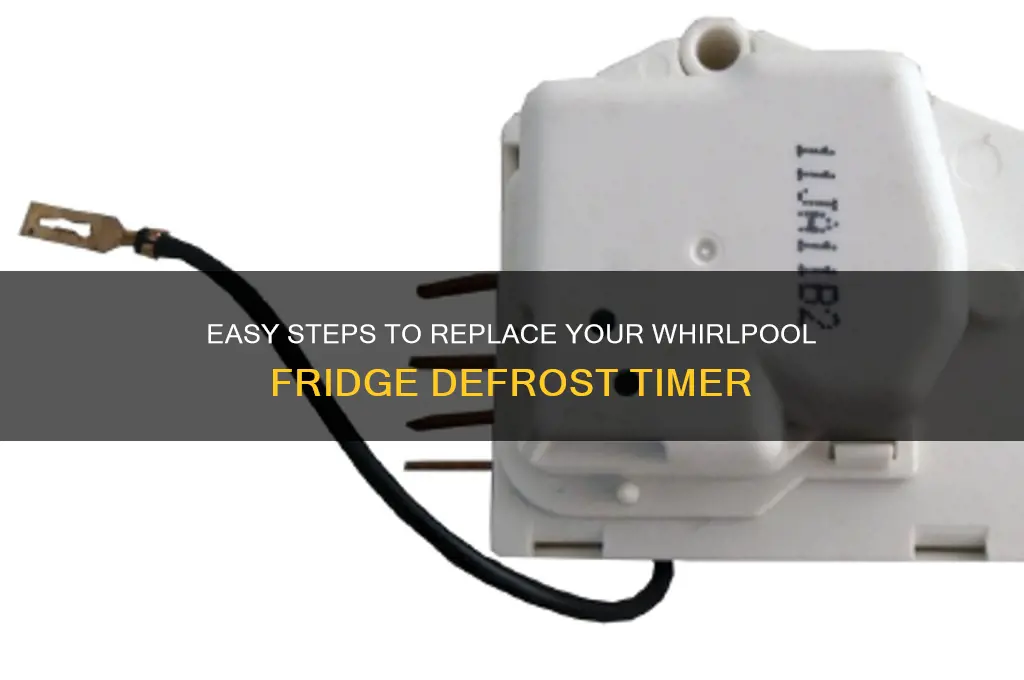

Descriptively, imagine the timer as a small, cylindrical or rectangular device with wires connected to it. It’s often labeled with “Defrost Timer” or a similar identifier, though some units may require you to trace wires from the defrost heater to confirm its location. Once you’ve identified it, take note of its orientation and how it’s mounted—this will be crucial when installing the replacement. With patience and a systematic approach, locating the timer becomes a straightforward step in the broader process of replacing it.
Refrigerating Sourdough Starter: Tips for Long-Term Storage and Maintenance
You may want to see also
Explore related products
Unplug Refrigerator: Ensure safety by disconnecting power before starting the replacement process
Before you embark on replacing the defrost timer in your Whirlpool refrigerator, the first and most critical step is to unplug the appliance. This simple action is the cornerstone of safety, ensuring that no electrical current runs through the unit while you work. Even if you’re confident in your DIY skills, skipping this step can lead to serious injury or damage to the refrigerator. The defrost timer is typically located near the compressor or control panel, areas where exposed wires and electrical components are common. By disconnecting the power, you eliminate the risk of electric shock, short circuits, or accidental activation of the timer during replacement.
From a practical standpoint, unplugging the refrigerator is straightforward but requires attention to detail. Locate the power cord and follow it to the outlet. Grip the plug firmly and pull it straight out of the socket—never yank the cord itself, as this can damage the wiring. If your refrigerator has a dedicated circuit breaker, flipping it off is an additional safety measure, though unplugging is sufficient. For added caution, consider testing the outlet with a voltage tester to confirm no power is present. This step takes mere seconds but is a non-negotiable safeguard.
Comparing this step to other DIY repairs highlights its universal importance. Whether you’re replacing a light fixture, working on a washing machine, or servicing a refrigerator, disconnecting power is the first rule of electrical safety. In the context of a defrost timer replacement, the risk is heightened because the timer is often located in close proximity to high-voltage components. Unlike tasks like cleaning coils or replacing water filters, this repair involves direct interaction with the refrigerator’s electrical system, making the unplugging step not just advisable but mandatory.
Finally, consider the long-term benefits of this precautionary measure. By unplugging the refrigerator, you not only protect yourself but also safeguard the appliance from potential damage. Electrical surges or accidental activations during the replacement process can fry circuits or damage the new timer. Taking this step ensures a smooth, incident-free repair, allowing you to focus on the task at hand without worrying about hidden dangers. It’s a small action with a significant impact, setting the foundation for a successful and safe repair.
Boosting Your Fridge's Ice Production: Tips to Increase Ice Output
You may want to see also
Explore related products
Remove Old Timer: Disconnect wires and unscrew the old timer to remove it carefully
The first step in replacing a Whirlpool refrigerator defrost timer is to locate the existing unit, typically found behind the refrigerator’s kickplate or inside the control panel. Once identified, safety is paramount: unplug the refrigerator or turn off the circuit breaker to eliminate any risk of electrical shock. With power disconnected, the timer’s wiring becomes the immediate focus. Most timers have a series of color-coded or labeled wires connected to terminals. Before proceeding, take a photo or label each wire with its corresponding terminal to ensure accurate reconnection later. This small precaution can save significant troubleshooting time during reassembly.
Disconnecting the wires requires precision and care. Gently pull each wire straight out of its terminal, avoiding sideways force that could damage the connectors. Some terminals may have release mechanisms, such as tabs or screws, which need to be loosened first. If the wires are secured with tape or zip ties, remove these carefully to avoid disturbing other components. Once all wires are free, the timer itself is ready for removal. Inspect the mounting screws or clips holding the timer in place; these are usually standard Phillips-head screws or snap-fit fasteners. Use the appropriate tool to unscrew or release them, taking care not to strip screws or break plastic components.
Removing the old timer demands patience, especially in tight spaces. Tilt or maneuver the timer gently to clear any obstructions, such as adjacent parts or wiring harnesses. Avoid forcing it, as this could damage surrounding components or the refrigerator’s interior. If the timer feels stuck, double-check for hidden screws or clips that may have been overlooked. Once free, set the old timer aside for disposal or comparison with the new unit. This step marks the transition from disassembly to installation, ensuring the workspace is clear and prepared for the next phase.
A critical takeaway from this process is the importance of methodical work. Rushing can lead to errors, such as misplacing wires or damaging connectors, which complicate the replacement. By systematically disconnecting wires, documenting their positions, and carefully unscrewing the timer, you minimize the risk of setbacks. This approach not only ensures a smooth removal but also sets the stage for a successful installation, where precision and organization are equally vital.
Refrigerating Yeast Bread Dough: Tips for Perfectly Preserved Loaves
You may want to see also
Explore related products
Install New Timer: Attach the new timer, reconnect wires, and secure it in place
With the old defrost timer removed, it's time to install the new one. This process requires precision and attention to detail to ensure your Whirlpool refrigerator functions optimally. Begin by aligning the new timer with the mounting bracket, ensuring the terminals match the original configuration. Most Whirlpool models use a standard 4-terminal setup, but always double-check your specific model’s wiring diagram to avoid errors. Gently press the timer into place, making sure it clicks securely onto the bracket. Loose installation can lead to malfunctions or electrical hazards, so verify stability before proceeding.
Next, reconnect the wires to the corresponding terminals on the new timer. Whirlpool refrigerators typically use color-coded wires (e.g., red for power, white for neutral), but if yours aren’t, refer to the wiring diagram provided with the timer or your refrigerator’s manual. Use needle-nose pliers to carefully strip any frayed wire ends and ensure a snug fit onto the terminals. Tighten the screws securely, but avoid over-tightening, as this can damage the wires or terminals. A firm tug on each wire after attachment will confirm they’re properly seated.
Securing the timer in place is the final step. Reattach the mounting bracket screws using a Phillips-head screwdriver, ensuring they’re tightened just enough to hold the timer firmly without stripping the threads. Some models may require additional clips or fasteners, so inspect the area for any loose components. Once secured, double-check that the timer’s dial aligns correctly with the refrigerator’s defrost cycle settings, typically marked on the timer itself. Misalignment can disrupt the defrost cycle, leading to frost buildup or overheating.
Before closing up the refrigerator panel, perform a quick functionality test. Plug the refrigerator back in and observe the timer’s operation. The defrost cycle should initiate as programmed, usually every 8–12 hours, depending on your model. If the timer doesn’t engage or the refrigerator fails to cool, recheck the wiring connections and mounting. Proper installation ensures longevity and efficiency, saving you from future repairs and energy waste. With these steps completed, you’ve successfully replaced the defrost timer, restoring your Whirlpool refrigerator’s performance.
Refrigerating Bread Overnight: Best Practices for Freshness and Texture
You may want to see also
Explore related products
Test Functionality: Plug in the fridge and verify the new timer works correctly
Once the new defrost timer is installed, the critical next step is to ensure it functions as intended. This verification process is not merely a formality but a safeguard against potential malfunctions that could compromise the refrigerator’s performance. Begin by plugging the fridge back into the power source, ensuring the electrical connection is secure. Observe the initial response: the compressor should engage, and the cooling cycle should start. This immediate feedback confirms the timer’s ability to initiate the refrigeration process, a fundamental test of its operational integrity.
Next, monitor the defrost cycle, a key function controlled by the timer. Under normal conditions, the defrost cycle should activate every 8 to 12 hours, depending on the model. To expedite testing, manually advance the timer (if it has a manual override) to trigger the defrost mode. Listen for the distinct sound of the defrost heater turning on and observe if the evaporator coils begin to thaw. Use a multimeter to verify voltage at the heater terminals during this cycle, ensuring it matches the manufacturer’s specifications (typically 120V for U.S. models). This step isolates the timer’s role in activating the defrost mechanism, a common failure point in older units.
A less obvious but equally important aspect is the timer’s termination of the defrost cycle. An overactive defrost timer can lead to excessive energy consumption and water leakage, while a prematurely ending cycle leaves ice buildup on the coils. Time the duration of the defrost cycle, which should last approximately 20 to 30 minutes. If the cycle extends beyond this range, the timer may be faulty or misaligned. Conversely, a cycle that ends abruptly suggests a mechanical issue within the timer itself. These observations provide actionable insights into the timer’s precision and reliability.
Finally, integrate long-term monitoring into your testing strategy. Over the next 24 to 48 hours, periodically check the refrigerator’s temperature and the condition of the evaporator coils. A stable temperature (ideally between 35°F and 38°F) and the absence of ice buildup indicate a properly functioning timer. Conversely, fluctuating temperatures or recurring frost suggest a malfunction that warrants further investigation. This extended observation period bridges the gap between immediate functionality and sustained performance, ensuring the replacement timer meets both short-term and long-term expectations.
Perfectly Chilled Lemon Meringue Pie: Refrigeration Tips for Freshness
You may want to see also
Frequently asked questions
Signs of a faulty defrost timer include excessive frost buildup in the freezer, water pooling under the fridge, or the refrigerator not cooling properly. You can also test the timer with a multimeter to check for continuity.
You’ll typically need a screwdriver (Phillips or flathead, depending on your model), a multimeter for testing, and possibly needle-nose pliers to disconnect wires. Always unplug the refrigerator before starting.
The defrost timer is usually located behind the control panel, in the back of the refrigerator, or near the compressor at the bottom. Refer to your refrigerator’s manual for the exact location for your model.
