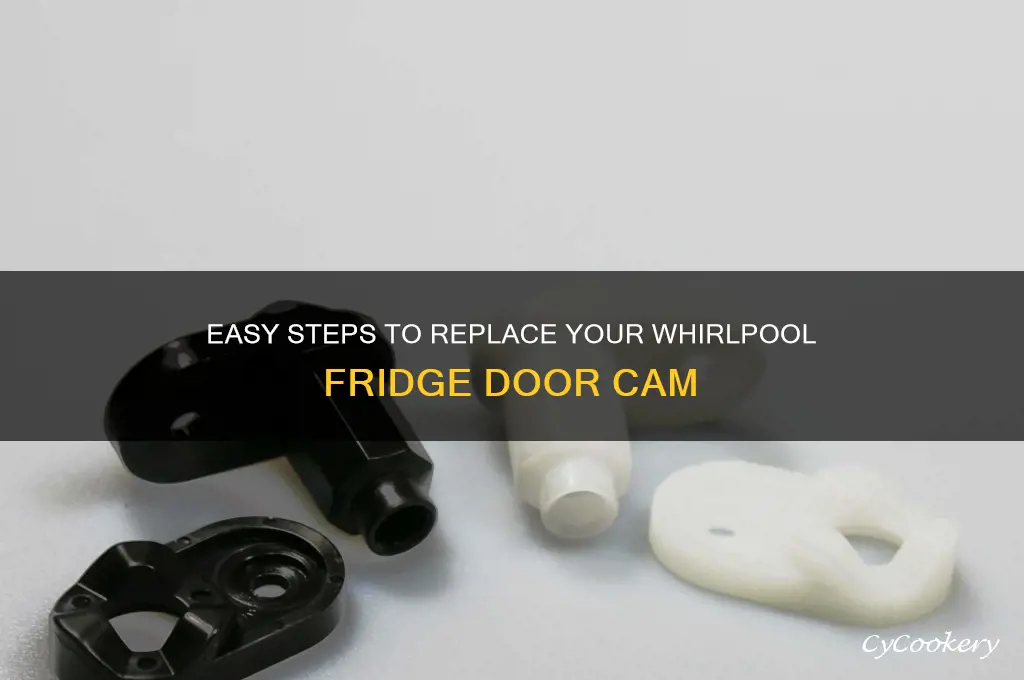

Replacing the door cam on a Whirlpool refrigerator is a straightforward task that can help resolve issues such as a misaligned door or difficulty closing it properly. The door cam, a small plastic component located at the bottom hinge, wears out over time due to regular use, causing the door to sag or not seal tightly. To replace it, you’ll need basic tools like a screwdriver and a new cam kit, which typically includes both the cam and the hinge components. Start by removing the refrigerator door, then detach the lower hinge and carefully replace the worn cam with the new one. Reassemble the hinge and reattach the door, ensuring it aligns correctly and seals tightly. This DIY repair not only saves money but also extends the life of your refrigerator by restoring proper door function.
| Characteristics | Values |
|---|---|
| Tools Required | Phillips screwdriver, flathead screwdriver, putty knife, work gloves |
| Parts Needed | Replacement door cam (specific to Whirlpool model), lubricant (silicone-based) |
| Difficulty Level | Moderate |
| Time Required | 30-60 minutes |
| Safety Precautions | Unplug refrigerator, wear gloves to avoid injury |
| Steps | 1. Remove door by lifting it off hinges 2. Locate and remove old door cam using screwdriver 3. Clean cam area and apply lubricant 4. Install new cam, ensuring proper alignment 5. Reattach door and test for smooth operation |
| Common Issues | Door misalignment, cam wear, stripped screws |
| Tips | Use a putty knife to gently pry cam if stuck, refer to model-specific manual for exact instructions |
| Cost of Replacement Cam | $10-$20 (varies by model) |
| Warranty Coverage | Typically not covered under standard warranty, check with Whirlpool for specifics |
| Model Compatibility | Varies, check Whirlpool's website or manual for compatibility |
| Video Tutorial Availability | Yes, available on Whirlpool's website and YouTube |
| Professional Assistance | Recommended if unsure or encountering difficulties |
Explore related products
What You'll Learn
- Tools Needed: Gather screwdriver, pliers, new cam, and work gloves for safe, efficient replacement
- Remove Old Cam: Uninstall the damaged cam by unscrewing and detaching it from the hinge
- Install New Cam: Align and secure the new cam into the hinge using screws provided
- Reattach Door: Lift the door, engage the hinge, and ensure proper alignment with the fridge
- Test Door Function: Check for smooth operation, proper sealing, and no gaps after installation
Tools Needed: Gather screwdriver, pliers, new cam, and work gloves for safe, efficient replacement
Replacing a Whirlpool refrigerator door cam is a task that demands precision and the right tools. Before diving into the process, it’s essential to gather everything you’ll need to ensure a smooth and safe replacement. Start by assembling a flathead or Phillips screwdriver, depending on the screw type securing the cam. Pliers are equally crucial for gripping and removing any stubborn parts or adjusting components during the process. A new cam, compatible with your Whirlpool model, is the cornerstone of this repair—ensure it matches the specifications to avoid further issues. Lastly, work gloves provide a protective barrier, reducing the risk of cuts or slips while handling sharp edges or applying force.
The screwdriver is your primary tool for disassembling the door components to access the cam. For most Whirlpool refrigerators, a Phillips screwdriver (#2 size) is commonly required, but always verify the screw type before starting. If the screws are tight or corroded, apply gentle, steady pressure to avoid stripping them. Pliers come into play when removing the old cam, especially if it’s stuck or damaged. Use the pliers to grip the cam firmly and twist it counterclockwise, taking care not to damage surrounding parts. This step highlights the importance of having the right tools to handle both precision and force effectively.
The new cam is the heart of this repair, and its quality cannot be overlooked. Whirlpool-compatible cams are typically made of durable plastic or metal, designed to withstand the constant pressure of opening and closing the door. When selecting a replacement, verify the part number against your refrigerator’s model to ensure compatibility. Installing the wrong cam can lead to misalignment or premature wear, defeating the purpose of the repair. Always inspect the new cam for defects before installation to avoid complications later.
Work gloves are often underestimated but play a vital role in safety and efficiency. They protect your hands from sharp edges, such as metal brackets or screws, and provide a better grip when handling tools. Opt for gloves with a textured surface for enhanced dexterity, ensuring you can still manipulate small parts with ease. Additionally, gloves prevent fingerprints or smudges on the refrigerator’s finish, keeping it looking clean during the repair. This small investment in safety can save you from unnecessary injuries and make the process more comfortable.
In summary, gathering the right tools—screwdriver, pliers, new cam, and work gloves—transforms a potentially frustrating task into a manageable DIY project. Each tool serves a specific purpose, from disassembly to protection, ensuring the replacement is both safe and efficient. By preparing these items beforehand, you’ll avoid mid-repair interruptions and increase the likelihood of a successful outcome. With the correct tools in hand, replacing a Whirlpool refrigerator door cam becomes a straightforward process that restores your appliance’s functionality.
