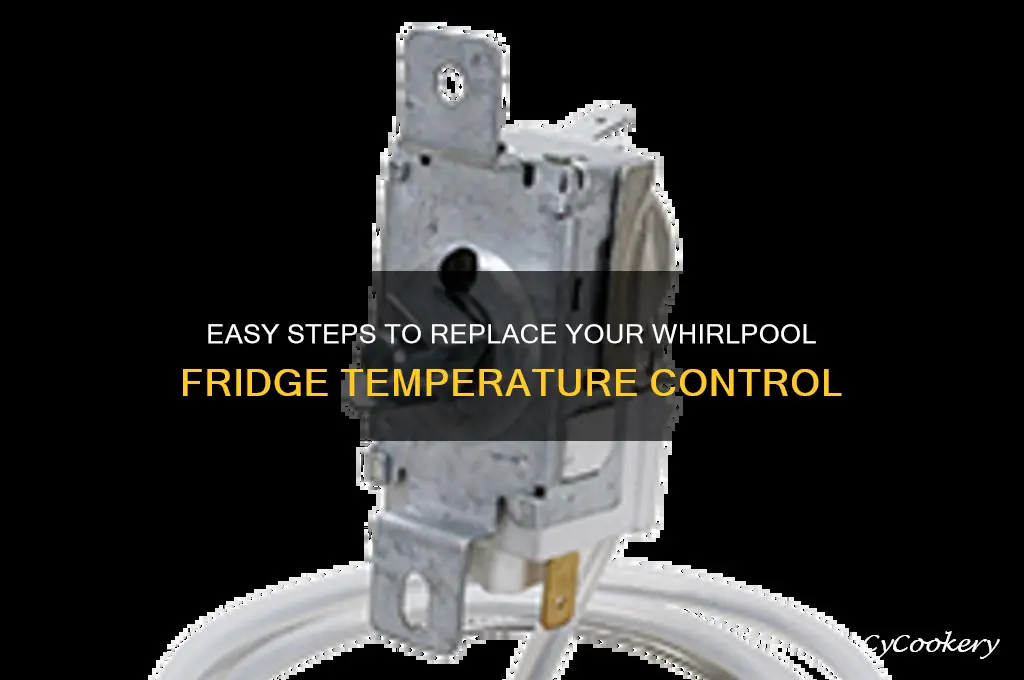

Replacing the temperature control in a Whirlpool refrigerator is a manageable DIY task that can restore proper cooling functionality and extend the appliance's lifespan. The temperature control, also known as the thermostat, regulates the refrigerator's internal temperature by signaling the compressor to turn on or off. Over time, this component can wear out, leading to inconsistent cooling or failure to maintain the desired temperature. To replace it, you’ll need to locate the control panel, typically found inside the refrigerator or on the exterior, and carefully disconnect the old unit. After purchasing a compatible replacement part, follow the manufacturer’s instructions to install the new temperature control, ensuring all wires are securely connected. This process not only saves on repair costs but also ensures your refrigerator operates efficiently, keeping your food fresh and safe.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver (Phillips and flathead), socket wrench, nut driver, work gloves, replacement temperature control unit |
| Difficulty Level | Moderate |
| Time Required | 30 minutes to 1 hour |
| Safety Precautions | Unplug refrigerator or turn off power at circuit breaker, wear gloves to avoid injury |
| Steps | 1. Remove the refrigerator’s top hinge cover and screws. 2. Disconnect the water line (if applicable). 3. Remove the control panel cover and screws. 4. Disconnect the wiring harness from the old temperature control unit. 5. Remove the old temperature control unit by unscrewing it. 6. Install the new temperature control unit and reconnect the wiring harness. 7. Reattach the control panel cover and screws. 8. Reconnect the water line (if applicable). 9. Reinstall the top hinge cover and screws. 10. Plug in the refrigerator and test the new temperature control unit. |
| Common Issues | Faulty temperature readings, control panel not responding, refrigerator not cooling properly |
| Replacement Part Compatibility | Ensure the new temperature control unit is compatible with your Whirlpool refrigerator model |
| Cost of Replacement Part | $50 to $150 (varies by model and retailer) |
| Warranty Coverage | Check Whirlpool’s warranty policy for coverage on temperature control units |
| Professional Help | Recommended if unsure about DIY or if issues persist after replacement |
| Maintenance Tips | Regularly clean the refrigerator coils and check temperature settings to ensure optimal performance |
Explore related products
What You'll Learn
Identify Correct Part Number
Identifying the correct part number for your Whirlpool refrigerator's temperature control is the linchpin of a successful repair. Start by locating the model and serial number, typically found inside the refrigerator on the wall near the top or on the door frame. These numbers are your gateway to the exact part you need. Whirlpool’s official website or authorized parts distributors often have search tools where you can input these details to find the precise component. Avoid guessing or relying on visual similarity alone, as even minor differences in model numbers can result in incompatible parts.
Once you’ve gathered the model information, cross-reference it with the part number listed in the refrigerator’s manual or on the existing temperature control unit itself. If the manual is unavailable, online resources like Repair Clinic or PartSelect offer databases where you can match your model to the correct part. Pay attention to suffixes or additional codes in the part number, as these often indicate revisions or updates to the component. For instance, a part number ending in “R” might signify a redesigned version that addresses issues in earlier models.
A common pitfall is assuming that a part labeled “universal” will fit your refrigerator. While these parts may work in a variety of models, they rarely offer the same precision or longevity as the manufacturer’s original part. Stick to OEM (Original Equipment Manufacturer) parts for Whirlpool refrigerators to ensure compatibility and performance. If you’re unsure, contact Whirlpool’s customer service or a certified technician for guidance.
Finally, double-check the part number before purchasing. Mistakes in ordering can lead to delays and additional costs. Some online retailers allow you to verify compatibility by entering your model number during the checkout process. If the part arrives and doesn’t match, don’t force it—return it and recheck your research. Precision in identifying the correct part number is the difference between a quick fix and a frustrating repair experience.
Storing Bisquick in the Fridge: Tips for Freshness and Longevity
You may want to see also
Explore related products
Tools Needed for Replacement
Replacing the temperature control in a Whirlpool refrigerator requires a precise set of tools to ensure the job is done efficiently and safely. The first tool you’ll need is a nut driver with a ¼-inch hex head, which is commonly used to remove the screws securing the control panel. This tool is essential because it provides the right torque without stripping the screws, a common issue when using ill-fitting tools. Pair this with a magnetic screwdriver to handle smaller screws and to retrieve any that fall into tight spaces, a frequent occurrence in appliance repairs.
Beyond screwdrivers, a flathead tool or prying device is crucial for gently removing the control panel without damaging the plastic components. Whirlpool refrigerators often have snap-fit panels that require careful manipulation to avoid cracking. For this, a plastic spudger or trim removal tool is ideal, as it minimizes the risk of scratching or breaking the surface. These tools are especially useful if the panel has been in place for years and has become stiff or brittle.
Electrical work demands precision, so a multimeter is indispensable for testing continuity in the temperature control wiring. Before disconnecting any wires, use the multimeter to confirm the control is faulty, ensuring you’re addressing the correct issue. Labeling the wires with electrical tape or a marker before removal can save time during reassembly, a small step that prevents confusion later.
Finally, don’t overlook the importance of safety gear. Insulated gloves protect against accidental electrical contact, while safety goggles shield your eyes from debris or snapped components. While these tools may seem minor, they are the difference between a smooth repair and a hazardous situation. With the right tools in hand, replacing a Whirlpool refrigerator’s temperature control becomes a manageable task rather than a daunting challenge.
Should Cut Mango Be Refrigerated? Storage Tips for Freshness
You may want to see also
Explore related products
Step-by-Step Removal Process
Replacing the temperature control in a Whirlpool refrigerator requires precision and care to avoid damaging components. Begin by unplugging the refrigerator to ensure safety and prevent electrical hazards. Locate the temperature control assembly, typically found inside the fresh food compartment or behind the control panel. Use a screwdriver to remove the screws securing the control panel cover, then gently lift the cover to expose the temperature control unit. Take note of the wiring connections to ensure accurate reinstallation later.
Once the control panel is exposed, carefully disconnect the wires from the temperature control unit. Most Whirlpool models use plug-and-play connectors, but labeling each wire with tape or taking a photo can prevent confusion. Next, remove the screws holding the temperature control in place. Depending on the model, there may be two to four screws securing the unit to the refrigerator’s frame. After removing the screws, gently pull the control unit away from the mounting bracket, being mindful not to force it to avoid damaging surrounding components.
With the old temperature control removed, inspect the mounting area for any debris or residue. Clean the area with a soft cloth to ensure a proper fit for the new unit. Align the new temperature control with the mounting bracket and secure it with the screws previously removed. Reattach the wiring connectors, ensuring each plug is firmly seated. Double-check the connections to avoid loose wires that could cause malfunctions.
Before reassembling the control panel, test the new temperature control by plugging the refrigerator back in and adjusting the settings. Verify that the display responds correctly and the compressor cycles as expected. If the unit functions properly, replace the control panel cover and secure it with the screws removed earlier. Dispose of the old temperature control responsibly, following local electronic waste guidelines. This systematic approach ensures a smooth replacement process and restores your refrigerator’s functionality efficiently.
Refrigerator Disposal Dilemma: Bulk Trash or Bulk Recycle Explained
You may want to see also
Explore related products
Installing the New Control Unit
Before installing the new temperature control unit in your Whirlpool refrigerator, ensure you’ve disconnected the power supply to avoid electrical hazards. Begin by locating the control panel, typically found inside the refrigerator compartment or on the exterior top panel, depending on the model. Carefully remove the screws or clips holding the panel in place, and set them aside for reassembly. Once the panel is removed, you’ll see the old control unit connected to wiring harnesses and possibly a sensor. Label these connections with tape or take a photo to ensure accurate reinstallation.
The next step involves disconnecting the old control unit. Gently pull the wiring harnesses straight out of their ports—do not twist or force them, as this can damage the connectors. If the unit has a sensor, detach it by unscrewing the mounting bracket or releasing the clip holding it in place. Inspect the wiring and sensor for any signs of wear or damage; if issues are found, consider replacing these components as well. Once disconnected, remove the old control unit by unscrewing it from the mounting plate or sliding it out of its housing.
After installation, reassemble the control panel by reattaching the screws or clips you removed earlier. Restore power to the refrigerator and test the new control unit by adjusting the temperature settings. Observe the display for accurate readings and listen for the compressor to cycle on and off as expected. If the unit functions correctly, allow the refrigerator to stabilize for 24 hours before restocking it with food. Should any issues arise, such as unresponsive controls or erratic cooling, double-check the connections and consult the user manual or a professional technician for troubleshooting.
Finally, maintain the longevity of your new control unit by avoiding extreme temperature fluctuations and regularly cleaning the refrigerator’s interior. Keep the control panel free of debris and moisture to prevent electrical malfunctions. By following these steps and practicing routine maintenance, you’ll ensure your Whirlpool refrigerator operates efficiently and reliably for years to come.
Refrigerating Danish Dough: Optimal Storage Time and Tips
You may want to see also
Explore related products
Testing and Calibrating Temperature
Temperature control is the linchpin of refrigerator efficiency, ensuring food safety and energy conservation. After replacing a Whirlpool refrigerator’s temperature control, testing and calibrating the system is non-negotiable. Begin by setting the control to the manufacturer’s recommended temperature—typically 37°F (3°C) for the refrigerator and 0°F (-18°C) for the freezer. Place a high-precision digital thermometer in the center of each compartment, avoiding direct contact with walls or food items. Allow 24 hours for stabilization, as immediate readings can be misleading due to residual heat from installation or door openings.
Analyzing the results requires precision. If the refrigerator reads above 40°F (4°C) or the freezer above 5°F (-15°C), adjustments are necessary. Whirlpool models often feature a calibration screw on the control panel, accessible by removing the knob. Turning the screw clockwise lowers the temperature, while counterclockwise increases it. Adjust in quarter-turn increments, retesting after each change. Over-adjustment can lead to freezing in the refrigerator compartment or excessive energy consumption, so patience is critical.
Calibration is as much art as science, influenced by factors like ambient temperature, door frequency, and load size. For instance, a refrigerator in a hot kitchen may require a cooler setting than one in a climate-controlled space. Similarly, a fully stocked unit retains cold better than an empty one, necessitating minor tweaks. Keep a log of adjustments and temperatures to identify trends, ensuring long-term accuracy.
Practical tips streamline the process. Avoid testing during peak usage times, such as after grocery shopping, when added warmth from new items skews readings. Use a secondary thermometer for cross-verification, as built-in sensors can malfunction. If calibration fails to resolve issues, inspect the evaporator fan, door seals, and condenser coils for obstructions or damage. Proper calibration not only preserves food quality but also extends the appliance’s lifespan by reducing strain on components.
In conclusion, testing and calibrating temperature post-replacement is a meticulous task demanding attention to detail. By combining technical adjustments with environmental awareness, homeowners can optimize their Whirlpool refrigerator’s performance. This proactive approach ensures compliance with food safety standards while maximizing energy efficiency, making it a cornerstone of appliance maintenance.
Revive Your Refrigerated Avocado Seed: Creative Uses and Tips
You may want to see also
Frequently asked questions
You will typically need a Phillips screwdriver, a flathead screwdriver, and possibly a nut driver or wrench, depending on your model.
Locate the control panel, usually inside the refrigerator or on the exterior. Remove the screws or panel cover to access the temperature control unit.
Most Whirlpool refrigerator temperature controls can be replaced as a DIY project if you follow the manual or a step-by-step guide. However, if you’re unsure, consult a professional.
Replacement parts can be purchased from Whirlpool’s official website, authorized appliance parts dealers, or online retailers like Amazon or eBay. Ensure the part number matches your model.
