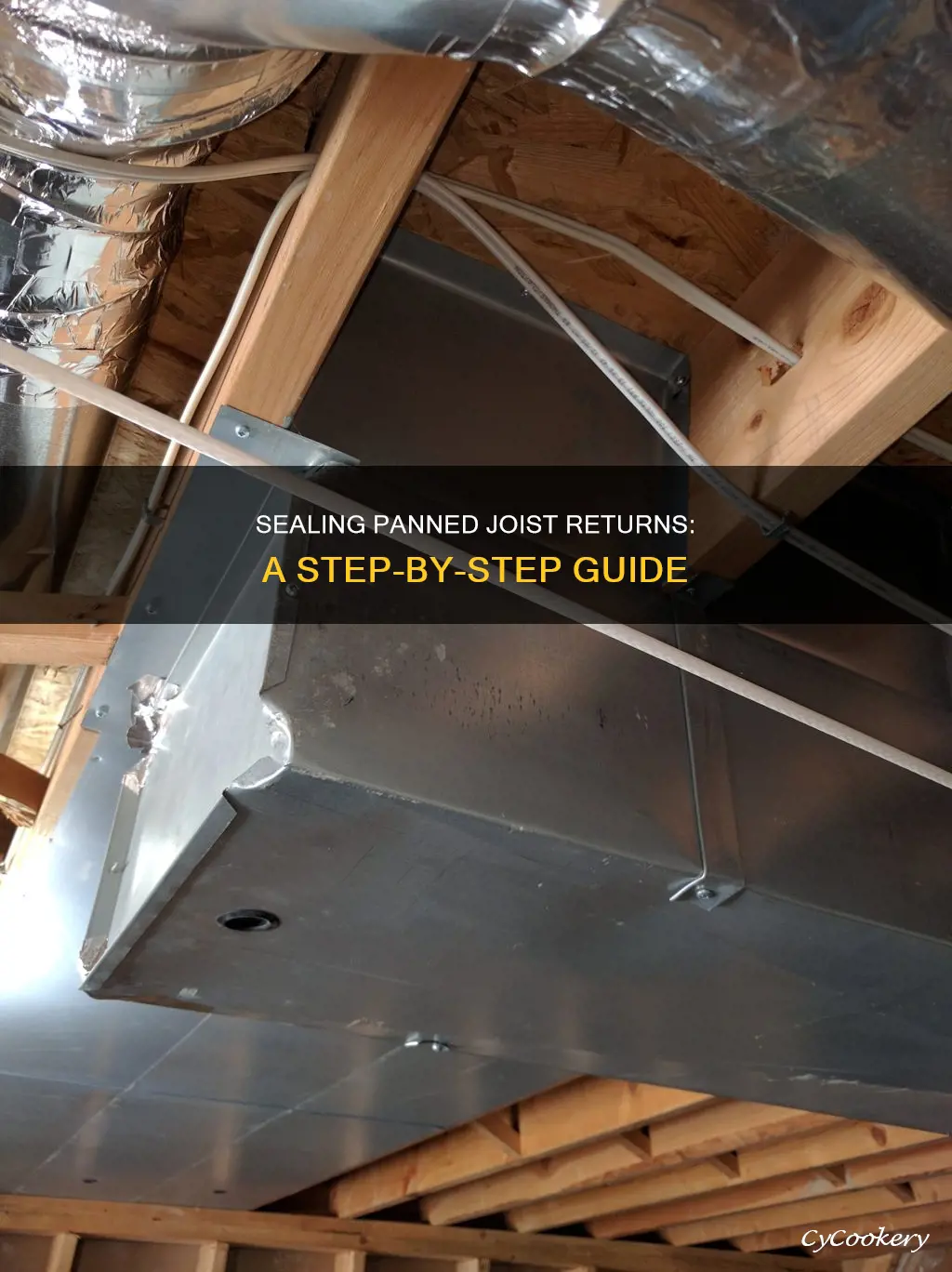

Panned joist returns are known to be leaky, and the sealing materials often fail due to the thermal expansion and contraction of the wood. The sealing process can be challenging, especially when there is restricted access to the ducts. However, sealing panned joist returns is essential to prevent air leaks and potential issues with mould and allergens. This can be done using duct mastic, foil tape, or caulk to seal the gaps between the metal and wood, as well as between the joists and the subfloor.
Explore related products
What You'll Learn
- Using caulk to seal the gaps between metal and wood
- Using duct mastic to seal the panned joist return duct
- Using foil tape to seal the gaps between the joists and sheet-metal pan
- Using a closed-cell foam, such as Armaflex, to prevent fibrous surfaces from trapping dust and mould spores
- Using foil-faced insulation board to line a joist bay, ensuring all joints are sealed with sealant or foil tape
Using caulk to seal the gaps between metal and wood
Caulking is a great way to seal the gaps between metal and wood. Caulks and sealants are used in metal construction to fill gaps and cracks, creating a barrier that prevents the passage of air, water, moisture, gas, noise, dust, and smoke.
To start, you will need to select the right type of caulk for your project. Caulks and sealants come in a variety of colours, as well as neutral white and clear. You can find a colour that matches the materials you are working with, or use a paintable caulk that can be colour-matched later. Clear caulk can also be used for a subtle look, but it's important to note that caulk doesn't dry to a hard finish and may catch and hold dirt and dust. Sanded caulk is ideal for wet surfaces and larger gaps, while unsanded caulk is recommended for filling tight joints and creating a clean finish.
For sealing gaps between metal and wood, you may want to consider a silicone sealant, which offers superior adhesion to common building materials such as glass, aluminium, wood, steel, vinyl, and masonry. Silicone sealants also provide excellent joint movement capabilities and can withstand temperatures as low as -20°F to -40°F. Alternatively, you can use a hybrid sealant, which combines the benefits of silicone and polyurethane, offering UV resistance and paintability.
Once you have selected the appropriate caulk or sealant, you can begin the sealing process. Ensure the area is clean and free of debris before applying the caulk. Using a caulk gun can help you achieve an even application. Fill the gaps between the metal and wood with the caulk, smoothing it out and removing any excess with a damp rag. Allow the caulk to dry and cure according to the manufacturer's instructions.
By following these steps and selecting the right type of caulk or sealant, you can effectively seal the gaps between metal and wood, creating a barrier that improves the airtightness and water resistance of your project.
Use Dryer Sheets to Clean Your Burnt Pans
You may want to see also
Explore related products
Using duct mastic to seal the panned joist return duct
Sealing a panned joist return duct can be a tricky task, especially if you're dealing with restricted access in your basement or attic. Here are some detailed instructions on how to use duct mastic to seal the panned joist return duct effectively:
Prepare the Area
Before applying duct mastic, it's essential to prepare the area thoroughly. Start by removing any end plates or obstructions that may hinder your access to the duct. Use a flashlight to inspect the duct for any gaps, leaks, or deformities. Ensure that the surface is clean and free of dust, debris, or moisture, as these can affect the adhesion of the mastic.
Apply Duct Mastic
Duct mastic is a versatile sealant that can be applied to the seams and connections of the panned joist return duct. It is effective in filling small gaps and holes, creating an airtight seal. Using a putty knife or a similar tool, carefully apply a thin layer of duct mastic to the desired areas. Ensure that you wear gloves and protective clothing to avoid any skin irritation.
Smooth and Cure the Mastic
Once you've applied the duct mastic, use your putty knife to smooth out the surface, removing any excess material. Allow the mastic to cure according to the manufacturer's instructions, which typically takes several hours or overnight. Duct mastic is known for its durability and flexibility, making it an ideal choice for sealing ducts in hard-to-reach areas.
Additional Tips
If you're dealing with larger gaps or cracks, you can reinforce the seal by applying foil tape over the mastic. Ensure that the surface is clean and dry before applying the tape, improving adhesion. Additionally, consider using an inspection camera or a webcam with a long USB cable to get a better view of hard-to-reach areas, helping you identify problem spots more easily.
Remember, sealing your panned joist return duct can significantly improve the efficiency of your HVAC system and the overall air quality in your home. Taking the time to do it right will pay off in the long run.
Caring for Your Calphalon Pans: Tips for Longevity
You may want to see also
Explore related products
Using foil tape to seal the gaps between the joists and sheet-metal pan
Sealing the gaps between the joists and sheet metal pan using foil tape is a simple and effective method. Foil tape is a versatile and reliable solution for sealing gaps in ductwork. It is important to ensure that the foil tape adheres well to the surface, especially if applying it to wood. The adhesive on foil tape is designed to be durable, making it an ideal choice for sealing ductwork.
Before applying the foil tape, it is recommended to clean the surface and ensure it is free of dust, debris, and moisture. This will help ensure a strong bond and prevent the tape from peeling off over time. Once the surface is prepared, cut the foil tape to the desired length and width, ensuring it covers the entire gap.
When applying the foil tape, start at one end of the gap and slowly smooth the tape onto the surface, working your way towards the other end. Apply firm pressure to the tape as you go to ensure a strong adhesion. It is important to avoid stretching the tape as this can weaken the adhesive.
For added reinforcement, you can apply a layer of mastic or caulk over the foil tape. This will create a stronger seal and help protect the tape from moisture and humidity. This is especially important if the ductwork is located in a crawl space or an area with high humidity levels.
By following these steps, you can effectively seal the gaps between the joists and sheet metal pan using foil tape, creating an airtight barrier that improves the efficiency of your HVAC system.
The Sizzling Secrets of Fondue: Uncovering the Perfect Melt
You may want to see also
Explore related products
Using a closed-cell foam, such as Armaflex, to prevent fibrous surfaces from trapping dust and mould spores
Sealing panned joist returns is a simple process that can be done using various materials. The most common materials used are HVAC mastic/fibre tape, sheet metal, foil-faced cardboard, and bubble insulation. However, these materials may not be the best option when it comes to preventing fibrous surfaces from trapping dust and mould spores.
Using a closed-cell foam, such as Armaflex, is a highly effective method to prevent fibrous surfaces from trapping dust and mould spores. Armaflex is a closed-cell elastomeric foam that provides exceptional thermal properties and is trusted by professionals in a wide range of sectors. Its built-in vapour barrier keeps moisture at bay, preventing condensation on surfaces and inhibiting mould growth. Armaflex's smooth surface also prevents the accumulation of dirt, another food source for mould.
Closed-cell foams are recommended by many experts for areas where humidity is likely to exceed 70%. Unlike fibrous glass insulation, closed-cell foam is less likely to encourage fungal growth. Fibrous-type materials are effective insulators due to their air pockets, but these pockets also make them prone to trapping and retaining dirt. Armaflex, in particular, has Microban antimicrobial protection and GREENGUARD Gold Certification, making it the best choice for preventing mould growth and VOCs.
Additionally, closed-cell foam is non-absorbent, fibre-free, and easy to clean, further reducing the potential for mould growth. It is also important to note that closed-cell foam won't absorb moisture, which is a common issue with fibre-based products. This makes closed-cell foam an excellent option for sealing panned joist returns in crawl spaces, where there is often high humidity.
While sealing panned joist returns with closed-cell foam, such as Armaflex, is a highly effective method, it is always recommended to investigate and understand the specific requirements and conditions of your space before selecting the appropriate sealing method and material.
Domino's: Why the Pan Pizza Exit?
You may want to see also
Explore related products
Using foil-faced insulation board to line a joist bay, ensuring all joints are sealed with sealant or foil tape
Sealing panned joist returns is a great way to improve the energy efficiency of your home. Foil-faced insulation boards are an excellent option for lining a joist bay, providing an effective barrier against heat transfer and helping to regulate the temperature in your home. Here's a step-by-step guide on how to use foil-faced insulation board to line a joist bay, ensuring all joints are sealed with sealant or foil tape:
First, prepare the joist bay area by removing any existing insulation or debris. It is essential to ensure that the area is clean and dry before installing the new insulation. If there are any gaps or cracks in the joists, you can fill them with caulk or a suitable sealant to create a smooth surface for the foil-faced insulation board to adhere to.
Next, measure the dimensions of the joist bay to determine the size of the foil-faced insulation board required. Foil-faced insulation boards are available in various thicknesses, so choose the one that best suits your needs and cut it to size if necessary. Some products, like EcoFoil, come in pre-cut widths that fit perfectly between floor joists, making the installation process easier.
Once you have the correctly sized foil-faced insulation board, it's time to install it in the joist bay. Start by placing the board against the joists, ensuring it covers the entire area. You can use a stapler to secure the board temporarily while you work, which is especially useful for products like Thermopan and EcoFoil. Make sure the foil side of the insulation board faces the room or area you want to keep insulated.
Now, it's time to seal the joints and seams of the foil-faced insulation board. You can use a sealant or foil tape to create an airtight barrier. If using sealant, apply a thin and even layer along the seams, smoothing it out to ensure proper adhesion. For foil tape, cut the tape to the desired length and firmly press it over the joints, ensuring it adheres to the foil surface of the insulation board. Pay attention to ensuring the tape is flat and properly adhered to maximize its effectiveness.
Finally, inspect your work to ensure all joints are adequately sealed and there are no gaps or cracks in the foil-faced insulation board installation. A proper installation should result in an airtight barrier that enhances the energy efficiency of your home, keeping the temperature regulated and reducing the strain on your HVAC system.
By following these steps and using foil-faced insulation board to line the joist bay, you can effectively seal panned joist returns, improving the overall comfort and energy efficiency of your home. Remember to take the necessary safety precautions and wear protective gear when working with sealants or insulation materials.
Cleaning Saucepan Exteriors: Tips for Sparkling Cookware
You may want to see also
Frequently asked questions
Materials such as duct mastic, caulk, foil tape, and Aeroseal can be used to seal a panned joist return.
To seal a panned joist return, you must first identify the gaps and leaks in the ductwork. After identifying the areas that need to be sealed, you can use the appropriate sealant or tape to fill in the gaps.
Sealing a panned joist return is important because it helps to prevent air leaks and improve the efficiency of your HVAC system. Additionally, sealing the ducts can help to prevent the growth of mould and fungi, as well as reduce the entry of contaminants such as dust, insects, and odours into the air supply.
If you are unable to seal the panned joist return effectively, you may need to consider replacing the ducts with true ducts or using a different type of insulation such as ductboard, closed-cell foam, or foil-faced insulation board.
