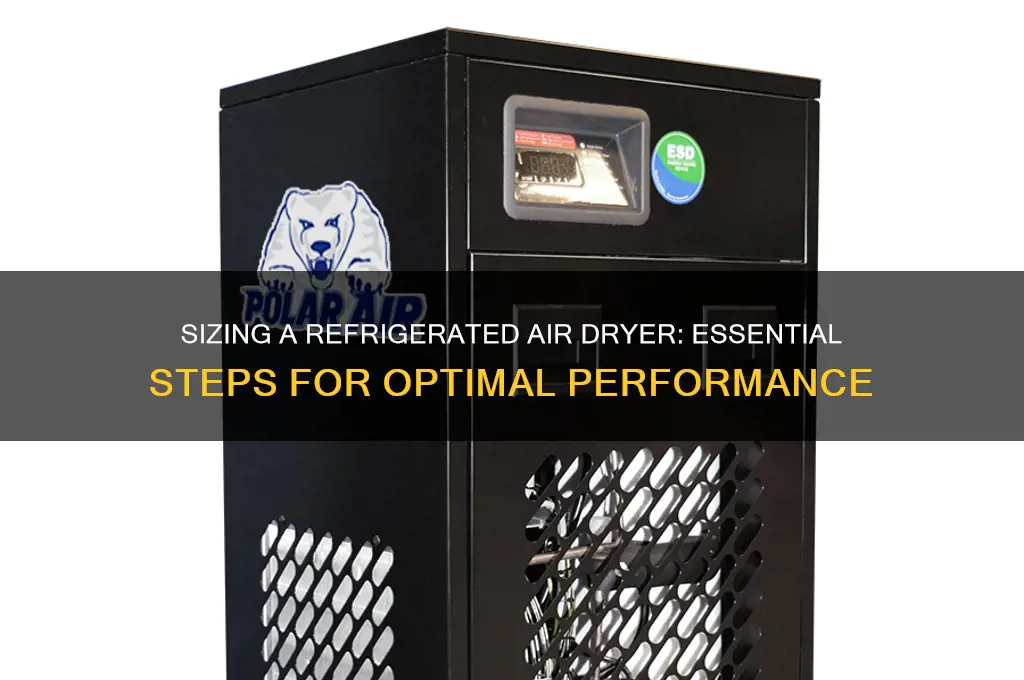

Sizing A Refrigerated Air Dryer: Essential Steps For Optimal Performance

Sizing a refrigerated air dryer is a critical step in ensuring the efficiency and reliability of compressed air systems, as it directly impacts the quality of the air and the overall performance of downstream equipment. The process involves calculating the required capacity based on factors such as the flow rate of compressed air, the desired dew point, inlet air temperature, and pressure. Proper sizing prevents issues like moisture contamination, which can lead to corrosion, reduced equipment lifespan, and compromised product quality. Key considerations include understanding the specific application, environmental conditions, and potential future expansion needs. Accurate sizing not only optimizes energy consumption but also minimizes maintenance costs and ensures consistent air quality, making it an essential aspect of any compressed air system design.

Refrigerated Air Dryer Sizing Characteristics

Determine Airflow Requirements: Calculate system CFM (cubic feet per minute) for accurate dryer sizing

Accurate sizing of a refrigerated air dryer begins with understanding your system’s airflow requirements, measured in cubic feet per minute (CFM). This metric is the backbone of dryer performance, ensuring it can handle the volume of air without compromising efficiency or dew point control. To calculate CFM, start by identifying the total air demand of your compressed air system. This includes all pneumatic tools, machinery, and processes that rely on the air supply. For instance, if your facility operates five air-powered tools requiring 10 CFM each and a production line consuming 50 CFM, the total demand is 100 CFM. However, this is just the starting point.

Next, account for system inefficiencies and future expansion. A common rule of thumb is to add 20–30% to your calculated CFM to accommodate leaks, pressure drops, and potential growth. For example, a 100 CFM system should be sized for 120–130 CFM. Failing to include this buffer can lead to oversaturation, inadequate drying, and increased maintenance costs. Additionally, consider peak demand periods—if your system occasionally spikes to 150 CFM, size the dryer for this maximum, not the average.

The calculation method varies depending on system complexity. For simple setups, use the formula: *CFM = (Total Equipment CFM) × (1 + Buffer Percentage)*. For more intricate systems, consult manufacturer guidelines or use specialized software that factors in variables like pipe diameter, pressure, and temperature. For example, a 1-inch pipe at 100 PSI and 100°F has a different CFM capacity than a 2-inch pipe under the same conditions. Precision here prevents undersizing, which can lead to moisture carryover, or oversizing, which wastes energy.

Practical tips can streamline this process. First, measure actual CFM using a flow meter if possible—theoretical calculations often overestimate demand. Second, prioritize data from peak operating hours, as off-peak measurements may skew results. Finally, involve a compressed air specialist if your system includes variable speed drives or multiple compressors, as these add layers of complexity. Proper CFM calculation isn’t just about numbers; it’s about aligning dryer capacity with real-world demands for optimal performance and longevity.

Pressure Dew Point Needs: Identify required dew point to prevent moisture-related issues

Moisture in compressed air systems can wreak havoc, causing corrosion, clogging valves, and damaging pneumatic tools. Understanding your required pressure dew point is the first line of defense. This critical temperature represents the point at which water vapor condenses into liquid within your compressed air system at a specific operating pressure.

Determining Your Dew Point Threshold:

Think of your application as a detective story. What are the vulnerabilities? Are you powering sensitive electronics where even trace moisture is detrimental? Or are you running heavy-duty machinery where occasional condensation is tolerable? Industry standards often provide a starting point. For instance, ISO 8573-1 classifies air quality, with Class 2 requiring a dew point of -40°C (-40°F) or lower for critical applications. However, don't rely solely on standards. Consider your unique environment. High humidity regions demand lower dew points to combat ambient moisture infiltration.

Measuring Dew Point:

Don't guess – measure. Invest in a reliable dew point analyzer to accurately assess your system's performance. These devices directly measure the dew point temperature, providing a clear picture of your compressed air quality. Regular monitoring allows you to identify trends, detect leaks, and ensure your dryer is operating effectively.

Consequences of Ignoring Dew Point:

Neglecting dew point control is a recipe for disaster. Moisture can lead to rust formation in pipelines, freezing in pneumatic lines during winter, and even microbial growth in stagnant air pockets. The resulting downtime, repairs, and potential safety hazards far outweigh the cost of proper dew point management.

Selecting the Right Dryer:

Once you've determined your required dew point, you can confidently select a refrigerated air dryer with the appropriate capacity. Remember, the dryer's dew point rating should be lower than your target to account for real-world operating conditions and potential fluctuations.

Inlet Conditions: Account for inlet temperature and pressure variations in sizing

Inlet temperature and pressure are critical variables that directly impact the performance and efficiency of a refrigerated air dryer. Ignoring these variations can lead to oversizing or undersizing the unit, resulting in wasted energy, inadequate dew point control, or even equipment failure. For instance, an air compressor operating in a hot, humid environment will discharge air at a higher temperature and pressure than one in a cooler, drier climate. This disparity must be accounted for during the sizing process to ensure the dryer can handle the maximum expected load without compromising performance.

To accurately size a refrigerated air dryer, begin by determining the range of inlet temperature and pressure conditions the system will encounter. Consult the air compressor's specifications and consider the ambient conditions of the operating environment. For example, if the compressor's discharge temperature ranges from 120°F to 160°F and the pressure varies between 100 psig and 120 psig, these values should be used as the basis for sizing calculations. Keep in mind that safety factors, such as a 10-15% margin for temperature and pressure fluctuations, should be incorporated to account for unexpected variations.

A common mistake in sizing refrigerated air dryers is assuming a constant inlet temperature and pressure. In reality, these parameters can fluctuate significantly due to changes in ambient conditions, compressor load, and system demand. To avoid this pitfall, use a load-weighted average approach, where the dryer is sized based on the expected distribution of inlet conditions. For instance, if the system operates at 140°F and 110 psig for 70% of the time, and at 160°F and 120 psig for the remaining 30%, calculate the weighted average inlet temperature and pressure to determine the appropriate dryer size.

When accounting for inlet temperature and pressure variations, consider the impact on the dryer's cooling capacity and pressure drop. Higher inlet temperatures require more cooling capacity to achieve the desired dew point, while higher pressures increase the load on the dryer's components. To mitigate these effects, select a dryer with a capacity that exceeds the calculated requirements by 10-20%. This buffer ensures the unit can handle peak loads and maintains efficient operation across the full range of inlet conditions. Additionally, ensure the dryer's pressure drop is within acceptable limits (typically <3 psid) to minimize energy losses and maintain system performance.

In practice, use the following steps to account for inlet temperature and pressure variations: (1) Gather data on the compressor's discharge temperature and pressure range; (2) Determine the ambient conditions and their impact on inlet parameters; (3) Calculate the load-weighted average inlet temperature and pressure; (4) Select a dryer with a capacity that exceeds the calculated requirements by 10-20%; and (5) Verify the dryer's pressure drop and ensure it meets system specifications. By following these guidelines, you can accurately size a refrigerated air dryer that delivers reliable performance, even under varying inlet conditions.

Load Factor Considerations: Factor in duty cycle and peak demand for reliable operation

Sizing a refrigerated air dryer without accounting for load factor is like building a bridge without considering traffic volume—it risks inefficiency, failure, or unnecessary expense. Load factor, the ratio of average load to peak load, directly impacts dryer performance and longevity. A system sized only for peak demand but operating at partial load most of the time wastes energy and accelerates wear on components like compressors and heat exchangers. Conversely, undersizing for peak demand leads to inadequate dew point control, risking moisture contamination in compressed air systems.

To accurately factor in duty cycle, analyze the operational pattern of your compressed air system. For instance, a manufacturing plant running 24/7 at 80% capacity has a different load profile than a facility operating in 8-hour shifts with sporadic peak usage. Calculate the average airflow demand over time, then identify the maximum instantaneous demand during peak periods. For example, if a system averages 500 CFM but spikes to 750 CFM for 2 hours daily, the dryer must handle 750 CFM without compromising dew point, but its energy efficiency should align with the 500 CFM average.

Peak demand is non-negotiable—the dryer must meet or exceed this requirement to prevent moisture carryover. However, oversizing solely for peak demand can lead to short-cycling, where the dryer’s refrigeration system turns on and off frequently, increasing wear and reducing efficiency. A practical approach is to select a dryer with a capacity 10–15% above peak demand to account for safety margins and future expansion. For example, if peak demand is 750 CFM, consider an 850 CFM dryer. Pair this with a variable-speed drive or dual-control system to modulate capacity based on actual demand, ensuring energy efficiency during partial-load operation.

Duty cycle analysis also informs maintenance schedules and component selection. A dryer operating at high load factors (e.g., 85% or more) will experience faster degradation of filters, separators, and refrigeration components. Schedule maintenance intervals based on operational hours and load intensity—for instance, replace filters every 3,000 hours in high-load applications versus 6,000 hours in low-load scenarios. Additionally, opt for industrial-grade components rated for continuous duty if the system operates at high load factors, even if it means a higher upfront cost.

In summary, load factor considerations are critical for balancing reliability, efficiency, and cost in refrigerated air dryer sizing. By meticulously analyzing duty cycle and peak demand, you can avoid the pitfalls of oversizing or undersizing, ensuring the system delivers consistent dew point control while minimizing energy consumption and maintenance costs. Treat load factor as a dynamic parameter, not a static number, and design the system to adapt to operational variability for long-term performance.

Safety Margins: Include buffer capacity to handle unexpected increases in airflow

Airflow demands rarely remain static, and a dryer sized precisely for current needs risks failure when conditions change. Incorporating a safety margin of 20-30% above calculated requirements ensures the system can handle spikes from equipment upgrades, production surges, or leaks without compromising dew point performance. This buffer capacity acts as an insurance policy against the unpredictable, safeguarding both the dryer's longevity and the quality of compressed air.

Consider a manufacturing facility with a calculated airflow demand of 1,000 scfm. A dryer sized exactly for this load would operate at maximum capacity, leaving no room for error. However, if a new production line increases demand to 1,150 scfm, the dryer would be overwhelmed, leading to elevated dew points and potential moisture contamination downstream. By sizing the dryer for 1,200 scfm (a 20% safety margin), the system can accommodate this increase without performance degradation.

The consequences of neglecting safety margins extend beyond temporary inefficiencies. Overworked dryers experience accelerated wear on components like heat exchangers and refrigeration systems, leading to premature failure and costly repairs. Moreover, moisture carryover from an undersized dryer can damage pneumatic tools, corrode pipelines, and compromise the integrity of finished products, particularly in industries like pharmaceuticals or food processing where air quality is critical.

Determining the appropriate safety margin requires a nuanced understanding of the application. Facilities with highly variable airflow, such as those with intermittent processes or seasonal production peaks, may require a larger buffer (up to 30%) compared to those with stable, predictable demands. Consulting with a compressed air specialist can help identify potential future expansions or process changes that might impact airflow, ensuring the safety margin is both adequate and cost-effective.

Incorporating a safety margin is not merely a precautionary measure but a strategic investment in system reliability and long-term cost savings. While it may increase upfront costs, the expense pales in comparison to the financial and operational repercussions of downtime, equipment damage, or product recalls caused by inadequate drying capacity. By planning for the unexpected, engineers can ensure a robust and resilient compressed air system capable of meeting current and future demands.
