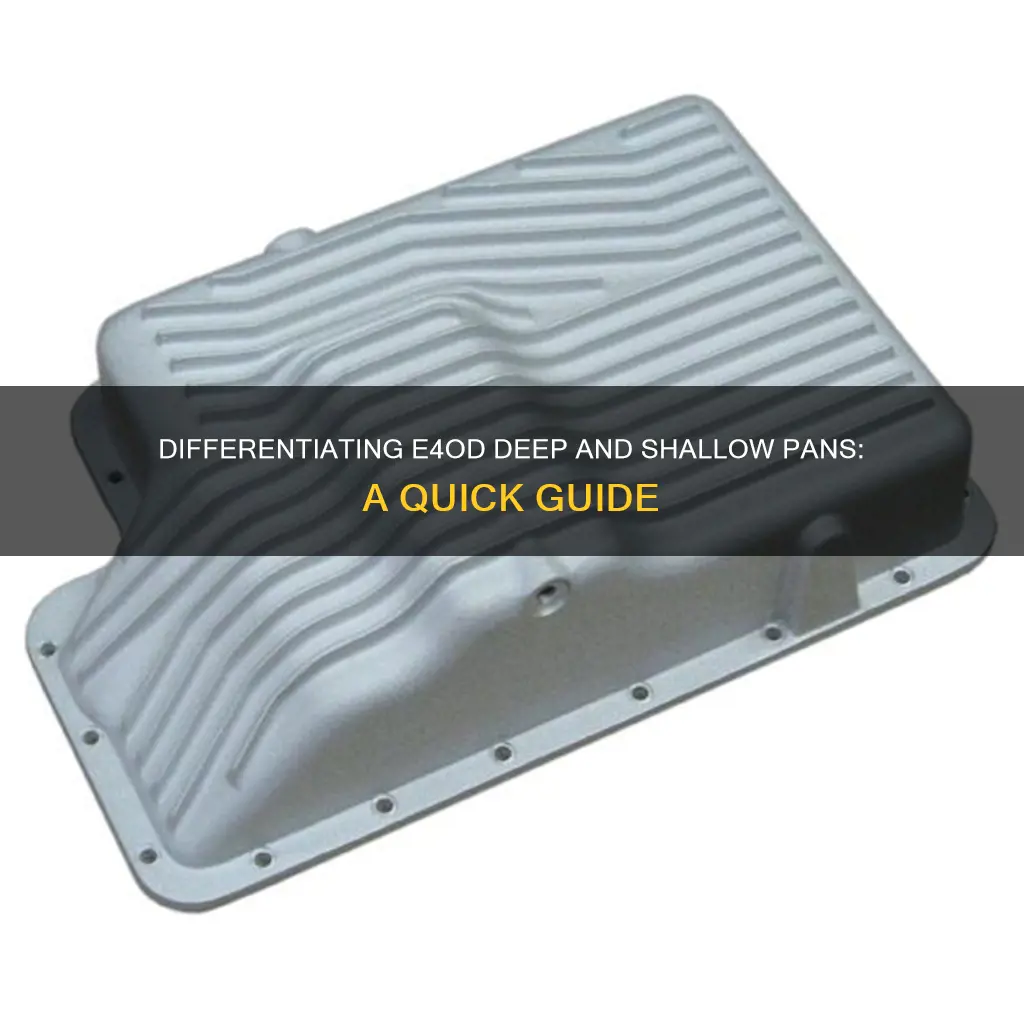

The E4OD transmission system has two types of oil pans: a deep pan and a shallow pan. The deep pan is found on 4x4 trucks, while the shallow pan is found on 2WD trucks. The difference between the two is the length of the spout that sticks off the bottom of the filter. The shallow pan has a shorter tube of about half an inch or slightly longer, while the deep pan has a longer tube of about 2-3 inches. The deep pan also holds almost a gallon more fluid than the 2WD pan.
Explore related products
What You'll Learn
The shallow pan is for 2WD, the deep pan for 4WD
The E4OD transmission system has two types of pans: a shallow pan and a deep pan. The shallow pan is for 2WD trucks, while the deep pan is for 4WD trucks. This means that if you own a 2WD truck, you will need a shallow pan, and if you own a 4WD truck, you will need a deep pan.
The main difference between the two pans is the length of the spout or tube that sticks off the bottom of the filter. The shallow pan will have a shorter tube of about half an inch or slightly longer, while the deep pan for 4WD will have a longer tube of about 2-3 inches. This longer tube is necessary to reach the extra depth of the pan.
The shallow pan is typically found on 2WD trucks because it does not need to hold as much fluid as the deep pan. The deep pan, on the other hand, is designed to hold almost a gallon more fluid than the 2WD pan. This additional fluid is necessary for the 4WD system, which has more complex mechanics and requires more fluid to function properly.
It is important to note that while the depth of the pan and the length of the tube are the most noticeable differences, there may be other subtle variations between the two pans. For example, the deep pan may have additional features such as a drain plug, a boss for trans temp, and an O-ring instead of a gasket. These features may not be present on the shallow pan, as they are not as crucial for the 2WD system.
Oil Pan Gasket Replacement: DIY or Call a Mechanic at 250?
You may want to see also
Explore related products
Shallow pans have a shorter spout, deep pans a longer one
When it comes to differentiating between the E4OD deep and shallow pans, one distinctive feature to look out for is the length of the spout. Shallow pans typically have a shorter spout, while deep pans are characterised by a longer one. This difference in spout length is a crucial indicator of whether you have a 2WD or 4WD vehicle.
The shallow pan, with its shorter spout of about half an inch or slightly more, is commonly found on 2WD vehicles. This shorter tube protrudes from the bottom of the filter, and its length is a key distinguishing factor from its deep pan counterpart.
On the other hand, the deep pan is designed for 4x4 trucks and features a significantly longer spout, typically measuring 2 to 3 inches. This extended length allows the tube to reach deeper into the pan, accommodating the increased depth of the 4WD pan.
While the spout length is a defining feature, it's worth noting that beyond this, the two pans may appear visually similar. However, there are other functional differences to consider. For instance, the deep pan can hold almost a gallon more fluid than its 2WD equivalent, which can impact cooling performance.
In summary, when distinguishing between the E4OD deep and shallow pans, pay close attention to the spout length. The shallow pan for 2WD vehicles will present a noticeably shorter spout, while the deep pan for 4WD trucks will offer a more extended tube to accommodate the deeper pan. This difference in spout length is a quick and effective way to identify which pan you are dealing with.
