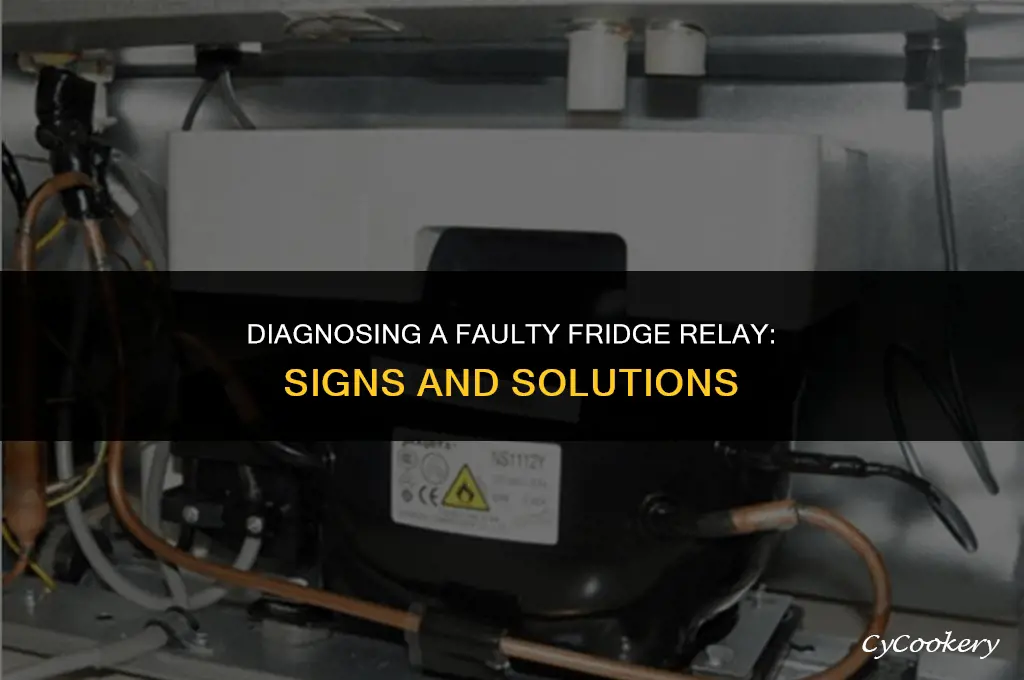

A refrigerator relay is a crucial component that regulates the power supply to the fridge's compressor and other electrical parts. Over time, relays can wear out or malfunction, leading to issues such as the refrigerator not cooling properly or failing to start altogether. To determine if a refrigerator relay is bad, you can perform a few simple tests. First, check for any visible signs of damage or corrosion on the relay itself. Next, use a multimeter to test the relay's resistance and ensure it matches the manufacturer's specifications. Additionally, you can listen for a clicking sound when the fridge is turned on, which indicates the relay is functioning. If the relay is not clicking or the resistance readings are off, it may be time to replace the relay to restore your refrigerator's proper functioning.
| Characteristics | Values |
|---|---|
| Relay Type | The refrigerator relay is typically a 120VAC, 60Hz, 1/4HP (Horsepower) relay. |
| Relay Location | Usually found on the back or side of the refrigerator, near the compressor. |
| Relay Appearance | Small, rectangular or cube-shaped component with multiple wires connected. |
| Relay Function | Acts as a switch to control the power supply to the refrigerator's compressor and fans. |
| Common Issues | Faulty connections, burnt or melted components, clicking sounds, continuous humming. |
| Testing Method | Use a multimeter to check for continuity and resistance in the relay's coils and contacts. |
| Continuity Test | Set the multimeter to the continuity setting (often marked with a sound wave symbol). Touch the probes to the relay's terminals; a continuous beep indicates a good connection. |
| Resistance Test | Set the multimeter to measure resistance (measured in Ohms). Touch the probes to the relay's terminals; a low resistance value (typically less than 100 Ohms) indicates a good coil. |
| Visual Inspection | Look for signs of physical damage, overheating, or corrosion on the relay and its connections. |
| Listening Test | If the relay is suspected to be bad, listen for unusual sounds like continuous humming or clicking when the refrigerator is running. |
| Replacement | If the relay is found to be faulty, it should be replaced with a compatible model specific to the refrigerator brand and type. |
| Safety Precautions | Always unplug the refrigerator before attempting to test or replace the relay to avoid electrical shock. |
| Tools Required | Multimeter, screwdriver, wire strippers (if necessary). |
| Difficulty Level | Intermediate; requires basic knowledge of electrical components and testing procedures. |
| Estimated Time | 30 minutes to 1 hour, depending on the accessibility of the relay and the extent of testing required. |
Explore related products
What You'll Learn
- Visual Inspection: Check for signs of wear, discoloration, or damage on the relay's exterior
- Continuity Test: Use a multimeter to test if there's continuous electrical flow through the relay
- Resistance Check: Measure the resistance of the relay's coil to ensure it's within the specified range
- Listening for Clicking: A functioning relay should make a clicking sound when activated; listen for this noise
- Temperature Check: Feel the relay's temperature; it shouldn't be excessively hot during operation
Visual Inspection: Check for signs of wear, discoloration, or damage on the relay's exterior
Begin the visual inspection by unplugging the refrigerator to ensure safety. Locate the relay, typically found on the back or side of the fridge, and remove its cover if necessary. Look for any obvious signs of physical damage such as cracks, burns, or melted plastic. These could indicate overheating or electrical failure. Next, inspect the relay for discoloration, which might appear as dark spots or a general dulling of the plastic casing. Discoloration can be a sign of prolonged exposure to heat or electrical arcing. Check the relay's terminals for signs of corrosion or excessive wear. Corroded terminals can lead to poor electrical connections and relay failure. Finally, examine the relay's coil for any visible breaks or deformities. A damaged coil can prevent the relay from operating correctly. If any of these signs are present, it's likely that the relay is bad and should be replaced.
