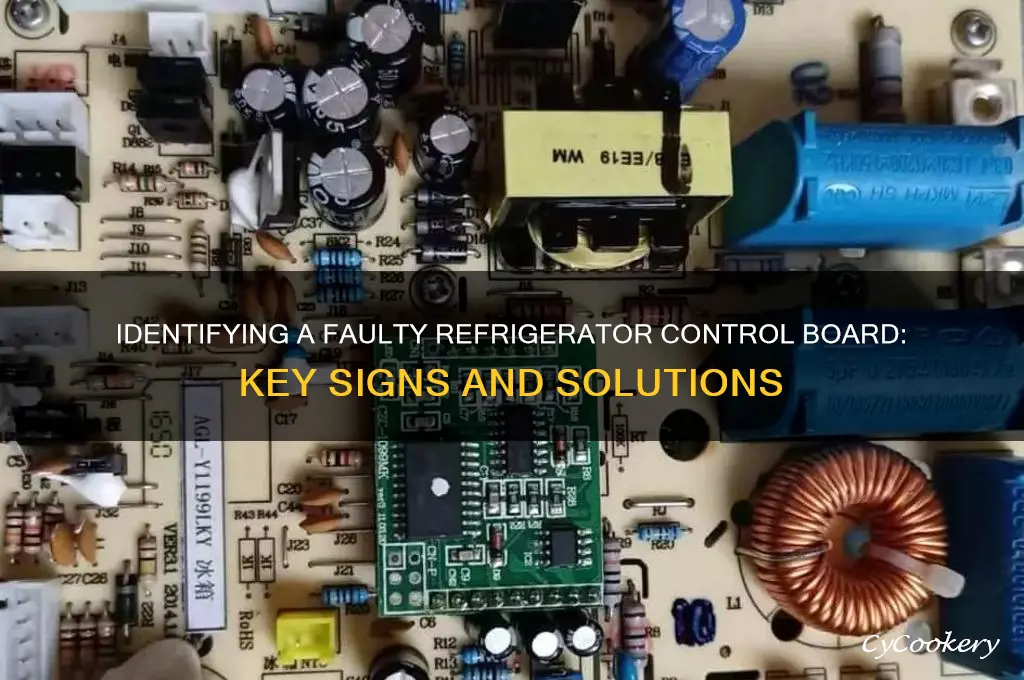

Identifying a faulty refrigerator control board is crucial for maintaining optimal appliance performance. Common signs of a malfunctioning control board include inconsistent temperature regulation, unresponsive digital displays, or unusual noises from the refrigerator. Additionally, if the ice maker or water dispenser stops working, or if the refrigerator cycles on and off frequently, the control board may be to blame. To diagnose the issue, start by checking for visible damage, such as burnt components or loose connections, and consider using a multimeter to test for continuity. If these symptoms persist, consulting a professional or replacing the control board may be necessary to restore proper functionality.
Explore related products
What You'll Learn
Common Symptoms of a Faulty Control Board
A refrigerator’s control board acts as its brain, regulating temperature, defrost cycles, and compressor operation. When it malfunctions, the appliance’s performance suffers in predictable ways. One telltale sign is inconsistent cooling, where the fridge or freezer compartment fails to maintain set temperatures despite no issues with airflow or door seals. For instance, if your fridge fluctuates between 38°F and 50°F within hours, the control board may be misreading sensor inputs or failing to activate the compressor properly. This symptom often worsens over time, leading to spoiled food and energy inefficiency.
Another red flag is erratic behavior in the refrigerator’s display panel or controls. Blank screens, unresponsive buttons, or error codes like "Er" or "CF" (common in LG or Whirlpool models) suggest a control board issue. These glitches occur when the board’s circuitry fails to communicate with other components or when its memory chip corrupts. If resetting the breaker or unplugging the fridge for 5 minutes doesn’t resolve the issue, the board likely needs replacement. Note: Error codes vary by brand, so consult your manual or manufacturer’s website for specific interpretations.
Unusual noises or cycles can also point to a faulty control board. For example, if the compressor runs continuously without cycling off, or if the defrost heater activates at odd intervals, the board may be misinterpreting temperature data. Similarly, clicking sounds from the control panel area (often heard when relays fail to engage) indicate an electrical issue within the board. These anomalies not only disrupt normal operation but can also shorten the lifespan of connected components like the compressor or evaporator fan.
Lastly, a complete loss of power to the fridge, despite confirmed electrical supply, often stems from a control board failure. This occurs when the board’s power regulator burns out or its internal fuse blows, cutting off communication between the main control unit and the appliance’s systems. Before assuming the worst, check the outlet with another device and inspect the fridge’s power cord for damage. If both are functional, the control board is the likely culprit. Replacement typically costs $100–$300 in parts, plus labor if not self-installed.
Cooling Cheesecake: Should You Let It Rest Before Refrigerating?
You may want to see also
Explore related products
Testing the Control Board for Continuity
A faulty refrigerator control board can manifest in various ways, from inconsistent temperatures to unresponsive displays. One of the most reliable methods to diagnose this issue is by testing the control board for continuity. Continuity testing checks if an electrical path is complete, ensuring the board’s circuits are functioning as intended. This process requires a multimeter, a tool that measures voltage, current, and resistance, and is essential for pinpointing whether the control board is the root of your refrigerator’s problems.
To begin testing for continuity, first unplug the refrigerator to ensure safety. Locate the control board, typically found behind the refrigerator’s control panel or inside the main compartment. Disconnect the wiring harness from the board, taking note of the connections to avoid confusion later. Set your multimeter to the continuity or resistance setting, often denoted by a diode symbol or the word "ohms." Touch the multimeter probes to the corresponding terminals on the control board, following the manufacturer’s diagram or a reliable guide. A beep or a low resistance reading indicates continuity, meaning the circuit is intact.
While testing, pay attention to specific circuits that control critical functions, such as the compressor, defrost system, or fan. For example, if the refrigerator isn’t cooling, test the circuit connected to the compressor relay. A lack of continuity here suggests a faulty relay or a broken trace on the board. Similarly, if the defrost cycle isn’t working, check the defrost heater circuit. Systematic testing of these key components can isolate the problem area, saving time and unnecessary part replacements.
Caution is essential during this process. Avoid touching exposed circuitry with your hands to prevent static discharge, which can damage sensitive components. If you’re unsure about any step, consult a professional or refer to detailed tutorials specific to your refrigerator model. Misdiagnosis can lead to unnecessary expenses or further damage. Continuity testing is a precise method, but it requires patience and attention to detail to yield accurate results.
In conclusion, testing the control board for continuity is a straightforward yet powerful diagnostic technique. By methodically checking each circuit, you can determine whether the control board is functioning correctly or needs replacement. This approach not only saves money but also provides a deeper understanding of your refrigerator’s inner workings. Armed with a multimeter and the right knowledge, you can tackle this task with confidence, ensuring your appliance operates efficiently for years to come.
Refrigerating Pita Dough: Optimal Storage Time and Freshness Tips
You may want to see also
Explore related products
Visual Signs of Damage or Burn Marks
One of the most straightforward ways to identify a failing refrigerator control board is by inspecting it for visual signs of damage or burn marks. These indicators often manifest as discolored areas, charred components, or melted plastic around the circuit board. Such damage typically results from electrical surges, overheating, or component failure. If you notice any of these signs, it’s a strong signal that the control board is compromised and likely needs replacement. Always unplug the refrigerator before attempting an inspection to avoid electrical hazards.
Burn marks on a control board are not just unsightly—they’re diagnostic gold. For instance, darkened areas around resistors or capacitors suggest these components have overheated, potentially due to excessive current or a short circuit. Similarly, melted solder joints or warped circuitry indicate prolonged exposure to high temperatures. These issues can disrupt the board’s ability to regulate temperature, defrost cycles, or compressor operation. If you spot such damage, compare it to online images of healthy control boards to confirm your suspicions before proceeding with repairs.
While visual damage is a clear red flag, not all issues are immediately obvious. Subtle signs like faint browning on the board’s surface or minor blistering around components can still indicate trouble. Use a magnifying glass and bright light to scrutinize the board thoroughly. Pay particular attention to areas near high-power components like relays or transformers, as these are prone to overheating. If you’re unsure, consult a professional technician to avoid misdiagnosis, as replacing a control board unnecessarily can be costly.
Preventing burn marks and damage starts with proper maintenance and surge protection. Install a surge protector specifically designed for refrigerators to shield the control board from voltage spikes. Regularly clean the condenser coils to ensure adequate airflow and prevent overheating. If your refrigerator is over 10 years old, consider proactive replacement of the control board, as older units are more susceptible to failure. These steps can extend the life of your appliance and save you from unexpected breakdowns.
Why Tilting Your Refrigerator Is a Big No-No: Explained
You may want to see also
Explore related products
Diagnosing Power Supply Issues to the Board
A refrigerator control board relies heavily on a consistent power supply to function correctly. If your fridge is acting erratically—displaying error codes, failing to cool, or cycling on and off unpredictably—the power supply to the board might be compromised. Start by checking the outlet. Use a multimeter to verify that the outlet is delivering the correct voltage (typically 120V in the U.S.). A voltage drop below 108V or a spike above 132V can cause the board to malfunction without triggering a complete failure, leading to intermittent issues.
Next, inspect the wiring harness connecting the power source to the control board. Over time, wires can fray, connections can loosen, or corrosion can build up, disrupting the flow of electricity. Gently tug on each wire to ensure they’re securely seated in the harness. Look for burn marks, melted plastic, or discoloration, which indicate overheating. If you find damaged wires, replace the harness rather than attempting a repair, as makeshift fixes often lead to recurring problems.
The control board itself may have built-in diagnostic LEDs or error codes that signal power supply issues. Consult your refrigerator’s manual to decode these indicators. For instance, a blinking LED pattern might mean the board isn’t receiving adequate power. If the board lacks visible diagnostics, use a multimeter to test the input voltage at the board’s power terminals. A reading significantly lower than the expected 12V or 24V (depending on the model) suggests a problem upstream, such as a faulty transformer or relay.
Don’t overlook the transformer, which steps down household voltage to the level required by the control board. Transformers can fail silently, showing no external signs of damage. If the multimeter shows no voltage at the board’s input but confirms power at the outlet, the transformer is a likely culprit. Replacement transformers are model-specific, so have your refrigerator’s make and model number ready when sourcing a new one.
Finally, consider environmental factors. Power surges from lightning strikes or grid instability can damage control boards instantly or degrade their performance over time. If your fridge’s issues began after a storm or power outage, the board may have sustained surge-related damage. Installing a surge protector designed for refrigerators can prevent future occurrences. While this won’t fix existing damage, it’s a cost-effective measure to protect your investment.
Refrigerating Homemade Biscuit Dough: Tips for Fresh, Flaky Biscuits
You may want to see also
Explore related products
When to Replace vs. Repair the Control Board
A malfunctioning refrigerator control board can manifest in various ways, from inconsistent temperatures to error codes flashing on the display. Before deciding whether to repair or replace, assess the symptoms and the board’s condition. Minor issues like loose connections or corrupted firmware may only require a reset or reprogramming, which can be done with a technician’s help or by following manufacturer guidelines. However, if the board shows physical damage, such as burnt components or corrosion, repair is often futile, and replacement becomes the more practical choice.
When considering repair, evaluate the age and model of your refrigerator. Control boards in units less than five years old may be worth fixing, especially if the issue is isolated. For older models, however, the cost of repair can approach or exceed the price of a new board. Additionally, some older boards may be obsolete, making replacement parts hard to find. In such cases, investing in a new control board—or even a new refrigerator—may be more cost-effective in the long run.
Replacement is often the better option when the control board fails repeatedly or if the issue affects multiple functions, such as defrost cycles or compressor operation. Modern control boards are designed to be more durable and energy-efficient, offering long-term reliability. When replacing, ensure compatibility by matching the part number and specifications with your refrigerator model. DIY installation is possible for those with technical skills, but hiring a professional ensures proper setup and avoids voiding warranties.
Finally, weigh the environmental impact of your decision. Repairing extends the life of your appliance and reduces electronic waste, aligning with sustainable practices. However, if the refrigerator is nearing the end of its lifespan (typically 10–15 years), replacing the control board might only delay inevitable issues. In such scenarios, investing in a new, energy-efficient refrigerator could save money on repairs and utility bills while minimizing environmental harm.
Troubleshooting Persistent Refrigerant Leaks: Expert Tips to Locate Hidden Issues
You may want to see also
Frequently asked questions
Look for symptoms like the refrigerator not cooling, erratic temperature control, unresponsive display or buttons, or unusual noises from the control board area.
Common signs include the compressor not turning on, the fan not running, error codes on the display, or the refrigerator cycling on and off frequently.
Yes, a faulty control board can prevent the compressor or fans from functioning properly, resulting in the refrigerator not cooling at all.
Use a multimeter to check for continuity in the board’s components, inspect for burnt marks or damage, or consult a professional to diagnose the issue accurately.
