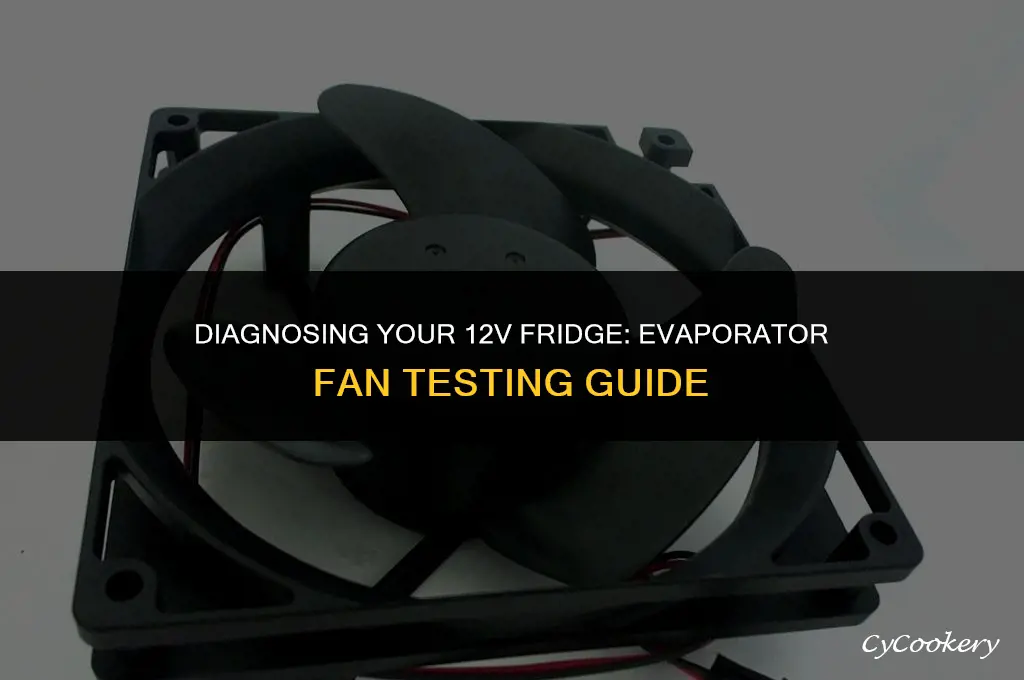

To test a 12-volt refrigerator evaporator fan, begin by ensuring the refrigerator is unplugged and the fan has cooled down to avoid any electrical hazards or burns. Locate the evaporator fan, typically found at the back of the refrigerator near the condenser coils. Disconnect the fan from its power source, and using a multimeter set to the appropriate voltage setting, touch the probes to the fan's terminals. If the fan is functioning correctly, the multimeter should display a reading of approximately 12 volts. If no voltage is detected, inspect the fan's wiring and connections for any signs of damage or loose connections. If the wiring appears intact, the issue may lie with the refrigerator's power supply or a faulty fan motor, which would require further investigation or replacement.
Explore related products
What You'll Learn
- Preparation: Gather necessary tools and safety equipment. Ensure the refrigerator is unplugged and accessible
- Removal: Carefully remove the evaporator fan from the refrigerator. Consult the user manual for specific steps
- Inspection: Examine the fan blades and motor for damage or debris. Clean if necessary
- Testing: Use a multimeter to check for continuity and proper voltage. Ensure the fan spins freely
- Reinstallation: Once testing is complete, securely reinstall the evaporator fan. Plug in the refrigerator and monitor performance
Preparation: Gather necessary tools and safety equipment. Ensure the refrigerator is unplugged and accessible
Before beginning the process of testing a 12-volt refrigerator evaporator fan, it is crucial to prepare adequately to ensure safety and efficiency. The first step involves gathering all the necessary tools and safety equipment. This typically includes a multimeter for electrical testing, screwdrivers for disassembly, and safety gloves to protect your hands. Additionally, having a well-lit workspace and a stable surface to work on is essential.
Once you have assembled your tools, the next critical step is to ensure the refrigerator is unplugged and accessible. This is a vital safety measure to prevent any electrical shocks during the testing process. Make sure the refrigerator is completely disconnected from the power source and that there is no risk of it being accidentally turned on.
With the refrigerator unplugged, you should also take the time to clear the area around it. Remove any items that might obstruct your access to the evaporator fan or pose a tripping hazard. This will help create a safer and more efficient working environment.
Before proceeding, it is also important to familiarize yourself with the specific model of your refrigerator. Different models may have unique features or requirements, so consulting the user manual or manufacturer's guidelines can provide valuable insights. This preparation will help you avoid any potential mistakes and ensure that you are following the correct procedures for your particular refrigerator.
In summary, thorough preparation is key when testing a 12-volt refrigerator evaporator fan. By gathering the necessary tools, ensuring the refrigerator is unplugged and accessible, clearing the workspace, and familiarizing yourself with the refrigerator model, you can significantly reduce the risks associated with this task and increase the likelihood of a successful outcome.
Convert Your Freezer to a 12V Fridge: DIY Guide
You may want to see also
Explore related products
Removal: Carefully remove the evaporator fan from the refrigerator. Consult the user manual for specific steps
To safely and effectively remove the evaporator fan from a refrigerator, it is crucial to follow the manufacturer's guidelines. These steps ensure that the fan is removed without causing damage to the refrigerator or the fan itself. The user manual typically provides detailed instructions tailored to the specific model of the refrigerator. It is important to consult this manual to understand the exact procedure for removal.
Before beginning the removal process, ensure that the refrigerator is unplugged and that all contents have been removed. This precaution helps prevent any electrical hazards and makes the process of accessing the evaporator fan easier. The evaporator fan is usually located at the back of the refrigerator, behind the evaporator coils. Depending on the model, there may be a cover or panel that needs to be removed to access the fan.
Carefully follow the steps outlined in the user manual to detach the fan from its housing. This may involve removing screws or clips that secure the fan in place. Be gentle during this process to avoid damaging the fan blades or the motor. Once the fan is detached, it can be carefully pulled out of the refrigerator.
After removing the evaporator fan, it is essential to handle it with care. The fan blades can be fragile, and the motor is sensitive to impacts. If the fan is being removed for testing or replacement, ensure that it is placed on a soft surface to prevent any damage.
In summary, removing the evaporator fan from a refrigerator requires attention to detail and adherence to the manufacturer's instructions. By following these steps carefully, one can ensure that the fan is removed safely and without causing any damage to the refrigerator or the fan itself.
How Refrigerators Work: Conduction, Convection, or Radiation Explained
You may want to see also
Explore related products
Inspection: Examine the fan blades and motor for damage or debris. Clean if necessary
Begin the inspection process by carefully examining the fan blades for any signs of damage or wear. Look for cracks, chips, or bends that could impede the fan's ability to operate efficiently. Additionally, check for any debris that may have accumulated on the blades, such as dust, dirt, or small objects. If any damage or debris is found, it is crucial to address it before proceeding with further testing.
Next, inspect the fan motor for any visible signs of damage or malfunction. Check for loose or frayed wires, burnt components, or any other abnormalities that could indicate a problem. Ensure that all electrical connections are secure and that there is no corrosion present. If the motor appears to be in good condition, proceed to the next step of the testing process.
Cleaning the fan blades and motor is an essential part of maintaining the refrigerator's efficiency. Use a soft brush or cloth to gently remove any dust or debris from the blades. For more stubborn dirt, a mild detergent solution can be used, but be sure to rinse thoroughly and dry the blades before reassembling. When cleaning the motor, use a soft brush to remove any dust or debris, and avoid using liquids to prevent damage to the electrical components.
After cleaning, reassemble the fan and ensure that all components are securely in place. Test the fan by connecting it to a 12-volt power source and observing its operation. Listen for any unusual noises or vibrations, and check that the fan is spinning at the correct speed. If the fan does not operate as expected, further troubleshooting may be necessary.
Regular inspection and maintenance of the refrigerator evaporator fan are crucial for ensuring the appliance's longevity and efficiency. By following these steps, you can identify and address potential issues before they become more serious problems. Remember to always unplug the refrigerator before performing any maintenance tasks to ensure your safety.
Refrigerating Uncooked Mussels: Safe Storage Time and Tips
You may want to see also
Explore related products
Testing: Use a multimeter to check for continuity and proper voltage. Ensure the fan spins freely
To test a 12-volt refrigerator evaporator fan, you'll need to use a multimeter to check for continuity and proper voltage. Continuity testing ensures that the electrical circuit is complete and that there are no breaks or interruptions. This is crucial because a broken circuit can prevent the fan from operating correctly. To perform a continuity test, set your multimeter to the continuity setting, usually denoted by a sound wave symbol. Touch the multimeter probes to each end of the fan's power cord. If the multimeter beeps, this indicates that there is continuity and the circuit is complete.
Next, you'll need to check for proper voltage. The fan should be receiving 12 volts of direct current (DC) from the refrigerator's power supply. Set your multimeter to the DC voltage setting, typically marked with a "V" and a straight line. Connect the positive probe to the positive terminal of the fan's power cord and the negative probe to the negative terminal. If the multimeter reads 12 volts, this indicates that the fan is receiving the correct voltage.
In addition to checking continuity and voltage, it's also important to ensure that the fan spins freely. A fan that is obstructed or seized can cause the refrigerator to overheat and lead to other problems. To test the fan's rotation, gently spin the blades with your fingers. The fan should rotate smoothly without any resistance or grinding noises. If the fan does not spin freely, it may need to be cleaned or replaced.
When testing the fan, it's important to remember to unplug the refrigerator from the power source to avoid any risk of electric shock. Additionally, be sure to handle the fan and its components with care to avoid damaging them. By following these steps, you can ensure that your refrigerator evaporator fan is functioning properly and efficiently.
Should Kirkland Irish Cream Be Refrigerated? Storage Tips Revealed
You may want to see also
Explore related products
Reinstallation: Once testing is complete, securely reinstall the evaporator fan. Plug in the refrigerator and monitor performance
After thoroughly testing the 12-volt refrigerator evaporator fan, it's crucial to ensure a secure and proper reinstallation. Begin by carefully aligning the fan with its designated mounting area within the refrigerator. Use the appropriate tools to fasten the fan securely, ensuring that all screws or bolts are tightened to the manufacturer's specifications. It's essential to avoid overtightening, as this can damage the fan or the mounting bracket.
Once the fan is securely in place, reconnect any electrical connections that were disconnected during the testing process. Double-check that all wires are properly matched and securely fastened to prevent any electrical issues. If the fan has a protective cover or shroud, make sure it is correctly positioned and secured to allow for optimal airflow.
With the fan reinstalled, plug in the refrigerator and turn it on. Monitor the performance of the fan by listening for any unusual noises or vibrations. Check that the fan is spinning smoothly and that there is adequate airflow within the refrigerator. If any issues are detected, unplug the refrigerator immediately and recheck the installation process.
It's also important to monitor the temperature within the refrigerator to ensure that it is maintaining the desired level. If the temperature is not dropping as expected, it may indicate a problem with the fan or another component of the refrigerator's cooling system. In such cases, further troubleshooting or professional assistance may be necessary.
Regular maintenance and monitoring of the refrigerator's performance can help prevent future issues and ensure the longevity of the appliance. Keep a record of any maintenance or repairs performed, including the date and details of the work done. This can be helpful for future reference and may be required for warranty purposes.
