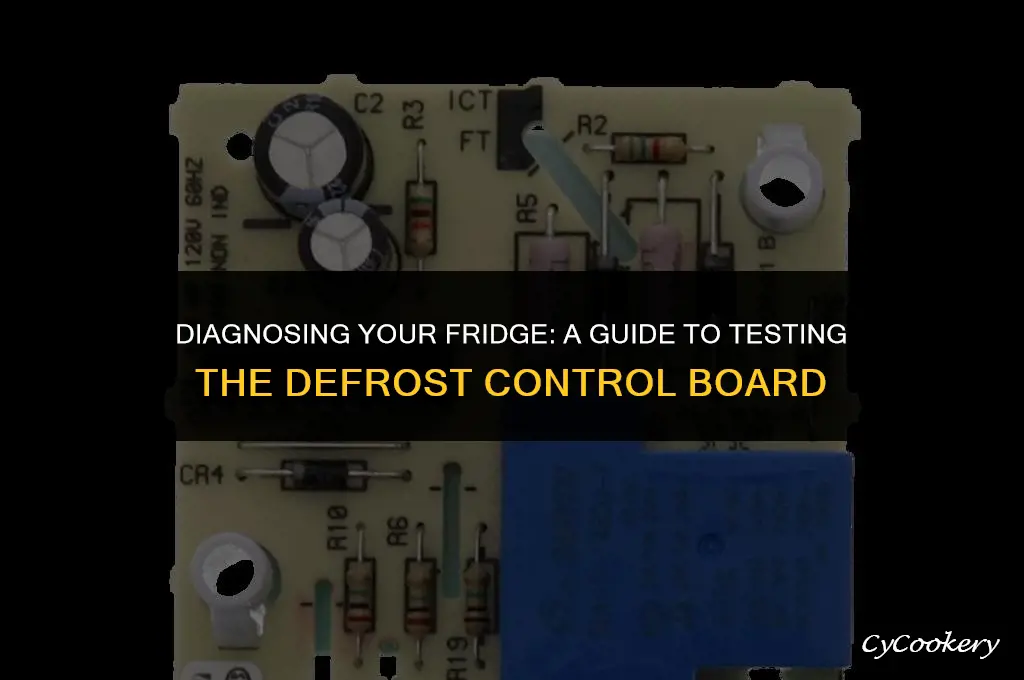

Testing a refrigerator defrost control board is a crucial step in diagnosing and resolving issues related to the defrost cycle of your appliance. The defrost control board is responsible for managing the defrost process, ensuring that the refrigerator's freezer section remains free of ice buildup. To test the control board, you'll need to follow a series of steps that involve checking its electrical connections, verifying its power supply, and using a multimeter to measure its continuity and resistance. This process requires attention to detail and a basic understanding of electrical components. By following the steps outlined in this guide, you can effectively test your refrigerator's defrost control board and identify any potential problems that may be affecting its performance.
| Characteristics | Values |
|---|---|
| Purpose | To ensure the defrost control board is functioning correctly, regulating the defrost cycle of the refrigerator. |
| Tools Required | Multimeter, screwdriver, gloves, safety glasses. |
| Safety Precautions | Unplug the refrigerator before testing, wear gloves and safety glasses. |
| Location of Control Board | Typically found in the back panel of the refrigerator, near the compressor. |
| Visual Inspection | Check for any signs of damage, corrosion, or burnt components on the board. |
| Electrical Test | Use a multimeter to test for continuity and resistance in the board's circuits. |
| Voltage Check | Ensure the board is receiving the correct voltage from the refrigerator's power supply. |
| Component Testing | Test individual components like capacitors, resistors, and transistors for proper functionality. |
| Defrost Cycle Monitoring | Observe the defrost cycle to ensure it's operating as expected, with the defrost light turning on and off. |
| Temperature Verification | Check that the refrigerator and freezer temperatures are within the correct range during and after defrosting. |
| Error Codes | Look for any error codes displayed on the refrigerator's control panel that could indicate issues with the defrost board. |
| Replacement | If the board is faulty, replace it with a compatible model specific to the refrigerator brand and model. |
| Reassembly | After testing or replacement, reassemble the back panel and ensure all connections are secure. |
| Final Check | Plug in the refrigerator and monitor its operation for a complete cycle to ensure the defrost board is functioning correctly. |
| Maintenance Tips | Regularly clean the condenser coils and ensure proper airflow around the refrigerator to prevent overheating and potential damage to the defrost board. |
Explore related products
What You'll Learn
- Safety Precautions: Ensure power is off and unplugged before testing to avoid electrical hazards
- Tools Required: Gather necessary tools such as a multimeter, screwdriver, and electrical tape
- Accessing the Board: Locate and remove the back panel or cover to access the defrost control board
- Testing Continuity: Use a multimeter to test for continuity between the board and its components
- Checking Voltage: Measure the voltage supply to the board to ensure it's within the specified range
Safety Precautions: Ensure power is off and unplugged before testing to avoid electrical hazards
Before attempting to test a refrigerator defrost control board, it is crucial to prioritize safety. Electrical hazards pose a significant risk when dealing with appliances, and refrigerators are no exception. To mitigate these risks, always ensure that the power to the refrigerator is completely off and the unit is unplugged from the electrical outlet before commencing any testing procedures.
One might wonder why such stringent safety measures are necessary. The reason lies in the potential dangers associated with electrical components. Refrigerators contain high-voltage parts that can deliver a severe electric shock if touched or mishandled while powered. Additionally, the defrost control board itself may have stored electrical energy, even when the refrigerator is turned off. By unplugging the refrigerator, you eliminate the risk of accidental electrocution and create a safe working environment.
To further enhance safety, it is advisable to use insulated tools when testing the defrost control board. This includes voltage testers, multimeters, and any other equipment that may come into contact with electrical components. Insulated tools provide an extra layer of protection against electrical shocks, reducing the likelihood of accidents.
Another important safety consideration is to work in a well-lit, dry area. Poor lighting can lead to mistakes and accidents, while moisture can conduct electricity and increase the risk of electrocution. Ensure that your workspace is clean, dry, and adequately illuminated to minimize potential hazards.
In summary, when testing a refrigerator defrost control board, safety should always be the top priority. By following these precautions – ensuring the power is off and unplugged, using insulated tools, and working in a well-lit, dry area – you can significantly reduce the risk of electrical hazards and create a safe environment for conducting your tests.
