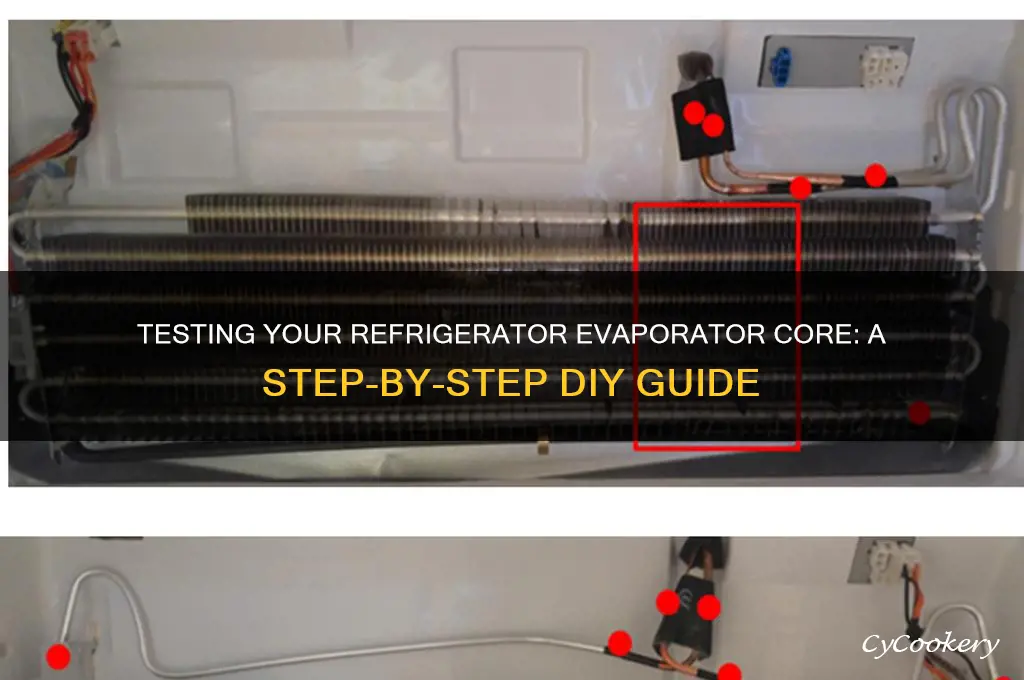

Testing a refrigerator evaporator core is essential for diagnosing cooling issues and ensuring optimal performance. The evaporator core is a critical component responsible for absorbing heat from the refrigerator’s interior, and malfunctions can lead to insufficient cooling or frost buildup. To test it, start by unplugging the refrigerator and locating the evaporator, typically found behind a panel in the freezer compartment. Use a multimeter to check for continuity across the evaporator coils; a lack of continuity indicates a damaged coil. Additionally, inspect for ice accumulation, which may suggest a defrost system issue, and ensure proper airflow around the core. If the evaporator appears damaged or fails the continuity test, it likely needs replacement to restore efficient cooling.
| Characteristics | Values |
|---|---|
| Visual Inspection | Check for frost buildup, ice accumulation, or physical damage. |
| Temperature Testing | Use a thermometer to measure evaporator coil temperature (should be below freezing, typically 0°F to 10°F). |
| Airflow Check | Ensure proper airflow around the evaporator core; blocked airflow indicates issues. |
| Frost Pattern Analysis | Even frost distribution is normal; uneven frost suggests airflow or refrigerant problems. |
| Refrigerant Leak Test | Use a leak detector or soap solution to check for refrigerant leaks near the evaporator. |
| Fan Motor Functionality | Verify the evaporator fan motor is running; a faulty motor reduces cooling efficiency. |
| Defrost System Check | Test the defrost timer, heater, and thermostat for proper operation to prevent ice buildup. |
| Coil Cleanliness | Inspect for dirt, dust, or debris on the evaporator coils; clean if necessary. |
| Pressure Testing | Measure refrigerant pressure using gauges; low pressure may indicate a leak or undercharge. |
| Electrical Continuity | Test evaporator components (e.g., defrost heater) for continuity using a multimeter. |
| Thermistor/Sensor Testing | Check temperature sensors for accurate readings; replace if faulty. |
| Noise Assessment | Unusual noises (e.g., hissing, rattling) may indicate airflow issues or damage. |
| Odor Inspection | Strange odors could signal mold, mildew, or refrigerant leaks. |
| System Cycling | Observe if the refrigerator cycles on and off correctly; frequent cycling may indicate evaporator issues. |
| Professional Diagnosis | Consult a technician for advanced diagnostics (e.g., vacuum testing, dye injection). |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, safety gear, and ensure refrigerator is unplugged before starting
- Visual Inspection: Check for frost buildup, leaks, or damage on the evaporator core
- Temperature Testing: Use a thermometer to verify proper cooling around the evaporator
- Airflow Assessment: Inspect fan operation and ensure unobstructed airflow through the core
- Leak Detection: Test for refrigerant leaks using a leak detector or soap solution
Pre-Test Preparation: Gather tools, safety gear, and ensure refrigerator is unplugged before starting
Before attempting to test a refrigerator evaporator core, it’s critical to prioritize safety and efficiency by preparing your workspace and tools. Start by unplugging the refrigerator from the power source to eliminate the risk of electrical shock. This simple step is non-negotiable, as even a minor oversight can lead to hazardous situations. Treat this as the foundation of your pre-test preparation, ensuring the appliance is completely powered down before proceeding.
Next, gather the essential tools required for the task. You’ll need a multimeter to test electrical continuity, a flashlight for visibility in tight spaces, and a screwdriver set to access the evaporator core. Additionally, a soft brush or compressed air can help remove dust and debris that might interfere with your inspection. Organizing these tools beforehand streamlines the process, preventing unnecessary delays or repeated trips to your toolbox. Think of this as setting up a surgical tray—everything must be within reach for a smooth operation.
Safety gear is equally important in this process. Wear insulated gloves to protect against sharp edges and cold surfaces, as the evaporator core is often located in the freezer compartment. Safety goggles are also essential to shield your eyes from debris or accidental chemical exposure, especially if you’re working with cleaning agents. While these precautions may seem excessive, they are designed to mitigate risks in a confined, potentially hazardous environment.
Once your tools and safety gear are in place, take a moment to assess the refrigerator’s condition. Check for any visible signs of damage, such as frayed wires or leaks, which could complicate the testing process. If you notice anything unusual, address it before proceeding or consult a professional if the issue is beyond your expertise. This proactive approach ensures that your pre-test preparation is thorough and tailored to the specific needs of your appliance.
Finally, create a clear workspace by removing any obstructions around the refrigerator. This not only provides you with ample room to maneuver but also reduces the risk of accidents. Treat this step as the final checkpoint before diving into the testing process. With everything in order—tools, safety gear, and a secure environment—you’re now fully prepared to test the evaporator core effectively and safely.
