Emilie Meyer

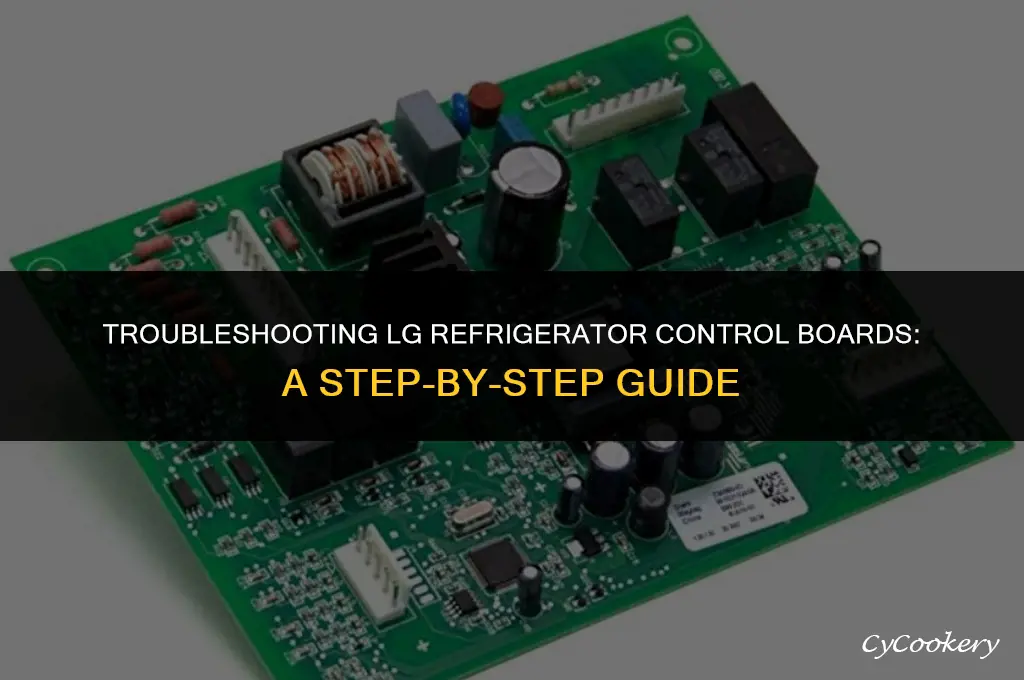

To test the control board on an LG refrigerator, you'll need to follow a series of steps to ensure the board is functioning correctly. First, unplug the refrigerator to avoid any electrical hazards. Then, locate the control board, which is typically found behind the display panel or inside the control panel compartment. Once you've accessed the control board, inspect it for any visible signs of damage or wear. Next, use a multimeter to test the continuity of the board's connections and components. If you're unsure about the specific testing procedure for your model, consult the LG refrigerator service manual for detailed instructions. Remember to always prioritize safety when working with electrical components.
Explore related products
What You'll Learn
- Power Supply Check: Ensure the control board receives proper voltage and current from the refrigerator's power source
- Visual Inspection: Look for signs of damage, burnt components, or loose connections on the control board
- Diagnostic Mode: Enter the refrigerator's diagnostic mode to check error codes related to the control board
- Component Testing: Use a multimeter to test individual components like resistors, capacitors, and transistors
- Firmware Update: Check if the control board's firmware needs updating and follow the manufacturer's instructions
Power Supply Check: Ensure the control board receives proper voltage and current from the refrigerator's power source
To perform a power supply check on an LG refrigerator's control board, begin by ensuring the refrigerator is unplugged from the power source. This is crucial for safety and to prevent any electrical damage during the testing process. Next, locate the control board, which is typically found inside the refrigerator, either in the freezer compartment or the main refrigerator section. It's usually a rectangular component with various wires and connectors attached.
Using a multimeter set to measure voltage, connect the probes to the power input terminals on the control board. The specific terminals will be labeled, but they are commonly marked as "L1" and "N" for the live and neutral wires, respectively. With the multimeter connected, plug the refrigerator back into the power source and turn it on. The multimeter should display the voltage reading, which should be within the specified range for your LG refrigerator model. This range is typically around 100-240 volts AC, depending on the model and region.
If the voltage reading is outside the specified range, it indicates a power supply issue that may be affecting the control board's performance. In this case, you should check the power outlet and the refrigerator's power cord for any signs of damage or wear. If the issue persists, it may be necessary to consult a professional technician to diagnose and repair the problem.
In addition to checking the voltage, it's also important to ensure that the control board is receiving the proper current. This can be done by measuring the current draw of the control board using the multimeter. The current draw should be within the specified range for your LG refrigerator model, which is typically around 1-3 amperes. If the current draw is outside this range, it may indicate a problem with the control board or the power supply.
Finally, after completing the power supply check, it's important to reconnect all components and test the refrigerator's operation. This includes checking the temperature settings, the compressor, and the fans to ensure that everything is functioning properly. If any issues are detected, further troubleshooting may be necessary to identify and resolve the problem.
Storing Your Fridge Outside in Winter: Unplugged and Safe?
You may want to see also
Explore related products
Visual Inspection: Look for signs of damage, burnt components, or loose connections on the control board
Begin by carefully examining the control board for any visible signs of damage. This includes checking for cracks, dents, or any other physical deformities that could indicate a problem. Pay close attention to the edges of the board, as these are common areas for damage to occur.
Next, inspect the components on the control board for any signs of burning or overheating. This can be indicated by discoloration, warping, or even melted plastic. Be sure to check the capacitors, resistors, and transistors, as these are common components that can fail in this way.
Loose connections can also cause problems with the control board. Check all of the connectors and wires to ensure they are securely attached. Look for any signs of corrosion or wear on the connectors, and make sure that the wires are not frayed or damaged.
When performing a visual inspection, it's important to be methodical and thorough. Start at one end of the control board and work your way to the other, checking each component and connection as you go. This will help ensure that you don't miss anything important.
If you find any signs of damage, burnt components, or loose connections, it's important to address these issues before proceeding with any further testing. In some cases, it may be necessary to replace the damaged components or repair the loose connections before the control board can be properly tested.
Should Black Olives Be Refrigerated? Storage Tips for Freshness
You may want to see also
Explore related products
Diagnostic Mode: Enter the refrigerator's diagnostic mode to check error codes related to the control board
To enter the diagnostic mode on an LG refrigerator, you must first locate the control panel. This is typically found on the front of the fridge, either at the top or bottom, depending on the model. Once you've located the control panel, look for a button or a combination of buttons that will allow you to access the diagnostic mode. This could be a dedicated 'Diagnostic' button, or it might require pressing and holding a specific button or buttons for a few seconds.
After entering the diagnostic mode, you will be presented with a series of error codes. These codes are specific to the control board and will help you identify any issues that may be present. It's important to note that not all error codes are indicative of a problem with the control board itself. Some codes may relate to other components of the refrigerator, such as the compressor or the defrost system.
To interpret the error codes, you will need to refer to the user manual for your specific LG refrigerator model. The manual will provide a list of error codes and their corresponding meanings. If you don't have access to the user manual, you can often find this information online by searching for your refrigerator model number and the error code you're experiencing.
Once you've identified the meaning of the error code, you can take the necessary steps to address the issue. This might involve resetting the control board, checking for loose connections, or replacing a faulty component. If you're unsure about how to proceed, it's always best to consult with a professional appliance technician.
Remember, when working with electrical components like the control board, it's crucial to unplug the refrigerator before attempting any repairs or diagnostics. This will help prevent electrical shock and ensure your safety during the process.
LG Refrigerator Condenser Coils Location: A Quick Guide to Finding Them
You may want to see also
Explore related products
Component Testing: Use a multimeter to test individual components like resistors, capacitors, and transistors
To effectively test individual components like resistors, capacitors, and transistors on an LG refrigerator control board, you'll need a multimeter. This versatile tool measures electrical properties such as voltage, current, and resistance, which are crucial for diagnosing component health. Begin by setting the multimeter to the appropriate function for the component you're testing. For resistors, select the resistance (ohms) function; for capacitors, choose the capacitance (farads) function; and for transistors, use the continuity test function.
Before proceeding, ensure the refrigerator is unplugged to avoid electrical shock. Remove the control board from the refrigerator, taking care to disconnect all wires and connectors. Locate the component you wish to test on the control board. For resistors, touch the multimeter probes to each end of the resistor. A reading within the expected range indicates a functioning resistor. If the reading is significantly higher or lower, or if the multimeter displays an "OL" (overload) message, the resistor may be faulty.
When testing capacitors, connect the multimeter probes to the capacitor terminals, observing the polarity. A functioning capacitor will show a reading within its specified range. If the reading is much lower or higher, or if the multimeter doesn't change, the capacitor could be defective. For transistors, use the continuity test function to check for internal shorts. Touch the probes to the transistor's terminals in various combinations. A continuous reading indicates a short circuit, suggesting the transistor is faulty.
During the testing process, be cautious not to damage the components or the control board. Avoid applying excessive force when connecting the multimeter probes, and ensure the probes are clean and free of debris. If you're unsure about the expected readings for a particular component, consult the refrigerator's service manual or an online resource for guidance.
By systematically testing each component using a multimeter, you can identify faulty parts and replace them as needed, restoring the control board to proper functioning. This methodical approach not only saves time but also helps prevent unnecessary replacements, ensuring your LG refrigerator operates efficiently and reliably.
Choosing the Perfect Refrigerator Size for Your Park Model Trailer
You may want to see also
Explore related products
Firmware Update: Check if the control board's firmware needs updating and follow the manufacturer's instructions
To determine if the control board's firmware needs updating, you'll need to access the refrigerator's settings menu. This is typically done by pressing and holding the 'Settings' button on the control panel for a few seconds. Once in the settings menu, navigate to the 'Firmware Update' option. Here, you can check the current firmware version and see if there are any updates available.
If an update is available, it's crucial to follow the manufacturer's instructions carefully. This may involve downloading the update file onto a USB drive and then inserting it into the refrigerator's USB port. Alternatively, some models may allow for updates to be downloaded directly through the refrigerator's Wi-Fi connection.
Before proceeding with the update, ensure that the refrigerator is connected to a stable power source to prevent any interruptions during the process. It's also advisable to remove any perishable items from the fridge and freezer compartments, as the update process may take some time and could potentially affect the internal temperature.
Once the update is complete, restart the refrigerator by unplugging it from the power outlet and waiting for a few minutes before plugging it back in. This will allow the new firmware to initialize properly. After the restart, check the settings menu again to confirm that the update has been successfully installed and that the control board is now running on the latest firmware version.
Remember, it's important to regularly check for firmware updates to ensure that your LG refrigerator is operating at its optimal performance and to take advantage of any new features or improvements that may be available.
Refrigerate or Not? The Best Way to Store Peppers for Freshness
You may want to see also
Frequently asked questions
To access the control board on your LG refrigerator, you will typically need to remove the back panel or the top cover, depending on the model. Refer to your user manual for specific instructions.
To test the control board, you will need a multimeter to check for continuity and voltage. Additionally, having a basic understanding of electrical circuits and safety precautions is crucial.
Common issues with the control board include faulty connections, blown fuses, damaged resistors or capacitors, and malfunctioning sensors. These can cause problems such as incorrect temperature readings, failure to cool, or erratic behavior.
To determine if the control board is the problem, you can start by checking the power supply to the board. If there is no power, the issue might be with the power cord or the outlet. If there is power but the board is not functioning correctly, you can use a multimeter to test for continuity and voltage at various points on the board.
If you are not confident in your ability to repair the control board, it is recommended to call a professional. Incorrect repairs can cause further damage to the refrigerator and potentially create safety hazards. However, if you have experience with electrical repairs and follow proper safety precautions, you can attempt to repair the control board yourself.
