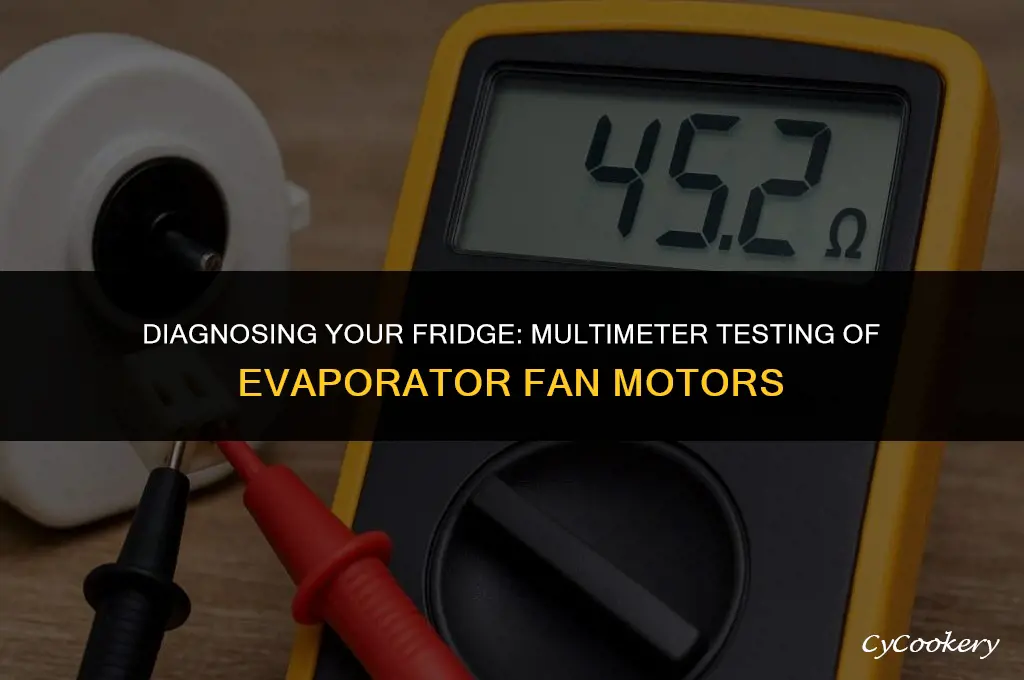

To test a refrigerator evaporator fan motor with a multimeter, you'll need to follow a series of steps to ensure the motor is functioning correctly. First, unplug the refrigerator to ensure safety. Then, locate the evaporator fan motor, which is typically found in the freezer compartment. Remove any protective covers or panels to access the motor. Next, set your multimeter to measure resistance (measured in ohms). Touch the multimeter probes to the motor's terminals, ensuring a good connection. A reading of zero ohms indicates a short circuit, while an infinite reading suggests an open circuit. If the resistance is within the manufacturer's specified range, the motor is likely functioning properly. However, if the resistance is significantly higher or lower than expected, it may indicate a problem with the motor. In such cases, it's best to consult the refrigerator's user manual or seek professional assistance.
Explore related products
What You'll Learn
- Safety Precautions: Ensure refrigerator is unplugged and capacitor is discharged before testing
- Accessing the Fan: Remove necessary panels and covers to access the evaporator fan motor
- Setting Up Multimeter: Configure multimeter to measure resistance, voltage, or current as required
- Testing Procedures: Follow specific steps to test fan motor windings, capacitor, and connections
- Interpreting Results: Understand readings to diagnose issues like bad windings or faulty capacitor
Safety Precautions: Ensure refrigerator is unplugged and capacitor is discharged before testing
Before attempting to test the refrigerator evaporator fan motor with a multimeter, it is crucial to prioritize safety. The first and foremost precaution is to ensure that the refrigerator is completely unplugged from the power source. This step is non-negotiable as it prevents any risk of electrical shock or short circuits during the testing process. Additionally, it is essential to discharge the capacitor, which stores electrical energy even when the appliance is unplugged. Failure to discharge the capacitor can result in a dangerous electrical discharge, potentially causing injury or damage to the multimeter.
To discharge the capacitor, locate it within the refrigerator's components, typically near the compressor or on the back of the unit. Use an insulated screwdriver to short-circuit the capacitor terminals, ensuring that you do not touch any live electrical parts. This process will safely dissipate the stored energy. Once the capacitor is discharged, you can proceed with testing the evaporator fan motor.
When testing the evaporator fan motor, it is important to use the correct multimeter settings. Set the multimeter to measure resistance (measured in ohms) and ensure that the test leads are properly connected to the motor terminals. If the motor is not functioning correctly, you may need to replace it. Always refer to the manufacturer's guidelines for specific testing procedures and safety recommendations.
In summary, safety should always be the top priority when testing the refrigerator evaporator fan motor with a multimeter. By following these precautions, you can minimize the risk of electrical hazards and ensure a safe and effective testing process.
Identifying a Full C Refrigerant System: Key Signs and Indicators
You may want to see also
Explore related products
Accessing the Fan: Remove necessary panels and covers to access the evaporator fan motor
To access the evaporator fan motor, you'll need to remove several panels and covers. Start by unplugging the refrigerator to ensure safety. Then, locate the access panel, typically found on the back or bottom of the fridge. Use a screwdriver to remove any screws securing the panel in place. Be cautious not to damage any components as you remove the panel.
Once the access panel is removed, you'll likely encounter additional covers or shields protecting the fan motor. These may be clipped or screwed in place. Gently pry or unscrew these covers to expose the fan motor. Take note of the arrangement of any wires or connectors attached to the motor, as you'll need to reconnect them properly after testing.
With the fan motor exposed, you can now proceed to test it using a multimeter. Set the multimeter to measure resistance and touch the probes to the motor's terminals. A reading of zero ohms indicates a short circuit, while a reading of infinity ohms suggests an open circuit. If the motor is functioning correctly, you should see a resistance value within the manufacturer's specified range, typically between 10 and 100 ohms.
After testing the motor, carefully reassemble the panels and covers, ensuring all connections are secure. Plug the refrigerator back in and allow it to cool for a few hours before checking its performance. If the motor is still not functioning properly, it may need to be replaced.
Should Perfect Bars Be Refrigerated? Storage Tips for Freshness
You may want to see also
Explore related products
Setting Up Multimeter: Configure multimeter to measure resistance, voltage, or current as required
To configure a multimeter for testing a refrigerator evaporator fan motor, you must first understand the different settings and their purposes. A multimeter can measure various electrical properties, including resistance, voltage, and current. For testing a fan motor, you will typically need to measure resistance and voltage. Resistance is measured in ohms (Ω), voltage in volts (V), and current in amperes (A).
Begin by setting the multimeter to the correct function. Turn the rotary switch to the resistance setting, usually denoted by an omega symbol (Ω). This will allow you to measure the resistance of the fan motor. Ensure that the test leads are connected to the correct terminals on the multimeter: the black lead should be connected to the common (COM) terminal, and the red lead to the resistance terminal.
Before testing the fan motor, it's crucial to ensure that the multimeter is properly calibrated. Check the zero reading on the resistance scale to confirm that the meter is accurate. If the zero reading is off, you may need to adjust the meter's calibration using the calibration screwdriver.
Once the multimeter is set up and calibrated, you can proceed to test the fan motor. Disconnect the motor from the refrigerator's power supply to avoid any electrical hazards. Touch the test leads to the motor's terminals, ensuring a firm connection. The multimeter should display the resistance reading of the motor. Compare this reading to the manufacturer's specifications to determine if the motor is functioning correctly.
If the resistance reading is significantly higher or lower than the specified value, it may indicate a problem with the motor. In such cases, further testing may be required, such as checking for voltage or current draw. Remember to always follow safety precautions when working with electrical components, and consult the refrigerator's user manual or a professional technician if you are unsure about any aspect of the testing process.
Understanding Refrigerator Size: Measuring in Cubic Feet Made Simple
You may want to see also
Explore related products
Testing Procedures: Follow specific steps to test fan motor windings, capacitor, and connections
To test the refrigerator evaporator fan motor with a multimeter, follow these specific steps to ensure accurate results. First, disconnect the power supply to the refrigerator to avoid any electrical hazards. Then, locate the evaporator fan motor, which is typically found at the back of the refrigerator, near the condenser coils.
Using a multimeter set to the ohms (Ω) setting, touch the probes to the terminals of the fan motor windings. The expected resistance reading will vary depending on the specific model of the refrigerator, but a typical range is between 10 and 30 ohms. If the reading is significantly higher or lower than this range, it may indicate a problem with the windings.
Next, test the capacitor by setting the multimeter to the farads (F) setting. Touch the probes to the terminals of the capacitor, and the reading should be within the range specified on the capacitor itself. If the reading is lower than the specified range, it may indicate a faulty capacitor.
Finally, inspect the connections between the fan motor, capacitor, and the refrigerator's control board. Ensure that all connections are secure and free of corrosion or damage. If any connections are loose or damaged, tighten or replace them as necessary.
By following these specific testing procedures, you can accurately diagnose any issues with the refrigerator evaporator fan motor, capacitor, and connections, and take the necessary steps to repair or replace them as needed.
Should Garlic Be Refrigerated? Storage Tips for Freshness and Flavor
You may want to see also
Explore related products
Interpreting Results: Understand readings to diagnose issues like bad windings or faulty capacitor
To interpret the results of your multimeter test on a refrigerator evaporator fan motor, you need to understand what the readings indicate. A bad winding or faulty capacitor will show distinct patterns on your multimeter. For instance, if you're testing the windings for continuity and your multimeter reads 'OL' (overload), this could indicate a short circuit within the windings. Conversely, if the multimeter shows a very low resistance reading, this might suggest an open circuit, meaning the windings are broken somewhere.
When checking the capacitor, a healthy one should show a slight increase in voltage as you hold the multimeter leads across its terminals. If the voltage doesn't increase or decreases rapidly, this could be a sign of a faulty capacitor. It's also important to note the expected voltage range for your specific refrigerator model, as this can vary.
In addition to these specific readings, it's crucial to consider the overall condition of the motor. If the motor is making unusual noises or is visibly damaged, these could be additional indicators of a problem. Always refer to your refrigerator's user manual for specific troubleshooting steps and expected readings, as different models can have varying specifications.
Remember, safety is paramount when working with electrical components. Ensure the refrigerator is unplugged before beginning any testing, and if you're unsure about interpreting the results, it's best to consult a professional technician.
Should You Refrigerate Marinara Sauce After Opening? Expert Tips
You may want to see also
Frequently asked questions
To test a refrigerator evaporator fan motor with a multimeter, you will need a multimeter set to the appropriate settings, a screwdriver to access the motor, and safety equipment such as gloves and safety glasses.
To access the evaporator fan motor, you will need to remove the back panel of the refrigerator. This typically involves unscrewing several screws and carefully pulling the panel off to expose the motor.
Set your multimeter to measure resistance (measured in ohms). The exact setting may vary depending on the multimeter, but it is usually indicated by an omega (Ω) symbol.
The expected resistance reading for a functioning evaporator fan motor varies depending on the model and manufacturer. Typically, it should be between 10 and 100 ohms. If the reading is significantly higher or lower, the motor may be faulty.
If your multimeter reading indicates a problem with the evaporator fan motor, you should first double-check your connections and settings. If the problem persists, it is likely that the motor is faulty and will need to be replaced. Consult your refrigerator's user manual or contact a professional technician for guidance on replacing the motor.
