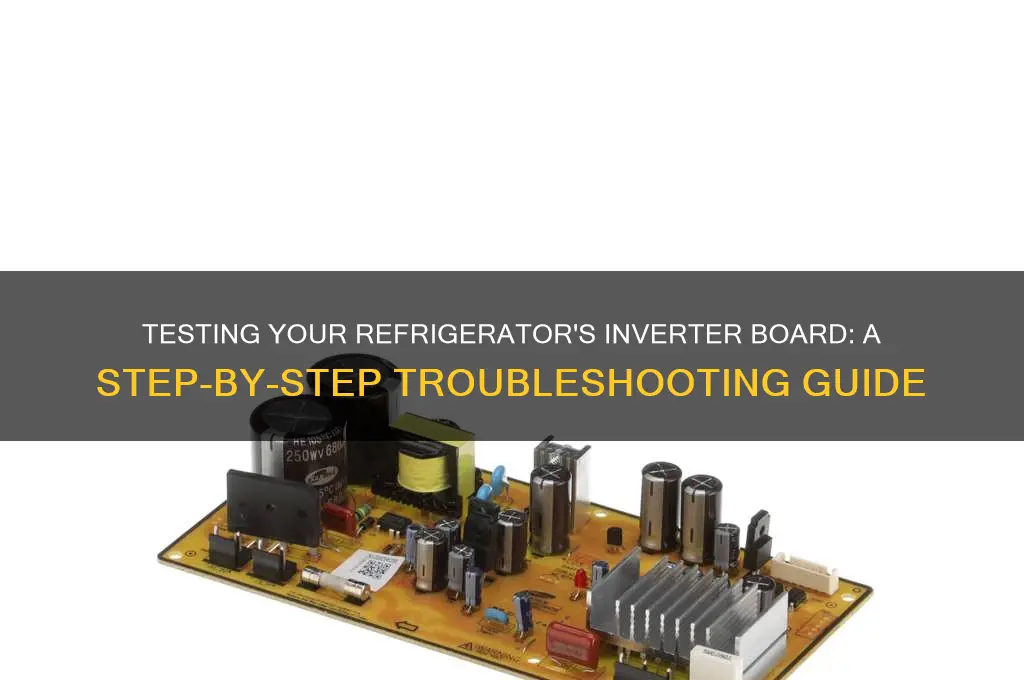

Testing the inverter board of a refrigerator is a crucial step in diagnosing and resolving issues related to temperature control, energy efficiency, or unusual noises. The inverter board regulates the compressor's speed, ensuring optimal cooling performance and energy consumption. To test it, start by unplugging the refrigerator and locating the inverter board, typically found near the compressor. Use a multimeter to check for continuity and voltage across key components like the capacitors, resistors, and transistors. Look for signs of physical damage, such as burnt marks or swollen components, which may indicate a faulty board. Additionally, verify the wiring connections for looseness or corrosion. If the multimeter readings deviate from the manufacturer’s specifications or if visual inspection reveals damage, the inverter board likely needs replacement. Always consult the refrigerator’s manual or a professional technician for accurate troubleshooting steps.
| Characteristics | Values |
|---|---|
| Purpose of Testing | Diagnose issues with the refrigerator's inverter board, which controls the compressor speed and overall cooling performance. |
| Tools Required | Multimeter, screwdriver, safety gloves, and potentially a replacement inverter board. |
| Safety Precautions | Unplug the refrigerator before testing to avoid electrical shock. |
| Symptoms of a Faulty Inverter Board | Refrigerator not cooling, compressor not running, unusual noises, or error codes displayed. |
| Visual Inspection | Check for burnt components, loose connections, or physical damage on the inverter board. |
| Power Supply Check | Verify input voltage to the inverter board using a multimeter (typically 120V or 240V depending on the model). |
| Output Voltage Check | Measure the output voltage from the inverter board to the compressor (usually variable frequency and voltage). |
| Continuity Test | Test for continuity in the inverter board's circuitry to identify open or short circuits. |
| Resistance Test | Check resistance values of components like resistors and transistors against the manufacturer's specifications. |
| Firmware/Software Check | Some advanced inverter boards may require firmware updates or diagnostic software checks. |
| Replacement | If the inverter board is faulty, replace it with a compatible model following the manufacturer's instructions. |
| Post-Replacement Testing | After replacement, test the refrigerator to ensure proper functioning and cooling performance. |
| Professional Assistance | If unsure or unable to diagnose/repair, consult a professional technician. |
Explore related products
![[WR87X29409 No Wire OEM Mania] WR87X29409 (Item Code: 519308348) Refrigerator Compressor Inverter Board Replaces AP6332922 WR55X26038 WR55X11099 WR55X11138 4864662 WR55X10855 WR55X20326 WR55X20752](https://m.media-amazon.com/images/I/61sv6bIDupL._AC_UL320_.jpg)
What You'll Learn
- Safety Precautions: Ensure power is disconnected before testing to prevent electrical hazards and personal injury
- Visual Inspection: Check for burnt components, loose connections, or physical damage on the inverter board
- Multimeter Testing: Use a multimeter to verify voltage, continuity, and resistance across key components
- Power Supply Check: Confirm the inverter board receives correct input voltage from the refrigerator’s power source
- Functionality Test: Monitor compressor operation and cooling performance after reconnecting the inverter board
Safety Precautions: Ensure power is disconnected before testing to prevent electrical hazards and personal injury
Before attempting any diagnostic or repair work on a refrigerator's inverter board, the first and most critical step is to disconnect the power supply. This action is not merely a precautionary measure but a fundamental safety protocol that can prevent severe electrical hazards and personal injury. The inverter board operates on high voltage, and even when the refrigerator appears to be off, residual electricity can still be present, posing a significant risk to anyone handling the components.
To ensure safety, locate the refrigerator’s power source and physically disconnect it. This can be done by unplugging the appliance from the wall outlet or switching off the dedicated circuit breaker in your electrical panel. For added caution, consider using a non-contact voltage tester to confirm that no power is flowing to the unit. This simple tool can detect live electricity without requiring direct contact with wires, providing an extra layer of assurance.
Once the power is confirmed to be off, proceed with testing the inverter board. However, even with the power disconnected, handle the board and surrounding components with care. Capacitors on the inverter board can store electrical charge, so discharge them using an insulated screwdriver with a grounded metal blade before touching any part of the circuit. This step further minimizes the risk of electrical shock.
It’s also essential to work in a well-lit, dry area to avoid accidental slips or missteps that could lead to injury. Wear insulated gloves and use tools with insulated handles to provide an additional barrier against potential electrical contact. By adhering to these safety precautions, you not only protect yourself but also ensure a more controlled and accurate testing process.
Finally, if you’re unsure about any step or feel uncomfortable handling electrical components, consult a professional technician. While DIY repairs can be cost-effective, the risks associated with high-voltage systems are not worth compromising your safety. Remember, the goal is to diagnose and fix the issue, but never at the expense of personal well-being.
Should You Refrigerate Dates? Storage Tips for Freshness and Flavor
You may want to see also
Explore related products
![[W10449006 Inverter OEM Mania] W10449006 (Item Code:519306306) New OEM Produced for Whirlpool Refrigerator Inverter Board VCC3 1156 09 B 01 Replacement Part 4446958 AP6021557 PS11754881 EAP11754881](https://m.media-amazon.com/images/I/61DWmmg-WqL._AC_UL320_.jpg)
![[What's Up?] WR87X29409 Refrigerator Compressor Inverter Board- GE Compatiblel, Part Number: WR87X29409/Code:519308519 (Replace WR55X26038,WR55X11099,WR55X11138,WR55X10855,WR55X20326,WR55X20752)](https://m.media-amazon.com/images/I/71UrfdZBG4L._AC_UL320_.jpg)
Visual Inspection: Check for burnt components, loose connections, or physical damage on the inverter board
A visual inspection is often the first and most straightforward step in diagnosing issues with a refrigerator's inverter board. This initial assessment can reveal obvious problems such as burnt components, loose connections, or physical damage, which are common culprits behind inverter board failures. Armed with a flashlight and a basic understanding of what to look for, you can quickly narrow down potential issues before proceeding with more complex tests.
Begin by unplugging the refrigerator to ensure safety. Locate the inverter board, typically found near the compressor, and carefully remove the protective cover. Inspect the board for any signs of burning, such as blackened areas, melted solder, or a distinct burnt odor. Burnt components often indicate an electrical surge or overheating, which can render the board inoperable. If you spot any, note their location as these components may need replacement.
Next, examine the connections on the inverter board. Loose or corroded wires can disrupt the flow of electricity, causing the refrigerator to malfunction. Gently tug on each wire to check for firmness and look for signs of corrosion, such as green or white deposits. If connections appear loose or damaged, reseat the wires or clean the terminals with isopropyl alcohol and a soft brush. Ensure all connections are secure before reassembling the cover.
Physical damage, such as cracks or fractures on the board, should also be noted. These issues can result from impact or stress and may require professional repair or board replacement. While minor scratches are often harmless, significant damage can compromise the board’s functionality. If you’re unsure about the severity, consult a technician or compare the damage to online examples for guidance.
In conclusion, a thorough visual inspection is a critical step in troubleshooting a refrigerator’s inverter board. By systematically checking for burnt components, loose connections, and physical damage, you can identify and address common issues efficiently. This approach not only saves time but also provides a foundation for more advanced diagnostic procedures if needed.
Refrigerating Parboiled Potatoes: Best Practices for Storage and Safety
You may want to see also
Explore related products
Multimeter Testing: Use a multimeter to verify voltage, continuity, and resistance across key components
A multimeter is an indispensable tool for diagnosing issues with a refrigerator's inverter board, allowing you to measure voltage, check continuity, and test resistance across critical components. Begin by ensuring the refrigerator is unplugged to avoid electrical hazards. Set your multimeter to the appropriate range for each test—voltage measurements typically require a higher range, while resistance and continuity tests use lower settings. Start by testing the input voltage to the inverter board, usually supplied from the main control board. Place the multimeter probes on the input terminals, and compare the reading to the manufacturer’s specifications; a significant deviation indicates a power supply issue.
Next, verify continuity in the wiring harness connecting the inverter board to the compressor and fans. Disconnect the harness and use the multimeter’s continuity mode (often indicated by a diode symbol or beep sound) to check for unbroken circuits. If the multimeter fails to show continuity, the wiring may be damaged or disconnected, requiring repair or replacement. This step is crucial, as faulty wiring can mimic inverter board failure, leading to unnecessary part replacements.
Resistance testing is another vital diagnostic step, particularly for components like the compressor start relay or fan motors. Consult the refrigerator’s schematic diagram to identify the expected resistance values for these components. Place the multimeter probes across the component terminals and compare the reading to the specified range. For example, a compressor start relay typically measures between 5 and 20 ohms; a reading outside this range suggests the relay is defective. Always ensure the component is disconnected from power before testing to prevent damage to the multimeter or the component itself.
Practical tips can streamline the process: label wires and connectors before disconnecting them to avoid confusion during reassembly, and use a notebook to record multimeter readings for comparison against specifications. If you’re unsure about a component’s expected values, online forums or appliance repair manuals often provide detailed data. Remember, multimeter testing is a methodical process—rushing can lead to misinterpreted results or overlooked issues. By systematically verifying voltage, continuity, and resistance, you can pinpoint the root cause of inverter board malfunctions with precision.
Do Foodborne Viruses Survive in Your Refrigerator? The Chilling Truth
You may want to see also
Explore related products
![[WR87X29409 with 2 Jumper Wires] WR87X29409 (Item Code: 519308348) Refrigerator Compressor Inverter Board Replaces AP6332922 WR55X26038 WR55X11099 WR55X11138 4864662 WR55X10855 WR55X20326](https://m.media-amazon.com/images/I/61YK6VqoXcL._AC_UL320_.jpg)
![[W10133449 Inverter OEM Mania] (Item Code: 519306000) New OEM Produced for Whirpool Refrigerator Inverter Control Board VCC3 1156 09 A 52 Replacement 2209324 2221559 2223385 W10133449](https://m.media-amazon.com/images/I/614QtGDJPTL._AC_UL320_.jpg)
Power Supply Check: Confirm the inverter board receives correct input voltage from the refrigerator’s power source
A faulty inverter board can cripple your refrigerator, but before condemning the board itself, ensure it's receiving the correct power. Think of it like a car engine: even the most powerful engine won't run without fuel. Similarly, the inverter board needs the right voltage to function.
Diagnosing the Power Supply:
Begin by locating the inverter board, typically housed near the compressor. Most refrigerators operate on standard household voltage, usually 120V AC in North America. Using a multimeter set to AC voltage, carefully measure the voltage at the input terminals of the inverter board. Ensure the refrigerator is plugged into a working outlet and turned on. A reading significantly lower or higher than 120V indicates a problem with the power supply, not necessarily the inverter board itself.
Common culprits for incorrect voltage include faulty outlets, damaged power cords, or issues with the home's electrical system.
Beyond the Basics:
While voltage is crucial, consider other power supply factors. Fluctuations in voltage, even within the "normal" range, can stress the inverter board over time. If you suspect voltage instability, consult an electrician to investigate your home's wiring. Additionally, some refrigerators have built-in surge protectors. If these are damaged, they can restrict power flow to the inverter board.
Pro Tip: If you're unsure about electrical work, always consult a qualified technician.
The Takeaway:
Before replacing an inverter board, a simple power supply check can save you time and money. By verifying the correct input voltage, you can rule out a common culprit and focus your troubleshooting efforts effectively. Remember, a healthy power supply is the foundation for a functioning inverter board and, ultimately, a reliable refrigerator.
Best Outdoor Refrigerators: Durable, Weatherproof Options for Your Patio or Garage
You may want to see also
Explore related products
![[WR49X10283 Inverter OEM Mania] WR49X10283 (Item code: 519306299) NEW OEM Produced for GE Refrigerator Inverter Control with 2 JUMPER WIRES - AP5669522 PS6883663 2677747 WR55X10490](https://m.media-amazon.com/images/I/61B8+ax7bhL._AC_UL320_.jpg)
Functionality Test: Monitor compressor operation and cooling performance after reconnecting the inverter board
After reconnecting the inverter board in a refrigerator, the functionality test is critical to ensure the system operates as intended. Begin by observing the compressor’s behavior. A properly functioning compressor should start smoothly without unusual noises or vibrations. Use a multimeter to verify the voltage supply to the compressor, ensuring it matches the manufacturer’s specifications (typically 110–120V for residential units). If the compressor fails to start or runs intermittently, this could indicate a faulty inverter board or wiring issue.
Next, monitor the cooling performance by placing a thermometer inside the refrigerator compartment. Allow the unit to run for at least 30 minutes and record temperature readings every 10 minutes. A healthy system should reach the set temperature (usually 35–38°F) within 60–90 minutes. If the temperature stabilizes outside this range or fluctuates excessively, inspect the evaporator fan and door seals for obstructions or damage. Inadequate cooling despite normal compressor operation may suggest a refrigerant leak or blocked airflow.
To further assess performance, compare the refrigerator’s energy consumption before and after the inverter board reconnection. Use a plug-in power meter to measure wattage over a 24-hour period. A well-functioning inverter board should optimize energy usage, reducing wattage by 20–30% compared to older models. If consumption remains high, the board may not be regulating power efficiently, warranting further diagnostics or replacement.
Practical tips include testing during off-peak hours to minimize external temperature influences and ensuring the refrigerator is at least three-quarters full, as this improves thermal mass and stability. Additionally, avoid frequent door openings during the test period, as this can skew cooling performance results. By systematically evaluating compressor operation, cooling efficiency, and energy usage, this functionality test provides a comprehensive assessment of the inverter board’s effectiveness post-reconnection.
Does Jelly Expire? Shelf Life and Refrigeration Tips Explained
You may want to see also
Frequently asked questions
Common signs include the refrigerator not cooling properly, unusual noises from the compressor, the compressor not running at all, or error codes displayed on the control panel.
You can test the inverter board by checking for power input, inspecting for burnt components, using a multimeter to test voltage and continuity, or connecting it to a known working compressor to verify functionality.
Essential tools include a multimeter, screwdriver set, insulated gloves, and a power supply or test cord for the compressor.
If you have basic electrical knowledge and feel confident, you can replace the inverter board yourself. However, if you’re unsure or uncomfortable with the process, it’s best to call a professional technician to avoid further damage.
