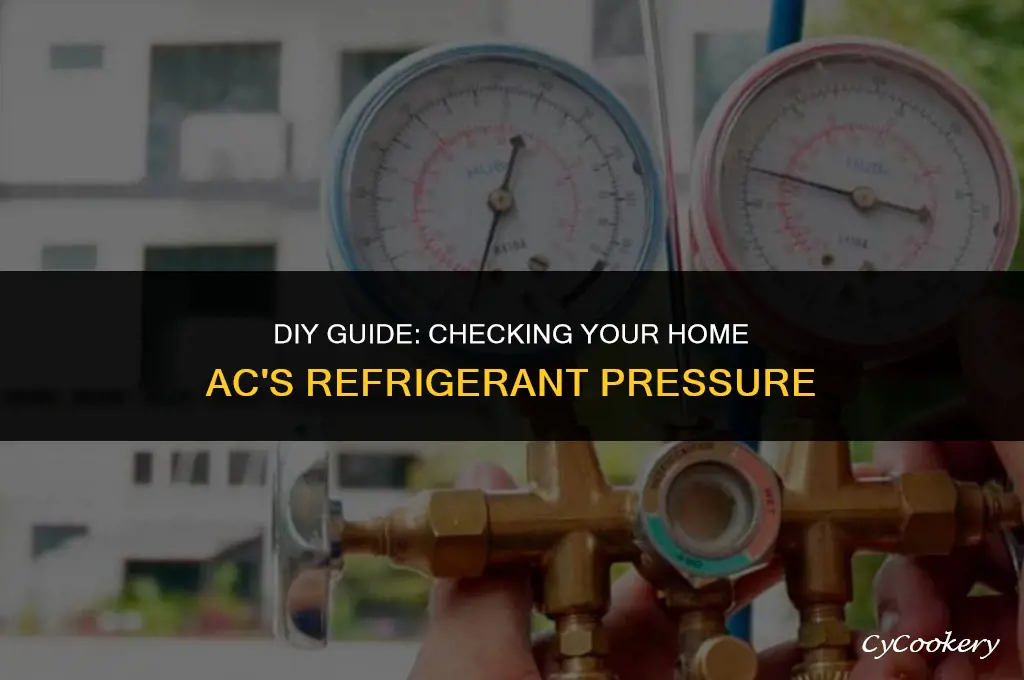

Testing your home AC refrigerant pressure is a crucial maintenance task to ensure your air conditioning system operates efficiently and effectively. Proper refrigerant levels are essential for the system to cool your home adequately while preventing potential damage to the compressor and other components. To perform this test, you'll need a few basic tools, including a refrigerant pressure gauge and a thermometer. First, locate the low-pressure side of your AC system, typically indicated by a blue line or label. Attach the pressure gauge to the low-pressure port and read the pressure. Compare this reading to the manufacturer's recommended pressure range for your specific AC model. If the pressure is too low, it may indicate a refrigerant leak, while high pressure could suggest overcharging or other issues. Additionally, check the temperature of the air coming out of the vents to ensure it's cool enough. If you're unsure about any part of this process, it's always best to consult a professional HVAC technician to avoid potential harm to your system or personal injury.
| Characteristics | Values |
|---|---|
| Purpose | To ensure optimal performance and efficiency of the home air conditioning system |
| Frequency | Annually or semi-annually, depending on usage and manufacturer recommendations |
| Tools Required | - Digital manifold gauge set - Refrigerant scale - HVAC gloves - Safety goggles |
| Safety Precautions | - Wear protective gear - Ensure system is powered off - Follow proper refrigerant handling procedures |
| Ideal Pressure Range | Typically between 60-80 psi for residential systems, but varies by model and refrigerant type |
| Low Pressure Indication | Below 60 psi, may indicate a refrigerant leak or undercharge |
| High Pressure Indication | Above 80 psi, may indicate an overcharge or blockage in the system |
| Refrigerant Types | Common types include R-22, R-410A, R-134A, each with specific pressure ranges |
| Environmental Impact | Improper refrigerant handling can contribute to ozone depletion and global warming |
| Professional Assistance | Recommended for complex systems or if unsure about the testing process |
| Cost | Varies depending on location, complexity of the system, and whether professional assistance is required |
| Time Commitment | Approximately 1-2 hours for a thorough test and inspection |
| Additional Maintenance | Regular filter changes, coil cleaning, and thermostat checks are also important for system efficiency |
| Troubleshooting | Identify and address any leaks, blockages, or component failures based on pressure readings |
| Record Keeping | Maintain records of pressure readings and any maintenance performed for future reference |
Explore related products
What You'll Learn
- Safety Precautions: Ensure you have the proper protective gear and follow safety guidelines to avoid injury
- Tools and Equipment: Gather necessary tools such as a refrigerant pressure gauge, wrenches, and gloves
- Accessing the AC Unit: Locate and open the access panel to the AC unit's refrigerant system
- Connecting the Pressure Gauge: Attach the refrigerant pressure gauge to the appropriate ports on the AC unit
- Interpreting Pressure Readings: Understand the normal pressure ranges and identify any abnormal readings that may indicate a problem
Safety Precautions: Ensure you have the proper protective gear and follow safety guidelines to avoid injury
Before attempting to test your home AC refrigerant pressure, it is crucial to prioritize safety. The refrigerant used in air conditioning systems can be hazardous if not handled properly, posing risks such as chemical burns, inhalation injuries, and environmental damage. To mitigate these dangers, always wear appropriate personal protective equipment (PPE) including gloves, safety goggles, and a face mask. Additionally, ensure the area is well-ventilated to prevent the accumulation of refrigerant fumes.
When working with refrigerant, it is essential to follow proper handling and disposal procedures. Refrigerant should never be released into the atmosphere, as it can contribute to ozone depletion and climate change. Instead, use a refrigerant recovery machine to safely extract and store the refrigerant. Always check the compatibility of the recovery machine with the type of refrigerant used in your AC system to avoid cross-contamination.
During the testing process, be aware of the potential for high-pressure systems to cause injury. Use a pressure gauge with a range appropriate for your AC system and ensure all connections are secure before beginning the test. If you are unsure about any aspect of the testing procedure, it is advisable to consult a professional HVAC technician rather than risking injury or damage to your system.
In addition to personal safety, it is important to consider the safety of your equipment. Improper testing or handling of refrigerant can lead to damage to your AC compressor, condenser, or other components. Always refer to the manufacturer's guidelines for your specific AC model and follow recommended maintenance schedules to ensure the longevity and efficiency of your system.
Finally, be mindful of local regulations regarding the handling and disposal of refrigerants. Many areas have strict guidelines and requirements for refrigerant management, and failure to comply can result in fines or other penalties. By taking the time to understand and follow these regulations, you can help protect both yourself and the environment while maintaining your home AC system.
Laying Down a Refrigerator: Risks, Myths, and Proper Handling Tips
You may want to see also
Explore related products
Tools and Equipment: Gather necessary tools such as a refrigerant pressure gauge, wrenches, and gloves
To accurately test your home AC refrigerant pressure, it's crucial to have the right tools and equipment on hand. A refrigerant pressure gauge is the primary tool needed for this task. This gauge will allow you to measure the pressure of the refrigerant in your AC system, which is essential for determining if there's a leak or if the system is operating within the optimal pressure range. When selecting a refrigerant pressure gauge, ensure it's compatible with the type of refrigerant used in your AC system, as different refrigerants require different gauges.
In addition to the refrigerant pressure gauge, you'll need a set of wrenches. These will be used to open the access ports on your AC system, which are typically located on the outdoor unit. The size of the wrenches needed will depend on the specific model of your AC unit, so it's a good idea to check your unit's manual or consult with a professional if you're unsure.
Gloves are another essential piece of equipment. When working with refrigerant, it's important to protect your skin from potential irritation or burns. Refrigerant can be extremely cold and may cause frostbite if it comes into contact with your skin. Therefore, wearing insulated gloves will help keep your hands safe during the testing process.
Other useful tools to have on hand include a flashlight for better visibility when working in tight spaces, a rag for cleaning any spills or condensation, and safety glasses to protect your eyes from any flying debris or refrigerant spray. It's also a good idea to have a notepad and pen ready to record your readings and any observations you make during the testing process.
Before beginning the testing process, ensure you've turned off the power to your AC unit at the circuit breaker. This is a critical safety step to prevent any electrical shocks or damage to your system. Once you've gathered all the necessary tools and equipment, you're ready to start testing your home AC refrigerant pressure.
Detecting Refrigerant Leaks: Effective Dye Methods for Quick Identification
You may want to see also
Explore related products
Accessing the AC Unit: Locate and open the access panel to the AC unit's refrigerant system
To access the AC unit's refrigerant system, you'll need to locate the access panel, which is typically found on the exterior of the unit. Start by turning off the AC unit at the thermostat to ensure safety. Then, carefully remove any debris or obstructions around the unit. The access panel is usually secured with screws or clips; gently remove these fasteners to open the panel. Be cautious not to damage any components inside.
Once the panel is open, you'll see various parts of the refrigerant system, including pipes, valves, and possibly the compressor. It's important to familiarize yourself with these components before proceeding with any testing or maintenance. If you're unsure about any part or procedure, it's best to consult the AC unit's manual or seek professional assistance.
When working with the refrigerant system, it's crucial to wear appropriate safety gear, such as gloves and safety glasses, to protect yourself from potential hazards. Additionally, ensure that the area around the AC unit is well-ventilated to prevent the accumulation of refrigerant fumes, which can be harmful if inhaled.
After accessing the refrigerant system, you can proceed with testing the pressure using a manifold gauge set. Connect the gauges to the low and high-pressure ports on the AC unit, and then turn on the AC unit at the thermostat. Allow the system to run for a few minutes to stabilize the pressures. The gauges will display the current refrigerant pressure levels, which you can compare to the recommended values for your specific AC unit model.
If the pressure readings are outside the recommended range, it may indicate a problem with the refrigerant system, such as a leak or overcharge. In this case, it's best to consult a professional HVAC technician to diagnose and address the issue. Remember to always follow proper safety procedures when working with refrigerant systems, and never attempt to recharge or repair the system without the necessary knowledge and equipment.
Cheese Preservation: Tips to Prevent Mold in the Fridge
You may want to see also
Explore related products
Connecting the Pressure Gauge: Attach the refrigerant pressure gauge to the appropriate ports on the AC unit
To accurately test your home AC refrigerant pressure, connecting the pressure gauge correctly is crucial. Begin by identifying the appropriate ports on your AC unit. Typically, there are two ports: one for the high-pressure side and one for the low-pressure side. The high-pressure port is usually located on the compressor or the condenser coil, while the low-pressure port is often found on the evaporator coil or near the expansion valve.
Once you've located the ports, ensure that the AC unit is turned off and unplugged for safety. Attach the refrigerant pressure gauge to the ports using the appropriate adapters or couplings. It's essential to connect the gauge to the correct port to avoid inaccurate readings or potential damage to the AC system.
After connecting the gauge, open the valve on the port to allow refrigerant to flow into the gauge. The gauge will display the pressure in either PSI (pounds per square inch) or bar. Compare the readings to the manufacturer's recommended pressure levels for your specific AC unit. If the pressure is too high or too low, it may indicate a problem with the system, such as a refrigerant leak or an issue with the compressor.
When testing the refrigerant pressure, it's important to consider the ambient temperature and the size of your AC unit. These factors can affect the optimal pressure levels. Additionally, always follow the manufacturer's guidelines and safety precautions when working with refrigerant, as it can be hazardous if not handled properly.
In summary, connecting the pressure gauge correctly is a critical step in testing your home AC refrigerant pressure. By following these steps and considering the specific factors that affect your AC unit, you can ensure accurate readings and maintain the efficiency and safety of your system.
RimWorld Refrigerator Placement: Does Floor Type Impact Efficiency?
You may want to see also
Explore related products
Interpreting Pressure Readings: Understand the normal pressure ranges and identify any abnormal readings that may indicate a problem
Interpreting pressure readings is a critical step in diagnosing the performance of your home AC system. Normal refrigerant pressure ranges vary depending on the type of refrigerant used and the specific conditions of your system. For example, R-22 refrigerant typically has a normal suction pressure range of 68-100 psi and a normal discharge pressure range of 180-250 psi. Understanding these ranges allows you to identify when something is amiss.
Abnormal pressure readings can indicate a variety of problems. Low suction pressure might suggest a refrigerant leak, while high suction pressure could point to an overcharge of refrigerant or a blockage in the system. Similarly, low discharge pressure might indicate a problem with the compressor or a restriction in the discharge line, whereas high discharge pressure could be a sign of a dirty condenser coil or a malfunctioning expansion valve.
To accurately interpret pressure readings, it's essential to have a good understanding of your AC system's components and how they interact. Familiarize yourself with the normal operating pressures for your specific system and keep a log of pressure readings over time. This will help you spot trends and potential issues before they become major problems.
When taking pressure readings, ensure that you're using the correct tools and techniques. Use a reliable pressure gauge and follow the manufacturer's instructions for connecting it to your AC system. Take readings at different points in the system, such as the suction line and the discharge line, to get a comprehensive picture of the system's performance.
Remember, safety should always be your top priority when working with AC systems. Refrigerants can be hazardous if not handled properly, so make sure you're wearing appropriate protective gear and following all safety guidelines. If you're unsure about how to interpret pressure readings or what actions to take based on your findings, it's always best to consult with a professional HVAC technician.
