Troubleshooting a Frigidaire refrigerator inverter board can be a critical step in resolving issues such as inconsistent cooling, unusual noises, or complete compressor failure. The inverter board is responsible for controlling the compressor's speed and efficiency, and malfunctions can stem from power supply issues, component failure, or wiring problems. To begin troubleshooting, ensure the refrigerator is unplugged for safety, then inspect the board for visible damage, loose connections, or burnt components. Testing the input and output voltages using a multimeter can help identify power supply irregularities. Additionally, checking the wiring harness and verifying the compressor’s functionality are essential steps. If the board appears faulty, consider replacing it with a compatible part, ensuring proper installation to restore optimal refrigerator performance. Always refer to the user manual or consult a professional technician for complex issues.
| Characteristics | Values |
|---|---|
| Common Symptoms | Refrigerator not cooling, compressor not running, unusual noises, error codes (e.g., "CF" or "SY EF"). |
| Tools Required | Multimeter, screwdriver, insulated gloves, safety goggles. |
| Safety Precautions | Unplug the refrigerator before troubleshooting, avoid contact with live wires. |
| Visual Inspection | Check for burnt components, loose connections, or physical damage on the inverter board. |
| Power Supply Check | Verify input voltage (120V AC) to the inverter board using a multimeter. |
| Output Voltage Test | Measure DC output voltage from the inverter board to ensure it matches specifications (typically 100-200V DC). |
| Continuity Test | Test for continuity in the inverter board's circuits to identify open or short circuits. |
| Error Code Diagnosis | Refer to the user manual or Frigidaire service manual to interpret error codes displayed on the refrigerator. |
| Compressor Connection | Ensure the compressor is properly connected to the inverter board and functioning. |
| Fan Motor Check | Verify the condenser and evaporator fan motors are operational, as faults can affect the inverter board. |
| Replacement | If the inverter board is faulty, replace it with a compatible Frigidaire part. |
| Professional Assistance | Consult a certified technician if troubleshooting steps do not resolve the issue. |
| Part Number Identification | Locate the part number on the inverter board to ensure correct replacement (e.g., 5304500596, 5304500597). |
| Warranty Check | Verify if the inverter board is under warranty before proceeding with repairs. |
| Preventive Maintenance | Regularly clean the condenser coils and ensure proper ventilation to prevent overheating. |
Explore related products

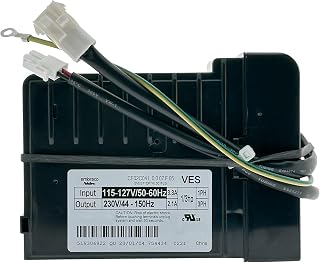

![[241577505 Inverter OEM Mania] 241577505 (Item code: 519306005=(519308521)) NEW OEM Produced for Electrolux Frigidaire Whirlpool Refrigerator Inverter Control Board VCC3 1156 QA F 06 Replacement Part](https://m.media-amazon.com/images/I/61hj-8w6sEL._AC_UL320_.jpg)
What You'll Learn
- Identify Common Symptoms: Unusual noises, inconsistent cooling, error codes, or sudden shutdowns indicate inverter board issues
- Test Power Supply: Ensure the board receives correct voltage using a multimeter to rule out power faults
- Inspect Components: Check for burnt resistors, capacitors, or loose connections on the inverter board
- Reset the Board: Disconnect power, wait 5 minutes, and reconnect to reset the inverter board
- Replace the Board: If diagnostics confirm failure, replace the inverter board with a compatible Frigidaire part
Identify Common Symptoms: Unusual noises, inconsistent cooling, error codes, or sudden shutdowns indicate inverter board issues
Unusual noises emanating from your Frigidaire refrigerator can be more than just an annoyance—they may signal a malfunctioning inverter board. This component, responsible for regulating power to the compressor, often produces a distinct humming or buzzing sound when failing. If the noise is intermittent or accompanied by a clicking sound, it’s a strong indicator that the inverter board is struggling to maintain consistent power flow. Pay attention to whether the noise occurs during specific cycles or at random intervals, as this can help pinpoint the issue.
Inconsistent cooling is another red flag that your inverter board may be compromised. The inverter board controls the compressor’s speed, ensuring your refrigerator maintains the correct temperature. If you notice that your fridge is too warm or too cold, or if the temperature fluctuates unpredictably, the board might not be delivering the right amount of power. Check if perishable items spoil faster than usual or if ice cream softens and refreezes, as these are practical signs of cooling irregularities tied to inverter board failure.
Error codes displayed on your refrigerator’s control panel are a direct communication tool for diagnosing inverter board issues. Common error codes like "SY EF" or "CF" often point to problems with the inverter or compressor. These codes are manufacturer-specific, so consult your Frigidaire manual or an online resource to decode them accurately. Ignoring these warnings can lead to further damage, so address them promptly by either resetting the system or seeking professional assistance.
Sudden shutdowns of your refrigerator are a critical symptom of inverter board failure. If your fridge powers off unexpectedly, especially during high-demand periods like hot weather, the inverter board may be overheating or unable to sustain power. This issue can also manifest as frequent cycling, where the compressor turns on and off rapidly. To mitigate this, ensure proper ventilation around the refrigerator and avoid overloading it with warm food items, which can strain the system.
By recognizing these symptoms—unusual noises, inconsistent cooling, error codes, and sudden shutdowns—you can take proactive steps to troubleshoot your Frigidaire refrigerator’s inverter board. Early detection not only prevents food spoilage but also saves you from costly repairs or replacements. Always prioritize safety by unplugging the appliance before inspecting the inverter board and consider consulting a technician for complex issues.
