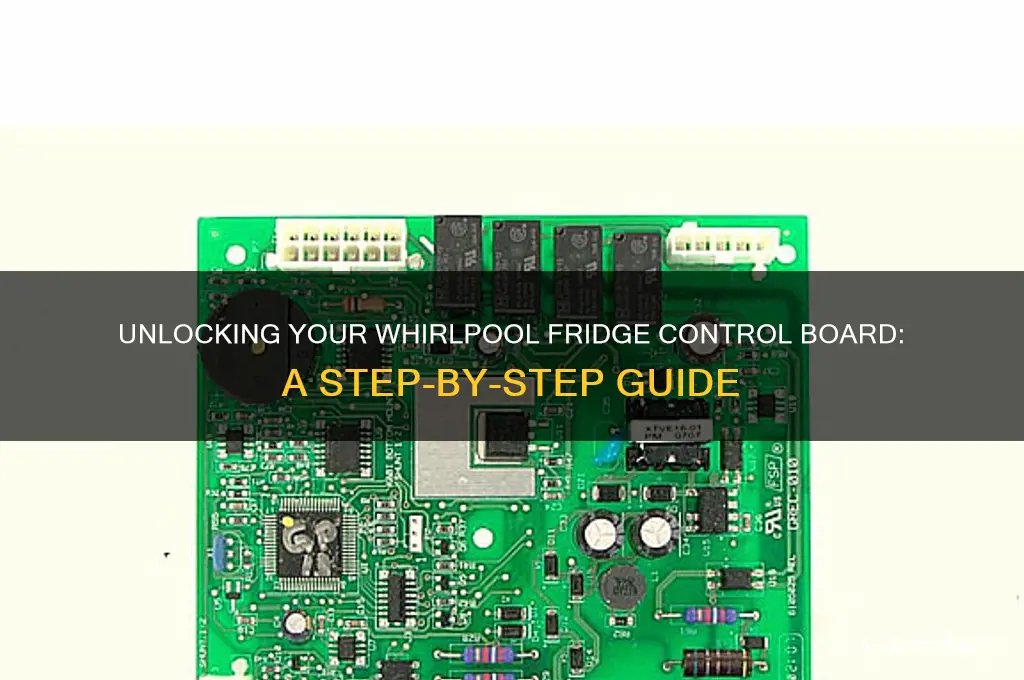

Unlocking the control board of a Whirlpool refrigerator is a task that may be necessary for troubleshooting, resetting, or accessing advanced settings. The process typically involves locating the control panel, which is usually found on the front or inside of the refrigerator, and identifying the specific model’s unlocking mechanism. Some models require pressing and holding a combination of buttons, such as the Lock or Control Lock button, for a few seconds, while others may have a dedicated unlock button or a sequence of actions to disable the lock feature. It’s essential to consult the refrigerator’s user manual for precise instructions, as methods can vary depending on the model. Unlocking the control board safely ensures you can adjust settings or address issues without causing damage to the appliance.
| Characteristics | Values |
|---|---|
| Unlock Method | Press and hold the "Lock" or "Control Lock" button for 3-5 seconds. |
| Location of Control Lock Button | Typically found on the display panel or control board of the fridge. |
| Alternative Unlock Method | Unplug the refrigerator for 30 seconds, then plug it back in. |
| Error Codes Related to Lock | None specific; check user manual for model-specific codes. |
| Tools Required | None (manual unlock) or a screwdriver (if panel removal is needed). |
| Safety Precautions | Ensure the refrigerator is unplugged before accessing internal components. |
| Common Issues | Control board malfunction, stuck buttons, or power surges. |
| Model Compatibility | Varies by Whirlpool model; consult the user manual for specifics. |
| Reset Procedure | Unplug the fridge for 1-2 minutes to reset the control board. |
| Professional Assistance | Recommended if manual unlock methods fail or for complex issues. |
| User Manual Reference | Always refer to the model-specific manual for accurate instructions. |
Explore related products
![[Upgraded] W10861519 Deli Drawer Hanger, Refrigerator Meat Drawer Shelf Holder for Whirlpool WRT148/WRT311/WRT318, Replaces W10628698, 4382323, AP5999492](https://m.media-amazon.com/images/I/418VSTrYGKL._AC_UY218_.jpg)
What You'll Learn
Accessing the Control Board Panel
The control board panel of a Whirlpool refrigerator is the brain of the appliance, managing temperature settings, defrost cycles, and other critical functions. Accessing this panel is the first step in troubleshooting or resetting the control board. Typically, the panel is located inside the refrigerator compartment, often at the top or along the side, concealed behind a plastic cover. Identifying its exact location is crucial, as it varies by model. Refer to your refrigerator’s user manual for precise details, or look for a seamless, removable panel near the temperature controls.
Once you’ve located the panel, the next step is to remove the cover safely. Start by powering down the refrigerator to avoid electrical hazards. Unplug the appliance or switch off the circuit breaker. Use a flathead screwdriver or a plastic pry tool to gently lift the edges of the cover. Apply even pressure to avoid cracking the plastic. Some models may have screws securing the cover, so keep a Phillips-head screwdriver handy. After removing the cover, you’ll expose the control board, which is usually a circuit board with wires and connectors.
Before proceeding further, it’s essential to understand the layout of the control board. Familiarize yourself with the components, such as the display module, control buttons, and wiring harnesses. Take note of any labels or markings, as these can guide you during troubleshooting or repairs. If you’re unsure about any part, take a photo for reference or consult online resources specific to your Whirlpool model. This preparatory step ensures you don’t accidentally disconnect or damage critical components.
After accessing the control board, proceed with caution. If your goal is to reset the board, locate the reset button (if available) or follow model-specific instructions for a manual reset. For repairs or replacements, ensure you have the correct tools and replacement parts. Always reconnect wires carefully, matching colors and positions to avoid malfunctions. Once your task is complete, reattach the panel cover securely, ensuring it snaps into place or screws are tightened properly. Power the refrigerator back on and verify that the control board functions as expected.
