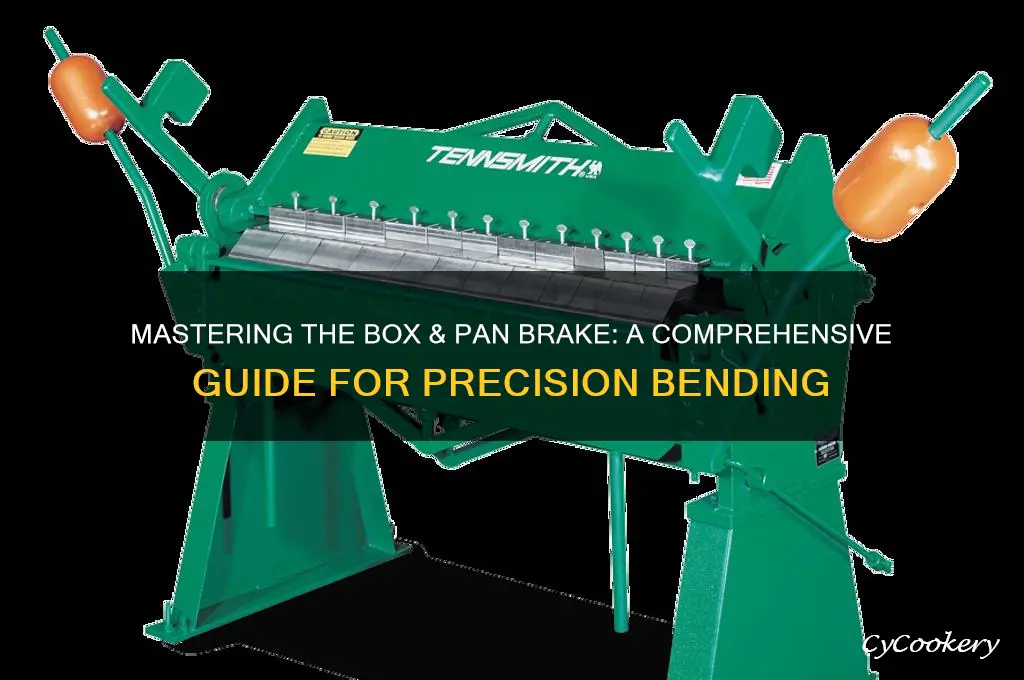

A box and pan brake is a versatile sheet metal bending tool used to create precise folds and boxes in various materials, making it essential for fabrication projects. To use a box and pan brake effectively, start by selecting the appropriate finger width and depth for your desired bend, ensuring the material thickness aligns with the machine's capabilities. Secure the sheet metal firmly against the bed and clamp it in place, then position the back gauge to set the bend length accurately. Gradually lower the handle or engage the power mechanism to press the metal into the desired angle, taking care to avoid overloading the machine. For complex shapes, such as boxes, use multiple bends and adjust the finger setup as needed. Always prioritize safety by wearing protective gear and ensuring the machine is properly maintained for consistent and reliable results.
Explore related products
What You'll Learn
- Machine Setup: Align brake, secure material, set back gauge, and adjust clamping pressure for precise bending
- Material Preparation: Measure, mark bend lines, and ensure material is clean and flat before bending
- Bending Techniques: Use finger spacing, air bending, and bottoming methods for accurate and consistent results
- Angle Adjustment: Set angle gauge, verify with a protractor, and adjust for material thickness and type
- Safety Practices: Wear PPE, avoid loose clothing, and keep hands clear of moving parts during operation
Machine Setup: Align brake, secure material, set back gauge, and adjust clamping pressure for precise bending
Before initiating the bending process on a box and pan brake, proper machine setup is crucial to ensure accurate and consistent results. The first step in this setup is to align the brake. This involves checking that the machine’s bed and clamping beam are perfectly parallel to each other. Misalignment can lead to uneven bends or material damage. Use a straightedge or a precision square to verify alignment, and adjust the machine’s leveling feet or shims as needed. Proper alignment ensures that the material will bend uniformly along the entire length of the brake.
Once the brake is aligned, the next step is to secure the material in place. Place the sheet metal on the bed of the brake, ensuring it is flat and free of any debris that could interfere with the bend. Position the material so that the bend line aligns precisely with the edge of the clamping beam. Many box and pan brakes have adjustable fingers or stops to help hold the material in place. Use these features to prevent the material from shifting during the bending process, which could result in inaccurate bends or damage to the workpiece.
After securing the material, set the back gauge to the desired measurement. The back gauge determines the depth of the bend by controlling how far the material extends beyond the clamping beam. Adjust the back gauge to the exact measurement required for your project, ensuring it is locked securely in place. Double-check the measurement with a ruler or caliper to avoid errors. Proper back gauge setup is essential for achieving the correct bend angle and consistency across multiple pieces.
Finally, adjust the clamping pressure to ensure the material is held firmly but not excessively. Too little pressure can cause the material to slip during bending, while too much pressure can mar or deform the workpiece. Most box and pan brakes have a pressure adjustment knob or lever. Test the pressure on a scrap piece of material to find the optimal setting. The goal is to apply enough pressure to hold the material securely without leaving marks or causing distortion. Once the clamping pressure is set, the machine is ready for precise bending operations.
Throughout the setup process, attention to detail is key. Each step—aligning the brake, securing the material, setting the back gauge, and adjusting the clamping pressure—contributes to the overall accuracy and quality of the bend. Taking the time to properly configure the machine ensures that the final product meets the required specifications and minimizes the risk of errors or material waste. With the machine correctly set up, you can proceed with confidence to execute precise bends on your box and pan brake.
Instructor Announcements: Tips, Tricks, and Instructions
You may want to see also
Explore related products
Material Preparation: Measure, mark bend lines, and ensure material is clean and flat before bending
Before you begin bending any material on a box and pan brake, proper preparation is key to achieving accurate and clean results. Start by measuring the material to the exact dimensions required for your project. Use a reliable measuring tool, such as a tape measure or ruler, and double-check your measurements to avoid errors. Precision at this stage ensures that the final piece fits as intended. Once measured, mark the bend lines clearly and accurately. A straightedge or ruler combined with a fine-tipped marker or scribe is ideal for this task. Ensure the lines are straight and sharp, as they will guide the bending process. If your project requires multiple bends, mark all lines before proceeding to maintain consistency.
Next, inspect the material for any imperfections, such as dents, scratches, or warping, that could affect the bend quality. Even minor flaws can cause the material to bend unevenly or weaken the final product. If necessary, flatten the material using a mallet or a surface planer to ensure it lies perfectly flat. This step is crucial, especially when working with thinner gauges of metal, as any curvature or unevenness will be amplified during bending.
Cleaning the material is another essential step in the preparation process. Remove any dirt, oil, grease, or debris from the surface, as these contaminants can interfere with the bending process and leave marks on the finished piece. Use a clean cloth or solvent-based cleaner suitable for the material type. For metals like aluminum or steel, a mild detergent solution or acetone can be effective. Ensure the material is completely dry before proceeding to avoid slipping or uneven bending.
Finally, align the material properly on the box and pan brake. Position the marked bend line precisely at the edge of the brake’s bending leaf. Double-check the alignment to ensure the bend will occur exactly where intended. Misalignment at this stage can result in inaccurate bends, wasting material and time. Once aligned, secure the material firmly in place, but avoid over-clamping, as excessive pressure can distort the material or leave marks. With the material measured, marked, cleaned, and aligned, you’re now ready to proceed with the bending process on the box and pan brake.
The Best Liquid to Deglaze Your Pan
You may want to see also
Explore related products
Bending Techniques: Use finger spacing, air bending, and bottoming methods for accurate and consistent results
When using a box and pan brake for bending sheet metal, mastering various bending techniques is crucial for achieving accurate and consistent results. One of the fundamental techniques is finger spacing, which involves adjusting the distance between the fingers of the brake to accommodate the desired bend length. Proper finger spacing ensures that the metal bends evenly without distortion. To implement this, measure the length of the bend and select the appropriate fingers, ensuring they are aligned and securely locked in place. For shorter bends, use fewer fingers, while longer bends require more fingers to distribute the force evenly. Always double-check the alignment before clamping the metal to avoid misalignment during the bending process.
Air bending is another essential technique that offers flexibility and precision. Unlike bottoming, air bending does not force the metal to touch the bottom of the V-die, allowing for a wider range of bend angles with a single tool set. To perform air bending, position the metal between the punch and die, ensuring it is centered and clamped securely. Apply pressure gradually, allowing the metal to bend freely in the air. The key to successful air bending is controlling the pressure and understanding the material's properties, as different metals have varying degrees of flexibility. This method is ideal for projects requiring multiple bend angles or when the exact angle is not critical.
For applications demanding high precision and consistency, the bottoming method is the go-to technique. Bottoming involves forcing the metal into the V-die until it touches the bottom, creating a precise bend angle. To execute this, select a die opening that matches the material thickness and desired bend angle. Secure the metal firmly and apply steady pressure until the bend is complete. Bottoming is best suited for thicker materials or when exact angles are required, as it minimizes variability. However, it requires a dedicated tool set for each specific angle and material thickness, making it less versatile than air bending.
Combining these techniques effectively requires practice and an understanding of the material's characteristics. For instance, softer metals like aluminum may require less force and are more forgiving with air bending, while harder metals like stainless steel may necessitate the precision of bottoming. Always start with a test piece to fine-tune your technique and ensure the brake is properly calibrated. Additionally, maintain consistent pressure and speed during bending to avoid inconsistencies. By mastering finger spacing, air bending, and bottoming, you can achieve professional-quality bends tailored to the specific demands of your project.
Finally, safety and maintenance play a vital role in consistent bending results. Always wear appropriate personal protective equipment, such as gloves and safety glasses, when operating a box and pan brake. Regularly inspect the machine for wear and tear, ensuring all components are in good condition. Keep the brake clean and lubricated to prevent friction-related issues. By adhering to these practices and honing your bending techniques, you can maximize the efficiency and accuracy of your box and pan brake, delivering precise and reliable results every time.
Cleaning the Freezer Drip Pan: A Step-by-Step Guide
You may want to see also
Explore related products
Angle Adjustment: Set angle gauge, verify with a protractor, and adjust for material thickness and type
When working with a box and pan brake, precise angle adjustment is crucial for achieving accurate bends in sheet metal. The process begins with setting the angle gauge, which is typically located on the brake’s bed or clamping bar. Start by loosening the gauge’s locking mechanism and aligning it to the desired angle. Common angles include 90 degrees for square bends or 45 degrees for triangular flanges. Ensure the gauge is securely locked in place once the correct angle is set. This initial step establishes the reference point for the bend, but it’s only the first part of the adjustment process.
After setting the angle gauge, verify the angle using a protractor to ensure accuracy. Place the protractor against the gauge and double-check that the reading matches the desired angle. Even a slight deviation can result in an incorrect bend, so take your time to confirm the measurement. If the protractor indicates an error, make small adjustments to the angle gauge until the correct angle is achieved. This verification step is essential, especially when working with critical or high-precision projects.
Once the angle gauge is set and verified, consider the material thickness and type, as these factors influence the final bend angle. Thicker materials or harder metals may spring back slightly after bending, resulting in an angle slightly less than the gauge setting. To compensate, adjust the angle gauge slightly beyond the desired angle to account for this springback. For example, if you need a 90-degree bend in thick stainless steel, you might set the gauge to 91 or 92 degrees. Refer to material-specific bending charts or conduct test bends to determine the appropriate adjustment.
Additionally, the type of material plays a role in angle adjustment. Softer materials like aluminum or thin mild steel may not require as much compensation for springback, while harder materials like stainless steel or galvanized steel will need more precise adjustments. Always factor in the material’s properties when fine-tuning the angle gauge. This ensures the final bend meets the required specifications without excessive trial and error.
Finally, after making adjustments for material thickness and type, perform a test bend on a scrap piece of the same material. Measure the resulting angle with a protractor to confirm it matches the desired angle. If the test bend is off, refine the angle gauge setting and repeat the process until the correct angle is achieved. This iterative approach ensures consistency and accuracy in your bends, making the angle adjustment process a critical skill in mastering the box and pan brake.
Free Roaming in Pan Crop: Vegas Pro Guide
You may want to see also
Explore related products
Safety Practices: Wear PPE, avoid loose clothing, and keep hands clear of moving parts during operation
When operating a box and pan brake, safety should always be your top priority. One of the fundamental safety practices is wearing appropriate Personal Protective Equipment (PPE). This includes safety glasses to protect your eyes from flying debris, metal shavings, or any other particles that may be generated during the bending process. Additionally, ear protection is recommended, especially in noisy environments, to prevent hearing damage over time. Gloves can also be useful, but ensure they are tight-fitting and do not compromise your grip or dexterity, as loose gloves can pose a risk of getting caught in the machine.
Another critical safety measure is to avoid wearing loose clothing, jewelry, or anything that could become entangled in the machine. Loose clothing, such as dangling sleeves or untucked shirts, can easily get caught in the moving parts of the box and pan brake, leading to serious injury. Similarly, remove necklaces, bracelets, or rings before operating the machine. Tie back long hair and secure any loose items that could pose a hazard. By minimizing the risk of entanglement, you significantly reduce the chances of accidents and ensure a safer working environment.
Keeping your hands clear of moving parts is essential when using a box and pan brake. The machine’s bending mechanism operates with considerable force, and placing your hands too close to the bending area can result in severe injuries. Always use the proper tools or clamps to hold the material in place instead of your hands. Familiarize yourself with the machine’s controls and ensure you understand how to stop it quickly in case of an emergency. Never attempt to adjust or manipulate the material while the machine is in motion.
Before starting any operation, inspect the box and pan brake for any signs of damage or wear. Ensure all guards and safety features are in place and functioning correctly. If you notice any issues, report them immediately and do not use the machine until it has been properly repaired. Regular maintenance and inspections are key to preventing malfunctions that could lead to accidents. Always follow the manufacturer’s guidelines and safety recommendations for your specific model of box and pan brake.
Lastly, maintain a clean and organized workspace. Clutter and debris around the machine can create tripping hazards and increase the risk of accidents. Properly store materials and tools when not in use, and ensure the area around the box and pan brake is well-lit and free from obstructions. By adhering to these safety practices—wearing PPE, avoiding loose clothing, keeping hands clear of moving parts, and maintaining a safe workspace—you can operate a box and pan brake with confidence and minimize the risk of injury.
Lasagna Pan Greasing: Best Options for Non-Stick Deliciousness
You may want to see also
Frequently asked questions
A box & pan brake is a sheet metal bending machine used to create precise bends, boxes, and pans in sheet metal. It is commonly used in HVAC, roofing, and fabrication industries for forming ducts, enclosures, and other metal components.
To set the bending angle, adjust the machine’s finger or leaf stops to the desired angle. Ensure the sheet metal is aligned properly, then clamp it securely. Slowly lower the handle or activate the machine to bend the metal to the preset angle. Always refer to the machine’s manual for specific instructions.
Always wear safety gloves and eye protection to prevent injuries from sharp metal edges. Ensure the machine is properly secured and the workpiece is clamped tightly before bending. Avoid placing hands near the bending area and keep the workspace clear of debris. Regularly inspect the machine for wear or damage before use.
